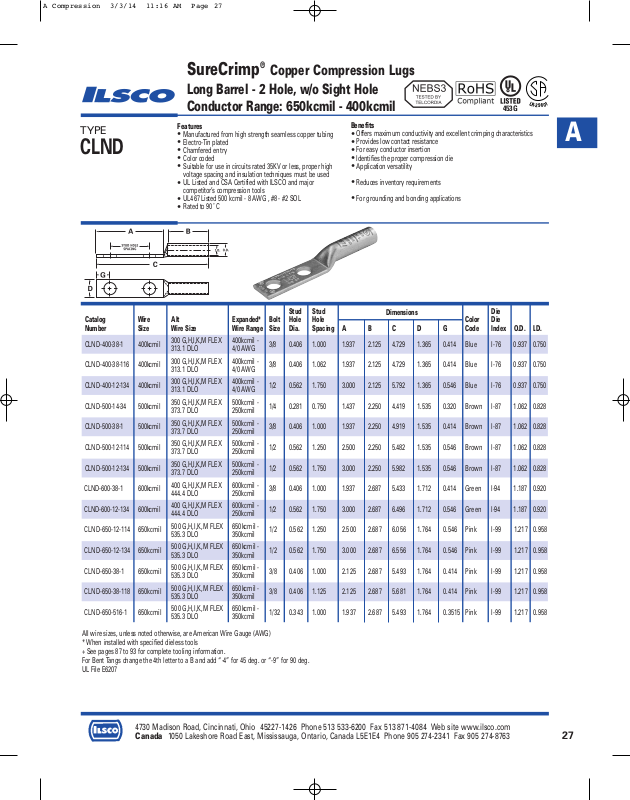

Ilsco CLND-500-12-134 Data sheet

SureCrimp
®
Long Barrel - 2 Hole, w/o Sight Hole Conductor Range: 650kcmil - 400kcmil
453G
L
1
R
0
-
2
6
9
TYPE
CLND
Catalog Wire Alt Expanded* Bolt Hole Hole Color Die Number Size Wire Size Wire Range Size Dia. Spacing A B C D G Code Index O.D. I.D.
CLND-400-38-1 400kcmil
CLND-400-38-116 400kcmil
CLND-400-12-134 400kcmil
CLND-500-14-34 500kcmil
CLND-500-38-1 500kcmil
CLND-500-12-114 500kcmil
CLND-500-12-134 500kcmil
CLND-600-38-1 600kcmil
CLND-600-12-134 600kcmil
CLND-650-12-114 650kcmil
CLND-650-12-134 650kcmil
CLND-650-38-1 650kcmil
CLND-650-38-118 650kcmil
CLND-650-516-1 650kcmil
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high
voltage spacing and insulation techniques must be used UL Listed and CSA Certified with ILSCO and major
competitor’s compression tools UL467 Listed 500 kcmil - 8 AWG , #8 - #2 SOL
Rated to 90˚ C
Stud Stud
300 G,H,I,K,M FLEX 400kcmil -
313.1 DLO 4/0 AWG
300 G,H,I,K,M FLEX 400kcmil -
313.1 DLO 4/0 AWG
300 G,H,I,K,M FLEX 400kcmil -
313.1 DLO 4/0 AWG
350 G,H,I,K,M FLEX 500kcmil -
373.7 DLO 250kcmil
350 G,H,I,K,M FLEX 500kcmil -
373.7 DLO 250kcmil
350 G,H,I,K,M FLEX 500kcmil -
373.7 DLO 250kcmil
350 G,H,I,K,M FLEX 500kcmil -
373.7 DLO 250kcmil
400 G,H,I,K,M FLEX 600kcmil -
444.4 DLO 250kcmil
400 G,H,I,K,M FLEX 600kcmil -
444.4 DLO 250kcmil
500 G,H,I,K,M FLEX 650kcmil -
535.3 DLO 350kcmil
500 G,H,I,K,M FLEX 650kcmil -
535.3 DLO 350kcmil
500 G,H,I,K,M FLEX 650kcmil -
535.3 DLO 350kcmil
500 G,H,I,K,M FLEX 650kcmil -
535.3 DLO 350kcmil
500 G,H,I,K,M FLEX 650kcmil -
535.3 DLO 350kcmil
3/8 0.406 1.000 1.937 2.125 4.729 1.365 0.414 Blue I-76 0.937 0.750
3/8 0.406 1.062 1.937 2.125 4.729 1.365 0.414 Blue I-76 0.937 0.750
1/2 0.562 1.750 3.000 2.125 5.792 1.365 0.546 Blue I-76 0.937 0.750
1/4 0.281 0.750 1.437 2.250 4.419 1.535 0.320 Brown I-87 1.062 0.828
3/8 0.406 1.000 1.937 2.250 4.919 1.535 0.414 Brown I-87 1.062 0.828
1/2 0.562 1.250 2.500 2.250 5.482 1.535 0.546 Brown I-87 1.062 0.828
1/2 0.562 1.750 3.000 2.250 5.982 1.535 0.546 Brown I-87 1.062 0.828
3/8 0.406 1.000 1.937 2.687 5.433 1.712 0.414 Green I-94 1.187 0.920
1/2 0.562 1.750 3.000 2.687 6.496 1.712 0.546 Green I-94 1.187 0.920
1/2 0.562 1.250 2.500 2.687 6.056 1.764 0.546 Pink I-99 1.217 0.958
1/2 0.562 1.750 3.000 2.687 6.556 1.764 0.546 Pink I-99 1.217 0.958
3/8 0.406 1.000 2.125 2.687 5.493 1.764 0.414 Pink I-99 1.217 0.958
3/8 0.406 1.125 2.125 2.687 5.681 1.764 0.414 Pink I-99 1.217 0.958
1/32 0.343 1.000 1.937 2.687 5.493 1.764 0.3515 Pink I-99 1.217 0.958
Benefits
Offers maximum conductivity and excellent crimping characteristics
Provides low contact resistance
For easy conductor insertion
Identifies the proper compression die
Application versatility
Reduces inventory requirements
For grounding and bonding applications
Dimensions
Die
A
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) * When installed with specified dieless tools + See pages 87 to 93 for complete tooling information. For Bent Tangs change the 4th letter to a B and add “-4” for 45 deg. or “-9” for 90 deg. UL File E6207
4730 Madison Road, Cincinnati, Ohio 45227-1426 Phone 513 533-6200 Fax 513 871-4084 Web site www.ilsco.com
Canada 1050 Lakeshore Road East, Mississauga, Ontario, Canada L5E1E4 Phone 905 274-2341 Fax 905 274-8763
27
