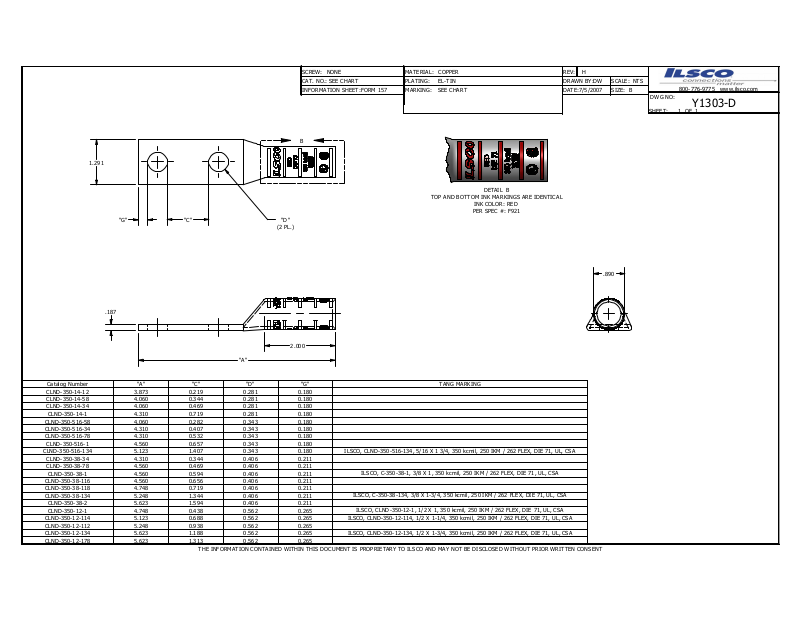

Ilsco CLND-350-38-134 Data sheet
1.291
SCREW: NONE
CAT. NO .:
SEE CH ART
INFORM ATION SHEET :
B
FORM 1 57
MATERIA L:
PLATING :
MARKI NG:
COPPER
EL-TIN DRAWN BY:
SEE CH ART
REV:
DATE:
H
7/5/2007
DW
SCALE: NTS
SIZE: B
800-77 6-9775 w ww.ilsc o.com
DWG N O:
SHEET: OF
1
Y1303-D
1
TOP AN D BOTT OM INK MARKIN GS ARE IDENTICA L
"G"
.187
Catalog Number
CLND-3 50-14-12 3.873 0.219 0.2 81 0.180
CLND-3 50-14-58 4.060 0.344 0.2 81 0.180
CLND-3 50-14-34 4.060 0.469 0.2 81 0.180
CLND-350- 14-1 4.310 0 .719 0.28 1 0.180
CLND-350- 516-5 8 4.060 0.2 82 0.343 0.180
CLND-350- 516-3 4 4.310 0.4 07 0.343 0.180
CLND-350- 516-7 8 4.310 0.5 32 0.343 0.180
CLND-3 50-516-1 4.560 0.657 0.3 43 0.180
CLND-3 50-516-1 34 5.123 1.4 07 0.343 0.180
CLND-3 50-38-34 4.310 0.344 0.4 06 0.211
CLND-3 50-38-78 4.560 0.469 0.4 06 0.211
CLND-350- 38-1 4.560 0 .594 0.40 6 0.211
CLND-350- 38-11 6 4.560 0.6 56 0.406 0.211
CLND-350- 38-11 8 4.748 0.7 19 0.406 0.211
CLND-350- 38-13 4 5.248 1.3 44 0.406 0.211
CLND-350- 38-2 5.623 1 .594 0.40 6 0.211
CLND-350- 12-1 4.748 0 .438 0.56 2 0.265
CLND-350- 12-11 4 5.123 0.6 88 0.562 0.265
CLND-350- 12-11 2 5.248 0.9 38 0.562 0.265
CLND-350- 12-13 4 5.623 1.1 88 0.562 0.265
CLND-350- 12-17 8 5.623 1.3 13 0.562 0.265
"A" "C" "D" "G" TANG MARKIN G
"C"
"A"
THE INF ORMATI ON CON TAINED WITHIN THIS D OCUMEN T IS PR OPRIET ARY TO ILSCO A ND MAY NOT BE DISCLO SED W ITHOUT PR IOR WR ITTEN CONSEN T
"D"
(2 PL.)
2.000
ILSCO , CLND-3 50-516-1 34, 5/1 6 X 1 3/4 , 350 k cmil, 250 IKM / 2 62 FLEX, DIE 71 , UL, CSA
ILSCO, C -350-38-1 , 3/8 X 1, 350 k cmil, 250 IKM / 262 FLE X, DIE 7 1, UL, CS A
ILSCO, C -350-38- 134, 3/8 X 1-3/ 4, 350 kcm il, 250 IKM / 262 FLEX, DIE 71 , UL, CSA
ILSCO, C LND-350 -12-1, 1 /2 X 1, 35 0 kcmi l, 250 IKM / 262 FLEX, DI E 71, UL , CSA
ILSCO, CLND-350 -12-114, 1/2 X 1-1/4, 35 0 kcmil, 250 IKM / 262 FL EX, DI E 71, UL , CSA
ILSCO, CLND-350 -12-134, 1/2 X 1-3/4, 35 0 kcmil, 250 IKM / 262 FL EX, DI E 71, UL , CSA
DETAIL B
INK COL OR: RE D
PER SPEC #: F9 21
.890
