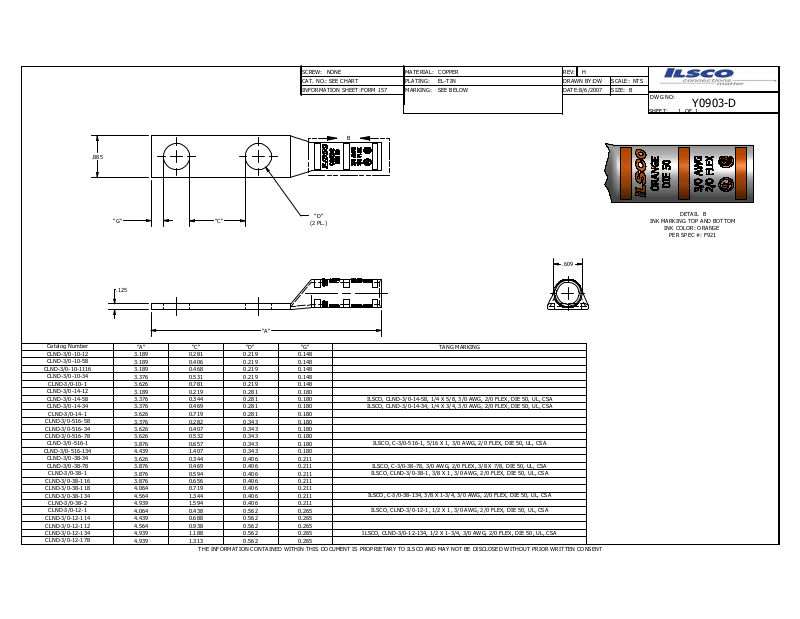

Ilsco CLND-3/0-12-1 Data sheet
.885
SCREW: NONE
CAT. NO .:
SEE CH ART
INFORM ATION SHEET:
B
FORM 1 57
MATERIA L:
PLATING :
MARKI NG:
COPPER
EL-TIN DRAWN BY:
SEE BEL OW
REV:
DATE:
H
8/6/2007
DW
SCALE: NTS
SIZE: B
DWG N O:
SHEET: OF
1
Y0903-D
1
Catalog Number
CLND-3 /0-10-12
CLND-3 /0-10-58
CLND-3 /0-10-111 6
CLND-3 /0-10-34
CLND-3/0- 10-1
CLND-3 /0-14-12
CLND-3 /0-14-58
CLND-3 /0-14-34
CLND-3/0- 14-1
CLND-3/0- 516-58
CLND-3/0- 516-34
CLND-3/0- 516-78
CLND-3 /0-516-1
CLND-3 /0-516-13 4
CLND-3 /0-38-34
CLND-3 /0-38-78
CLND-3/0- 38-1
CLND-3/0- 38-116
CLND-3/0- 38-118
CLND-3/0- 38-134
CLND-3/0- 38-2
CLND-3/0- 12-1
CLND-3/0- 12-114
CLND-3/0- 12-112
CLND-3/0- 12-134
CLND-3/0- 12-178
"G"
.125
"A"
3.189 0.281 0.219 0.148
3.189 0.406 0.219 0.148
3.189 0.468 0.219 0.148
3.376 0.531 0.219 0.148
3.626 0.781 0.219 0.148
3.189 0.219 0.281 0.180
3.376 0.344 0.281 0.180
3.376 0.469 0.281 0.180
3.626 0.719 0.281 0.180
3.376 0.282 0.343 0.180
3.626 0.407 0.343 0.180
3.626 0.532 0.343 0.180
3.876 0.657 0.343 0.180
4.439 1.407 0.343 0.180
3.626 0.344 0.406 0.211
3.876 0.469 0.406 0.211
3.876 0.594 0.406 0.211
3.876 0.656 0.406 0.211
4.064 0.719 0.406 0.211
4.564 1.344 0.406 0.211
4.939 1.594 0.406 0.211
4.064 0.438 0.562 0.265
4.439 0.688 0.562 0.265
4.564 0.938 0.562 0.265
4.939 1.188 0.562 0.265
4.939 1.313 0.562 0.265
"C"
"A"
"C"
THE INF ORMATIO N CONT AINED WI THIN THI S DOCU MENT IS P ROPRIET ARY TO I LSCO AN D MAY NO T BE DIS CLOSED W ITHOUT PRIOR WR ITTEN CONSENT
"D"
"D"
(2 PL.)
"G" TANG MA RKING
ILSCO, CLND-3/0 -14-58, 1/4 X 5/8, 3/0 AWG, 2/0 FLEX , DIE 50, UL, CSA
ILSCO, CLND-3/0 -14-34, 1/4 X 3/4, 3/0 AWG, 2/0 FLEX , DIE 50, UL, CSA
ILSCO, C -3/0-516- 1, 5/16 X 1, 3/0 AW G, 2/0 FL EX, DIE 50, UL, C SA
ILSCO, C-3/0-38-7 8, 3/0 AW G, 2/0 FL EX, 3/8 X 7/8, DIE 50, UL, CSA
ILSCO, C LND-3/0- 38-1, 3/8 X 1, 3/0 AW G, 2/0 FLEX, DI E 50, UL, CS A
ILSCO, C-3/0-38-1 34, 3/8 X 1-3/4, 3/0 AWG, 2/ 0 FLEX, DIE 50, U L, CSA
ILSCO, C LND-3/0- 12-1, 1/2 X 1, 3/0 AW G, 2/0 FLEX, DI E 50, UL, CS A
ILSCO, CLND-3/0- 12-134, 1/ 2 X 1-3 /4, 3/0 AW G, 2/0 FL EX, DIE 50 , UL, CS A
.609
DETAIL B
INK MA RKING TOP AND BOT TOM
INK COL OR: ORAN GE
PER SPEC #: F921
