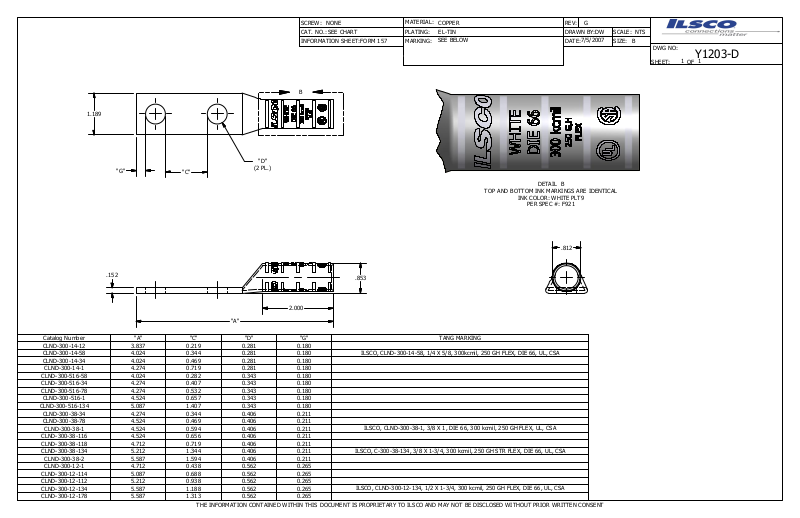

Ilsco CLND-300-38-134 Data sheet

1.189

"G"

"C"

"D"

(2 PL.)

SCREW: NONE

CAT. NO.:

INFORMATION SHEET:

B

SEE CHART

FORM 157

MATERIAL:

PLATING:

MARKING:

COPPER

EL-TIN DRAWN BY:

SEE BELOW

DETAIL B

TOP AND BOTTOM INK MARKINGS ARE IDENTICAL

INK COLOR: WHITE PLT9

PER SPEC #: F921

REV:

DATE:

G

7/5/2007

DW

SCALE: NTS

B

SIZE:

DWG NO:

SHEET: OF

1

Y1203-D

1

.152

2.000

"A"

Catalog Number
CLND-300-14-12 3.837 0.219 0.281 0.180
CLND-300-14-58 4.024 0.344 0.281 0.180
CLND-300-14-34 4.024 0.469 0.281 0.180

CLND-300-14-1 4.274 0.719 0.281 0.180
CLND-300-516-58 4.024 0.282 0.343 0.180
CLND-300-516-34 4.274 0.407 0.343 0.180
CLND-300-516-78 4.274 0.532 0.343 0.180

CLND-300-516-1 4.524 0.657 0.343 0.180

CLND-300-516-134 5.087 1.407 0.343 0.180

CLND-300-38-34 4.274 0.344 0.406 0.211
CLND-300-38-78 4.524 0.469 0.406 0.211

CLND-300-38-1 4.524 0.594 0.406 0.211
CLND-300-38-116 4.524 0.656 0.406 0.211
CLND-300-38-118 4.712 0.719 0.406 0.211
CLND-300-38-134 5.212 1.344 0.406 0.211

CLND-300-38-2 5.587 1.594 0.406 0.211

CLND-300-12-1 4.712 0.438 0.562 0.265
CLND-300-12-114 5.087 0.688 0.562 0.265
CLND-300-12-112 5.212 0.938 0.562 0.265
CLND-300-12-134 5.587 1.188 0.562 0.265
CLND-300-12-178 5.587 1.313 0.562 0.265

"A"

"C"

THE INFORMATION CONTAINED WITHIN THIS DOCUMENT IS PROPRIETARY TO ILSCO AND MAY NOT BE DISCLOSED WITHOUT PRIOR WRITTEN CONSENT

"D"

"G" TANG MARKING

.853

ILSCO, CLND-300-14-58, 1/4 X 5/8, 300kcmil, 250 GH FLEX, DIE 66, UL, CSA

ILSCO, CLND-300-38-1, 3/8 X 1, DIE 66, 300 kcmil, 250 GH FLEX, UL, CSA

ILSCO, C-300-38-134, 3/8 X 1-3/4, 300 kcmil, 250 GH STR FLEX, DIE 66, UL, CSA

ILSCO, CLND-300-12-134, 1/2 X 1-3/4, 300 kcmil, 250 GH FLEX, DIE 66, UL, CSA

.812
