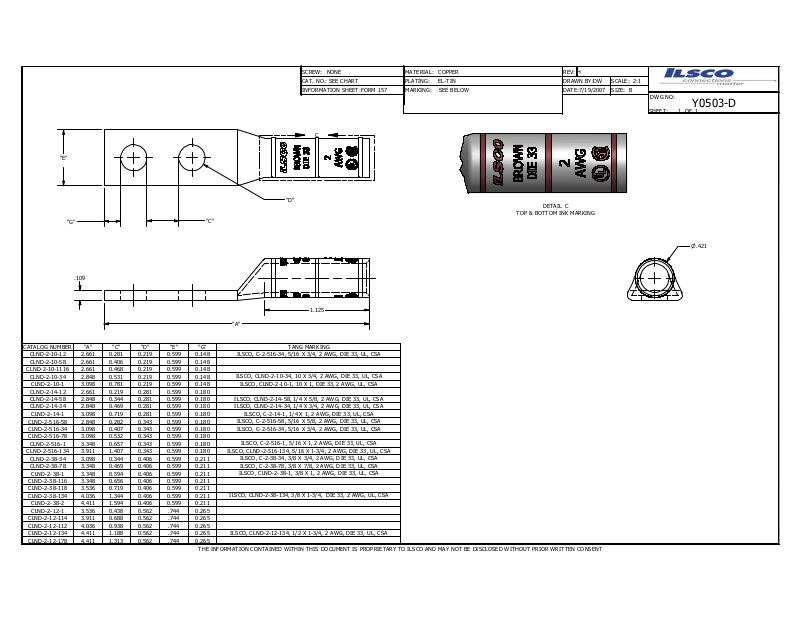

Ilsco CLND-2-516-134 Data sheet

SCREW: NONE

CAT. NO .:

SEE CH ART

INFORM ATION SHEET:

"E"

FORM 1 57

MATERIA L:

PLATING :

MARKI NG:

COPPER

EL-TIN DRAWN BY:

SEE BEL OW

REV:

DATE:

7/19/200 7

SCALE: 2:1

SIZE: B

DWG N O:

SHEET: OF

Y0503-D

"D"

"G"

.109

CATALOG NUMBE R

CLND-2-1 0-12 2.661 0.281 0.219 0.599 0.148 CLND-2-1 0-58 2.661 0.406 0.219 0.599 0.148

CLND-2 -10-1116 2.661 0.468 0.219 0.599 0.148

CLND-2-1 0-34 2.848 0.531 0.219 0.599 0.148

CLND-2 -10-1 3.098 0.781 0.219 0.599 0.148 CLND-2-1 4-12 2.661 0.219 0.281 0.599 0.180 CLND-2-1 4-58 2.848 0.344 0.281 0.599 0.180 CLND-2-1 4-34 2.848 0.469 0.281 0.599 0.180

CLND-2 -14-1 3.098 0.719 0.281 0.599 0.180

CLND-2 -516-58 2.848 0.282 0.343 0.599 0.180 CLND-2 -516-34 3.098 0.407 0.343 0.599 0.180 CLND-2 -516-78 3.098 0.532 0.343 0.599 0.180

CLND-2-5 16-1 3.348 0.657 0.343 0.599 0.180

CLND-2 -516-134 3.911 1.407 0.343 0.599 0.180

CLND-2-3 8-34 3.098 0.344 0.406 0.599 0.211 CLND-2-3 8-78 3.348 0.469 0.406 0.599 0.211

CLND-2 -38-1 3.348 0.594 0.406 0.599 0.211

CLND-2 -38-116 3.348 0.656 0.406 0.599 0.211 CLND-2 -38-118 3.536 0.719 0.406 0.599 0.211 CLND-2 -38-134 4.036 1.344 0.406 0.599 0.211

CLND-2 -38-2 4.411 1.594 0.406 0.599 0.211

CLND-2 -12-1 3.536 0.438 0.562 .744 0.265

CLND-2 -12-114 CLND-2 -12-112 4.036 0.938 0.562 .744 0.2 65 CLND-2 -12-134 4.411 1.188 0.562 .744 0.2 65 CLND-2 -12-178 4.411 1.313 0.562 .744 0.2 65

3.911 0.688 0.562 .744 0.26 5

"C"

"A"

"D" "E"

"C"

"A"

"G" TANG MARKING

THE INF ORMATIO N CONT AINED WI THIN THI S DOCU MENT IS P ROPRIET ARY TO I LSCO AN D MAY NO T BE DIS CLOSED W ITHOUT PRIOR WR ITTEN CONSENT

ILSCO, C-2-516-3 4, 5/16 X 3/4, 2 A WG, DIE 33 , UL, CSA

ILSCO, C LND-2-10 -34, 10 X 3/4, 2 AWG , DIE 3 3, UL, CSA

ILSCO, CLND-2-10 -1, 10 X 1, DIE 33, 2 AWG, UL, CSA

ILSCO, CLND-2-14 -58, 1/4 X 5/8, 2 AW G, DIE 33, UL, CS A ILSCO, CLND-2-14 -34, 1/4 X 3/4, 2 AW G, DIE 33, UL, CS A

ILSCO, C -2-14-1, 1/ 4 X 1, 2 AWG, DIE 33, UL, C SA ILSCO, C-2-516-5 8, 5/16 X 5/8, 2 A WG, DIE 33 , UL, CSA ILSCO, C-2-516-3 4, 5/16 X 3/4, 2 A WG, DIE 33 , UL, CSA

ILSCO, C -2-516-1, 5/16 X 1, 2 AWG, D IE 33, UL , CSA

ILSCO, C LND-2-51 6-134, 5/1 6 X 1-3/4, 2 AWG, DIE 33, UL, CSA

ILSCO, C-2-38-34 , 3/8 X 3/4 , 2 AWG , DIE 33, UL, CSA ILSCO, C-2-38-78 , 3/8 X 7/8 , 2 AWG , DIE 33, UL, CSA

ILSCO, C LND-2-38 -1, 3/8 X 1, 2 AWG, DIE 33, U L, CSA

ILSCO, CLND-2-38 -134, 3/8 X 1-3/4 , DIE 33 , 2 AWG, UL , CSA

ILSCO, C LND-2-12 -134, 1/2 X 1-3/4, 2 AWG, D IE 33, UL , CSA

1.125

DETAIL C

TOP & B OTTOM INK MAR KING

n .421
