ClearTap Two Wire In-Line and Offset
Catalog Page
7 pgs573.14 Kb0

Ilsco ClearTap Two Wire In-Line and Offset Catalog Page

Download
Catalog Figure No. Conductor Dimensions Hex Number No. Of Ports Range L W H Size
ECT-1/0 1 - 1/0-14 3.11 0.94 1.44 3/16
ECT-250 1 - 250kcmil-6 4.28 1.06 2.04 5/16
ECT-350 1 - 350kcmil-6 4.75 1.31 2.43 5/16
ECT-500 1 - 500kcmil-4 5.38 1.44 3.03 3/8
ECT-750 3 - 750kcmil-250kcmil 7.25 1.75 3.31 3/8
ECTO-4 2 2 4-14 1.17 1.25 1.31 1/8
ECTO-1/0 2 2 1/0-14 1.63 1.63 1.63 3/16
ECTO-3/0 2 2 3/0-6 1.89 1.68 1.86 1/4

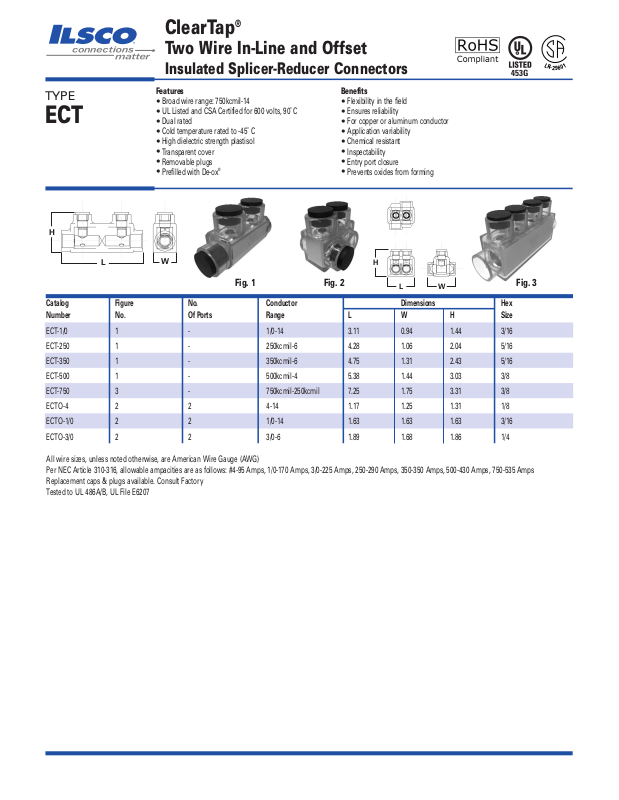

ClearTap
®
Two Wire In-Line and Offset
Insulated Splicer-Reducer Connectors
ECT
453G
Features
•
Broad wire range: 750kcmil-14
•
UL Listed and CSA Certified for 600 volts, 90˚ C
•
Dual rated
•
Cold temperature rated to -45˚ C
•
High dielectric strength plastisol
•
Transparent cover
•
Removable plugs
•
Prefilled with De-ox
®
Benefits
•
Flexibility in the field
•
Ensures reliability
•
For copper or aluminum conductor
•
Application variability
•
Chemical resistant
•
Inspectability
•
Entry port closure
•
Prevents oxides from forming
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) Per NEC Article 310-316, allowable ampacities are as follows: #4-95 Amps, 1/0-170 Amps, 3/0-225 Amps, 250-290 Amps, 350-350 Amps, 500-430 Amps, 750-535 Amps Replacement caps & plugs available. Consult Factory Tested to UL 486A/B, UL File E6207
L
H
W
L
R
-
2
9
6
0
1
Fig. 1 Fig. 2 Fig. 3
H
L
W
Catalog No. Conductor Dimensions Hex Number Of Ports Range L W H Size
ECTD-2-4 2 4-14 1.24 1.25 1.42 1/8 ECTD-3-4 3 4-14 1.70 1.25 1.42 1/8 ECTD-4-4 4 4-14 2.16 1.25 1.42 1/8 ECTD-5-4 5 4-14 2.61 1.25 1.42 1/8 ECTD-6-4 6 4-14 3.07 1.25 1.42 1/8 ECTD-7-4 7 4-14 AWG 3.53 1.394 1.42 1/8 ECTD-8-4 8 4-14 AWG 3.99 1.394 1.42 1/8 ECTD-9-4 9 4-14 AWG 4.45 1.394 1.42 1/8 ECTD-10-4 10 4-14 AWG 4.9 1.394 1.42 1/8 ECTD-11-4 11 4-14 AWG 5.36 1.394 1.42 1/8 ECTD-12-4 12 4-14 AWG 5.82 1.394 1.42 1/8 ECTD-13-4 13 4-14 AWG 6.28 1.394 1.42 1/8 ECTD-14-4 14 4-14 AWG 6.74 1.394 1.42 1/8 ECTD-2-1/0 2 1/0-14 1.67 1.63 1.63 3/16 ECTD-3-1/0 3 1/0-14 2.29 1.63 1.63 3/16 ECTD-4-1/0 4 1/0-14 2.92 1.63 1.63 3/16 ECTD-5-1/0 5 1/0-14 3.54 1.63 1.63 3/16 ECTD-6-1/0 6 1/0-14 4.17 1.63 1.63 3/16 ECTD-7-1/0 7 1/0-14 AWG 4.748 1.825 1.63 3/16 ECTD-8-1/0 8 1/0-14 AWG 5.373 1.825 1.63 3/16 ECTD-9-1/0 9 1/0-14 AWG 5.998 1.825 1.63 3/16 ECTD-10-1/0 10 1/0-14 AWG 6.623 1.825 1.63 3/16 ECTD-11-1/0 11 1/0-14 AWG 7.248 1.825 1.63 3/16 ECTD-12-1/0 12 1/0-14 AWG 7.873 1.825 1.63 3/16 ECTD-13-1/0 13 1/0-14 AWG 8.498 1.825 1.63 3/16 ECTD-14-1/0 14 1/0-14 AWG 9.123 1.825 1.63 3/16 ECTD-2-3/0 2 3/0-6 1.89 1.68 1.86 1/4 ECTD-3-3/0 3 3/0-6 2.65 1.68 1.86 1/4 ECTD-4-3/0 4 3/0-6 3.42 1.68 1.86 1/4 ECTD-5-3/0 5 3/0-6 4.18 1.68 1.86 1/4 ECTD-6-3/0 6 3/0-6 4.95 1.68 1.86 1/4 ECTD-7-3/0 7 3/0-6 AWG 5.71 2.277 2.019 1/4 ECTD-8-3/0 8 3/0-6 AWG 6.48 2.277 2.019 1/4 ECTD-9-3/0 9 3/0-6 AWG 7.24 2.277 2.019 1/4 ECTD-10-3/0 10 3/0-6 AWG 8.01 2.277 2.019 1/4 ECTD-11-3/0 11 3/0-6 AWG 8.77 2.277 2.019 1/4 ECTD-12-3/0 12 3/0-6 AWG 9.54 2.277 2.019 1/4 ECTD-13-3/0 13 3/0-6 AWG 10.3 2.277 2.019 1/4 ECTD-14-3/0 14 3/0-6 AWG 11.07 2.277 2.019 1/4
ClearTap
®
Insulated Multi-Tap Connectors Dual Sided Entry
ECTD
Features
•
Broad wire range: 750kcmil-14
•
UL Listed and CSA Certified for 600 volts, 90˚ C
•
Dual rated
•
Cold temperature rated to -45˚ C
•
High dielectric strength plastisol
•
Transparent cover
•
Removable plugs
•
Prefilled with De-ox
®
Benefits
•
Flexibility in the field
•
Ensures reliability
•
For copper or aluminum conductor
•
Application variability
•
Chemical resistant
•
Inspectability
•
Entry port closure
•
Prevents oxides from forming
W
L
H
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) For one input & multiple output configurations, the allowable ampacities per NEC Table 310.16 and 310.17 are as follows: #4-95 Amps, 1/0-170 Amps, 3/0-225 Amps, 250-290 Amps, 350-350 Amps, 600-475 Amps, 750-535 Amps. For multiple inputs, the inputs must be staggered with outputs to allow for ampacities to be additive per NEC Table 310.16 and 310.17. Replacement caps & plugs available. Consult Factory Tested to UL 486A/B, UL File E6207
453G
L
R
-
2
9
6
0
1
Catalog No. Conductor Dimensions Hex Number Of Ports Range L W H Size
ECTD-2-250 2 250kcmil-6 2.17 2.13 2.17 5/16 ECTD-3-250 3 250kcmil-6 3.07 2.13 2.17 5/16 ECTD-4-250 4 250kcmil-6 3.96 2.13 2.17 5/16 ECTD-5-250 5 250kcmil-6 4.85 2.13 2.17 5/16 ECTD-6-250 6 250kcmil-6 5.75 2.13 2.17 5/16 ECTD-7-250 7 250 kcmil-6 AWG 6.76 2.318 2.041 5/16 ECTD-8-250 8 250 kcmil-6 AWG 7.69 2.318 2.041 5/16 ECTD-9-250 9 250 kcmil-6 AWG 8.62 2.318 2.041 5/16 ECTD-10-250 10 250 kcmil-6 AWG 9.55 2.318 2.041 5/16 ECTD-11-250 11 250 kcmil-6 AWG 10.48 2.318 2.041 5/16 ECTD-12-250 12 250 kcmil-6 AWG 11.41 2.318 2.041 5/16 ECTD-13-250 13 250 kcmil-6 AWG 12.34 2.318 2.041 5/16 ECTD-14-250 14 250 kcmil-6 AWG 14.27 2.318 2.041 5/16 ECTD-2-350 2 350kcmil-6 2.51 2.25 2.62 5/16 ECTD-3-350 3 350kcmil-6 3.56 2.25 2.62 5/16 ECTD-4-350 4 350kcmil-6 4.61 2.25 2.62 5/16 ECTD-5-350 5 350kcmil-6 5.67 2.25 2.62 5/16 ECTD-6-350 6 350kcmil-6 6.71 2.25 2.62 5/16 ECTD-7-350 7 350 kcmil-6 AWG 8.248 2.578 2.396 5/16 ECTD-8-350 8 350 kcmil-6 AWG 9.404 2.578 2.396 5/16 ECTD-9-350 9 350 kcmil-6 AWG 10.56 2.578 2.396 5/16 ECTD-10-350 10 350 kcmil-6 AWG 11.716 2.578 2.396 5/16 ECTD-11-350 11 350 kcmil-6 AWG 12.872 2.578 2.396 5/16 ECTD-12-350 12 350 kcmil-6 AWG 14.028 2.578 2.396 5/16 ECTD-13-350 13 350 kcmil-6 AWG 15.184 2.578 2.396 5/16 ECTD-14-350 14 350 kcmil-6 AWG 16.34 2.578 2.396 5/16
ClearTap
®
Insulated Multi-Tap Connectors Dual Sided Entry
ECTD
Features
•
Broad wire range: 750kcmil-14
•
UL Listed and CSA Certified for 600 volts, 90˚ C
•
Dual rated
•
Cold temperature rated to -45˚ C
•
High dielectric strength plastisol
•
Transparent cover
•
Removable plugs
•
Prefilled with De-ox
®
Benefits
•
Flexibility in the field
•
Ensures reliability
•
For copper or aluminum conductor
•
Application variability
•
Chemical resistant
•
Inspectability
•
Entry port closure
•
Prevents oxides from forming
W
L
H
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) For one input & multiple output configurations, the allowable ampacities per NEC Table 310.16 and 310.17 are as follows: #4-95 Amps, 1/0-170 Amps, 3/0-225 Amps, 250-290 Amps, 350-350 Amps, 600-475 Amps, 750-535 Amps. For multiple inputs, the inputs must be staggered with outputs to allow for ampacities to be additive per NEC Table 310.16 and 310.17. Replacement caps & plugs available. Consult Factory Tested to UL 486A/B, UL File E6207
453G
L
R
-
2
9
6
0
1
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) For one input & multiple output configurations, the allowable ampacities per NEC Table 310.16 and 310.17 are as follows: #4-95 Amps, 1/0-170 Amps, 3/0-225 Amps, 250-290 Amps, 350-350 Amps, 600-475 Amps, 750-535 Amps. For multiple inputs, the inputs must be staggered with outputs to allow for ampacities to be additive per NEC Table 310.16 and 310.17. Replacement caps & plugs available. Consult Factory Tested to UL 486A/B, UL File E6207
Catalog No. Conductor Dimensions Hex Number Of Ports Range L W H Size
ECTD-2-600 2 600kcmil-4 2.97 2.63 3.04 3/8 ECTD-3-600 3 600kcmil-4 4.12 2.63 3.04 3/8 ECTD-4-600 4 600kcmil-4 5.28 2.63 3.04 3/8 ECTD-5-600 5 600kcmil-4 6.44 2.63 3.04 3/8 ECTD-6-600 6 600kcmil-4 7.59 2.63 3.04 3/8 ECTD-7-600 7 600 kcmil-4 AWG 9.186 3.036 3.034 3/8 ECTD-8-600 8 600 kcmil-4 AWG 10.467 3.031 3.034 3/8 ECTD-9-600 9 600 kcmil-4 AWG 11.748 3.031 3.034 3/8 ECTD-10-600 10 600 kcmil-4 AWG 13.029 3.031 3.034 3/8 ECTD-11-600 11 600 kcmil-4 AWG 14.31 3.031 3.034 3/8 ECTD-12-600 12 600 kcmil-4 AWG 15.591 3.031 3.034 3/8 ECTD-13-600 13 600 kcmil-4 AWG 16.872 3.031 3.034 3/8 ECTD-14-600 14 600 kcmil-4 AWG 18.153 3.031 3.034 3/8 ECTD-2-750 2 750kcmil-250kcmil 3.47 3.25 3.31 1/2 ECTD-3-750 3 750kcmil-250kcmil 4.89 3.25 3.31 1/2 ECTD-4-750 4 750kcmil-250kcmil 6.32 3.25 3.31 1/2 ECTD-5-750 5 750kcmil-250kcmil 7.74 3.25 3.31 1/2 ECTD-6-750 6 750kcmil-250kcmil 9.16 3.25 3.31 1/2 ECTD-7-750 7 750 kcmil-250 kcmil 11.14 3.405 3.206 1/2 ECTD-8-750 8 750 kcmil-250 kcmil 12.7 3.405 3.206 1/2 ECTD-9-750 9 750 kcmil-250 kcmil 14.26 3.405 3.206 1/2 ECTD-10-750 10 750 kcmil-250 kcmil 15.82 3.405 3.206 1/2 ECTD-11-750 11 750 kcmil-250 kcmil 17.38 3.405 3.206 1/2 ECTD-12-750 12 750 kcmil-250 kcmil 18.94 3.405 3.206 1/2 ECTD-13-750 13 750 kcmil-250 kcmil 20.5 3.405 3.206 1/2 ECTD-14-750 14 750 kcmil-250 kcmil 22.06 3.405 3.206 1/2
ClearTap
®
Insulated Multi-Tap Connectors Dual Sided Entry
ECTD
Features
•
Broad wire range: 750kcmil-14
•
UL Listed and CSA Certified for 600 volts, 90˚ C
•
Dual rated
•
Cold temperature rated to -45˚ C
•
High dielectric strength plastisol
•
Transparent cover
•
Removable plugs
•
Prefilled with De-ox
®
Benefits
•
Flexibility in the field
•
Ensures reliability
•
For copper or aluminum conductor
•
Application variability
•
Chemical resistant
•
Inspectability
•
Entry port closure
•
Prevents oxides from forming
W
L
H
453G
L
R
-
2
9
6
0
1
Catalog No. Conductor Dimensions Hex Number Of Ports Range L W H Size
ECTS-2-4 2 4-14 1.24 1.22 1.42 1/8 ECTS-3-4 3 4-14 1.70 1.22 1.42 1/8 ECTS-4-4 4 4-14 2.16 1.22 1.42 1/8 ECTS-5-4 5 4-14 2.61 1.22 1.42 1/8 ECTS-6-4 6 4-14 3.07 1.22 1.42 1/8 ECTS-7-4 7 4-14 AWG 3.458 1.32 1.379 1/8 ECTS-8-4 8 4-14 AWG 3.916 1.32 1.379 1/8 ECTS-9-4 9 4-14 AWG 4.374 1.32 1.379 1/8 ECTS-10-4 10 4-14 AWG 4.832 1.32 1.379 1/8 ECTS-11-4 11 4-14 AWG 5.29 1.32 1.379 1/8 ECTS-12-4 12 4-14 AWG 5.748 1.32 1.379 1/8 ECTS-13-4 13 4-14 AWG 6.206 1.32 1.379 1/8 ECTS-14-4 14 4-14 AWG 6.664 1.32 1.379 1/8 ECTS-2-1/0 2 1/0-14 1.67 1.53 1.63 3/16 ECTS-3-1/0 3 1/0-14 2.29 1.53 1.63 3/16 ECTS-4-1/0 4 1/0-14 2.92 1.53 1.63 3/16 ECTS-5-1/0 5 1/0-14 3.54 1.53 1.63 3/16 ECTS-6-1/0 6 1/0-14 4.17 1.53 1.63 3/16 ECTS-7-1/0 7 1/0-14 AWG 4.748 1.62 1.63 3/16 ECTS-8-1/0 8 1/0-14 AWG 5.373 1.62 1.63 3/16 ECTS-9-1/0 9 1/0-14 AWG 5.998 1.62 1.63 3/16 ECTS-10-1/0 10 1/0-14 AWG 6.67 1.53 1.63 3/16 ECTS-11-1/0 11 1/0-14 AWG 7.248 1.62 1.63 3/16 ECTS-12-1/0 12 1/0-14 AWG 7.873 1.62 1.63 3/16 ECTS-13-1/0 13 1/0-14 AWG 8.498 1.62 1.63 3/16 ECTS-14-1/0 14 1/0-14 AWG 9.123 1.53 1.63 3/16 ECTS-2-3/0 2 3/0-6 1.89 1.58 1.86 1/4 ECTS-3-3/0 3 3/0-6 2.65 1.58 1.86 1/4 ECTS-4-3/0 4 3/0-6 3.42 1.58 1.86 1/4 ECTS-5-3/0 5 3/0-6 4.18 1.58 1.86 1/4 ECTS-6-3/0 6 3/0-6 4.95 1.58 1.86 1/4 ECTS-7-3/0 7 3/0-6 AWG 5.71 1.726 1.86 1/4 ECTS-8-3/0 8 3/0-6 AWG 6.48 1.726 1.86 1/4 ECTS-9-3/0 9 3/0-6 AWG 7.24 1.726 1.86 1/4 ECTS-10-3/0 10 3/0-6 AWG 8 1.726 1.86 1/4 ECTS-11-3/0 11 3/0-6 AWG 8.77 1.726 1.86 1/4 ECTS-12-3/0 12 3/0-6 AWG 9.54 1.726 1.86 1/4 ECTS-13-3/0 13 3/0-6 AWG 10.3 1.726 1.86 1/4 ECTS-14-3/0 14 3/0-6 AWG 11.07 1.726 1.86 1/4
ClearTap
®
Insulated Multi-Tap Connectors Single Sided Entry
ECTS
Features
•
Broad wire range: 750kcmil-14
•
UL Listed and CSA Certified for 600 volts, 90˚ C
•
Dual rated
•
Cold temperature rated to -45˚ C
•
High dielectric strength plastisol
•
Transparent cover
•
Removable plugs
•
Prefilled with De-ox
®
Benefits
•
Flexibility in the field
•
Ensures reliability
•
For copper or aluminum conductor
•
Application variability
•
Chemical resistant
•
Inspectability
•
Entry port closure
•
Prevents oxides from forming
W
L
H
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) For one input & multiple output configurations, the allowable ampacities per NEC Table 310.16 and 310.17 are as follows: #4-95 Amps, 1/0-170 Amps, 3/0-225 Amps, 250-290 Amps, 350-350 Amps, 600-475 Amps, 750-535 Amps. For multiple inputs, the inputs must be staggered with outputs to allow for ampacities to be additive per NEC Table 310.16 and 310.17. Replacement caps & plugs available. Consult Factory Tested to UL 486A/B, UL File E6207
453G
L
R
-
2
9
6
0
1
Catalog No. Conductor Dimensions Hex Number Of Ports Range L W H Size
ECTS-2-250 2 250kcmil-6 2.17 1.91 2.17 5/16 ECTS-3-250 3 250kcmil-6 3.07 1.91 2.17 5/16 ECTS-4-250 4 250kcmil-6 3.96 1.91 2.17 5/16 ECTS-5-250 5 250kcmil-6 4.85 1.91 2.17 5/16 ECTS-6-250 6 250kcmil-6 5.75 1.91 2.17 5/16 ECTS-7-250 7 250 kcmil-6 AWG 6.744 1.94 2.041 5/16 ECTS-8-250 8 250 kcmil-6 AWG 7.674 1.94 2.041 5/16 ECTS-9-250 9 250 kcmil-6 AWG 8.604 1.94 2.041 5/16 ECTS-10-250 10 250 kcmil-6 AWG 9.534 1.94 2.041 5/16 ECTS-11-250 11 250 kcmil-6 AWG 10.464 1.94 2.041 5/16 ECTS-12-250 12 250 kcmil-6 AWG 11.394 1.94 2.041 5/16 ECTS-13-250 13 250 kcmil-6 AWG 12.334 1.94 2.041 5/16 ECTS-14-250 14 250 kcmil-6 AWG 13.254 1.94 2.041 5/16 ECTS-2-350 2 350kcmil-6 2.51 2.03 2.62 5/16 ECTS-3-350 3 350kcmil-6 3.56 2.03 2.62 5/16 ECTS-4-350 4 350kcmil-6 4.61 2.03 2.62 5/16 ECTS-5-350 5 350kcmil-6 5.66 2.03 2.62 5/16 ECTS-6-350 6 350kcmil-6 6.71 2.03 2.62 5/16 ECTS-7-350 7 350 kcmil-6 AWG 8.31 2.414 2.62 5/16 ECTS-8-350 8 350 kcmil-6 AWG 9.466 2.414 2.62 5/16 ECTS-9-350 9 350 kcmil-6 AWG 10.622 2.414 2.62 5/16 ECTS-10-350 10 350 kcmil-6 AWG 11.778 2.414 2.62 5/16 ECTS-11-350 11 350 kcmil-6 AWG 12.934 2.414 2.62 5/16 ECTS-12-350 12 350 kcmil-6 AWG 14.09 2.414 2.62 5/16 ECTS-13-350 13 350 kcmil-6 AWG 15.246 2.414 2.62 5/16 ECTS-14-350 14 350 kcmil-6 AWG 16.402 2.414 2.62 5/16
ClearTap
®
Insulated Multi-Tap Connectors Single Sided Entry
ECTS
Features
•
Broad wire range: 750kcmil-14
•
UL Listed and CSA Certified for 600 volts, 90˚ C
•
Dual rated
•
Cold temperature rated to -45˚ C
•
High dielectric strength plastisol
•
Transparent cover
•
Removable plugs
•
Prefilled with De-ox
®
Benefits
•
Flexibility in the field
•
Ensures reliability
•
For copper or aluminum conductor
•
Application variability
•
Chemical resistant
•
Inspectability
•
Entry port closure
•
Prevents oxides from forming
W
L
H
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) For one input & multiple output configurations, the allowable ampacities per NEC Table 310.16 and 310.17 are as follows: #4-95 Amps, 1/0-170 Amps, 3/0-225 Amps, 250-290 Amps, 350-350 Amps, 600-475 Amps, 750-535 Amps. For multiple inputs, the inputs must be staggered with outputs to allow for ampacities to be additive per NEC Table 310.16 and 310.17. Replacement caps & plugs available. Consult Factory Tested to UL 486A/B, UL File E6207
453G
L
R
-
2
9
6
0
1
Catalog No. Conductor Dimensions Hex Number Of Ports Range L W H Size
ECTS-2-600 2 600kcmil-4 2.97 2.28 3.04 3/8 ECTS-3-600 3 600kcmil-4 4.12 2.58 3.04 3/8 ECTS-4-600 4 600kcmil-4 5.28 2.28 3.04 3/8 ECTS-5-600 5 600kcmil-4 6.44 2.28 3.04 3/8 ECTS-6-600 6 600kcmil-4 7.59 2.28 3.04 3/8 ECTS-7-600 7 600 kcmil-4 AWG 9.186 2.484 3.034 3/8 ECTS-8-600 8 600 kcmil-4 AWG 10.467 2.484 3.034 3/8 ECTS-9-600 9 600 kcmil-4 AWG 11.748 2.484 3.034 3/8 ECTS-10-600 10 600 kcmil-4 AWG 13.029 2.484 3.034 3/8 ECTS-11-600 11 600 kcmil-4 AWG 14.31 2.484 3.034 3/8 ECTS-12-600 12 600 kcmil-4 AWG 15.591 2.484 3.034 3/8 ECTS-13-600 13 600 kcmil-4 AWG 16.872 2.484 3.034 3/8 ECTS-14-600 14 600 kcmil-4 AWG 18.153 2.484 3.034 3/8 ECTS-2-750 2 750kcmil-250kcmil 3.47 2.75 3.31 1/2 ECTS-3-750 3 750kcmil-250kcmil 4.89 2.75 3.31 1/2 ECTS-4-750 4 750kcmil-250kcmil 6.32 2.75 3.31 1/2 ECTS-5-750 5 750kcmil-250kcmil 7.74 2.75 3.31 1/2 ECTS-6-750 6 750kcmil-250kcmil 9.16 2.75 3.31 1/2 ECTS-7-750 7 750 kcmil-250 kcmil 11.14 2.89 3.206 1/2 ECTS-8-750 8 750 kcmil-250 kcmil 13.7 2.89 3.206 1/2 ECTS-9-750 9 750 kcmil-250 kcmil 14.26 2.89 3.206 1/2 ECTS-10-750 10 750 kcmil-250 kcmil 15.82 2.89 3.206 1/2 ECTS-11-750 11 750 kcmil-250 kcmil 17.38 2.89 3.206 1/2 ECTS-12-750 12 750 kcmil-250 kcmil 18.94 2.89 3.206 1/2 ECTS-13-750 13 750 kcmil-250 kcmil 20.5 2.89 3.206 1/2 ECTS-14-750 14 750 kcmil-250 kcmil 28.06 2.89 3.206 1/2
ClearTap
®
Insulated Multi-Tap Connectors Single Sided Entry
ECTS
Features
•
Broad wire range: 750kcmil-14
•
UL Listed and CSA Certified for 600 volts, 90˚ C
•
Dual rated
•
Cold temperature rated to -45˚ C
•
High dielectric strength plastisol
•
Transparent cover
•
Removable plugs
•
Prefilled with De-ox
®
Benefits
•
Flexibility in the field
•
Ensures reliability
•
For copper or aluminum conductor
•
Application variability
•
Chemical resistant
•
Inspectability
•
Entry port closure
•
Prevents oxides from forming
W
L
H
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG) For one input & multiple output configurations, the allowable ampacities per NEC Table 310.16 and 310.17 are as follows: #4-95 Amps, 1/0-170 Amps, 3/0-225 Amps, 250-290 Amps, 350-350 Amps, 600-475 Amps, 750-535 Amps. For multiple inputs, the inputs must be staggered with outputs to allow for ampacities to be additive per NEC Table 310.16 and 310.17. Replacement caps & plugs available. Consult Factory Tested to UL 486A/B, UL File E6207
453G
L
R
-
2
9
6
0
1
