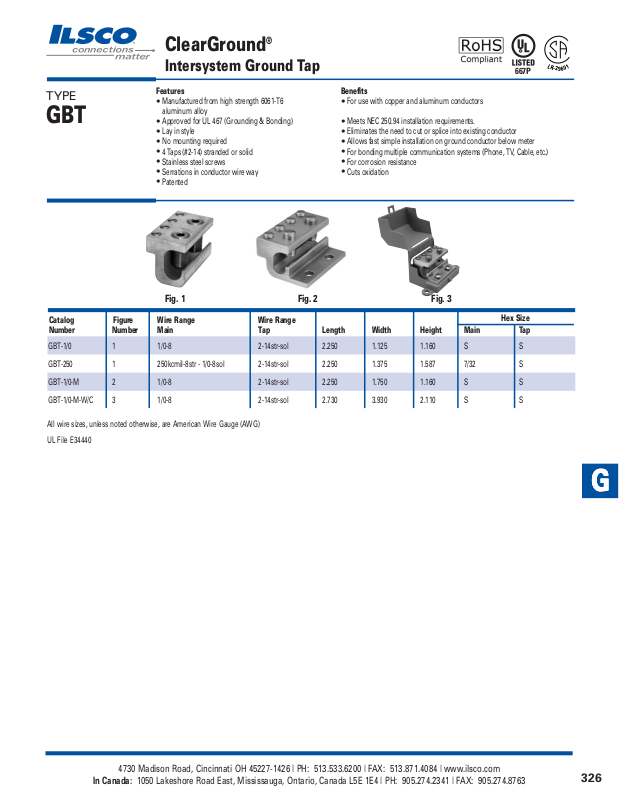

Ilsco ClearGround Intersystem Ground Tap Catalog Page
ClearGround
®
Intersystem Ground Tap
667P
L
1
R
0
-
2
6
9
TYPE
GBT
Catalog Figure Wire Range Wire Range
Number Number Main Tap Length Width Height Main Tap
GBT-1/0 1 1/0-8 2-14str-sol 2.250 1.125 1.160 S S
GBT-250 1 250kcmil-8str - 1/0-8sol 2-14str-sol 2.250 1.375 1.587 7/32 S
GBT-1/0-M 2 1/0-8 2-14str-sol 2.250 1.750 1.160 S S
Features
Manufactured from high strength 6061-T6
•
aluminum alloy
Approved for UL 467 (Grounding & Bonding)
•
Lay in style
•
No mounting required
•
4 Taps (#2-14) stranded or solid
•
Stainless steel screws
•
Serrations in conductor wire way
•
Patented
•
Fig. 1 Fig. 2 Fig. 3
Benefits
For use with copper and aluminum conductors
•
Meets NEC 250.94 installation requirements.
•
Eliminates the need to cut or splice into existing conductor
•
Allows fast simple installation on ground conductor below meter
•
For bonding multiple communication systems (Phone, TV, Cable, etc.)
•
For corrosion resistance
•
Cuts oxidation
•
Hex Size
G GG GG
GBT-1/0-M-W/C 3 1/0-8 2-14str-sol 2.730 3.930 2.110 S S
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
UL File E34440
G
4730 Madison Road, Cincinnati OH 45227-1426 | PH: 513.533.6200 | FAX: 513.871.4084 | www.ilsco.com
In Canada: 1050 Lakeshore Road East, Mississauga, Ontario, Canada L5E 1E4 | PH: 905.274.2341 | FAX: 905.274.8763
