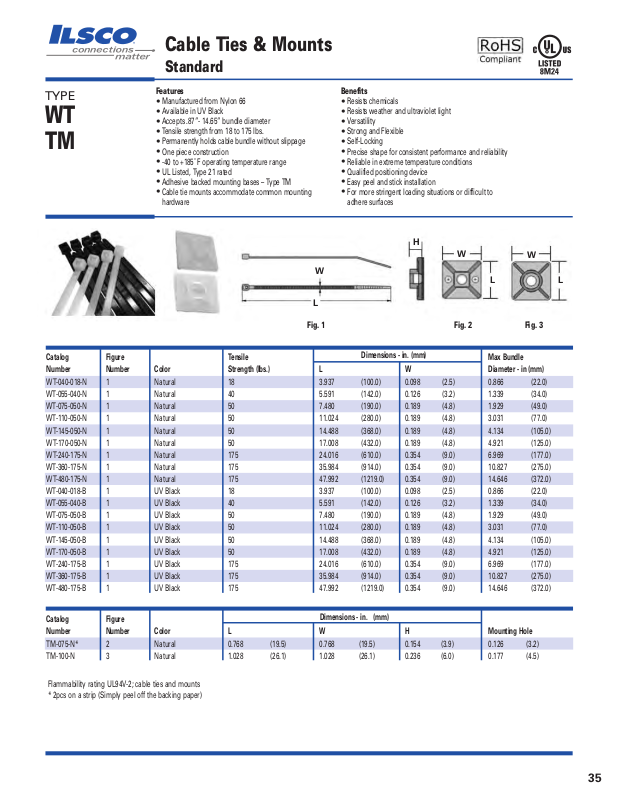

Ilsco Cable Ties & Mounts Catalog Page

35
Catalog Figure Tensile
Dimensions - in. (mm)
Max Bundle
Number Number Color Strength (lbs.) L W Diameter - in (mm)
WT-040-018-N 1 Natural 18 3.937 (100.0) 0.098 (2.5) 0.866 (22.0) WT-055-040-N 1 Natural 40 5.591 (142.0) 0.126 (3.2) 1.339 (34.0) WT-075-050-N 1 Natural 50 7.480 (190.0) 0.189 (4.8) 1.929 (49.0) WT-110-050-N 1 Natural 50 11.024 (280.0) 0.189 (4.8) 3.031 (77.0) WT-145-050-N 1 Natural 50 14.488 (368.0) 0.189 (4.8) 4.134 (105.0) WT-170-050-N 1 Natural 50 17.008 (432.0) 0.189 (4.8) 4.921 (125.0) WT-240-175-N 1 Natural 175 24.016 (610.0) 0.354 (9.0) 6.969 (177.0) WT-360-175-N 1 Natural 175 35.984 (914.0) 0.354 (9.0) 10.827 (275.0) WT-480-175-N 1 Natural 175 47.992 (1219.0) 0.354 (9.0) 14.646 (372.0) WT-040-018-B 1 UV Black 18 3.937 (100.0) 0.098 (2.5) 0.866 (22.0) WT-055-040-B 1 UV Black 40 5.591 (142.0) 0.126 (3.2) 1.339 (34.0) WT-075-050-B 1 UV Black 50 7.480 (190.0) 0.189 (4.8) 1.929 (49.0) WT-110-050-B 1 UV Black 50 11.024 (280.0) 0.189 (4.8) 3.031 (77.0) WT-145-050-B 1 UV Black 50 14.488 (368.0) 0.189 (4.8) 4.134 (105.0) WT-170-050-B 1 UV Black 50 17.008 (432.0) 0.189 (4.8) 4.921 (125.0) WT-240-175-B 1 UV Black 175 24.016 (610.0) 0.354 (9.0) 6.969 (177.0) WT-360-175-B 1 UV Black 175 35.984 (914.0) 0.354 (9.0) 10.827 (275.0) WT-480-175-B 1 UV Black 175 47.992 (1219.0) 0.354 (9.0) 14.646 (372.0)
Cable Ties & Mounts
Standard
TYPE
WT TM
Features
Manufactured from Nylon 66
Available in UV Black
Accepts .87”- 14.65” bundle diameter
Tensile strength from 18 to 175 lbs.
Permanently holds cable bundle without slippage
One piece construction
-40 to +185˚ F operating temperature range
UL Listed, Type 21 rated
Adhesive backed mounting bases – Type TM
Cable tie mounts accommodate common mounting hardware
Benefits
Resists chemicals
Resists weather and ultraviolet light
Versatility
Strong and Flexible
Self-Locking
Precise shape for consistent performance and reliability
Reliable in extreme temperature conditions
Qualified positioning device
Easy peel and stick installation
For more stringent loading situations or difficult to adhere surfaces
Catalog Figure
Dimensions - in. (mm)
Number Number Color L W H Mounting Hole
TM-075-N* 2 Natural 0.768 (19.5) 0.768 (19.5) 0.154 (3.9) 0.126 (3.2) TM-100-N 3 Natural 1.028 (26.1) 1.028 (26.1) 0.236 (6.0) 0.177 (4.5)
Flammability rating UL94V-2; cable ties and mounts * 2pcs on a strip (Simply peel off the backing paper)
H
L
L
L
W
W
W
Fig. 1 Fig. 2 Fig. 3
