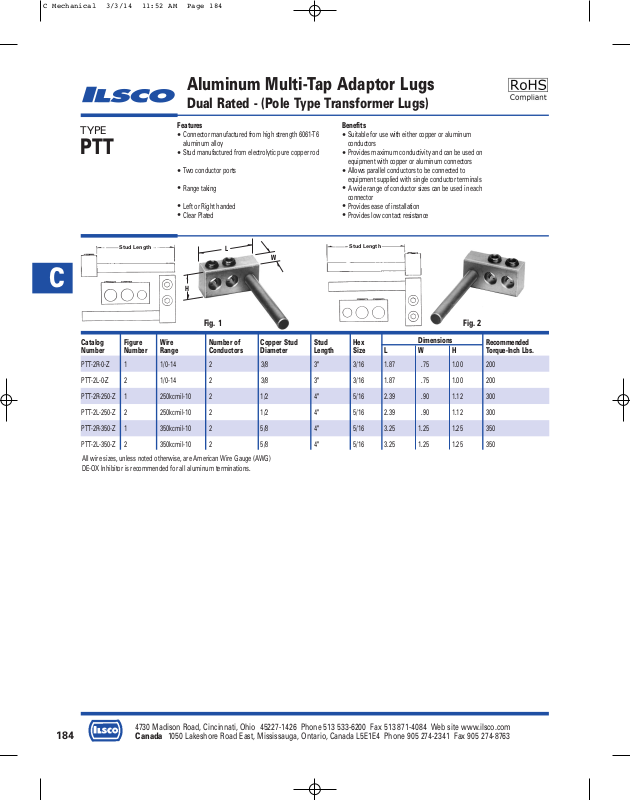

Ilsco Aluminum Multi-Tap Adaptor Lugs Catalog Page
Aluminum Multi-Tap Adaptor Lugs
Dual Rated - (Pole Type Transformer Lugs)
C
TYPE
PTT
Stud Length
Catalog Figure Wire Number of Copper Stud Stud Hex
Number Number Range Conductors Diameter Length Size L W H Torque-Inch Lbs.
PTT-2R-0-Z 1 1/0-14 2 3/8 3" 3/16 1.87 .75 1.00 200
PTT-2L-0-Z 2 1/0-14 2 3/8 3" 3/16 1.87 .75 1.00 200
Features
Connector manufactured from high strength 6061-T6
•
aluminum alloy
Stud manufactured from electrolytic pure copper rod
•
Two conductor ports
•
Range taking
•
Left or Right handed
•
Clear Plated
•
L
W
H
Fig. 1 Fig. 2
Benefits
Suitable for use with either copper or aluminum
•
conductors
Provides maximum conductivity and can be used on
•
equipment with copper or aluminum connectors
Allows parallel conductors to be connected to
•
equipment supplied with single conductor terminals
A wide range of conductor sizes can be used in each
•
connector
Provides ease of installation
•
Provides low contact resistance
•
Stud Length
Dimensions
Recommended
PTT-2R-250-Z 1 250kcmil-10 2 1/2 4" 5/16 2.39 .90 1.12 300
PTT-2L-250-Z 2 250kcmil-10 2 1/2 4" 5/16 2.39 .90 1.12 300
PTT-2R-350-Z 1 350kcmil-10 2 5/8 4" 5/16 3.25 1.25 1.25 350
PTT-2L-350-Z 2 350kcmil-10 2 5/8 4" 5/16 3.25 1.25 1.25 350
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
DE-OX Inhibitor is recommended for all aluminum terminations.
