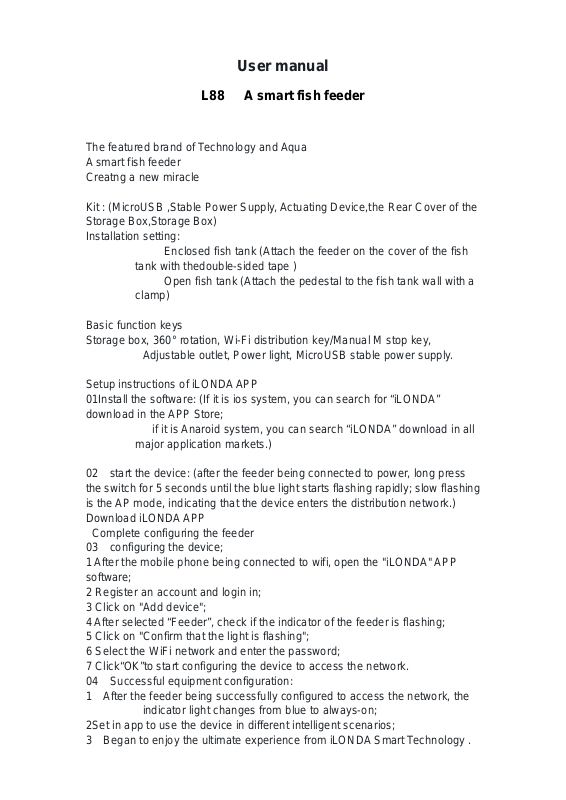

User manual
L88 A smart fish feeder
The featured brand of Technology and Aqua
A smart fish feeder
Creatng a new miracle
Kit : (MicroUSB ,Stable Power Supply, Actuating Device,the Rear Cover of the
Storage Box,Storage Box)
Installation setting:
Enclosed fish tank (Attach the feeder on the cover of the fish
tank with thedouble-sided tape )
Open fish tank (Attach the pedestal to the fish tank wall with a
clamp)
Basic function keys
Storage box, 360° rotation, Wi-Fi distribution key/Manual M stop key,
Adjustable outlet, Power light, MicroUSB stable power supply.
Setup instructions of iLONDA APP
01Install the software: (If it is ios system, you can search for “iLONDA”
download in the APP Store;
if it is Anaroid system, you can search “iLONDA” download in all
major application markets.)
02 start the device: (after the feeder being connected to power, long press
the switch for 5 seconds until the blue light starts flashing rapidly; slow flashing
is the AP mode, indicating that the device enters the distribution network.)
Download iLONDA APP
Complete configuring the feeder
03 configuring the device;
1 After the mobile phone being connected to wifi, open the "iLONDA" APP
software;
2 Register an account and login in;
3 Click on "Add device";
4 After selected “Feeder”, check if the indicator of the feeder is flashing;
5 Click on "Confirm that the light is flashing";
6 Select the WiFi network and enter the password;
7 Click“OK”to start configuring the device to access the network.
04 Successful equipment configuration:
1 After the feeder being successfully configured to access the network, the
indicator light changes from blue to always-on;
2Set in app to use the device in different intelligent scenarios;
3 Began to enjoy the ultimate experience from iLONDA Smart Technology .
05device sharing
Open the "iLONDA" APP software and select the feeder. Click on the top lef t of
the page and select the Shared Device to enter the family's
“iLONDA” APP account. Invite family members to experience the
fun of feeding fish smartly.
Discharge setting
Discharging: Remove the cover of the storage box and clean it, then put the
fish feed, put the cover on it and pack the storage box well.
This feeder is suitable for sheet feed and pellet feed. Do not use living
feed and damp feed.
Feeding amount adjustment: Feeding amount can be controlled by the feed
quantitative adjustment port.
Precautions:
Please do not manually reverse the storage box. The man-madedamage
does not belong to the free maintenance within the warranty period.
Why did I set the timerwellbutthe feeder didn’twork?
This situation is due to the user's vigorously twisting the storage box to
cause the transmission gear disengaged.If the transmission device
cannot work normally, you can disassemble the rear cover to press
the transmission gear to resume its normal transmission.
FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications.However, there is no guarantee that interference will not
occur in aparticular installation. If this equipment does cause harmful
interference toradio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions (1)this device may not cause harmful interference, and
(2) this device must accept any interference received,including interference
that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body
