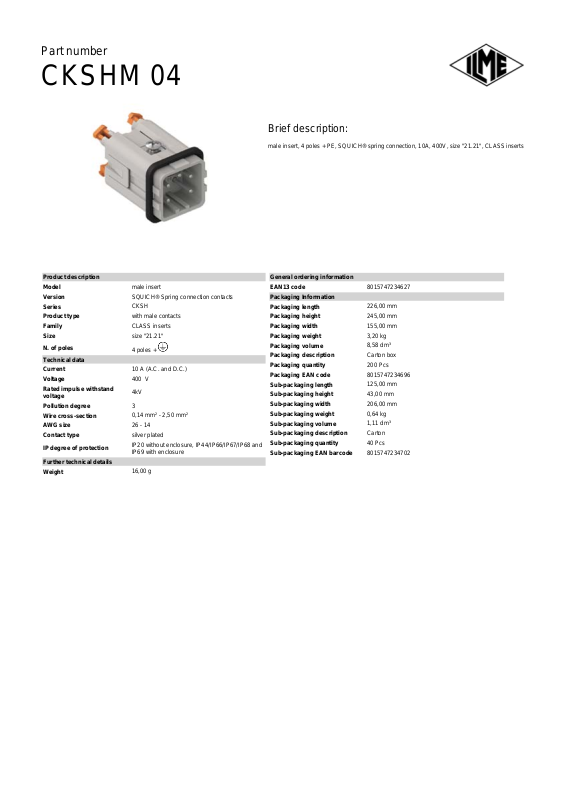

ILME CKSHM-04 Data Sheet

Part number

CKSHM 04

Product description
Model
Version
Series
Product type
Family
Size

N. of poles
Technical data

Current
Voltage
Rated impulse withstand

voltage
Pollution degree
Wire cross-section
AWG size
Contact type

IP degree of protection
Further technical details

Weight

male insert
SQUICH® Spring connection contacts
CKSH
with male contacts
CLASS inserts
size "21.21"

4 poles +

10 A (A.C. and D.C.)
400 V

4kV
3

0,14 mm² - 2,50 mm²
26 - 14
silver plated
IP20 without enclosure, IP44/IP66/IP67/IP68 and

IP69 with enclosure

16,00 g

Brief description:

male insert, 4 poles + PE, SQUICH® spring connection, 10A, 400V, size "21.21", CLASS inserts

General ordering information
EAN13 code
Packaging Information
Packaging length
Packaging height
Packaging width
Packaging weight
Packaging volume
Packaging description
Packaging quantity
Packaging EAN code
Sub-packaging length
Sub-packaging height
Sub-packaging width
Sub-packaging weight
Sub-packaging volume
Sub-packaging description
Sub-packaging quantity
Sub-packaging EAN barcode

8015747234627

226,00 mm
245,00 mm
155,00 mm
3,20 kg
8,58 dm³
Carton box
200 Pcs
8015747234696
125,00 mm
43,00 mm
206,00 mm
0,64 kg
1,11 dm³
Carton
40 Pcs
8015747234702

Part number

CKSHM 04

Catalogue drawings

Derating curves

Notes

actuator button connections

Reopening
