Part number
CKAXW 03 IAP
Product description
Version
Series
Product type
Variant
Family
Size
Technical data
Operating temperature range
(min, max)
Material
IP degree of protection
Cable entry
Further technical details
Weight
W-TYPE version for aggressive environments
Angled mounting housings with 1 lever
with stainless steel lever
with threaded entry
CLASS enclosures
size "21.21"
-40°C … +125°C
metal
IP44 (IP66/IP67 with CKR 65/CKR 65 D kits)
Pg11
42,00 g
Brief description:
angled bulkhead housings with single lever, size "21.21", with threaded entry, Pg11,
aggressive environments, IP44, IP66/IP67 degree of protection with CKR 65 kit or
CKR 65 D kit.
Approvals / Standards
Quality mark
Conformity
General ordering information
EAN13 code
Tariff number
Packaging Information
Sub-packaging length
Sub-packaging height
Sub-packaging width
Sub-packaging weight
Sub-packaging volume
Sub-packaging description
Sub-packaging quantity
Sub-packaging EAN barcode
type: 12,( type 4/4X only with kit CKR 65 or
CKR 65 D), , EAC
CQC, CE
8015747027892
85369095
140,00 mm
66,00 mm
150,00 mm
0,42 kg
1,39 dm³
Carton Box
10 Pcs
8015747027908
Part number
CKAXW 03 IAP

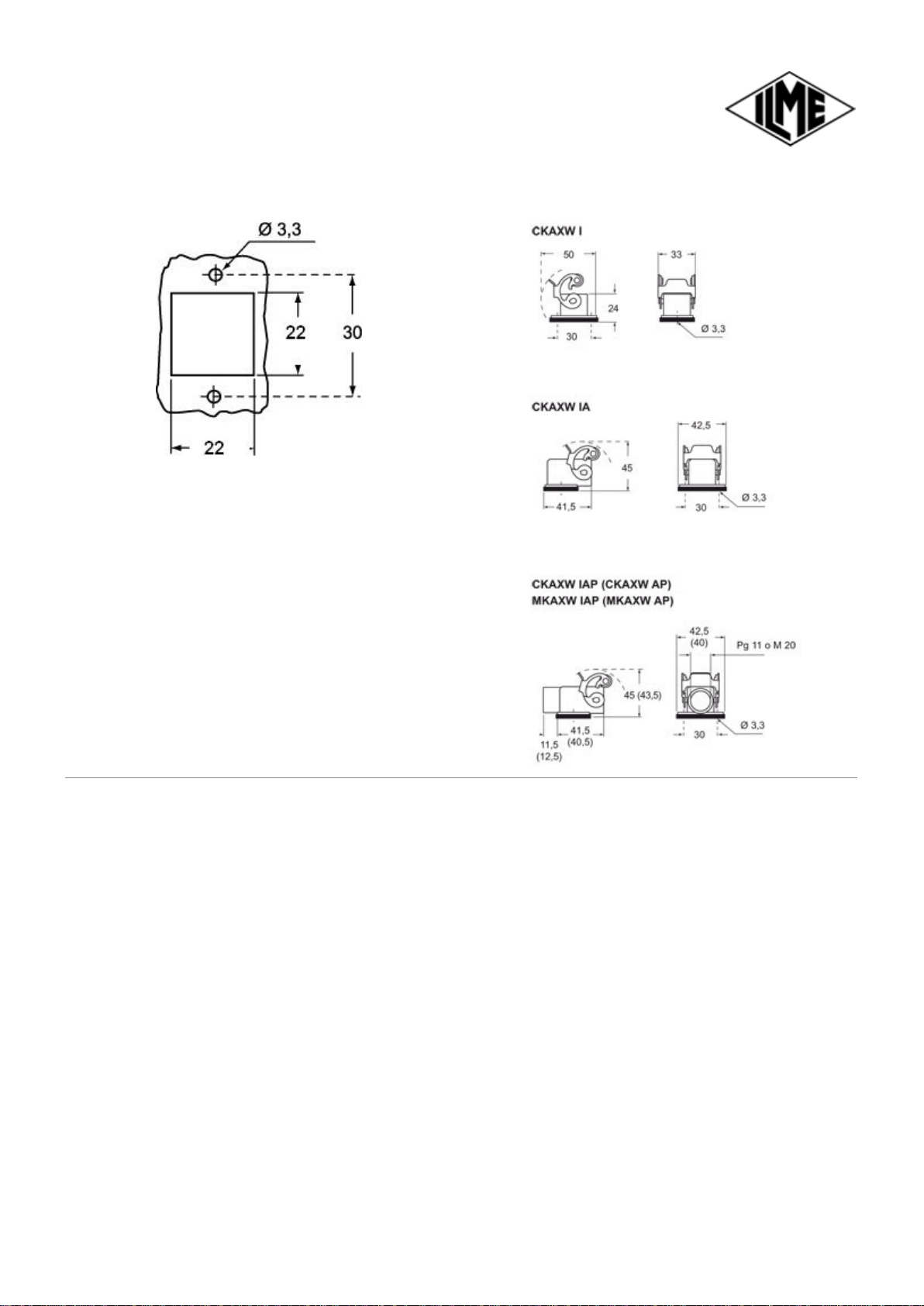

Catalogue drawings
Catalogue drawings
