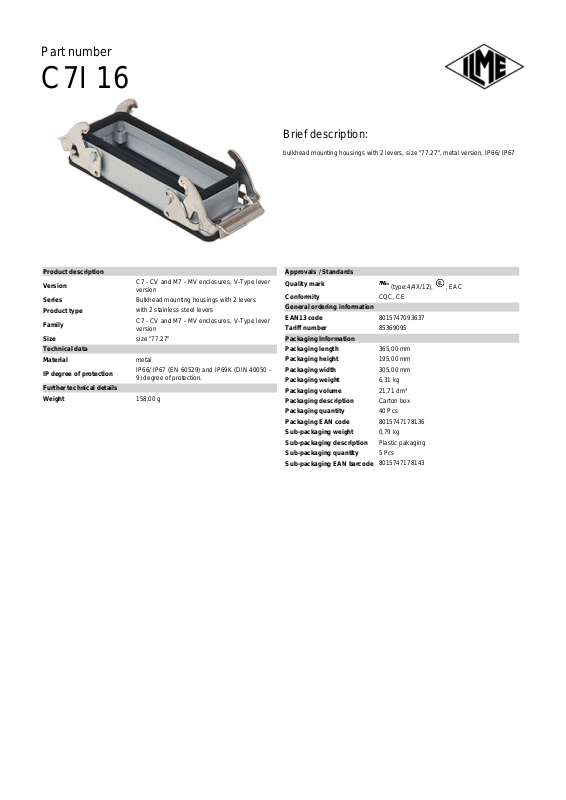

ILME C7I-16 Data Sheet
Part number
C7I 16
Product description
Version
Series
Product type
Family
Size
Technical data
Material
IP degree of protection
Further technical details
Weight
C7 - CV and M7 - MV enclosures, V-Type lever
version
Bulkhead mounting housings with 2 levers
with 2 stainless steel levers
C7 - CV and M7 - MV enclosures, V-Type lever
version
size "77.27"
metal
IP66/ IP67 (EN 60529) and IP69K (DIN 40050 -
9) degree of protection.
158,00 g
Brief description:
bulkhead mounting housings with 2 levers, size "77.27", metal version, IP66/ IP67
Approvals / Standards
Quality mark
Conformity
General ordering information
EAN13 code
Tariff number
Packaging Information
Packaging length
Packaging height
Packaging width
Packaging weight
Packaging volume
Packaging description
Packaging quantity
Packaging EAN code
Sub-packaging weight
Sub-packaging description
Sub-packaging quantity
Sub-packaging EAN barcode
(type:4/4X/12), , EAC
CQC, CE
8015747093637
85369095
365,00 mm
195,00 mm
305,00 mm
6,31 kg
21,71 dm³
Carton box
40 Pcs
8015747178136
0,79 kg
Plastic pakaging
5 Pcs
8015747178143
Part number
C7I 16
Catalogue drawings
Notes
Catalogue drawings
C7I:
Due to the vertical closing movement, the new lever offers an
IP66/IP67 protection (according to EN 60529) when fitted with a
complete and coupled connector and used with ILME standard
hoods in die cast aluminum with pegs (without adaptor).
For bulkhead-mounting housings, the IP66/IP67 protection class is
guaranteed if the housings are fitted on sufficiently rigid panels, M4
screws of suitable length (negligible bending of the surface when
exposed to the tightening torque of 0.8-1.2Nm of the fixing screws or
to the deformations caused by the actual weight of the complete
connector).
If rigidity is insufficient, is advisable to use CG .. FL flanges, M4
screws of suitable length and M4 flat/elastic washers (for the
housing side) and M6 flat/elastic washers (for the flange side) with
M4 locking nuts.
It is also important to check that the panel in contact with the gasket
of the bulkhead-mounting housing flange is free from imperfections
(deep scratches, grooves, burs) that could affect the operation of the
gasket.
