USER’S GUIDE

V:1707-0201-10

ITP180B

Bar Speaker with Dock for iPhone/iPod

For the most up-to-date version of this User’s Guide, go to www.ilive.net

WARNINGS AND PRECAUTIONS

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of controls or adjustments or performance of procedures other than those specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

Main plug is used as disconnect device and it should remain readily operable during intended use.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with

the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding

- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

iLive | ITP180B2

FCC Warnings

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

• The apparatus shall not be exposed to dripping or splashing and

that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux écla-

boussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Main plug is used as disconnect device and it should remain

readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur ne doit pas être obstruée ou doit être facile-

ment accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

• Battery shall not be exposed to excessive heat such as sunshine,

re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the bottom of the apparatus.

Les marquages sont inscrits en bas de l’appareil.

• The marking information is located at the bottom of apparatus.

Les précautions d’emploi sont inscrites en bas de l’appareil.

CUSTOMER HELPLINE | 1-314-621-2881 iLive | ITP180B 3

BAR SPEAKER WITH DOCK FOR IPHONE/IPOD

Features

• Works with iPhone

• Made for iPod

• 30” length

• FM radio

• Station memory presets (20 FM)

• Last channel memory

• Treble and bass controls

• 2.1 channel stereo system

• Preset EQ

• Digital clock

• Single alarm

• Gradual wake

• Wake to iPhone/iPod or radio

• White LCD display

• Sleep timer

Included

• ITP180B

• Remote control: requires 2 AAA batteries (not included)

• Docking brackets for iPhone/iPod (6)

• FM wire antenna

• Audio/video cable

• Wall-mount hardware

• Video output

• Audio/video input

• Line input (3.5mm)

• Remote control

• Subwoofer output

• Last user setting memory

• 2 auxiliary audio inputs (RCA)

• S-video output

• Basic iPhone/iPod controls

• Supports Universal docking brackets

• Wall mountable

• Motorized iPod drawer

• Cloth net speaker grill

• AC power: built-in AC power cable

iLive | ITP180B4

TABLE OF CONTENTS

INTRODUCTION

SETUP

CLOCK, ALARM, AND SLEEP TIMER

IPHONE/IPOD AND FM RADIO

AUXILIARY INPU T, LINE INPUT AND SUBWOOFER OUTPUT

BASIC CONNECTIVITY

AV INPUT AND VIDEO INPUT

MOUNTING TO A WALL

COMPANY INFORMATION

CUSTOMER HELPLINE | 1-314-621-2881 iLive | ITP180B 5

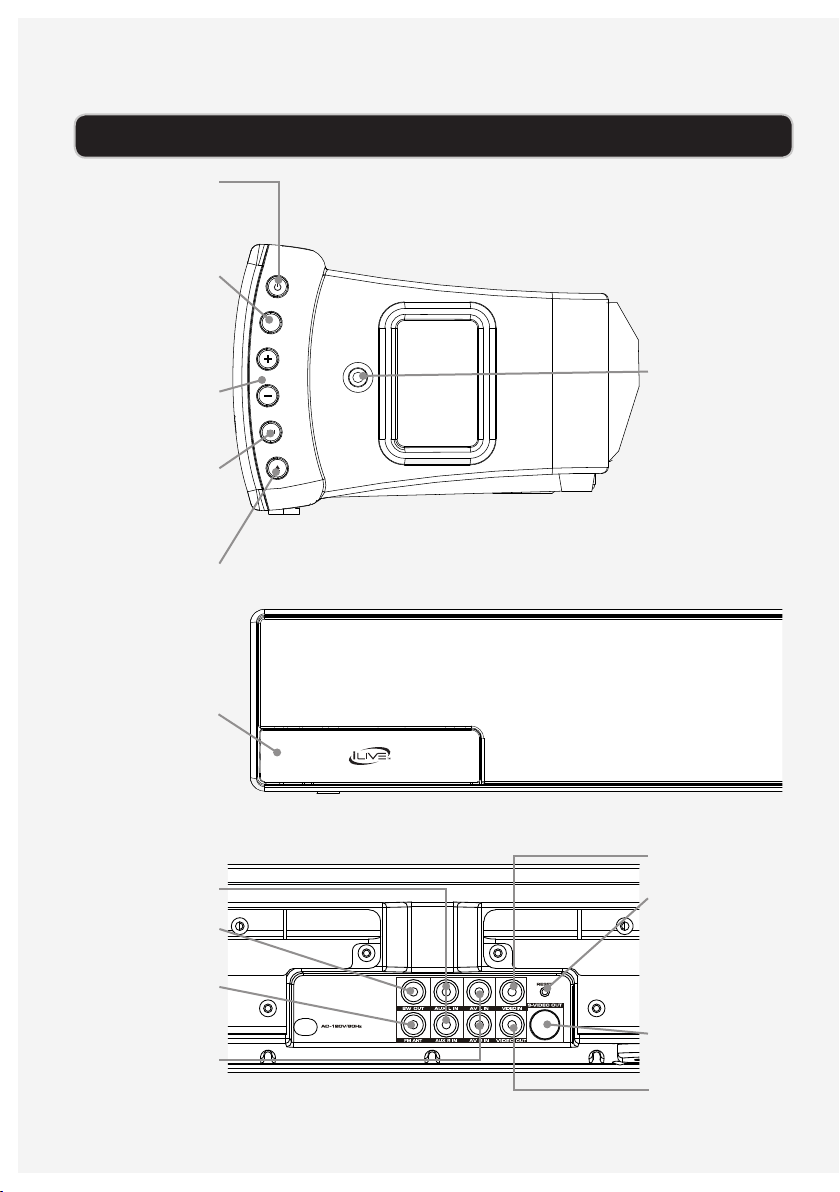

INTRODUCTION

POWER

Press to turn the

bar speaker o

or on.

SOURCE

Press to switch

between iPhone/

iPod, AV, AUX, and

FM modes.

VOLUME

Press to adjust the

volume.

PLAY/PAUSE

Press to play or

pause a docked

iPhone or iPod.

iPod DRAWER

Press to open or

close the motor-

ized dock for iPhone/iPod.

MOTORIZED

DOCK FOR IPOD

POWER

SOURCE

VOLUME

PLAY/PAUSE

iPod DRAWER

LINE IN

LINE INPUT (3.5mm)

AUXILIARY INPUT

SUBWOOFER

OUTPUT

FM ANTENNA CONNECTION

A/V INPUT

iLive | ITP180B6

VIDEO INPUT

RESET

Press using a paperclip or like object to reset the bar speaker to it’s default settings.

S-VIDEO OUTPUT

VIDEO OUTPUT

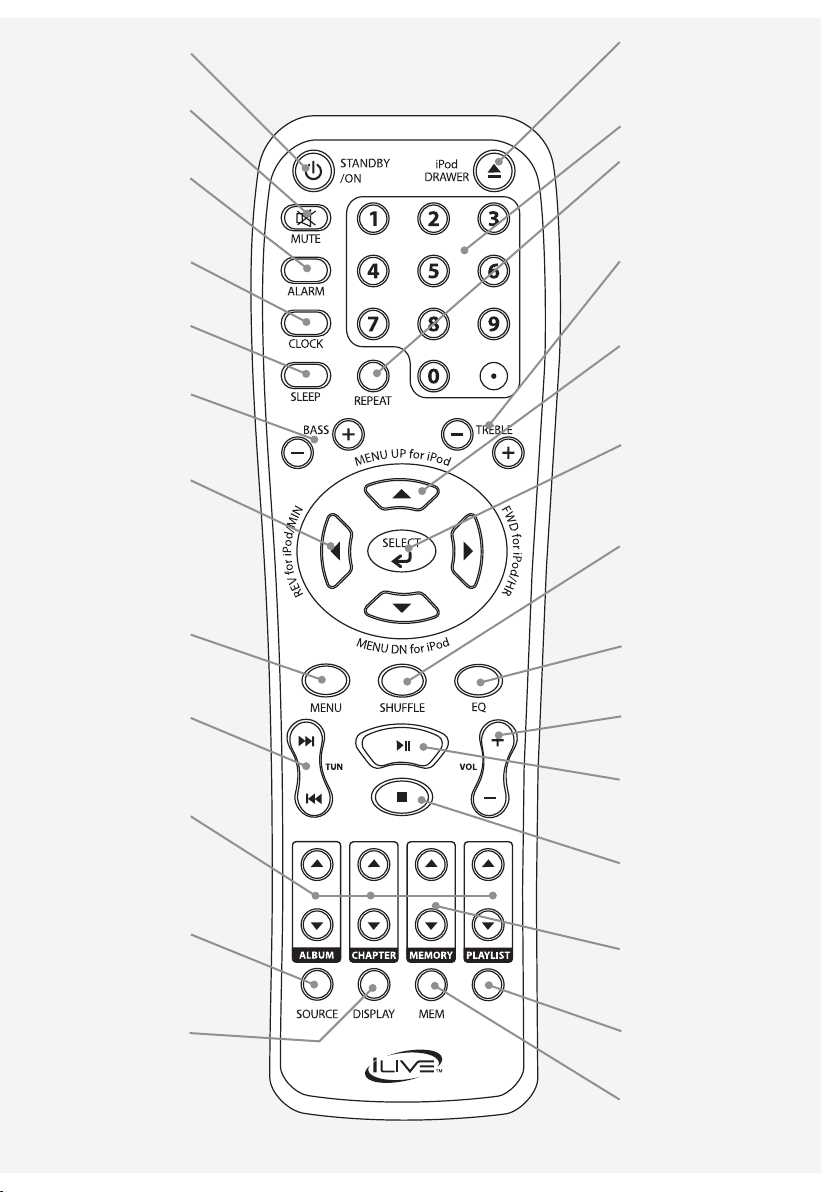

STANDBY/ON

Press to turn the bar

speaker o or on.

MUTE

Press to mute the

volume.

ALARM

With the power

o, press to set the

alarm.

CLOCK

With the power o,

press to set the clock.

SLEEP

Press repeatedly to

set the sleep timer.

BASS

With the EQ set to

FLAT, press to adjust

the levels of bass.

REV/FWD/MIN/HR

Press to rewind or

fast forward a docked

iPhone or iPod. Press

to adjust the hour

and minute when

setting the clock or

alarm.

Press skip through

menus on a docked

iPhone or iPod.

TUN/SKIP

Press to skip between

tracks on a docked

iPhone or iPod. Press

to tune the radio.

ALBUM/CHAPTER/

PLAYLIST

Press to skip through

albums, chapters, or

playlists on a docked

iPhone or iPod.

SOURCE

Press to switch

between AV, AUX,

FM, and iPhone/iPod

modes.

DISPLAY

Press to view the

clock on the display.

iPod

iPod DRAWER

Press to open or close the motorized dock for iPhone/iPod.

NUMBER KEYPAD

REPEAT

Press to repeat a single track or entire album on a docked iPhone or iPod.

TREBLE

With the EQ set to FLAT, press to adjust the levels of treble.

MENU UP/DN

Press to navigate up and down in menus on a docked iPhone or iPod.

SELECT

Press to make selections on a docked iPhone or iPod.

SHUFFLE

Press to play songs from a docked iPhone or iPod in a random order.

Press to adjust the EQ.

VOLUME

Press to adjust the volume.

PLAY/PAUSE

Press to play or pause a docked iPhone or iPod.

STOP

Press to stop a docked iPhone or iPod during play.

MEMORY

Press to cycle through saved radio stations.

iPod

Press to switch to iPhone/iPod mode.

MEM

Press to save a radio station to the bar speaker’s memory.

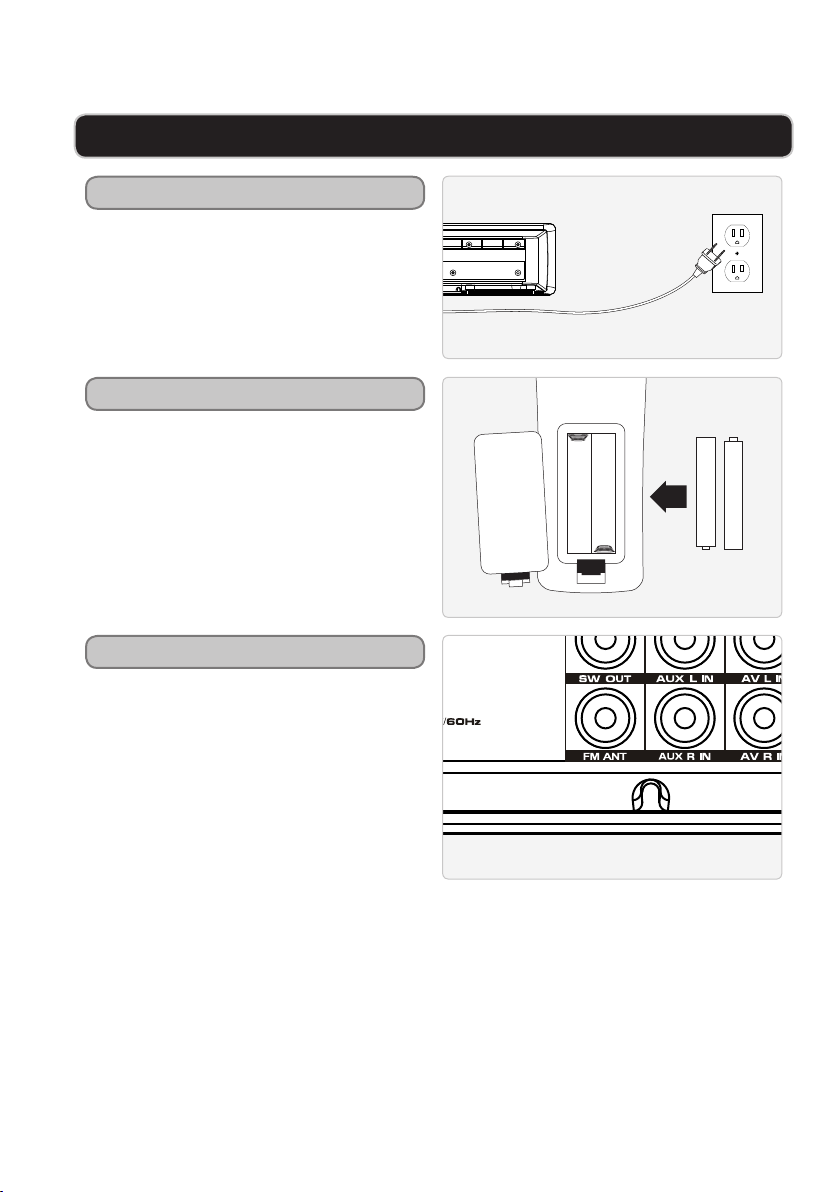

SETUP

Power

Plug the attached AC cord into a standard AC power outlet to power the bar speaker.

Remote

Requires 2 AAA batteries (not included)

FM Antenna

Plug the FM Wire Antenna (included) into the FM Antenna Connection.

iLive | ITP180B8

CLOCK, ALARM, AND SLEEP TIMER

Setting the Alarm

1 Press the POWER button to turn the

power on.

2 Adjust the volume to the desired

level.

3 Press the POWER button to turn the

power o.

4 Press the ALARM button on the

remote control.

The alarm time on the display will begin blinking.

5 Press the REV/MIN and FWD/HR

buttons on the remote to adjust the minute and hour.

6 Press the SOURCE button on the

bar speaker to switch to the desired alarm source.

7 Wait 5 seconds to nish setting the

alarm.

ALARM will appear on the display when the alarm is set.

8 Press the ALARM button to cancel

the alarm.

Setting the Clock

1 Press the POWER button to turn the

power o.

2 Press the CLOCK button on the

remote control.

The time on the display will begin blinking.

3 Press the REV/MIN and FWD/HR

buttons on the remote to adjust the minute and hour.

4 Wait 5 seconds to nish setting the

clock.

Setting the Sleep Timer

1 Press the POWER button to turn the

power on.

2 Press the SOURCE button on the

bar speaker to switch to the desired sleep timer source.

3 Press the SLEEP button repeatedly to

set the sleep timer.

4 After the set sleep time has expired,

the bar speaker will automatically power o.

CUSTOMER HELPLINE | 1-314-621-2881 iLive | ITP180B 9

IPHONE/IPOD AND FM RADIO

Docking an iPhone/iPod Tuning the FM Radio

1 Press the POWER button to turn the

bar speaker on.

2 Press the SOURCE button to switch

to iPhone/iPod mode.

3 Press the iPod DRAWER button to

open the MOTORIZED DOCK FOR

iPhone/iPod

4 Locate the numbered bracket that

ts the iPhone/iPod model that will be docked.

Each included bracket has a number on it, indicating which iPhone/iPod model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed.

5 Snap the bracket into place over

the iPhone/iPod connector in the motorized dock.

6 Connect the iPhone or iPod to

the connector inside the Dock for iPhone/iPod.

When the speaker is plugged in, using AC power, the docked iPhone or iPod will charge.

Playing an iPhone/iPod

1 Follow the instructions for docking

an iPhone/iPod.

2 Press the PLAY/PAUSE button to

begin playing music from the docked iPhone or iPod.

1 Press the POWER button to turn the

bar speaker on.

2 Press the SOURCE button to switch

to FM radio mode.

3 Press the TUN/SKIP buttons on the

remote to tune the FM radio.

Saving a Radio Station

1 Follow the instructions for tuning the

FM radio.

2 After tuning to the desired station,

press the MEM button.

3 Press the MENU UP or MENU DN

buttons on the remote to select a preset.

4 Press the MEM button to save the

current radio station to the selected preset.

Up to 20 stations can be saved to the bar speaker’s memory.

Listening to Saved Radio Stations

1 Press the POWER button to turn the

bar speaker on.

2 Press the SOURCE button to switch

to FM radio mode.

3 Press the MEMORY buttons on the

remote to cycle through saved radio stations.

iLive | ITP180B10

AUXILIARY INPUT, LINE INPUT, AND SUBWOOFER OUTPUT

Using the Subwoofer Output

1 Use an RCA cable (included) to

connect an external subwoofer to the SUBWOOFER OUTPUT.

2 When audio is played through

any source, the bar speaker will automatically use the connected subwoofer.

Using the Auxiliary Input

1 Connect an RCA cable (included) to

the AUXILIARY INPUTS on the bar speaker and an audio source.

2 Press the POWER button to turn the

bar speaker on.

3 Press the SOURCE button to switch

to AUX mode.

The AUXILIARY INPUTS will not work when the LINE INPUT is connected.

4 Use the native controls on the

connected audio device to begin playing music through the connected bar speaker.

Using the Line Input

1 Connect a 3.5mm line input cable

(not included) to the LINE INPUT on the bar speaker and an audio source.

2 Press the POWER button to turn the

bar speaker on.

3 Press the SOURCE button to switch

to AUX mode.

When the LINE INPUT is connected, the AUXILIARY INPUTS will not work.

4 Use the native controls on the

connected audio device to begin playing music through the connected bar speaker.

CUSTOMER HELPLINE | 1-314-621-2881 iLive | ITP180B 11

BASIC CONNECTIVITY

Below, you’ll see a basic ow chart of how you can connect your home entertainment devices to the bar speaker, and in turn how the bar speaker connects to them.

AUDIO

VIDEOS-VIDEO

AUDIO &/Or

VIDEO

AUDIO &/Or

VIDEO

DVD PLAYER

DIGITAL CABLE or SATELLITE TUNER

GAMING CONSOLE

VCR

AUDIO

SUBWOOFER

iLive | ITP180B12

AV INPUT AND VIDEO INPUT

Using the AV Input Using the Video Output

1 Connect an RCA cable (included) to

the AV INPUTS and an audio source.

2 Press the POWER button to turn the

bar speaker on.

3 Press the SOURCE button to switch

to AV mode.

4 Use the native controls on the

connected audio device to begin playing music through the connected bar speaker.

Using the Video Input

1 Connect an RCA cable (included) to

the VIDEO INPUT and a video source (DVD player, Cable or Satellite Tuner, Gaming Console, or VCR).

2 Connect the bar speaker to a

television using the VIDEO OUTPUT or S-VIDEO OUTPUT.

3 Press the POWER button to turn the

bar speaker on.

4 Press the SOURCE button to switch

to AV mode.

5 Use the native controls on the

connected video device to control video that runs through the bar speaker.

1 Connect an RCA cable (included) to

the VIDEO OUTPUT and a television.

2 Adjust the connected television to

the proper input setting.

3 Video from a docked iPhone/iPod, or

a connected DVD player can now be played through the bar speaker to the connected television.

Using the S-Video Output

The S-Video Output will only output video from a docked iPod/iPhone.

1 Connect an S-Video cable (not

included) to the S-VIDEO OUTPUT and a television.

2 Adjust the connected television to

the proper input setting.

3 Video from a docked iPhone/iPod

can now be played through the bar speaker to the connected television.

CUSTOMER HELPLINE | 1-314-621-2881 iLive | ITP180B 13

MOUNTING TO A WALL

Important Notes

We recommend having this bar speaker professionally mounted.

The included spacers should be used at your discretion to extend the face of the bar speaker farther from the wall. These are typically used when mounting the bar speaker under a television, and the face of the bar speaker needs to be ush with the face of the television.

Required Tools

• Manual or Power Screwdriver

• Stud Finder

• Pencil

• Tape Measure

• Level

Included Hardware

• (2) Wall Mount Brackets

• (4) Long Screws

• (4) Short Screws

• (2) 1/4” Spacers

• (2) 1/2” Spacers

• (2) 3/4” Spacers

iLive | ITP180B14

studs

screws

ITP180B

mounting

bracket

16”

ITP180B

spacer

Getting Started

1 Use the Tape Measure to decide

how high you’d like to hang the bar speaker on the wall.

The bar speaker must be hung within 6 feet of an AC power outlet for the attached AC power cable to reach.

2 Use the Stud Finder to locate 2

parallel wooden studs to screw the mounting brackets into.

3 Mark the wall at the center of the

studs using the pencil.

4 Line the level up on both of your

marks to make sure they are level. If they’re not, adjust the marks as needed to make them level.

5 After you’ve double checked your

markings, drill through the top hole on both mounting brackets directly into the marks you’ve made on the wall.

6 If you are using the brackets only

and no spacers, use the included short screws. If you are using any of the spacers or combination of the spacers, use the long screws.

7 Use the Level to level each of the

hanging brackets, then drill the second screw into the bottom hole on both mounting brackets.

8 Slide the bar speaker onto the

mounting brackets, and make sure there is a rm and stable connection before letting go of the bar speaker.

9 Finally, use the Level to conrm that

the bar speaker is level.

CUSTOMER HELPLINE | 1-314-621-2881 iLive | ITP180B 15

iLive ITP180B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
