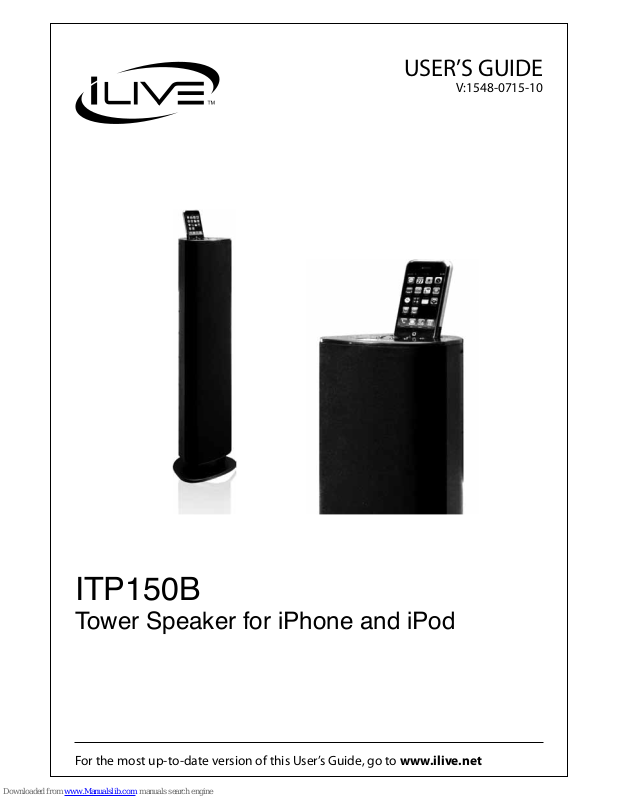

USER’S GUIDE

V:1548-0715-10

For the most up-to-date version of this User’s Guide, go to www.ilive.net

ITP150B

Tower Speaker for iPhone and iPod

Page 2

iLive2

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AveRTIssemeNT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

Warnings and Precautions

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Page 3

Customer Support: 1-888-999-4215 iLive 3

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The apparatus shall not be exposed to dripping or splashing and

that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux

éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Main plug is used as disconnect device and it should remain

readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur ne doit pas être obstruée ou doit être

facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

• Battery shall not be exposed to excessive heat such as sunshine,

re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or back of the apparatus.

Attention marquage est situé à l’arrière ou à l’arrière de

l’appareil

• The marking information is located at the rear or back of

apparatus.

Les informations de marquage est situé à l’arrière ou à l’arrière

de l’appareil.

FCC Warnings

Additional Warnings

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Important Safety Instructions

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Page 4

iLive4

• Made for iPod and iPhone

• Plays and charges docked iPhone and iPod

• 2.1 channel audio

• Bass controls

• FM radio

• Station memory presets (20 FM)

• Last station memory

• Digital clock

• Timer

• LCD display

• Subwoofer output

• Composite video output

• Composite video input

• RCA audio input

• 3.5mm audio input

• Remote control: requires 2, AAA size, batteries (not included)

• Cloth speaker grill

• AC power: built-in AC power cable

• ITP150B

• Removable stand

• Docking brackets for iPhone/iPod

Tower Speaker for iPhone and iPod

Features

Included

Page 5

Customer Support: 1-888-999-4215 iLive 5

TABLE OF CONTENTS

Warnings and Precautions . . . . . 2

Important Safety Instructions . . . . 3

• FCC Warnings

• Additional Warnings

Tower Speaker for iPhone and iPod . . . 4

• Features

• Included

Introduction . . . . . . . . 6

Setup . . . . . . . . . . 8

• Power

• Remote

• Setting the Clock

iPod and iPhone . . . . . . . 9

• Docking an iPod and iPhone

• Playing an iPod and iPhone

Radio, Line Input, and Aux Input . . . 10

• Tuning the FM Radio

• Using the Line Input

• Using the Aux Input

• Using the Subwoofer Output

Stereo Audio Input, Video Input, and Video

Output . . . . . . . . . . 11

• Using the Stereo Audio Input

• Using the Composite Video Output

• Using the Composite Video Input

Company Information . . . . . . 12

• Green Initiative

• International Support

• Contact Information

Page 6

iLive6

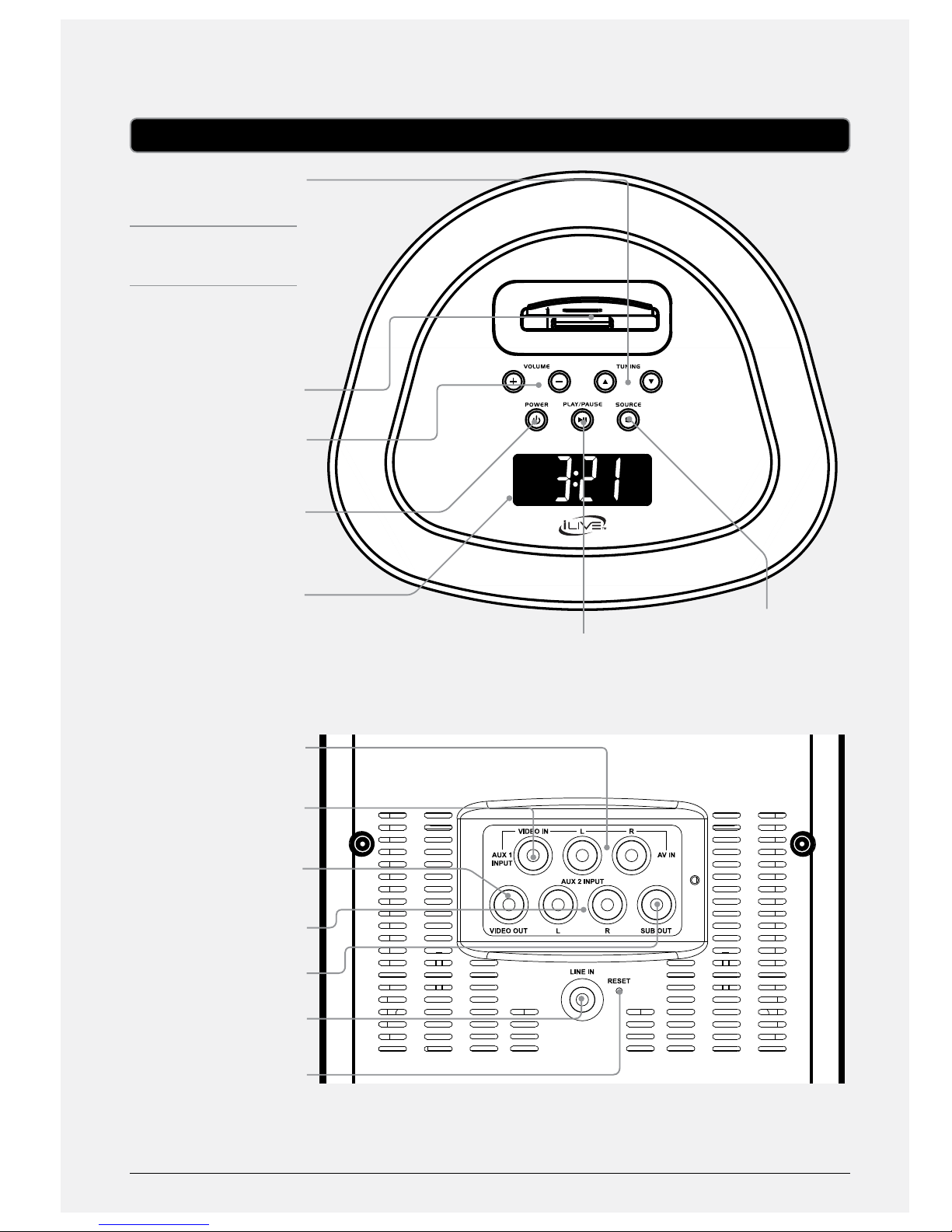

Introduction

iPod

TUNING

Press to tune the FM

radio.

Press to skip between

tracks on a docked

iPhone or iPod.

Press and hold to search

the current track on a

docked iPhone or iPod.

Dock for iPhone and

iPod

VOLUME

Press to adjust the

volume.

POWER

Press to power the

tower speaker o or on.

DISPLAY

STEREO AUDIO INPUT

(AUX 1)

COMPOSITE VIDEO

INPUT

COMPOSITE VIDEO

OUTPUT

STEREO AUDIO INPUT

(AUX 2)

SUBWOOFER OUTPUT

3.5mm AUDIO INPUT (LINE)

RESET

Press using a paperclip

or like object to reset

the tower speaker to it’s

original settings.

SOURCE

Press to switch between iPod/iPhone, Radio, AUX

1, and AUX 2.

PLAY/PAUSE

Press to play or pause a docked iPhone or iPod.

Page 7

Customer Support: 1-888-999-4215 iLive 7

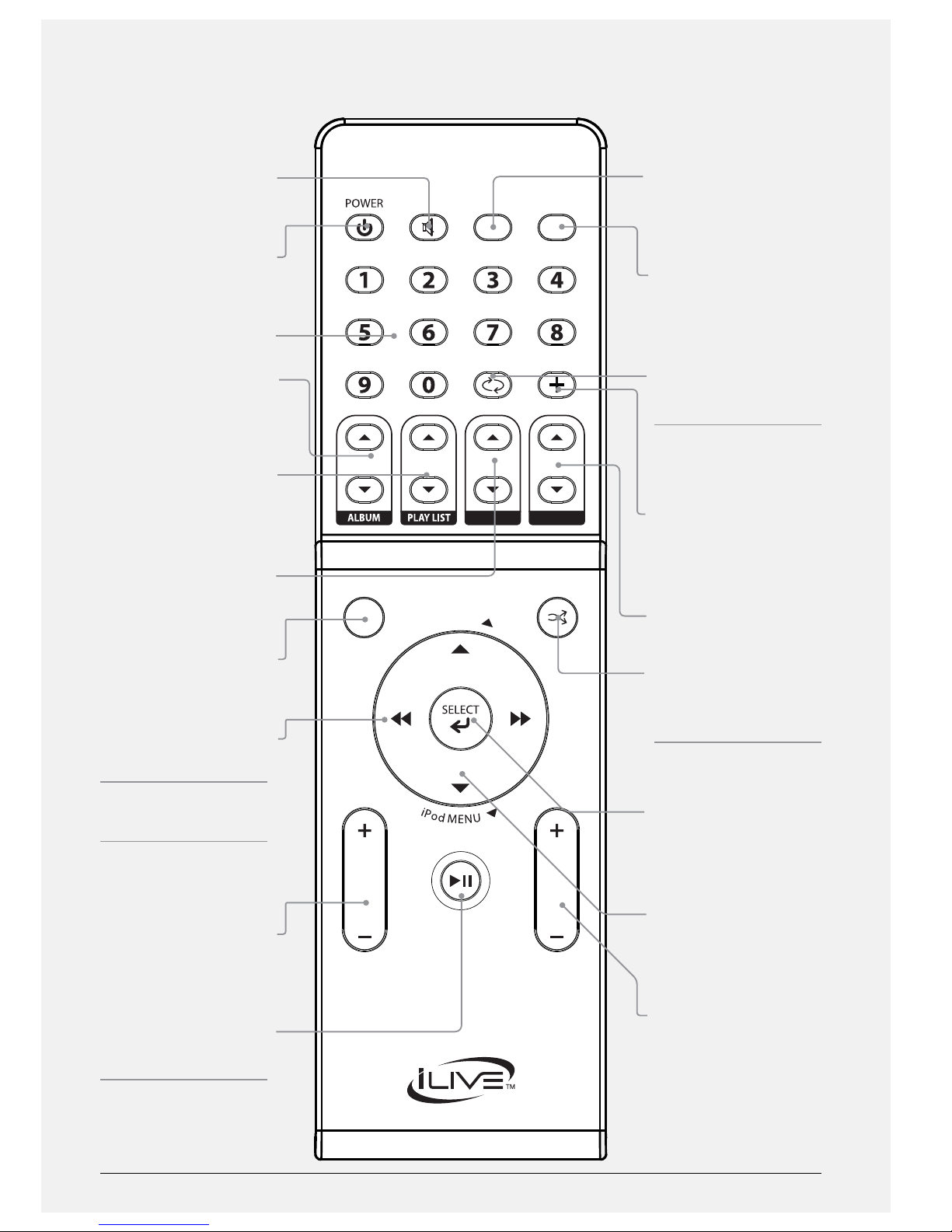

SOURCE

REPEAT/ST

TIME SET

MUTE

SLEEP

VOLUMECHAPTER

CLOCK VIEW

DIMMER

TREBLE BASS

MUTE

Press to mute the

volume.

POWER

Press to power the

tower speaker o or on.

NUMBER KEYPAD

ALBUM

Press to cycle through

albums on a docked

iPhone or iPod.

PLAYLIST

Press to cycle through

playlists on a docked

iPhone or iPod.

TREBLE

Press to adjust the

treble.

SLEEP

Press repeatedly to set

the sleep timer.

iPod (+/-) / TUN (+/-)

Press to tune the FM

radio.

Press to skip between

tracks on a docked

iPhone or iPod.

Press and hold to search

the current track on a

docked iPhone or iPod.

CHAPTER

Press to cycle through

chapters on a docked

iPhone or iPod.

TIME SET/PLAY/PAUSE

Press to play or pause a

docked iPhone or iPod.

With the tower speaker

powered o, press and

hold to set the time.

SOURCE

Press to switch between iPod/iPhone, Radio, AUX 1, and AUX 2.

DIMMER

Presss to adjust the brightness of the display.

REPEAT/ST

Press to repeat the current track, or album. Press to switch between FM and FM ST. when in radio mode.

Press to cycle through the iTunes menus on a docked iPhone or iPod.

BASS

Press to adjust the bass.

CLOCKVIEW/SHUFFLE

Press to play songs from a docked iPhone or iPod in a random order. Press to view the time in radio mode.

SELECT

Press to make selections on a docked iPhone or iPod.

iPod MENU

Press to move through the menus on a docked iPhone or iPod.

VOLUME

Press to adjust the volume.

Page 8

iLive8

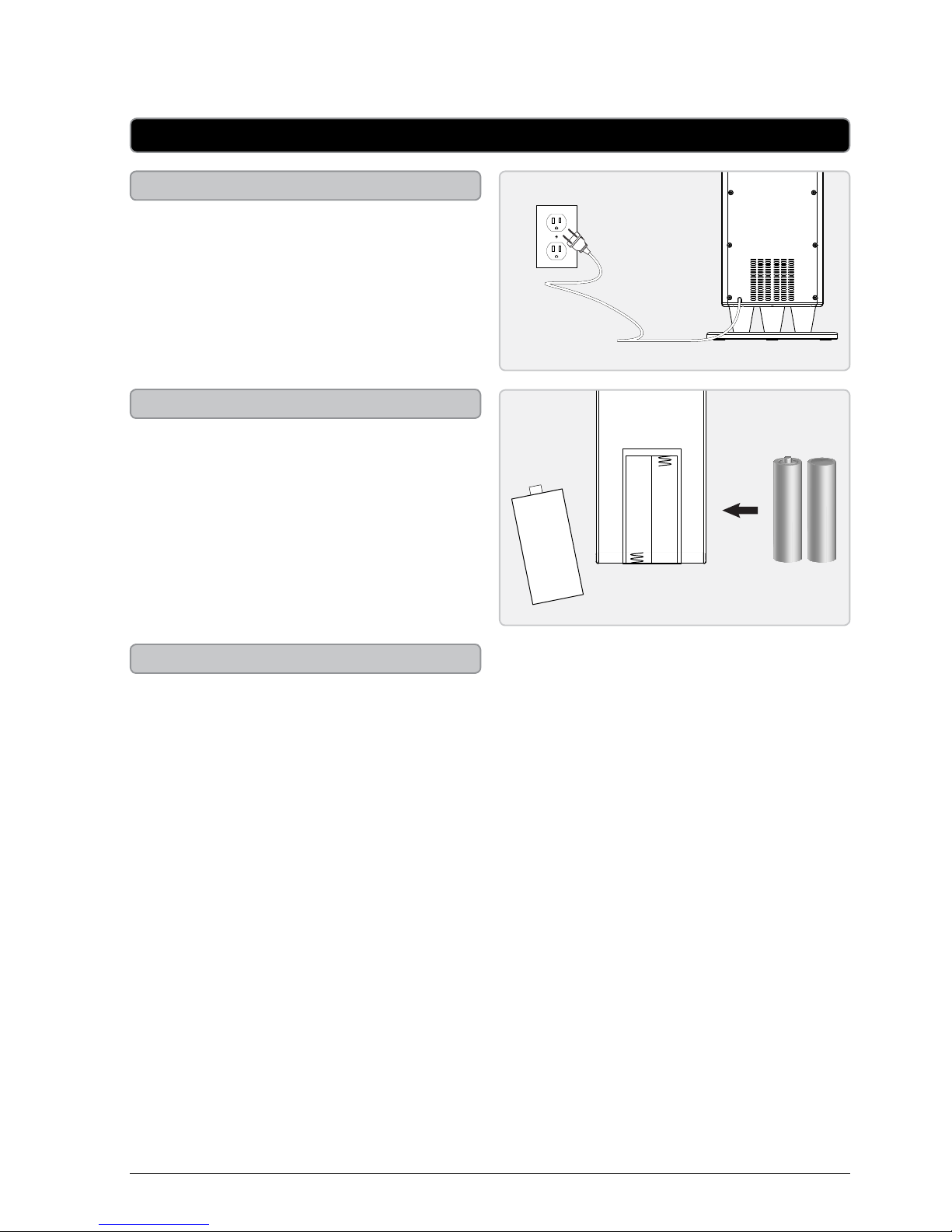

Plug the attached AC cord into a standard AC power outlet to power the tower speaker.

Requires 2, AAA size, batteries (not included)

Power

Remote

SOURCE

REPEAT/ST

TIME SET

MUTE

SLEEP

VOLUMECHAPTER

CLOCK VIEW

DIMMER

TREBLE BASS

OPEN

Setup

Setting the Clock

1. Press the POWER button to turn the tower speaker o.

2. Press and hold the TIME SET button on the remote for 3 seconds.

The hour on the DISPLAY will begin blinking.

3. Press the TUNING buttons to adjust the hour.

4. Press the TIME SET button.

The minute on the DISPLAY will begin blinking.

5. Press the TUNING buttons to adjust the minute.

6. Press the TIME SET button to nish setting the time.

Page 9

Customer Support: 1-888-999-4215 iLive 9

iPod and iPhone

Docking an iPod and iPhone

Playing an iPod and iPhone

1. Follow the instructions for Docking an iPod and iPhone.

2. Press the POWER button to power on the tower speaker.

3. Press the SOURCE button to switch to iPod/iPhone mode.

“iPod” will appear on the display.

4. Press the PLAY/PAUSE button to begin playing music from the docked iPhone or iPod.

1. Locate the numbered bracket that ts the iPhone/iPod model that will be docked.

Each included bracket has a number on it, indicating which iPhone/iPod model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed.

2. Snap the bracket into place over the iPhone/iPod connector in the dock for iPhone/iPod.

3. Connect the iPhone or iPod to the connector inside the Dock for iPhone/iPod.

When the tower speaker is plugged in, using AC power, the docked iPhone or iPod will charge.

Page 10

iLive10

Radio, Line Input, and Aux I nput

Tuning the FM Radio

1. Press the POWER button to turn the tower speaker on.

2. Press the SOURCE button to switch to Radio mode.

“Radio” will appear on the DISPLAY.

3. Press the TUNING buttons to adjust the FM radio station.

Using the 3.5mm Audio Input (Line)

Requires a 3.5mm audio cable (not included)

1. Use a 3.5mm audio cable to connect an MP3 player or other audio source to the 3.5mm AUDIO INPUT (LINE) on the tower speaker.

2. Press the POWER button to power the tower speaker on.

3. Press the SOURCE button to switch the tower speaker to AUX 2 mode.

“AUX 2” will appear on the display.

4. Audio played through the connected MP3 player or other audio source will now play through the tower speaker.

Using the Stereo Audio Input (Aux 2)

Requires an RCA audio cable (not included)

1. Use an RCA audio cable to connect an MP3 player or other audio source to the STEREO AUDIO INPUT (AUX 2) on the tower speaker.

2. Press the POWER button to power the tower speaker on.

3. Press the SOURCE button to switch the tower speaker to AUX 2 mode.

“AUX 2” will appear on the display.

4. Audio played through the connected MP3 player or other audio source will now play through the tower speaker.

Using the Subwoofer Output

Requires an RCA audio cable (not included)

1. Use an RCA cable (included) to connect an external subwoofer to the SUBWOOFER OUTPUT.

2. When audio is played through any source, the bar speaker will automatically use the connected subwoofer.

Page 11

Customer Support: 1-888-999-4215 iLive 11

Stereo Audio Input, Video Input, and Video Output

Using the Stereo Audio Input (Aux 1)

Requires an RCA audio cable (not included)

1. Use an RCA audio cable to connect an audio source (DVD player, Cable or Satellite Tuner, Gaming Console, or VCR). to the STEREO AUDIO INPUT (AUX 1) on the tower speaker.

2. Press the POWER button to power the tower speaker on.

3. Press the SOURCE button to switch the tower speaker to AUX 1 mode.

“AUX 1” will appear on the display.

4. Audio played through the connected audio source will now play through the tower speaker.

Using the Composite Video Input

Using the Composite Video Output

Requires an RCA video cable (not included)

1. Connect a television to the COMPOSITE VIDEO OUTPUT using an RCA cable (not included).

2. Follow the instructions for Docking an iPod or iPhone and Playing an iPod or iPhone, or Using the Composite Video Input.

3. Make sure the docked iPhone or iPod’s TV out option is turned on.

4. Adjust the connected television to the correct input setting.

5. Video played through the docked iPhone or iPod will now play on the connected television.

Requires an RCA video cable (not included)

1. Connect an RCA video cable to the COMPOSITE VIDEO INPUT and a video source (DVD player, Cable or Satellite Tuner, Gaming Console, or VCR).

2. Connect the tower speaker to a television using the COMPOSITE VIDEO OUTPUT.

3. Press the POWER button to turn the tower speaker on.

4. Press the SOURCE button to switch to AUX 1 mode.

5. Use the native controls on the connected video device to control video that runs through the bar speaker.

Page 12

Environmental Commitment to ‘Protect for Today and Sustain for Tomorrow’

2009 marked the ocial launch of DPI, Inc.’s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain signicant and important conservation eorts within its manufacturing and marketing communities. In addition to targeting and selecting energy ecient product features, and structuring ‘green oce’ procedures, other initial program eorts include:

• Reduction of all packaging sizes

• Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper

• Recycled ber board in place of the polyfoam in packing boxes

• Recycled plastics in place of the virgin material in product construction

To download this User’s Guide in English, Spanish, or French, visit the support section at www.ilive.net.

Para transferir esta guía de usuario en inglés, español, o francés, visite la sección de la ayuda en www.ilive.net.

Pour télécharger ce guide de l’utilisateur en anglais, espagnol, ou français, visitez la section de soutien chez www.ilive.net.

Phone: 1-888-999-4215 Email: [email protected] Parts Email: [email protected] Website: www.ilive.net

Green Initiative International Support

Contact Information
