Page 1

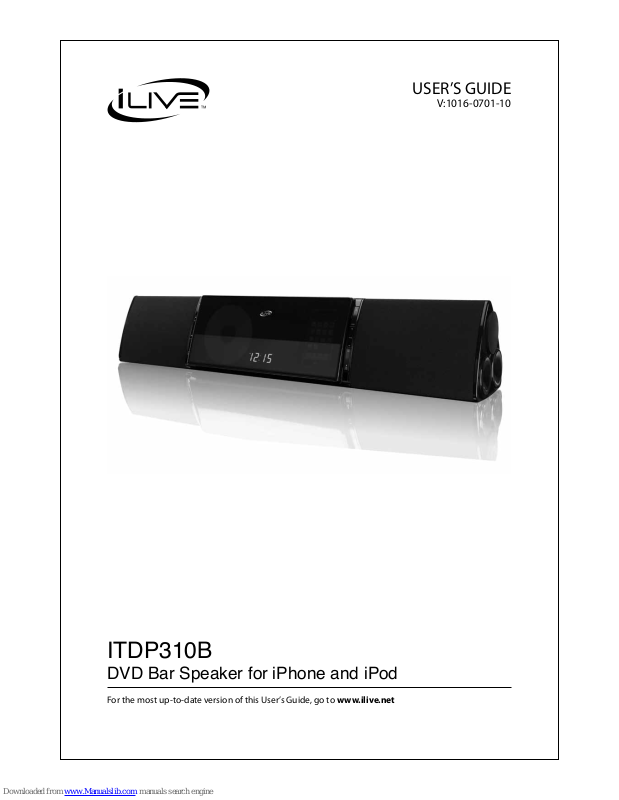

USER’S GUIDE

V:1016-0701-10

For the most up-to-date version of this User’s Guide, go to www.ilive.net

ITDP310B

DVD Bar Speaker for iPhone and iPod

Page 2

iLive2

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AveRTIssemeNT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Warnings and Precautions

Page 3

Customer Support: 1-888-999-4215 iLive 3

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The apparatus shall not be exposed to dripping or splashing and

that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux

éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Main plug is used as disconnect device and it should remain

readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur ne doit pas être obstruée ou doit être

facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

• Battery shall not be exposed to excessive heat such as sunshine,

re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or back of the apparatus.

Attention marquage est situé à l’arrière ou à l’arrière de

l’appareil

• The marking information is located at the rear or back of

apparatus.

Les informations de marquage est situé à l’arrière ou à l’arrière

de l’appareil.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

FCC Warnings

Additional Warnings

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Important Safety Instructions

Page 4

iLive4

• Made for iPhone

• Made for iPod

• Plays and charges docked iPhone and iPod

• DVD player: DVD, DVD±R/RW

• CD player: CD, CD-R/RW

• 2 channel speaker system

• Tube technology for enhanced bass

• Preset EQ

• Bass & treble control

• High Denition Conversion DVD up to 1080p

• Multi-Language OSD: On-Screen Display in English, French and Spanish

• NTSC

• Motorized DVD/iPod door

• Digital tune FM radio

• 10 station memory presets

• Last user setting for volume and function

• Digital clock

• Alarm

• Gradual wake to radio or iPhone/iPod

• Sleep

• Negative LCD display with 0.5” character size and white backlight

• AV1 and AV2 input

• 3.5mm audio input

• RCA audio input

• HDMI output

• Composite video output

• Subwoofer output

• Remote control: requires 2, AAA size, batteries (included)

• AC power: Built in AC power cable

• Remote control: requires 2, AAA size, batteries (included)

• Wall-mount bracket

• (4) Screws for mounting

• Brackets for docking iPhone/iPod (5)

• FM wire antenna

• Audio/video cable

• Warranty card

• User’s guide

Features Included

DVD Bar Speaker for iPhone and iPod

Page 5

Customer Support: 1-888-999-4215 iLive 5

TABLE OF CONTENTS

Warnings and Precautions . . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . 3

• FCC Warnings

• Additional Warnings

DVD Bar Speaker for iPhone and iPod . . . . . . . . . . . . . . . 4

• Features

• Included

Introduction . . . . . . . . . . . . . . . . . . . . . 6

Setup . . . . . . . . . . . . . . . . . . . . . . . 8

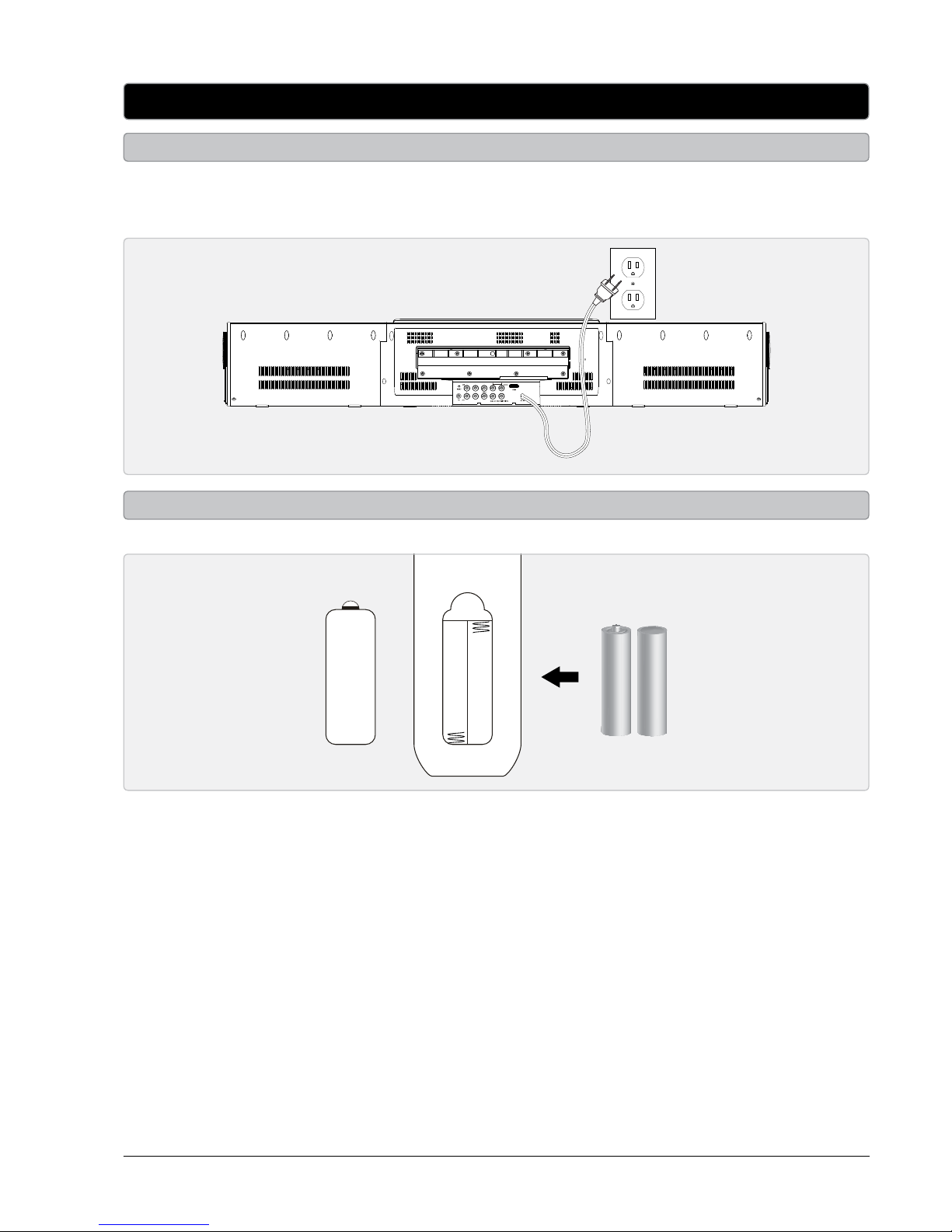

• Power

• Remote

Clock and Alarm . . . . . . . . . . . . . . . . . . . . 9

• Setting the Clock

• Setting the Alarm

iPod/iPhone . . . . . . . . . . . . . . . . . . . . . 10

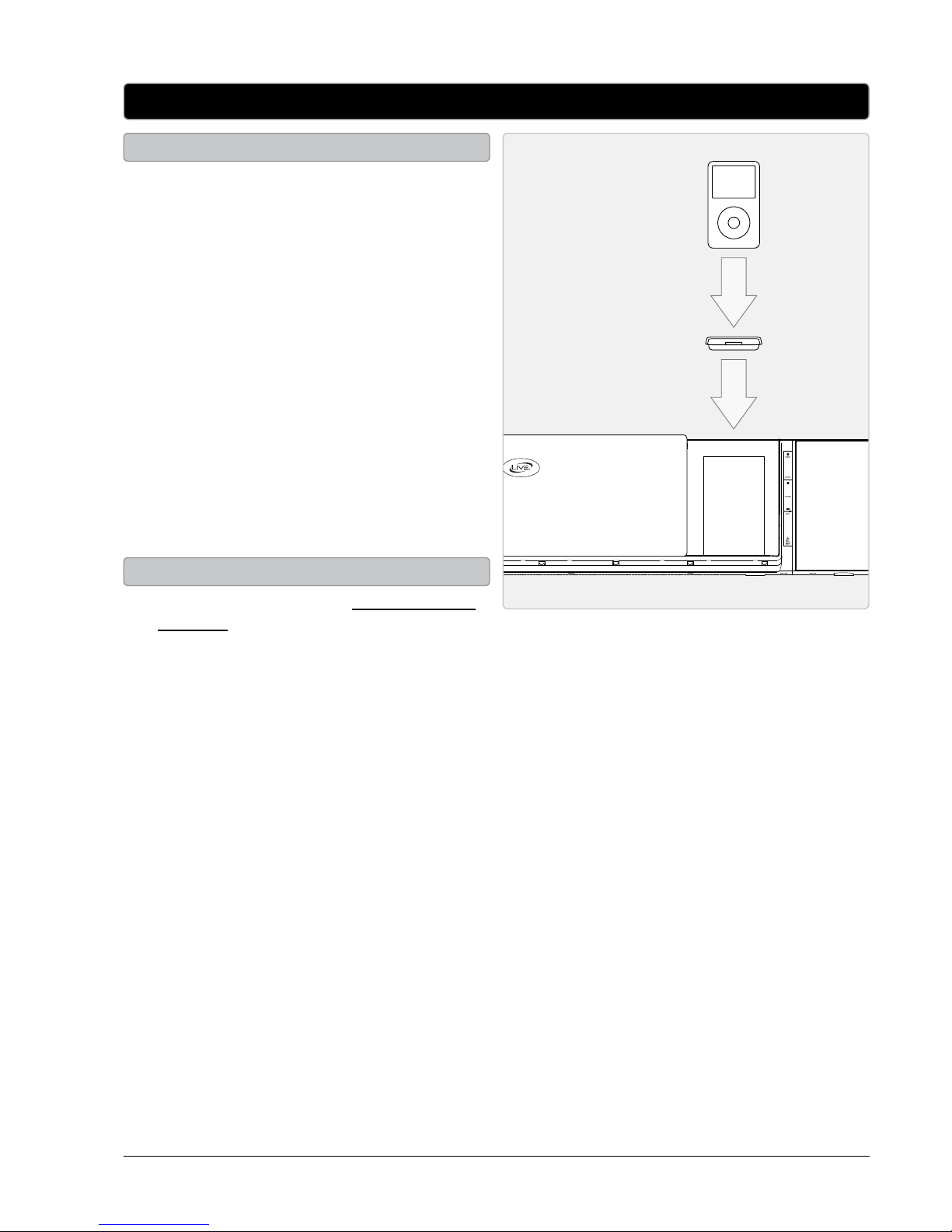

• Docking an iPod or iPhone

• Playing an iPod and iPhone

Radio . . . . . . . . . . . . . . . . . . . . . . . 11

• Playing the FM Radio

• Saving an FM station as a Preset

• Listening to Preset Radio Stations

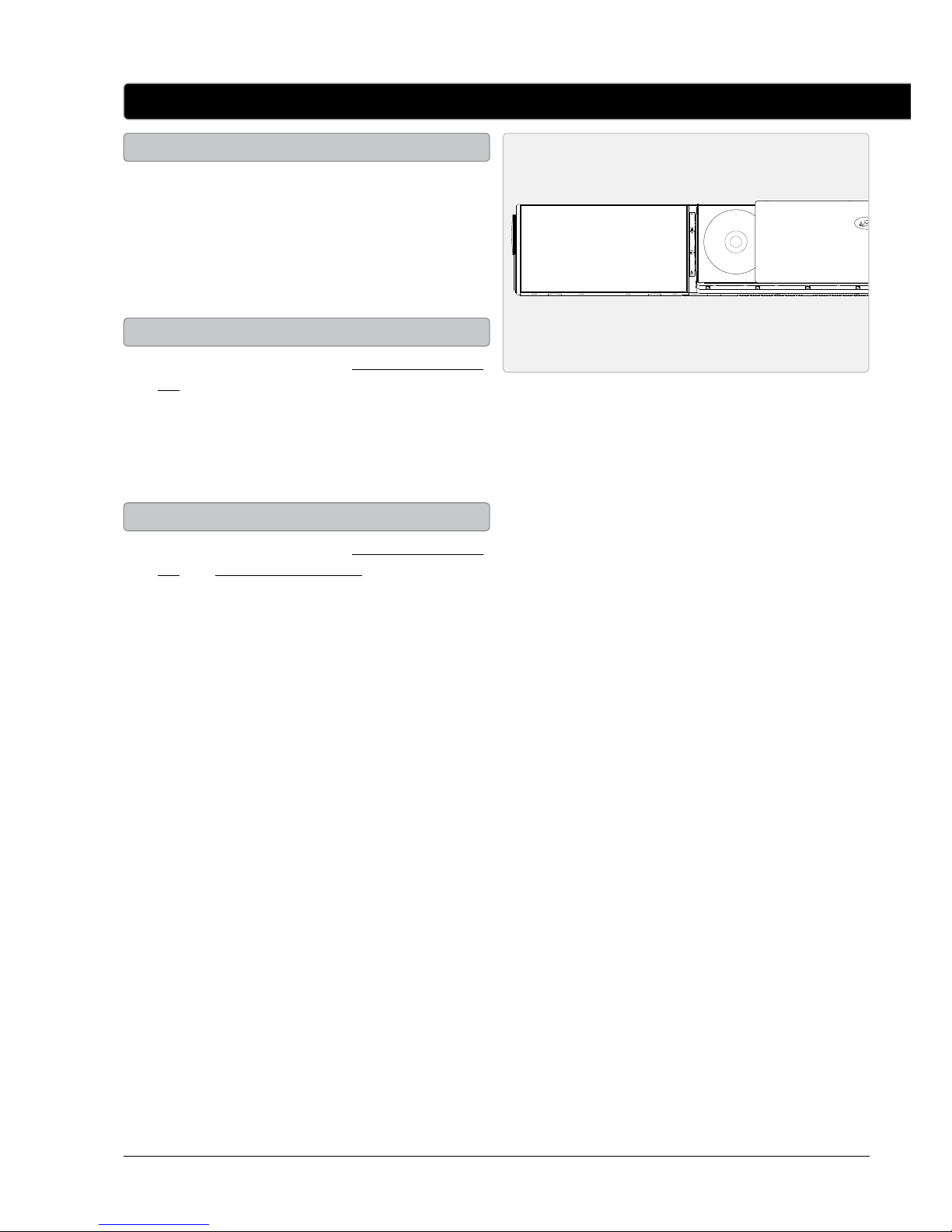

• Loading a DVD or CD

• Playing a DVD or CD

• Programming a DVD or CD

DVD and CD . . . . . . . . . . . . . . . . . . . . . 13

• DVD Setup Menu

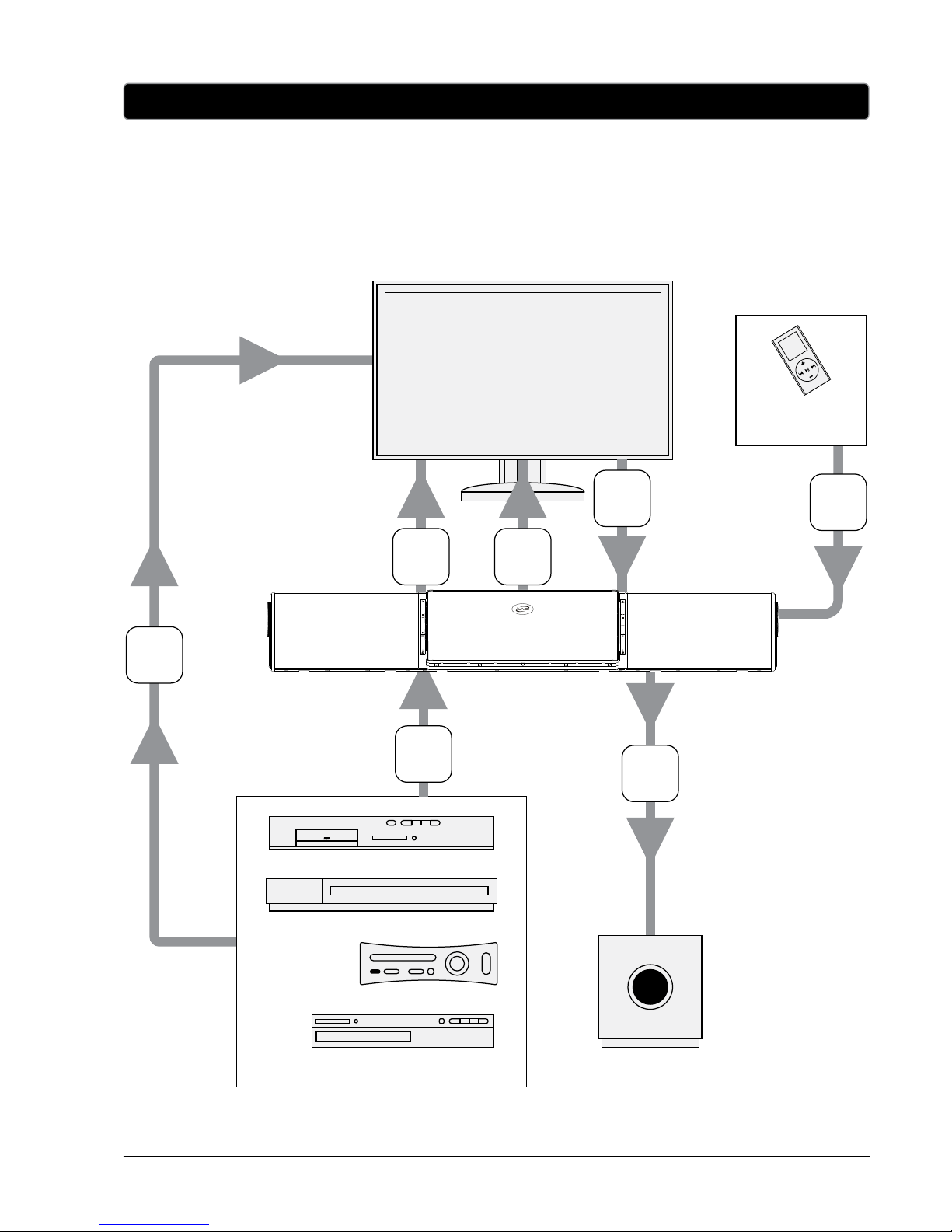

Basic Connectivity . . . . . . . . . . . . . . . . . . . . 14

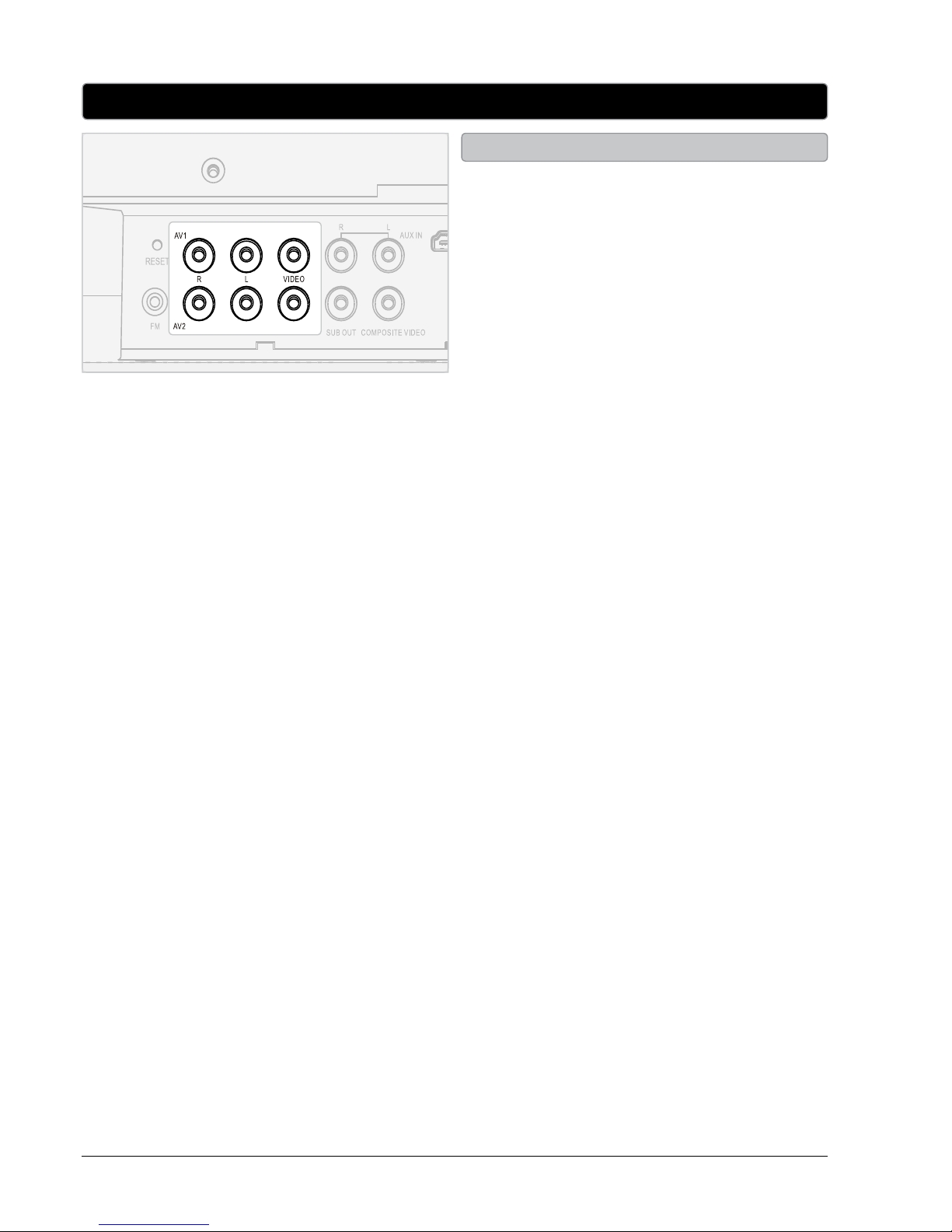

Audio/Video 1 and 2 . . . . . . . . . . . . . . . . . . . 15

• AV1 and AV2

Connecting a Television . . . . . . . . . . . . . . . . . . 16

• Composite Video Output

• Using the RCA Audio Input

• HDMI Output

Audio . . . . . . . . . . . . . . . . . . . . . . . 17

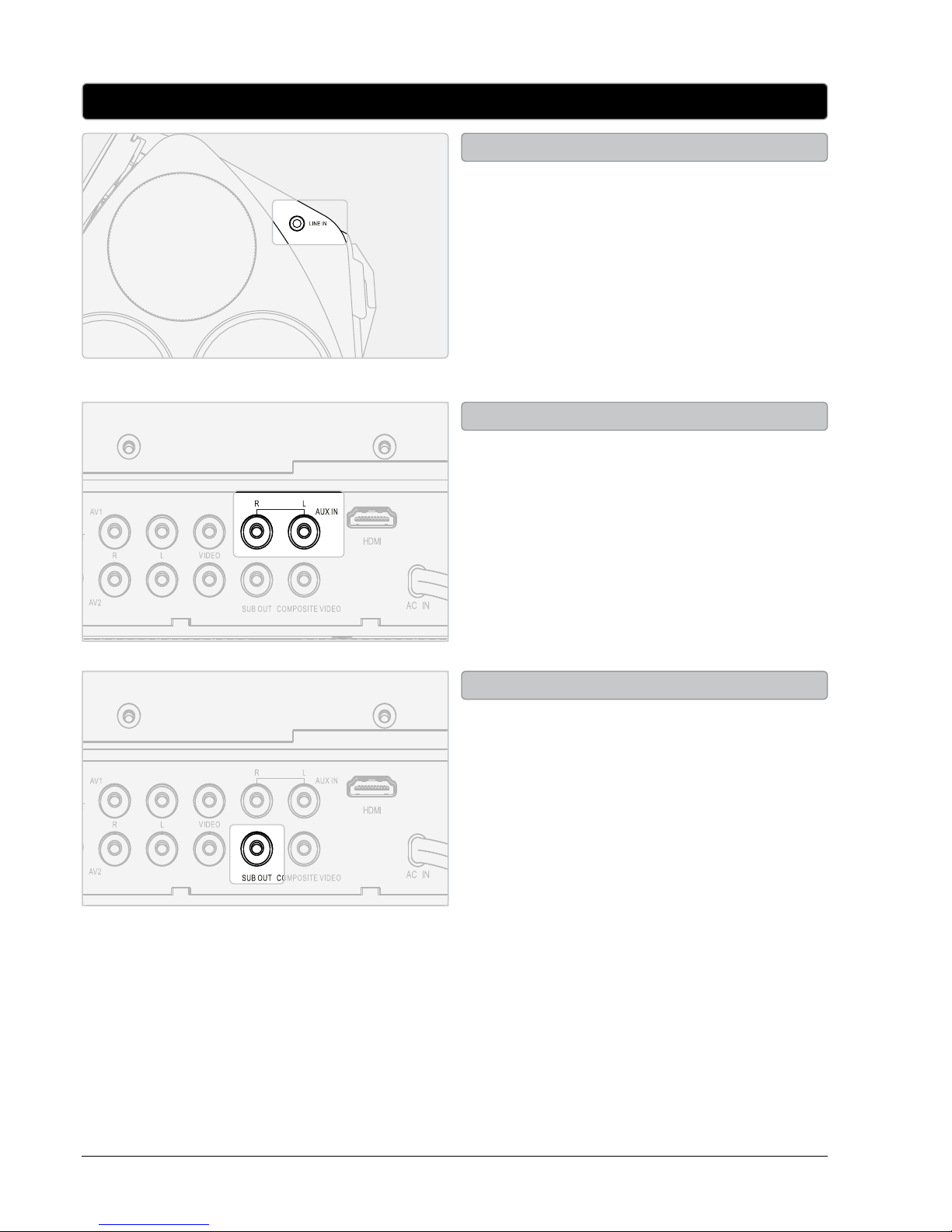

• Using the 3.5mm Audio Input

• Using the RCA Audio Input

• Using the Subwoofer Output

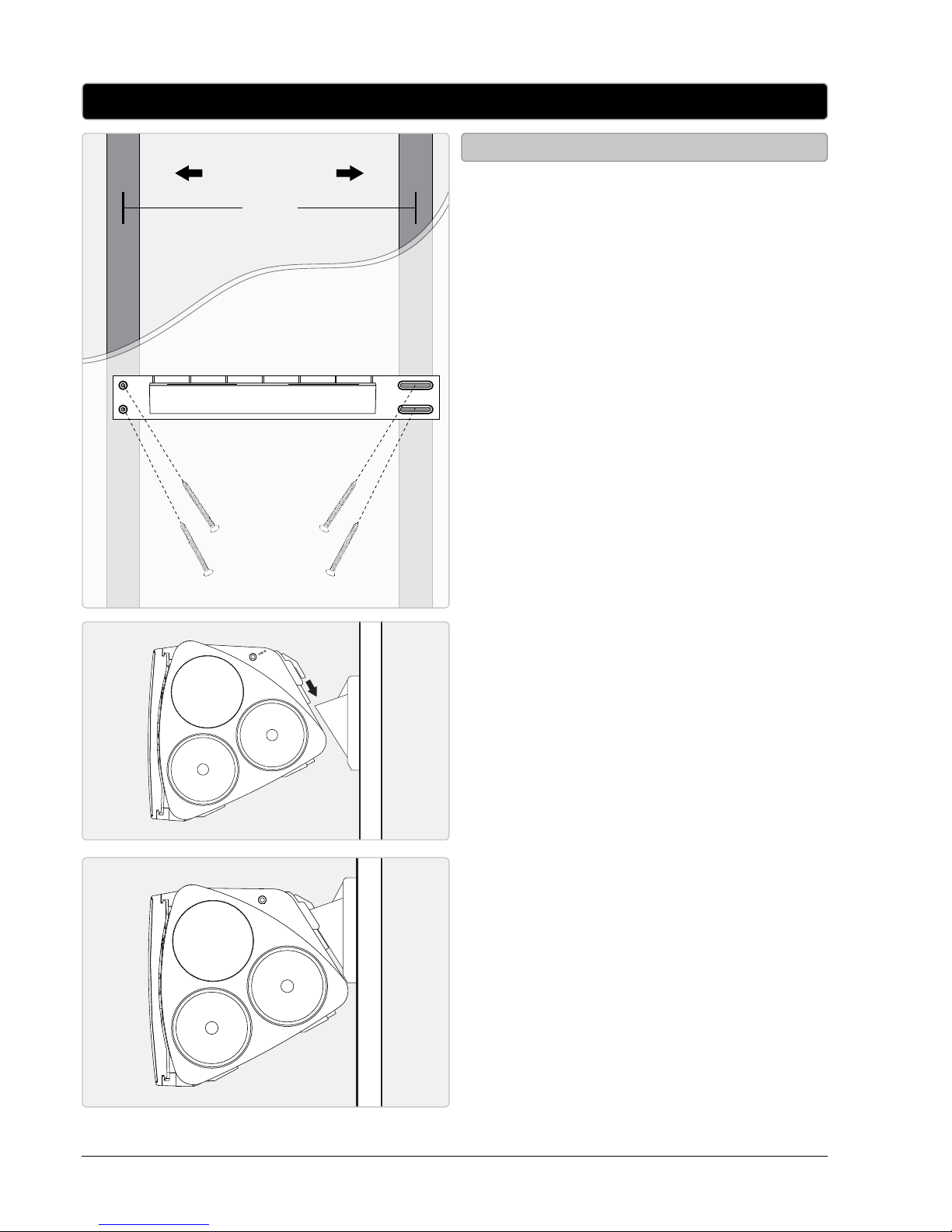

Mounting the Bar Speaker to a Wall . . . . . . . . . . . . . . . . 18

• Important Notes

• Required Tools

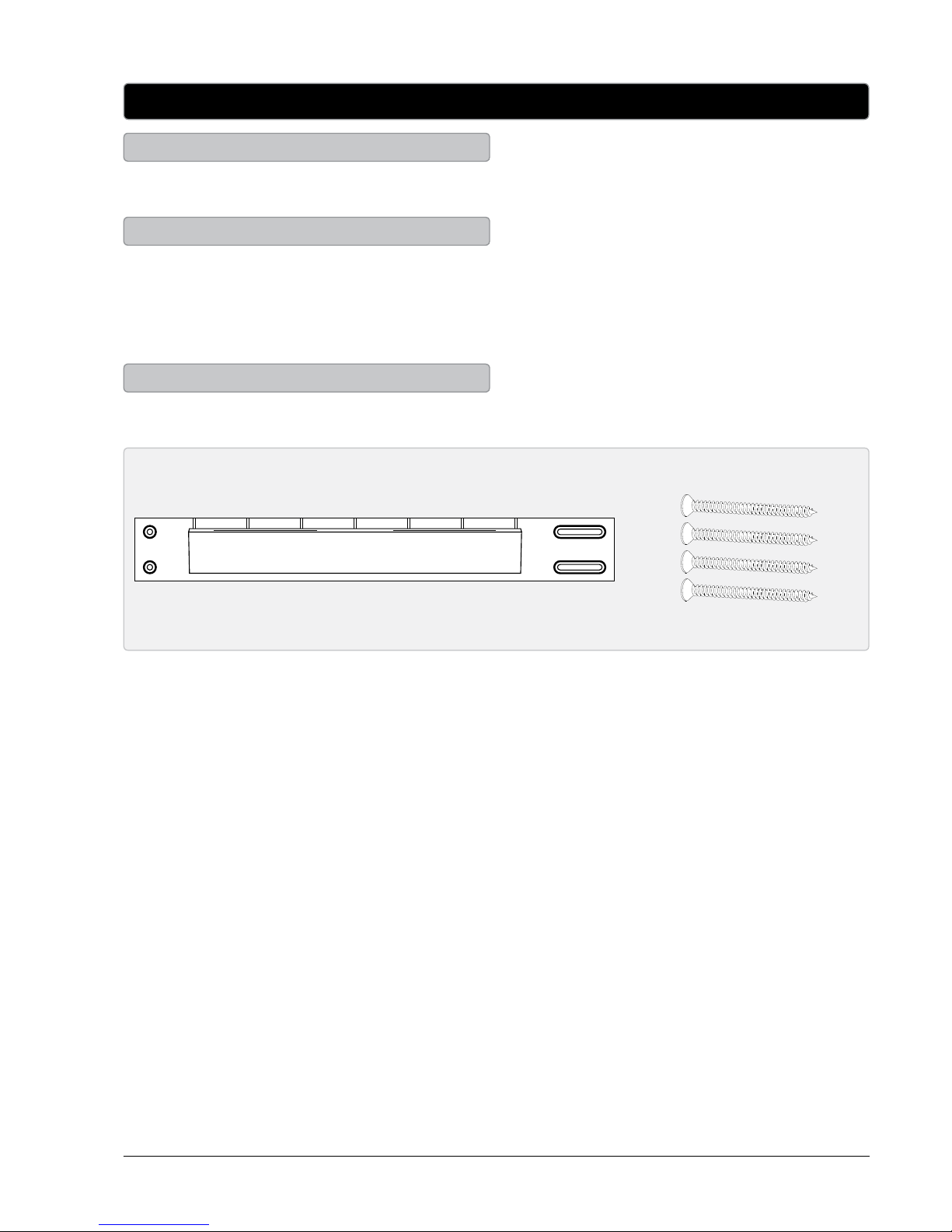

• Included Hardware

Mounting the Bar Speaker to a Wall . . . . . . . . . . . . . . . . 19

• Mounting - Getting Started

Company Information . . . . . . . . . . . . . . . . . . . 20

• Green Initiative

• International Support

• Contact Information

Page 6

iLive6

Introduction

PLAY/PAUSE

Press to play or pause

a loaded or docked CD,

DVD, iPhone, or iPod.

MEM/STOP

Press to stop a loaded

or docked CD, DVD,

iPhone, or iPod during

play. In radio mode,

press to save the

current station as a

preset.

SKIP

Press to skip between

tracks or chapters on a

loaded or docked CD,

DVD, iPhone, or iPod.

CLOCK

With the power o,

press to set the clock.

DVD OPEN/CLOSE

Press to open or close

the DVD compartment.

AV1 and AV2

Use to input RCA audio

and Composite video

into the bar speaker.

RESET

Press using a paperclip

or like object to reset

the bar speaker to it’s

original settings.

FM WIRE ANTENNA

Adjust to improve the

FM radio reception.

SUBWOOFER OUTPUT

VIDEO OUTPUT

3.5mm AUDIO INPUT

POWER

Press to turn the bar speaker’s power o or on.

SOURCE

Press to switch between iPod, FM radio, DVD, AUX, LINE, AV1, and AV2 modes.

VOLUME

Press to adjust the volume output from the bar speaker.

iPod

Press to switch to iPod mode.

iPod OPEN/CLOSE

Press to open or close the iPhone/iPod compartment.

RCA AUDIO INPUT

HDMI OUTPUT

AC POWER CABLE

Page 7

Customer Support: 1-888-999-4215 iLive 7

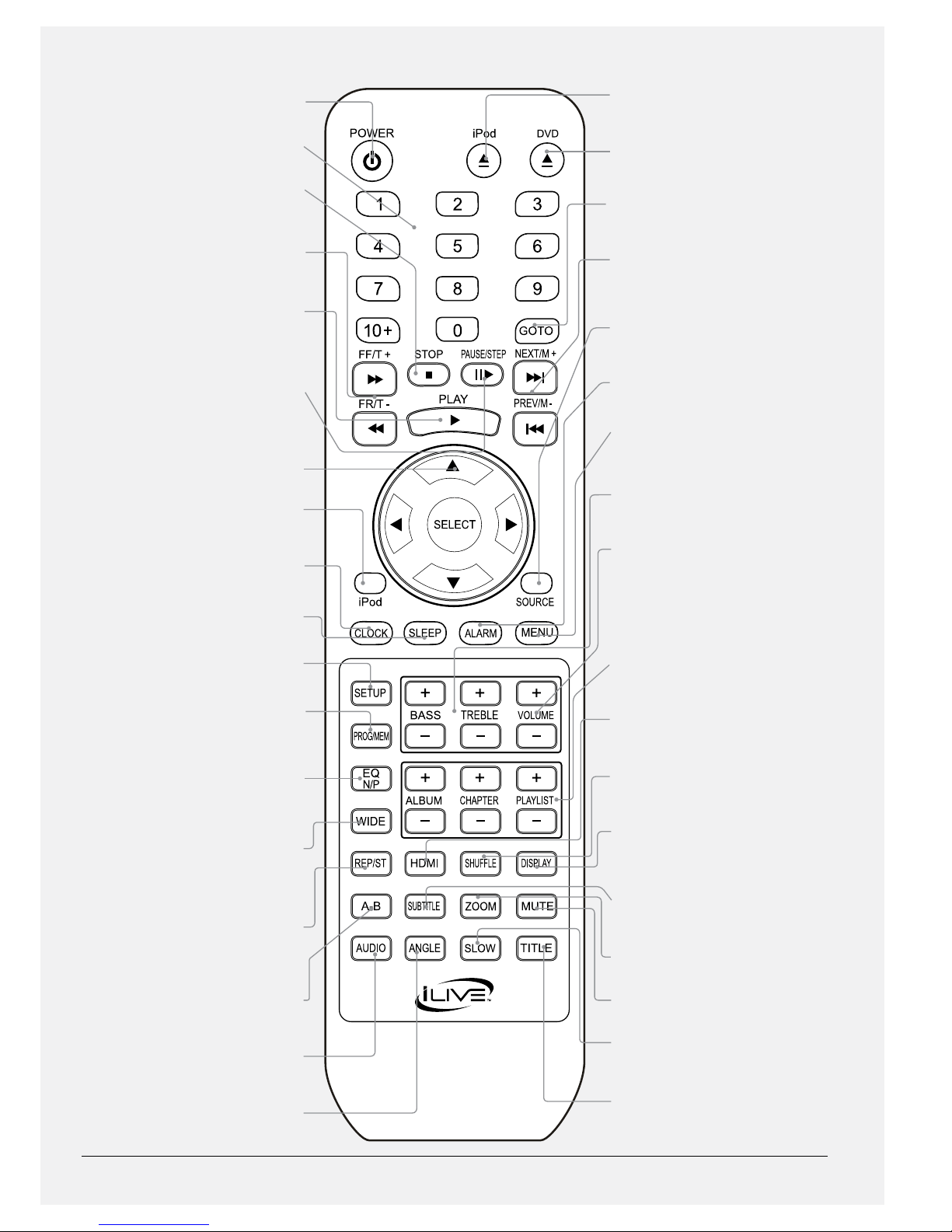

POWER

Press to turn the bar speaker’s power o

or on.

NUMBER KEYPAD

STOP

Press to stop a loaded or docked CD, DVD,

iPhone, or iPod during play.

FAST-FORWARD/FAST-REWIND/TUNE +/-

In DVD mode, press to fast-forward or fast-

rewind a loaded DVD or CD. In FM radio

mode, press to tune the FM radio.

PLAY

Press to play a loaded or docked CD, DVD,

iPhone, or iPod.

PAUSE/STEP

Press to pause a loaded or docked CD,

DVD, iPhone, or iPod. In DVD mode, press

continuously to step through a playing

DVD one frame at a time.

DIRECTIONAL/SELECT

Press to navigate DVD, iPhone, and iPod

menus. Press to make selections on a

loaded DVD, CD, iPhone, or iPod.

iPod

Press to switch to iPod mode.

CLOCK

With the power o, press to set the clock.

SLEEP

Press repeatedly to set the sleep timer.

SETUP

Press to access the DVD setup menu.

PROGRAM/MEM

Press to program a loaded CD or DVD to

play tracks or chapters in a specied order.

In radio mode, press to save the current

station as a preset.

EQ and N/P

Press to adjust the EQ setting. In DVD

mode, with the DVD stopped, press and

hold to switch between NTSC ,PAL, and

AUTO.

WIDE

In DVD mode, press to switch between

Normal/PS, Normal/LB, and Wide screen

format.

REP/ST

Press to repeat a chapter or track, title, or

entire album. In radio mode, press to turn

FM stereo o and on.

A-B REPEAT

Press to create a repeating loop on a

specied section of a loaded DVD.

AUDIO

Press to adjust the audio options on the

loaded DVD.

ANGLE

On supported DVDs, press to view

alternate angles.

iPod OPEN/CLOSE

Press to open or close the iPhone/iPod compartment.

DVD OPEN/CLOSE

Press to open or close the DVD compartment.

GOTO

Press to go to a specied chapter, title, or time on a loaded DVD.

NEXT/PREVIOUS/MEMORY +/-

Press to skip between chapters or tracks. In radio mode, press to cycle through saved radio stations.

SOURCE

Press to switch between iPod, FM radio, DVD, AUX, LINE, AV1, and AV2 modes.

ALARM

Press to set the alarm.

In DVD or iPod mode, press to return to the loaded DVD’s main menu or docked iPod’s previous menu.

BASS/TREBLE

Press to adjust the bass and treble levels when in EQ at mode.

VOLUME

Press to adjust the volume.

ALBUM/CHAPTER/PLAYLIST

Press to cycle through albums, chapters, or playlists on a docked iPhone or iPod.

HDMI

In DVD mode, press repeatedly to adjust the resolution output from the bar speaker.

SHUFFLE

Press to play tracks from a DVD, CD, iPhone, or iPod in a random order.

DISPLAY

In DVD mode, press to view the on-screen display. In radio mode, press to view the time.

SUBTITLE

Press to adjust the subtitle options on the loaded DVD.

ZOOM

Press to adjust the zoom on a playing DVD.

MUTE

Press to mute the volume.

SLOW

Press to watch the loaded DVD in slow motion.

TITLE

Press to return to the loaded DVDs title menu.

Page 8

iLive8

Plug the attached AC power cable into a standard AC power outlet to power the bar speaker.

Requires 2, AAA size, batteries (included)

Setup

Power

Remote

Page 9

Customer Support: 1-888-999-4215 iLive 9

1. Press the POWER button to turn the bar speaker o.

2. Press the CLOCK button.

The hour will begin to blink.

3. Press the SKIP buttons on the bar speaker or the up and down DIRECTIONAL buttons on the remote to adjust the hour.

4. Press the CLOCK button.

The minute will begin to blink.

5. Press the SKIP buttons on the bar speaker or the up and down DIRECTIONAL buttons on the remote to adjust the minute.

6. Press the CLOCK button to nish setting the time.

1. Press the ALARM button.

The hour will begin to blink.

2. Press the SKIP buttons on the bar speaker or the up and down DIRECTIONAL buttons on the remote to adjust the hour.

3. Press the ALARM button.

The minute will begin to blink.

4. Press the SKIP buttons on the bar speaker or the up and down DIRECTIONAL buttons on the remote to adjust the minute.

5. Press the ALARM button repeatedly to cycle between OFF, FM RADIO, and iPod.

When the display shows iPod, press the SELECT button on the remote to wake to the docked iPhone or iPod.

When the display shows the FM radio, press the MEMORY +/- buttons on the remote to select an FM radio preset, then press the SELECT button on the remote to wake to the selected FM radio station.

Setting the Clock

Setting the Alarm

Clock and Alarm

Page 10

iLive10

1. Locate the numbered bracket that ts the iPhone/iPod model that will be docked.

Each included bracket has a number on it, indicating which iPhone/iPod model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed.

2. Press the iPod button to switch to iPod mode.

3. Press the iPod OPEN/CLOSE button to open the iPhone/iPod compartment.

4. Insert the bracket into the dock for iPhone and iPod.

5. Dock the iPod or iPhone into the dock.

6. Press the iPod OPEN/CLOSE button to close the iPhone/iPod compartment.

iPod/iPhone

Docking an iPod or iPhone

1. Follow the instructions for Docking an iPod or iPhone.

2. Press the PLAY button to begin playing music from the docked iPhone or iPod.

Playing an iPod and iPhone

Page 11

Customer Support: 1-888-999-4215 iLive 11

1. Press the SOURCE button repeatedly to switch to FM radio mode.

2. Press the TUNE +/- buttons on the remote or the SKIP buttons on the bar speaker to tune the FM radio.

1. Follow the instructions for Playing the FM Radio.

2. Tune the radio to the desired station.

3. Press the MEM/STOP button.

4. Press the M +/- buttons on the remote or the SKIP buttons on the bar speaker to select a preset number.

5. Press the MEM/STOP button to save the current station to the selected preset.

1. Follow the instructions for Playing the FM Radio.

2. Follow the instructions for Saving an FM station as a Preset.

3. Press the M +/- buttons on the remote control to cycle through saved FM radio presets.

Playing the FM Radio

Saving an FM station as a Preset

Listening to Preset Radio Stations

Radio

Page 12

iLive12

1. Press the SOURCE button to switch to DVD mode.

2. Press the DVD OPEN/CLOSE button to open the DVD compartment.

3. Insert a DVD or CD into the DVD compartment, label side facing out.

1. Follow the instructions for Loading a DVD or CD and Playing a DVD or CD.

2. Press the PROG/MEM button on the remote.

3. Use the NUMBER KEYPAD to enter in the titles and chapters or tracks in the order you want them to play.

4. Use the DIRECTIONAL buttons to select the on-screen START button. Press the SELECT button to begin playing the programmed DVD or CD.

5. To cancel the program play, press the STOP button twice.

1. Follow the instructions for Loading a DVD or CD.

2. Press the PLAY button to begin playing the loaded disc.

To watch a DVD, the bar speaker must be connected to a television.

DVD and CD

Loading a DVD or CD

Programming a DVD or CD

Playing a DVD or CD

Page 13

Customer Support: 1-888-999-4215 iLive 13

GENERAL

TV Display

• Use to switch between Normal/PS, Normal/ LB, and Wide.

Angle Mark

• Use to turn the Angle Mark on or o. When on, an angle mark icon will appear on supported DVDs when alternate angles can be viewed.

OSD Language

• Use to adjust the on-screen display language.

Screen Saver

• Use to turn the screen saver o or on.

AUDIO

Downmix

• Use to switch between LT/RT and Stereo.

VIDEO

HDMI Resolution

• Use to switch between 480i, 480p, 720p, 1080i, and 1080p.

Quality

• Use to adjust the brightness, contrast, hue and saturation of video output through the bar speaker.

SYSTEM

TV Type

• Use to switch between NTSC, PAL, and AUTO. This can also be adjusted by using the N/P button on the remote control.

Audio

• Use to adjust the audio language for the loaded DVD.

Subtitle

• Use to adjust the subtitle language for the loaded DVD.

Disc Menu

• Use to adjust the disc menu language for the loaded DVD.

Default

• Use to reset the DVD player settings back to their original conguration.

DVD Setup Menu

Page 14

iLive14

Basic Connectivity

DVD PLAYER

DIGITAL CABLE or SATELLITE TUNER

VCR

GAMING CONSOLE

SUBWOOFER

AUDIO

AND/OR

VIDEO

AUDIO

AND/OR

VIDEO

VIDEOHDMI

AUDIO

MP3 PLAYER

Below, you’ll see a basic ow chart of how you can connect your home entertainment devices to the bar speaker, and in turn how the bar speaker connects to them.

Page 15

Customer Support: 1-888-999-4215 iLive 15

Requires an RCA audio/video cable (not included)

Potential Connections: Gaming System, Set-top Box, VCR, External DVD Player

1. Connect an RCA audio/video cable AV1 or AV2 inputs on the back of the bar speaker

and to a gaming system, set-top box, VCR, or external DVD player..

2. Press the SOURCE button to switch to AV1 or AV2 mode.

3. Use the connected audio and video source’s native controls to play and control audio and video played through the connected bar speaker.

4. Use the COMPOSITE VIDEO OUTPUT or HDMI OUTPUT to output video incoming to the bar speaker to a television.

Audio/Video 1 and 2

AV1 and AV2

Page 16

iLive16

Connecting a Television

Requires an RCA video cable (not included)

1. Connect an RCA video cable to the COMPOSITE VIDEO OUTPUT on the bar speaker and a composite video input on a television.

2. Adjust the connected television to the correct input setting.

3. Video played on or through the bar speaker will now show on the connected television.

Requires an HDMI cable (not included)

Please note, the HDMI output will not support video from a docked iPod or iPhone. To output video from an iPod or iPhone, use the Composite Video Output.

1. Connect an HDMI cable to the HDMI OUTPUT on the bar speaker and a HDMI

input on a television.

2. Adjust the connected television to the correct input setting.

3. Audio and video played on or through the bar speaker will now show on the connected television.

Composite Video Output

Good - Video

HDMI Output

Best - Audio and Video

Requires an RCA audio cable (not included)

1. Connect an RCA audio cable to the RCA AUDIO INPUT on the back of the bar speaker and an audio output on an audio source.

2. Press the SOURCE button to switch to AUX mode.

3. Use the connected audio source’s native controls to play and control audio played through the connected bar speaker.

Using the RCA Audio Input

Good - Audio

Page 17

Customer Support: 1-888-999-4215 iLive 17

Audio

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the 3.5MM AUDIO INPUT on the side of the bar speaker and an audio output on an audio source.

2. Press the SOURCE button to switch to LINE mode.

3. Use the connected audio source’s native controls to play and control music played through the connected bar speaker.

Requires an RCA audio cable (not included)

1. Connect an RCA audio cable to the RCA AUDIO INPUT on the back of the bar speaker and an audio output on an audio source.

2. Press the SOURCE button to switch to AUX mode.

3. Use the connected audio source’s native controls to play and control music played through the connected bar speaker.

Requires an RCA audio cable (not included)

1. Connect an RCA audio cable to the SUBWOOFER OUTPUT on the back of the bar speaker and an external subwoofer.

2. The bar speaker will automatically use the connected subwoofer when playing audio.

Using the 3.5mm Audio Input

Using the RCA Audio Input

Using the Subwoofer Output

Page 18

iLive18

Mounting the Bar Speaker to a Wall

We recommend having this bar speaker professionally mounted.

• Manual or Power Screwdriver

• Stud Finder

• Pencil

• Tape Measure

• Level

• One Wall Mount Bracket

• (4) Screws

Important Notes

Required Tools

Included Hardware

Page 19

Customer Support: 1-888-999-4215 iLive 19

STUDS

WALL

MOUNTING BRACKET

16”

FROM CENTER TO CENTER

Mounting the Bar Speaker to a Wall

1. Use the TAPE MEASURE to decide how high you’d like to hang the bar speaker on the wall.

The bar speaker must be hung within 6 feet of an AC power outlet for the attached AC power cable to reach.

2. Use the STUD FINDER to locate 2 parallel wooden studs to screw the mounting brackets into.

3. Mark the wall at the center of the studs using the PENCIL.

4. Line the LEVEL up on both of your marks to make sure they are level. If they’re not, adjust the marks as needed to make them level.

5. After you’ve double checked your markings, DRILL through the top holes on the mounting bracket directly into the pencil marks you’ve made on the wall.

6. Use the LEVEL to level the mounting bracket, then drill the remaining screws into the bottom holes on the mounting bracket.

7. Slide the bar speaker onto the mounting bracket, and make certain there is a rm and stable connection before letting go of the bar speaker.

8. Finally, use the LEVEL to conrm that the bar speaker is level.

Mounting - Getting Started

Page 20
