Page 1
37" HD Soundbar
+ Wireless Subwoofer
User’s Guide for Model ITBSW397 v1824-01
For the most up-to-date version of this User’s Guide, go to www.iliveelectronics.com
Page 2
2
Safety Instructions & Warnings
WARNING: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer servicing
to qualied service personnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

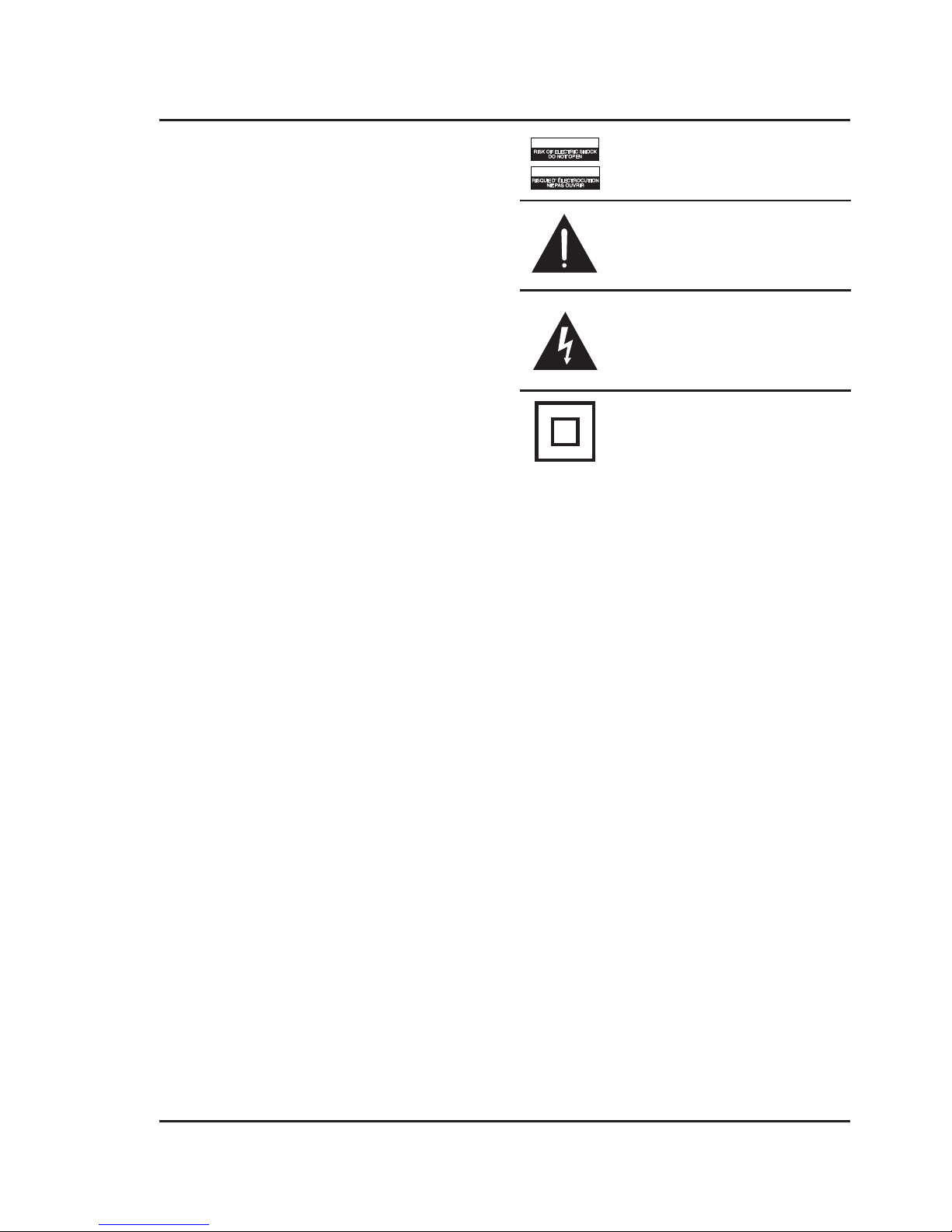

The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user accessible
parts.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
“dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons.
Page 3
3
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
• Mains plug is used as disconnect device and it should remain
readily operable during intended use. In order to disconnect
the apparatus from the mains completely, the mains plug
should be disconnected from the mains socket outlet
completely.
• CAUTION: Use of controls or adjustments or performance
of procedures other than those specied may result in
hazardous radiation exposure.
• WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive nish.
As with any rubber compound made with oils, the feet
could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a
piece of glass between the unit and the surface to reduce the
risk of damage and/or staining.
• WARNING: Use of this unit near uorescent lighting may
cause interference regarding use of the remote. If the unit is
displaying erratic behavior move away from any uorescent
lighting, as it may be the cause.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or
bottom of the apparatus.
• WARNING: To reduce the risk of re or electric shock,
do not expose this apparatus to rain, moisture, dripping, or
splashing.
• Objects lled with liquids, such as vases, shall not be placed
on the apparatus.
• CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
• WARNING: There is a danger of explosion if you attempt
to charge standard Alkaline batteries in the unit. Only use
rechargeable NiMH batteries.
• Battery shall not be exposed to excessive heat such as
sunshine, re or the like.
• Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using the
product and keep it away from children.
• If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical
attention.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
• Batteries should be recycled or disposed of as per state and
local guidelines.
• WARNING: This product may contain chemicals known
to the State of California to cause birth defects, or other
reproductive harm (California Prop 65). Wash hands after
handling.
• This product meets and complies with all Federal regulations.
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. When the provided
plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
• Only use attachments/accessories specied by the
manufacturer.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket,
or table specied by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
FCC Warnings
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Page 4
4
Table of Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features & Specications
Includes
Power
Remote Batteries
Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear View
Speaker Inputs Detail
Front View
Speaker Controls (Right Side)
Function & Media Source Indicators
Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Bluetooth Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pairing to a Bluetooth Device and Playing Audio Wirelessly

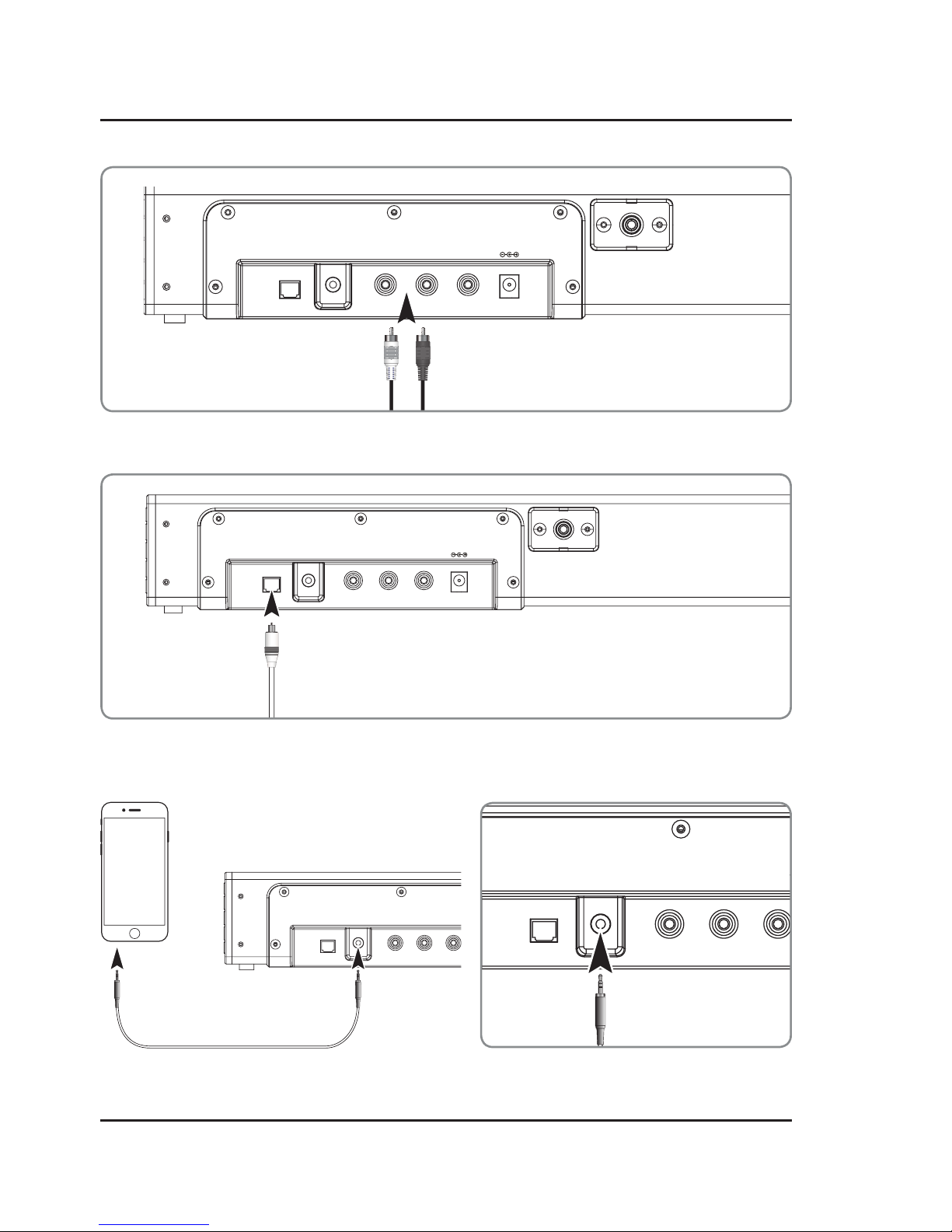

Audio Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Aux In (Stereo RCA Inputs)
Optical Input
Line In

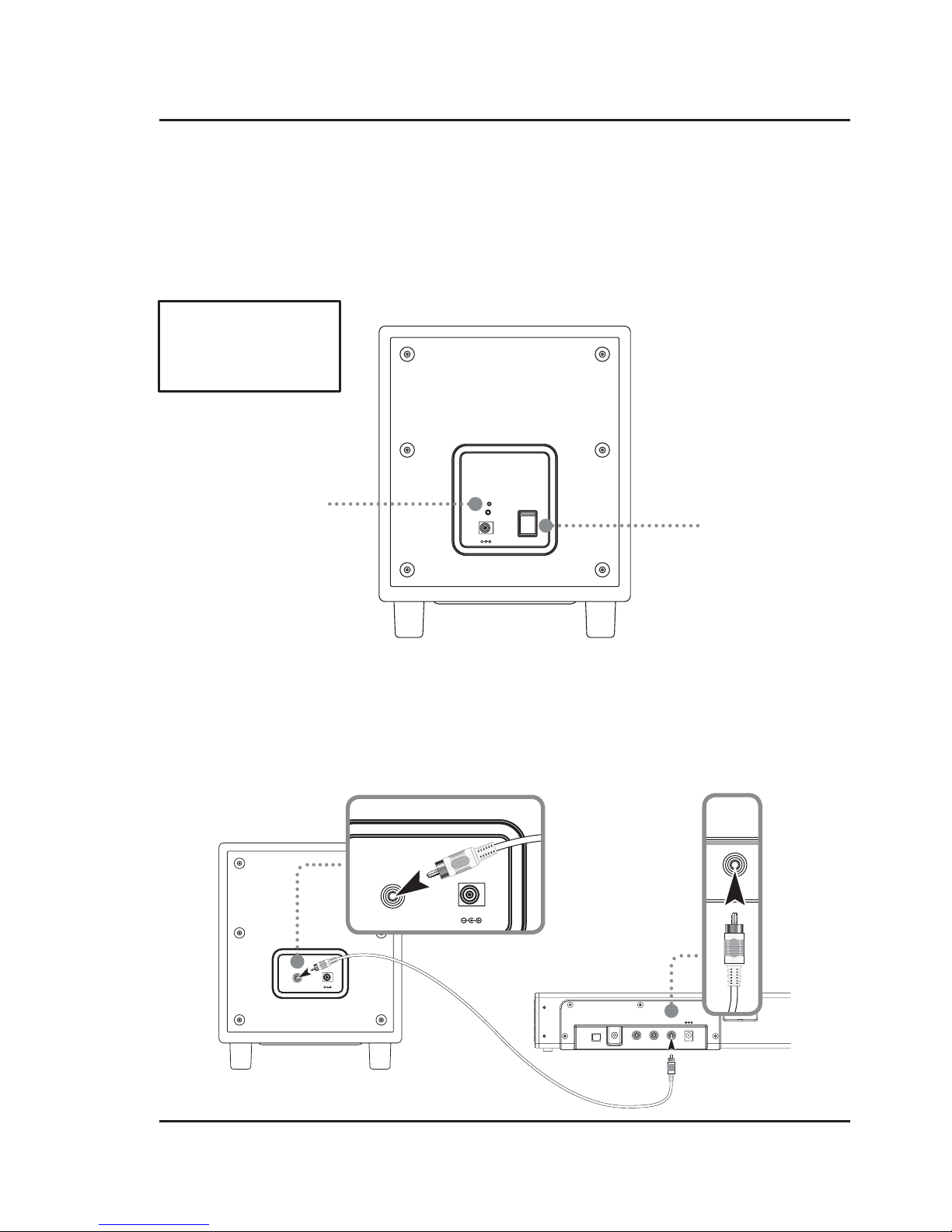

Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting the Wireless Subwoofer
Connecting to a Wired Subwoofer
Learn Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
What is the Learn Feature?
Using the Learn Feature
Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Contact Information
International Support
Warranty
Page 5
5
Features & Specifications
• 37" length
• Wireless subwoofer
• Supports Bluetooth
• Wireless range: 60 ft.
• 2.1 channel stereo sound
• Full-function remote with learning capability
• Optical digital audio input
• Line In (3.5mm audio input)
• Aux In (RCA stereo audio inputs)
• Subwoofer output
OPTICAL IN SUB OUT RLAUX INLINE IN
DC IN
DC IN
DC IN
CONNECT
ON
OFF
DC IN
CONNECT
ON
OFF
OPEN
2x AAA 1.5V

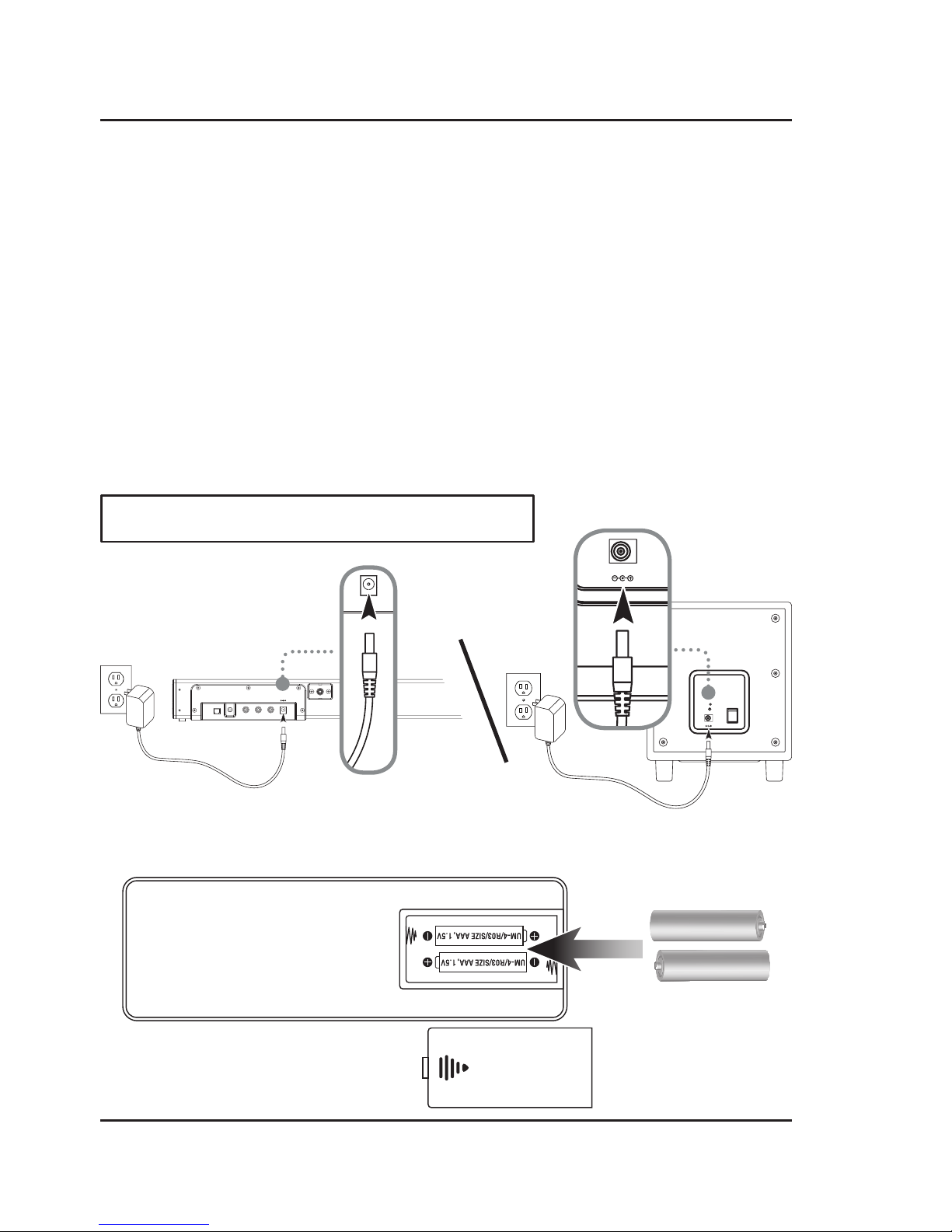

On both the soundbar and the subwoofer, plug the power cord (included) into
the DC Input on the back of the unit and a standard wall outlet.
NOTE: The power adapters for the soundbar and the subwoofer are NOT
interchangeable. Be sure you have the correct adapter before using.
Setup
Includes
• Remote control: requires 2 AAA batteries (included)
• Optical audio cable
• 2 AC/DC power adapters:
1 soundbar, 1 subwoofer
• Wall-mount hardware and instructions
Power
Remote Batteries
Page 6
6
OPTICAL IN SUB OUT RLAUX INLINE IN
DC IN

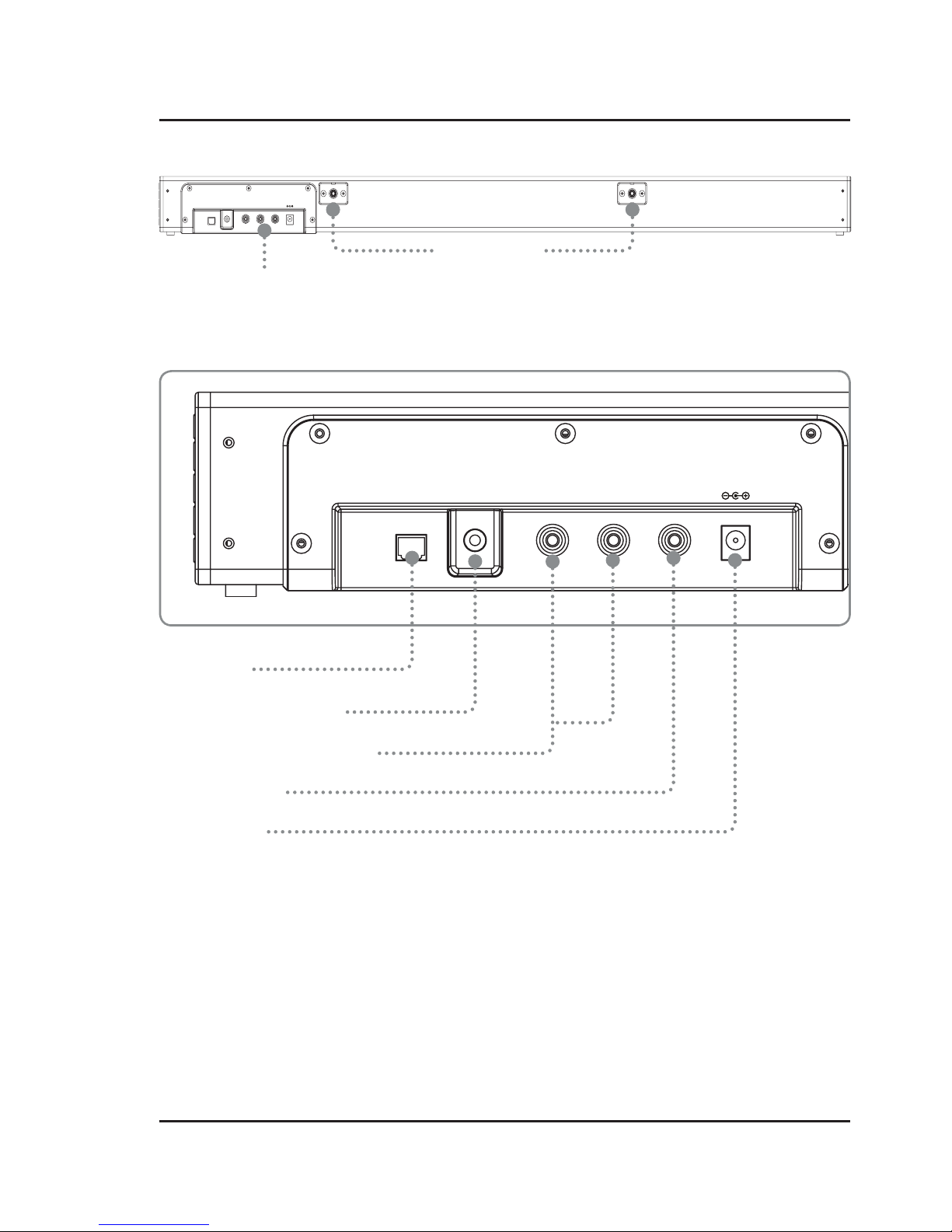

Speaker Inputs Detail
Rear View
Orientation
Stereo RCA Audio Inputs (AUX IN)
Subwoofer Output
Speaker Inputs
Wall Mount Pegs
Optical Input
DC Power Input
Line In ( 3.5mm audio input)
OPTICAL IN SUB OUT RLAUX INLINE IN
DC IN
Page 7
7

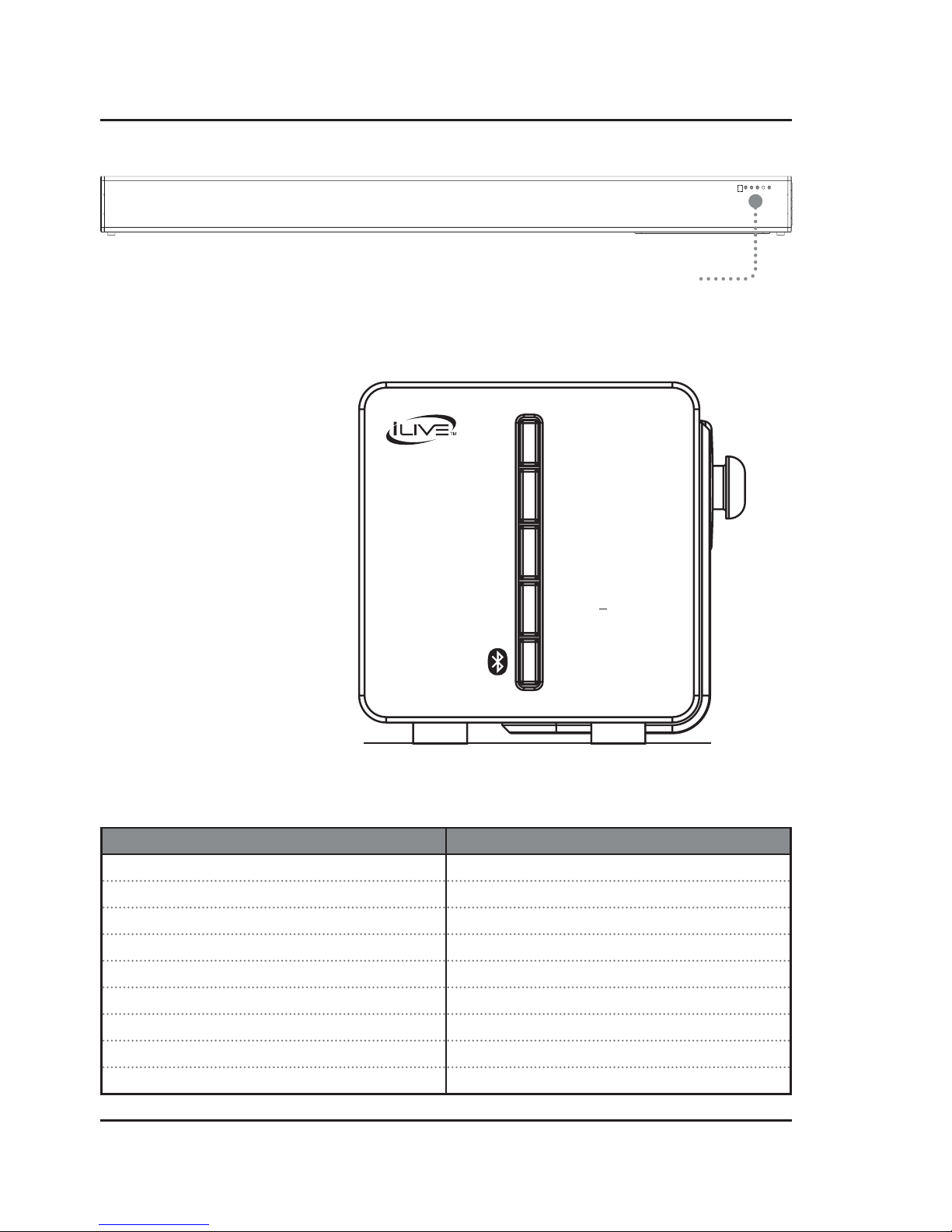

Speaker Controls (Right Side)
Front View
Remote IR Receiver &
Function Indicator Lights
Power
Press to power the unit ON or OFF.
Source/Connect
Press to switch between Optical,
Line In, Aux In, and Bluetooth modes.
Press and hold to wirelessly connect to
the subwoofer (see pg.12).
Volume +/-
Press to adjust the volume up or down.
Pair/Learn
Press and hold to begin pairing to a
Bluetooth device.
With the soundbar OFF, press to begin
using the Learn Feature (see pg.13).
Function & Media Source Indicators
Soundbar Status Indicator Light
Power OFF Red Light
Line In Mode Green Light
Optical Mode Orange Light
Aux In Mode White Light
Bluetooth Pairing Flashing Blue Light
Bluetooth Connected Blue Light
Mute Volume Flashing Source Light (ex. Line In - flashing green)
Adjusting Volume Source Light flashes with each adjustment
Max Volume Source Light remains solid
VOLUME +
PAIR/LEARN
VOLUME
POWER
SOURCE/CONNECT
Page 8
8

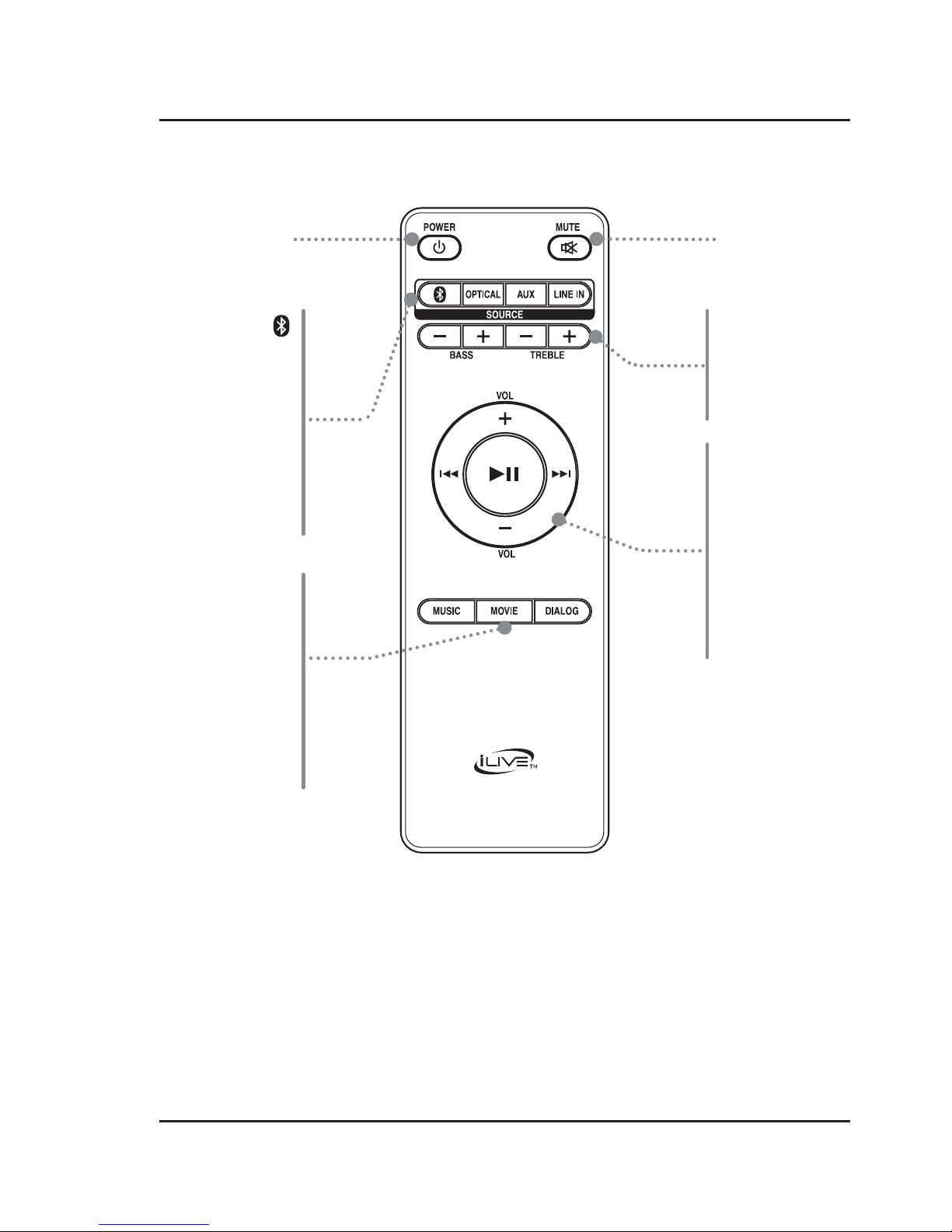

Remote
Power
Press to turn
the unit on or off.
Mute
Press to mute
the volume.
Press to switch
to Bluetooth Mode.
Line In
Press to switch
to Line In mode.
Optical
Press to switch
to Optical mode.
AUX
Press to switch to
Aux In (RCA) mode.
Music
Press to switch to
the EQ optimized
for music.
Movie
Press to switch to
the EQ optimized
for movie sound.
Dialog
Press to switch to
the EQ optimized
for dialog.
Treble
Press to adjust the
treble up or down.
Bass
Press to adjust the
bass up or down.
Skip Back/Fwd
In Bluetooth mode,
press to skip the
selected track.
Volume
Press to adjust
the volume.
Play/Pause
In Bluetooth mode,
press to play
or pause the
selected track.
Page 9
9
Pairing to a Bluetooth Device and Playing Audio Wirelessly
1. With the unit powered ON, press the button on the remote to switch to Bluetooth Mode, indicated by a
slowly flashing blue light. You can also press the Source button on the side of the unit.
2. Press and hold the Pair button on the side of the soundbar until the pairing indicator begins quickly flashing
blue. When pairing, remain within 3 feet of the unit.
3. Use the controls on your Bluetooth device to select ITBSW397 in your Bluetooth settings. If your device requests
a password, enter the default password 0 0 0 0 . Consult the user’s manual for your specific device for more detailed
instructions on pairing Bluetooth devices.
4. When successfully paired, a chime will sound and the pairing indicator will change to a solid blue. Audio should
now be heard through the speakers. Use the controls on the connected Bluetooth Device to select and begin
playing audio.
5. Play, pause or skip audio using the controls on the connected Bluetooth Device or the soundbar's remote.
After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the
device. If your device should become unpaired or you find it is unable to connect, repeat these steps.
Bluetooth Wireless
Page 10
10
Audio Inputs
Optical Input
You will need an audio source with an Optical Audio Output and a Digital Optical Audio Cable (included).
1. Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input
on the soundbar.
2. Power ON the soundbar and press the Source button to select Optical Mode, indicated by an orange light.
3. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical
Audio and are turned ON.
4. Audio from the connected audio source should now be played through the speakers.
Important tips for optical audio:
Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.
Optical output is activated on the source (they should see a red light emitting from the toslink socket).
It may be labeled SPDIF in the setting menu of the source.
The optical output is set to output PCM and not Dolby Digital.
Aux In (Stereo RCA Inputs)
Requires RCA stereo audio cable (not included). When connecting an RCA stereo audio cable (Red/White), match the
colored ports to their corresponding plugs.
1. Connect the RCA stereo audio cable (not included) to the RCA Stereo Inputs on the soundbar and the audio
outputs on a television or other audio source.
2. Power ON the soundbar and press the Source button to select Aux In Mode, indicated by a white light.
3. Audio played through the television should now be heard through the speakers.
Line In
Requires a 3.5 mm audio cable (not included).
1. Using a 3.5 mm audio cable, plug into the Line In on the soundbar and the audio output/headphone jack on an
MP3 Player or other audio source.
2. Power ON the soundbar and press the Source button to select Line In Mode, indicated by a green light.
3. Audio played through the connected device should now be heard through the speakers. Use the controls on the
connected device to play, pause, or skip selected tracks.
Page 11
11
Aux In (Stereo RCA Inputs) - Detail
Optical Input - Detail
Line In - Detail
OPTICAL IN SUB OUT RLAUX INLINE IN
DC IN
OPTICAL IN SUB OUT RLAUX INLINE IN
DC IN
OPTICAL IN SUB OUT RLAUX INLINE IN
DC IN
OPTICAL IN
SUB OUT
RLAUX INLINE IN
DC IN
Page 12
12
Subwoofer
DC IN
CONNECT
ON
OFF
DC IN
SUB IN
OPTICAL IN SUB OUT RLAUX INLINE IN
DC IN
DC IN
SUB IN
DC IN
Connecting the Wireless Subwoofer
1. With the soundbar and subwoofer powered ON, press and hold the Source/Connect button on the soundbar
until the Power LED begins flashing red.
2. Press the Connect button on the subwoofer until the Connect LED on the subwoofer begins flashing.
3. The units are connected when both LEDs turn solid. When audio is played through any source, the speaker will
automatically use the connected subwoofer.
Connecting to a Wired Subwoofer
The soundbar can also be used with conventional wired subwoofers. Use an RCA audio cable (not included) to connect
the soundbar's subwoofer output to a wired subwoofer's audio input. When audio is played through any source, the
speaker will automatically use the connected subwoofer.
Connect button &
LED Indicator
Wired Subwoofer
(example only)
ITBSW397
Soundbar
Power Switch
NOTE: To reduce unwanted
vibration, try placing the
subwoofer on a solid or
padded surface, such as the
floor or carpet.
Page 13
13
Learn Feature
What is the Learn Feature?
This will teach the soundbar to function with a separate remote control, such as the remote for your television or
a universal remote. Teaching the bar speaker remote commands will reduce the number of remotes needed and
generally improve the ease of operation. Power, volume and mute are a examples of commands that the soundbar
can learn.
Note: While the soundbar is able to learn most commands and IR protocols, not all can be programmed. For example, bass
and treble may be commands that cannot be duplicated by another remote. Use the soundbar remote for these functions.
Using the Learn Feature
1. With the power OFF, press the Learn button on the soundbar. An indicator light will begin flashing red.
2. Press the button on the soundbar remote that you want the soundbar to learn. For example: Volume +
3. The red light will continue to flash while another indicator displays a blue light.
4. Press the corresponding button on the other remote.
5. The red light will continue to flash and another indicator will display a green light when the signal is received.
6. Press the Learn button on the soundbar to complete the set up. The programmed button on your remote will
now be able to control your sound bar. Note: It is necessary to program each button on your remote separately.
7. If the soundbar has failed to learn a command, the indicator will not display the green light. Try another button.
Page 14
14
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit
the support section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes,
visite la sección de apoyo en: www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com
Contact Information
Website: www.iLiveElectronics.com
Email Support: [email protected]
Email Parts: [email protected]
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date
version of this User’s Guide, go to:
www.iLiveElectronics.com
Company Information
Copyright © 2017 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of
their respective owners. Specifications are subject to change without notice.
Protect for Today
Sustain for Tomorrow
Made
Green
Loading...
