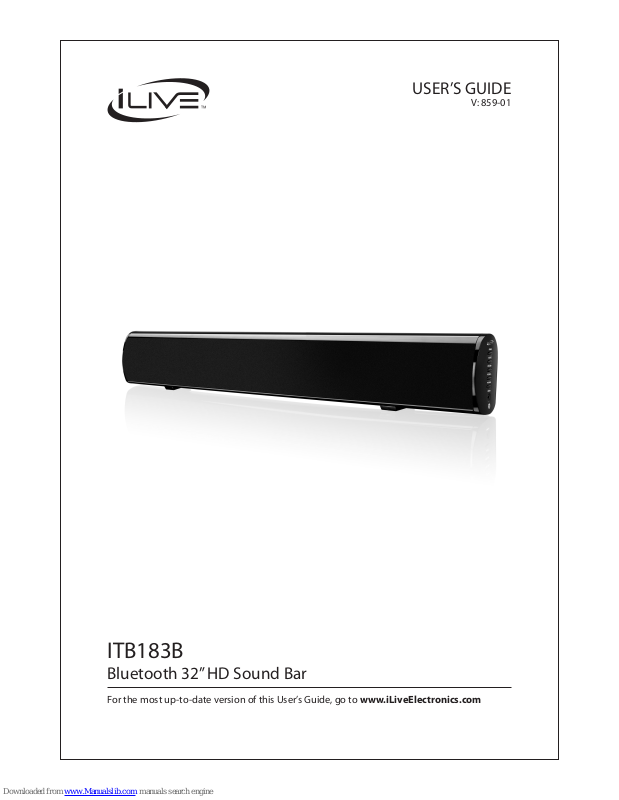

USER’S GUIDE

V: 859-01

For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com

ITB183B

Bluetooth 32” HD Sound Bar

Page 2

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.

When the provided plug does not t into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

The lightning ash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of

sufcient magnitude to constitute a risk of electric

shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod,

bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Important Safety Instructions

Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and

receiver.

•Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC Warnings

Page 3

Customer Support: 1-888-999-4215

Warnings and Precautions

Additional Warnings

•CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.

AVIS: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

•CAUTION: Use of controls or adjustments or performance of procedures other than those specied may result in hazardous radiation exposure.

•WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

•WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive nish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.

•WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

•CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

AVIS: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

•WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

•WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

•WARNING: Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

•WARNING: Shock hazard - Do Not Open.

AVIS: Risque de choc électrique - ne pas ouvrir

•Caution and marking information is located at the rear or bottom of the apparatus.

Attention et de marquage des informations est situé sur le paneau arrière ou inférieur de l’unité.

•Objects lled with liquids, such as vases, shall not be placed on the apparatus.

Objets remplis de liquides, comme des vases, ne doivent pas être placés sur l’appareil.

•Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

•Battery shall not be exposed to excessive heat such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable.

•This product is supplied with a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns and can lead to death.

Ce produit est livré avec une pile pièce / touche. Si la pile pièce / bouton est avalé, il peut causer des brûlures internes graves et peut conduire à la mort.

•Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

Gardez les piles neuves et d’occasion à partir des enfants. Si le compartiment de la batterie ne pas fermer correctement, cesser d’utiliser le produit et garder loin des enfants.

•If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Si vous pensez que les batteries peuvent avoir été avalé ou placé à l’intérieur d’une partie du corps, consulter immédiatement un médecin.

•Do not mix old and new batteries.

Ne pas mélanger vieilles et nouvelles batteries.

•Completely replace all old batteries with new ones. Remplacer complètement toutes les piles par des neuves.

•Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

Ne mélangez pas des piles alcalines, standard (carbone-zinc) ou rechargeables (Ni-Cd, Ni-MH, etc) batteries.

•Batteries should be recycled or disposed of as per state and local guidelines.

Piles doivent être recyclées ou éliminées selon les directives étatiques et locales.

Page 4

ITB183B

• 32” length

• Supports Bluetooth

• Supports Bluetooth v3.0

• Supports Enhanced Data Rate

(EDR)

• Supports prole A2DP (Advanced Audio Distribution Prole)

• Optical digital audio input

• LED power indicator

• Digital volume control

• LED source indicators

• Built-in stereo speakers

• RCA stereo audio inputs

• 3.5mm audio input

• Remote

• Wireless range: 33 feet

• DC power input: requires

an AC/DC power adapter (included)

• Remote control: requires a CR2025 battery (pre-installed)

• RCA stereo audio cable

• Wall-mount hardware and

instructions

• AC/DC power adapter

Features

Includes

Setup

AC power input: requires an AC/DC power adapter (included)

Requires a CR2025 battery (pre-installed)

LITHIUM BATTERY

CR 2025

PUSH

OPEN

LITHIUM BATTERY

CR 2025

CR2025

PUSH

OPEN

Power Remote

Status Indicator

Power O Red Light

Optical Mode Amber Light

Aux In Mode White light

Line In Mode Green Light

Bluetooth Ready Flashing Blue Light

Bluetooth Connected Blue Light

LED Indicators

We recommend having this bar speaker professionally mounted.

Mounting

Page 5

Customer Support: 1-888-999-4215

Table of Contents

Warnings and Precautions ............................................................................ 2

Important Safety Instructions ......................................................................... 3

ITB183B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features

Setup ................................................................................................ 4

Power LED Indicators Remote Mounting Includes

Table of Contents ..................................................................................... 5

Introduction ......................................................................................... 6

Audio Inputs ......................................................................................... 8

Using the Stereo RCA Inputs Using the Optical Input

Line In ............................................................................................... 9

Using the Line In

Bluetooth ...........................................................................................10

Pairing a Bluetooth Device for the First Time

Bluetooth ...........................................................................................11

Playing Audio Wirelessly

Company Information ...............................................................................12

International Support Contact Information Warranty Green Initiative

Page 6

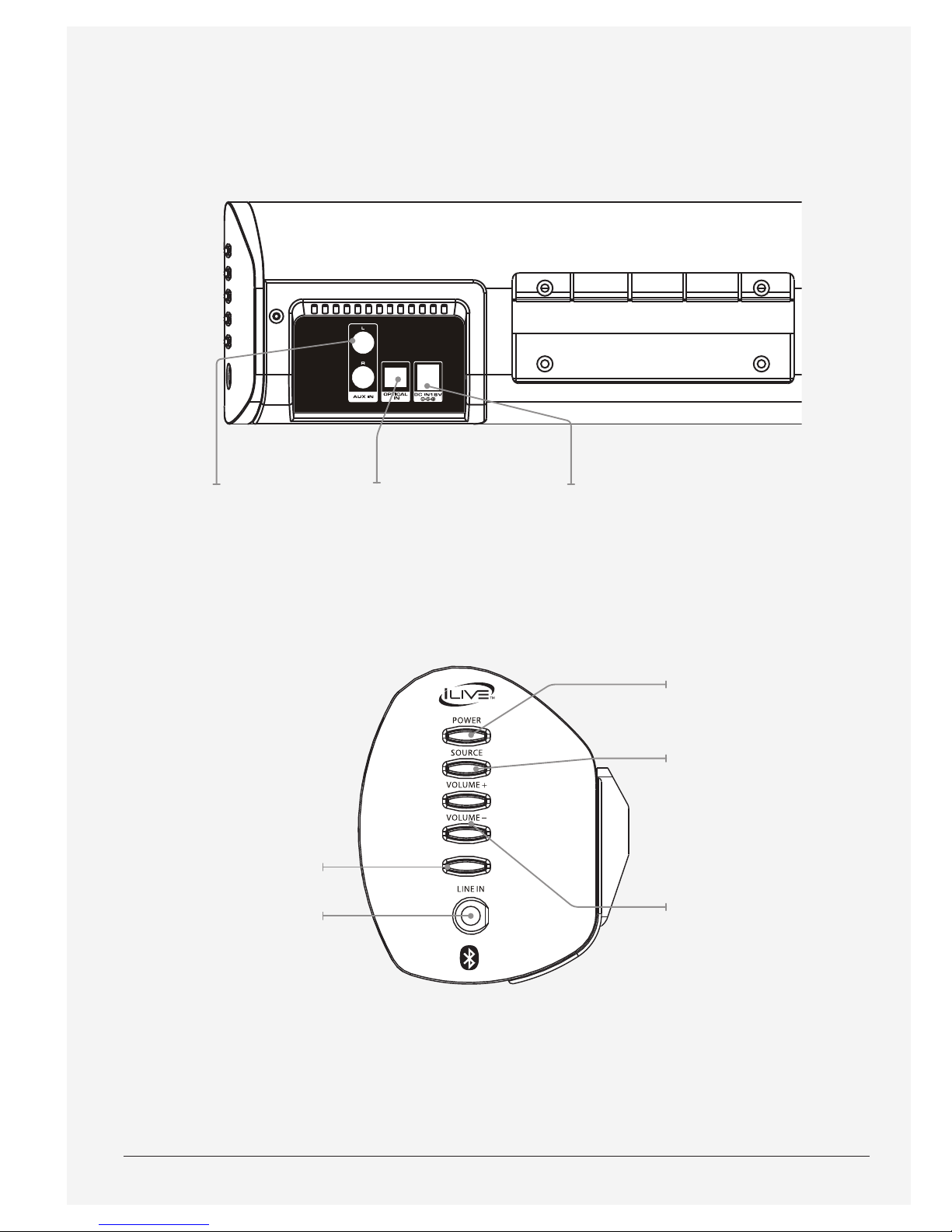

Introduction

PAIRING

Stereo RCA Audio Inputs

Optical Input DC Power Input

Power

Press to turn the unit on or o.

Source

Press to switch between Optical, Line In, AUX, and Bluetooth modes.

Volume

Press to adjust the volume up or down.

Pairing

Press to begin

pairing with a

Bluetooth device.

Line Input

Page 7

Customer Support: 1-888-999-4215

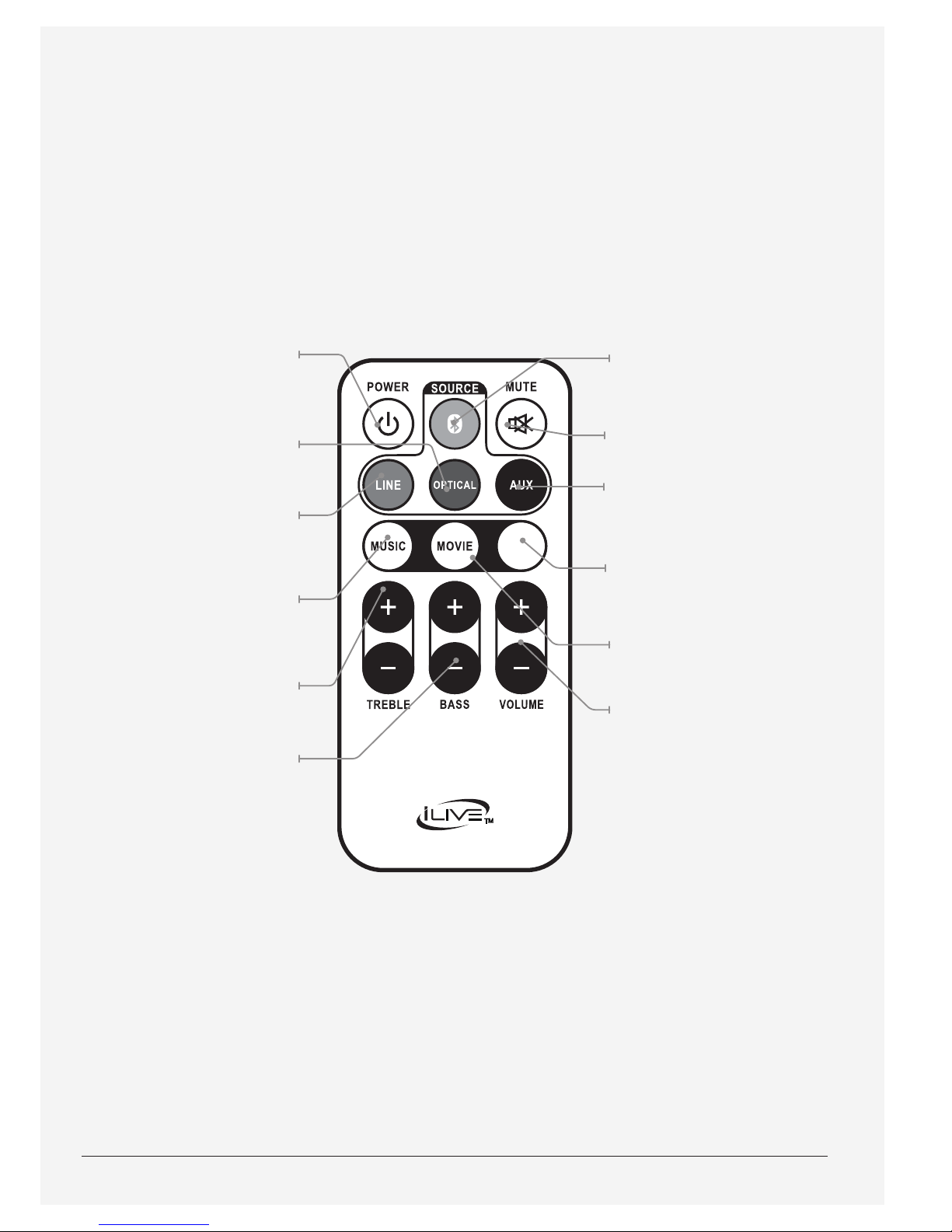

TALK

Press to switch to Bluetooth Mode.

Mute

Press to mute the volume.

Aux

Press to switch to AUX mode.

Talk

Press to switch to the EQ optimized for dialogue.

Movie

Press to switch to the EQ optimized for movie sound.

Volume

Press to adjust the volume.

Power

Press to turn the

unit on or o.

Optical

Press to switch to

Optical mode.

Line

Press to switch to

Line In mode.

Music

Press to switch to the EQ

optimized for music.

Treble

Press to adjust the

treble up or down.

Bass

Press to adjust the

bass up or down

Page 8

Audio Inputs

When connecting two products using an RCA Cable, match the colored ports with the same colored connection.

Before use, disconnect any cables connected to the Line In.

1. Connect the RCA Cable to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs on the television.

2. Press the Power button to power on the unit.

3. Press the Source button repeatedly to enter Aux Mode, indicated by a white light.

4. Audio played through the television will now be heard through the speakers.

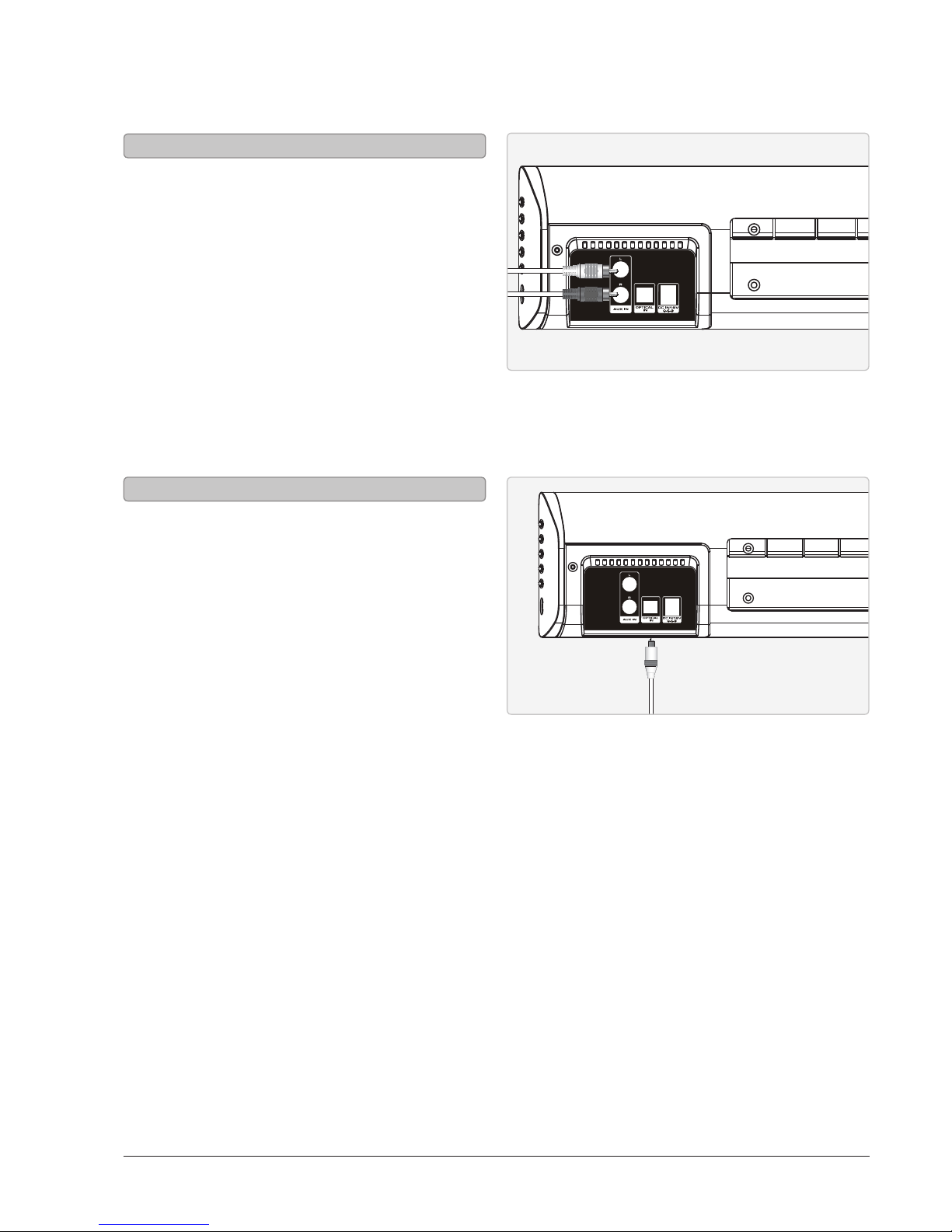

Using the Stereo RCA Inputs

You will need: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (not included)

1. Connect the Digital Optical Audio Cable to the optical output on the audio source and to the Optical Input on the speaker bar.

2. Press the Power button to power the unit on.

3. Press the Source button repeatedly to switch to SPDIF Mode, indicated by a amber light.

4. Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical Audio and are turned On.

5. Audio from the connected audio source will now be played through the speakers.

Important tips:

Use the correct toslink cable and make sure that it is rmly seated in both source and sound bar sockets.

Optical output is activated on the source (they should see a red light emitting from the toslink socket). It may be labeled SPDIF in the setting menu of the source.

The optical output is set to output PCM and not Dolby Digital.

Using the Optical Input

Page 9

Customer Support: 1-888-999-4215

Line In

1. Plug one end of a 3.5 mm audio input cable into the Line In on the unit.

3.5 mm audio input cable not included.

Before use, disconnect any cables connected to the Stereo RCA Inputs.

2. Plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source.

3. Press the Power button to power the unit on.

4. Press the Source button repeatedly to enter Line In Mode, indicated by a green light.

5. Audio played through the connected device will now be heard through the speakers.

Using the Line In

Page 10

Bluetooth

Pairing a Bluetooth Device for the First Time

1. Power on the unit by pressing the Power button.

2. Press the Source button repeatedly to enter Bluetooth mode, indicated by a blue light.

3. Press the Pairing button on the side of the unit.

The Pairing Indicator will ash blue quickly.

When pairing, remain within 3 feet of the unit.

4. Using the native controls on your Bluetooth device, select the “ITB183” in your Bluetooth settings to pair.

If your device requests a password, enter the default password “ 0 0 0 0 ”.

Refer to the user’s manual for your specic device for instructions on pairing and connecting Bluetooth devices.

5. When successfully paired and connected, a beep will issue from the unit and the Pairing Indicator will display a solid blue light.

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.

If your device should become unpaired or you nd it is unable to connect, repeat the above steps.

Page 11

Customer Support: 1-888-999-4215

Bluetooth

Playing Audio Wirelessly

1. Follow the instructions for Pairing a Bluetooth Device.

2. Use the native controls on the connected Bluetooth Device to select a track.

3. To play, pause or skip the selected track, use the native controls on the connected Bluetooth Device.

4. Audio played through the connected Bluetooth device will now be heard through the speakers.

Page 12

To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at:

www.iLiveElectronics.com

Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en:

www.iLiveElectronics.com

Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur:

www.iLiveElectronics.com

Email Support: [email protected] Email Parts: [email protected] Phone Support: 1-888-999-4215 Website: www.iLiveElectronics.com

Green InitiativeInternational Support

Contact Information
