USER’S GUIDE

V: 571-01

For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com

IT202B

32” HD Sound Bar with Built-in Subwoofer

Page 2

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

WARNING: The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, re, or the like.

WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

WARNING: Shock hazard - Do Not Open.

AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Warnings and Precautions

Page 3

Customer Support: 1-888-999-4215 3

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Important Safety Instructions

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

Battery shall not be exposed to excessive heat such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable.

Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau arrière ou inférieur de l’unité.

The marking information is located at the rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

FCC Warnings

Additional Warnings

Page 4

IT202B

• Built-in subwoofer

• FM Radio (PLL)

• 2.1 channel stereo sound

• Optical digital audio input

• RCA stereo audio inputs

• 3.5mm audio input

• Remote

• Subwoofer output

• Wall mountable

• LED source indicators

• Bass controls

• Treble controls

• Built-in FM wire antenna

• Digital volume control

• Learning remote control capability

• DC power input: requires an AC/DC power adapter (included)

• Remote control: requires a CR2025 battery (pre-installed)

• RCA stereo audio cable

• Wall-mount hardware and instructions

• AC/DC power adapter

Features

Includes

Setup

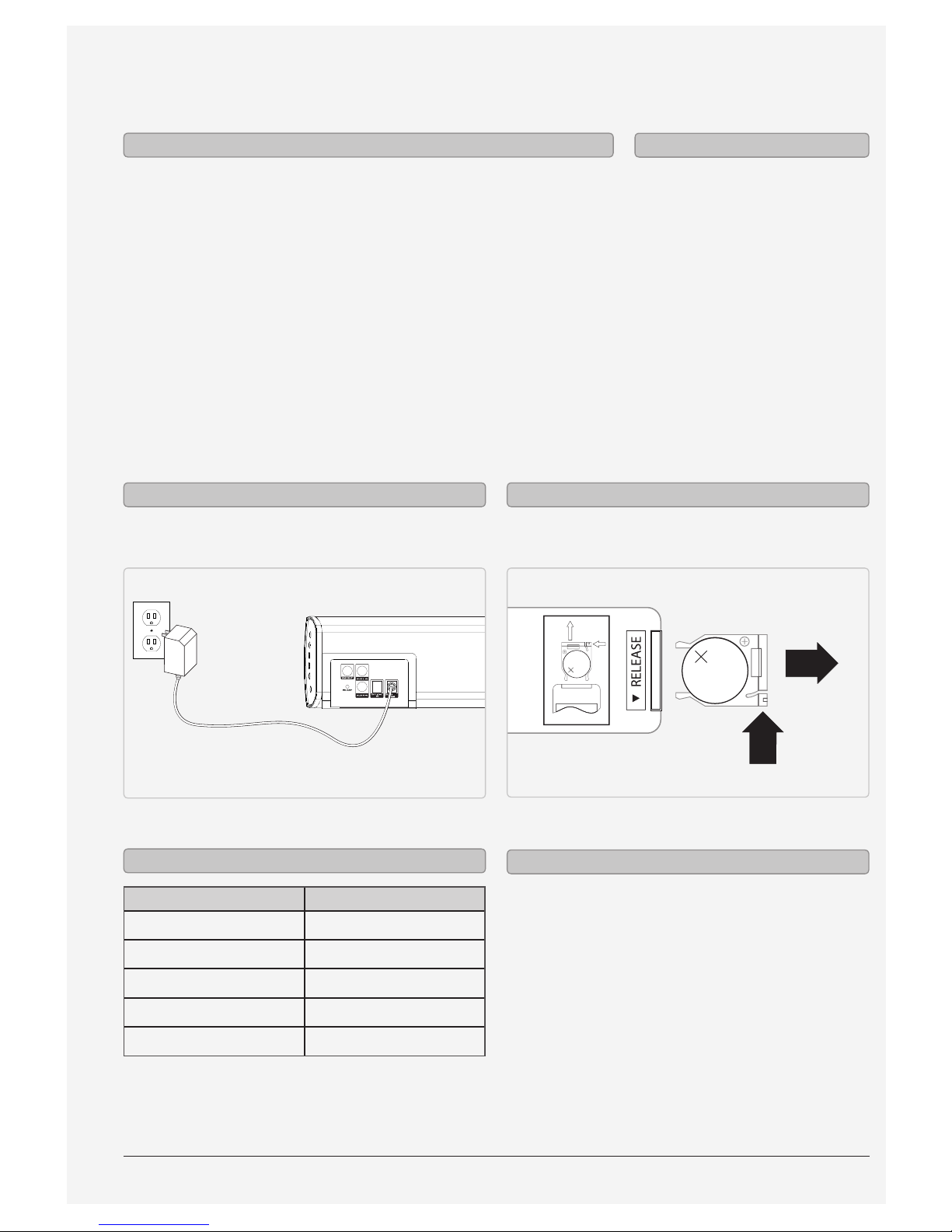

AC power input: requires an AC/DC power adapter (included)

Requires a CR2025 battery (pre-installed)

18V

LITHIUM BATTERY

CR 2025

PUSH

OPEN

LITHIUM BATTERY

CR 2025

CR2025

PUSH

OPEN

Power Remote

Status Indicator

Power O No Light

Optical Mode Amber Light

Aux In Mode White light

Line In Mode Blue Light

Radio Mode Green Light

LED Indicators

We recommend having this bar speaker professionally mounted.

The included spacers should be used at your discretion to extend the face of the bar speaker farther from the wall. These are typically used when mounting the bar speaker under a television, and the face of the bar speaker needs to be ush with the face of the television.

Mounting

Page 5

Introduction

18V

SOURCE

VOLUME

LINE IN

POWER

LEARN

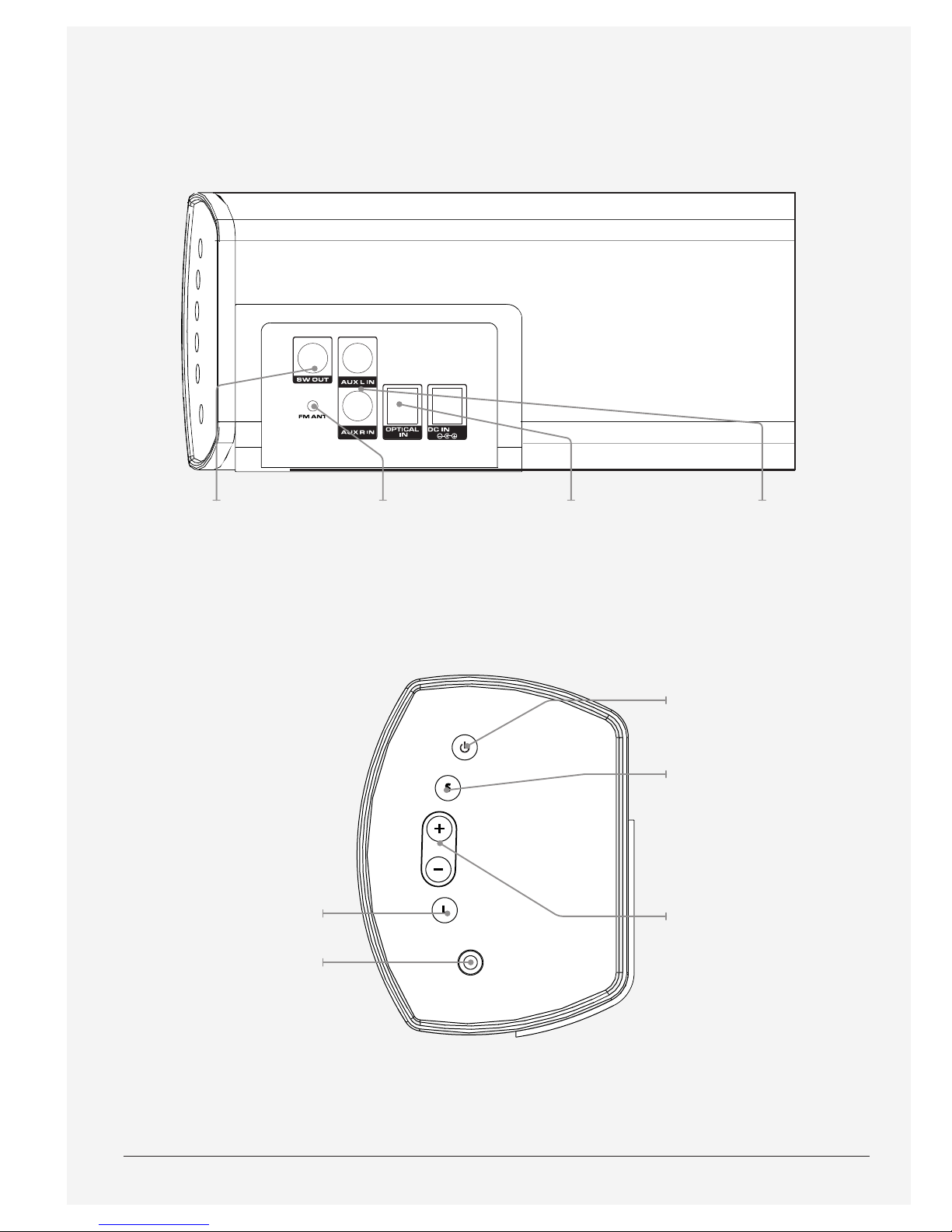

Subwoofer Output Stereo RCA Audio Inputs

Optical Input

FM Antenna

Power

Press to turn the unit on or o.

Source

Press to switch between Optical, Line In, AUX and FM Radio modes.

Volume

Press to adjust the volume up or down.

Learn

Press to begin using

the learn function.

Line Input

Page 6

Customer Support: 1-888-999-4215 6

Aux

Press to switch to aux mode.

Mute

Press to mute the volume.

Press to switch to FM Radio mode.

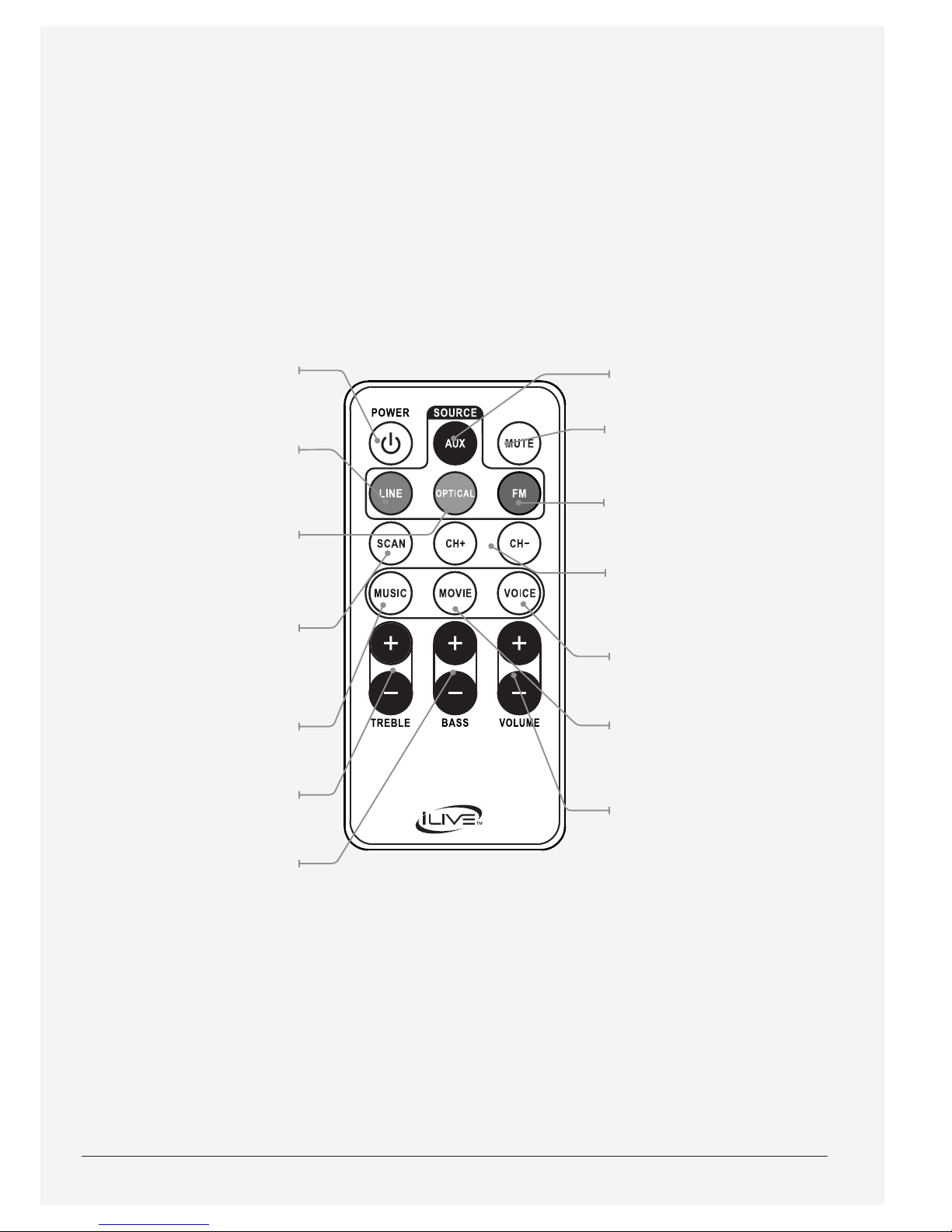

Channel +/-
