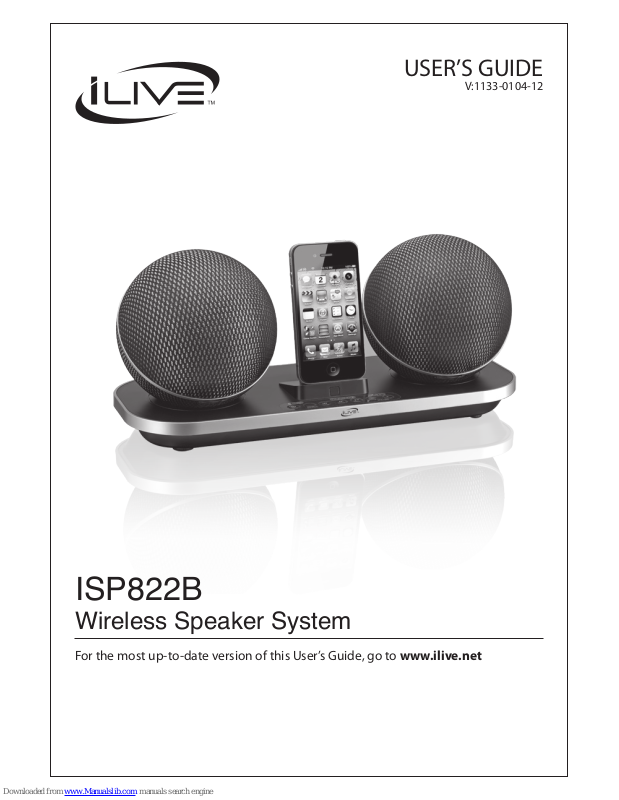

Page 1
USER’S GUIDE
V:1133-0104-12
For the most up-to-date version of this User’s Guide, go to www.ilive.net
ISP822B
Wireless Speaker System
Page 2
2
• WARNING:To reduce the risk of re or electric shock,
do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie
ou de choc électrique, ne pas exposer cet appareil sous la
pluie et l’humidité.
• CAUTION: Use of any controls or adjustments or
performance of procedures other than those herein
specied may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
• WARNING: Do not place the unit on top of any soft,
porous, or sensitive surfaces to avoid damaging the
surface. Use a protective barrier between the unit and
surface to protect the surface.
• WARNING: Use of this unit near uorescent lighting
may cause interference regarding use of the remote. If
the unit is displaying erratic behavior move away from
any uorescent lighting, as it may be the cause.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS
OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect
device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains
completely, the Mains Plug or Direct plug-in adapter should
be disconnected from the mains socket outlet completely.
La che d’alimentation ou adaptateur de courant est utilisé
comme dispositif de déconnexion et doit rester accessible
pendant l’utilisation. Pour mettre l’appareil hors tension, la
che ou adaptateur de courant doit être débranché de la prise
de courant.
Warnings and Precautions
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
WARNING: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: The remote control supplied with this
product contains a button-cell battery that could be
accidentally ingested by children. Do not leave buttoncell batteries accessible to children. If swallowed,
promptly see doctor and call (202) 625-3333.
Page 3
Customer Support: 1-888-999-4215 3
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The apparatus shall not be exposed to dripping or
splashing and that no objects lled with liquids,
such as vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements
ou aux éclaboussures et aucun objet ne contenant de
liquide, tel qu’un vase, ne doit être placé sur l’objet.
• Battery shall not be exposed to excessive heat
such as sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à
la lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the rear or bottom of the apparatus.
Attention marquage est situé sur le paneau
arrière ou inférieur de l’unité.
• The marking information is located at the
rear or bottom of apparatus.
Le marquage est situé sur le paneau arrière ou inférieur de l’unité.
FCC Warnings
Additional Warnings
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. When the provided plug
does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories
specied by the manufacturer.
12.
Important Safety Instructions
This symbol indicates that this
product incorporates double insulation
between hazardous mains voltage
and user accessible parts.
Use only with a cart, stand, tripod,
bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Special note: When placing your unit on a
lacquered or natural nish, protect your furniture
with a cloth or other protective material.
Page 4
4
Introduction
3.5MM Audio InputPair Button
Volume
Press to adjust the
volume up or down.
Source
Press to switch
between iPod
or Line mode.
Power/Pair
Indicator
Press to power on
the wireless speakers.
Play/Pause
Press to play and
pause a docked
iPod or iPhone.
Skip/Search
Press to skip
between tracks,
or press and hold
to search through
tracks on a docked
iPod or iPhone.
Dock for iPod/
iPhone
Speaker Base
Charge Indicator
Page 5
Customer Support: 1-888-999-4215 5
MENU
REPEAT SHUFFLE
VOL
UME
SOURCEMUTE
ENTER
POWER
Mute
Press to mute
the volume.
Power
Press to power on
the wireless speakers.
Skip/Search
Press to skip
between tracks,
or press and hold
to search through
tracks on a docked
iPod and iPhone.
Menu
Press to view
the menu.
Power/Volume/
Pair Indicator
Adjust the dial
to turn on the
speakers and adjust
the volume .
Source
Press to switch
between iPod
or Line mode.
Arrow/Enter
Play/Pause
Press to play and
pause a docked
iPod or iPhone.
Volume
Press to adjust the
volume up or down.
Repeat
Press to repeat a
track on a docked
iPod or iPhone.
Shue
Press to turn shue
mode o and on.
Pair Button
Page 6
6
DC power input: requires an AC/
DC power adapter (included)
Remote control: requires 1 CR2025
battery (pre-installed)
Power
Remote
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
Setup
Speakers: built in rechargeable
lithium battery.
Before use we recommend charging the
speakers for 3 hours. Once the Speaker
Base is plugged in, it will automatically
charge the speakers when they are
placed on the Speaker Base. Allow the
speakers time to fully charge before
removing them from the Speaker Base.
Note: Using the Power/Volume dial,
make sure both speakers are turned
on when attempting to play music.
Speakers will have up to 3 hrs of
play time after being removed
from the Speaker Base.
When not in use, turn o both speakers
using the Power/Volume dial.
Charge Indicator Speaker Status
OFF Fully charged
RED Needs recharging
Battery Power
Page 7
Customer Support: 1-888-999-4215 7
Important Note
What does it mean to pair?
Additional Information
Pairing the Wireless Speakers
While the wireless speakers were paired
at the factory to allow for immediate
operation, they will occasionally become
un-paired in transit. Un-pairing can
also occur in day-to-day operation due
to dierent environmental inuences.
This is normal. Should this occur, please
follow the pairing instructions below.
Pairing allows the Speaker Base to
recognize a wireless speaker. Once a
wireless speaker is paired, the base
unit will transmit audio to it.
• Once paired, the wireless speakers
can be moved up to 75 ft . Should
the sound drop or become garbled
it will be necessary to move the
speaker to another location in
order to receive the signal clearly.
Keep the Speaker Base and all
wireless speakers within 3 feet of
each other when you pair them.
1. Plug the Speaker Base into a power
source and press the Power button
to power the Speaker Base on.
2. Using the Power/Volume dial,
turn on both wireless speakers.
The Speaker Base Link Indicator will ash
when the Speaker Base is powered on.
3. Press and hold the Pair button on
the Speaker Base and the Pair
button on the wireless speaker.
4. Once paired, the Pair indicator will
display a solid light, and a sound
will be heard from the speaker.
Wireless Speakers Setup
Pair Indicator System Status
OFF Powered o
SLOW FLASHES Standby mode
QUICK FLASHES Attempting to pair
SOLID LIGHT Paired and playing
Page 8
8
iPod and iPhone, & Audio Input
Docking an iPod or iPhone
1. Connect the iPod or iPhone
to the connector inside the
Dock for iPod and iPhone.
2. When the speaker is plugged
in using AC power, the docked
iPod or iPhone will charge.
Playing a Docked iPod or iPhone
1. Follow the instructions for
Docking an iPod or iPhone.
2. Press the Play/Pause button to begin
playing the docked iPod or iPhone.
Using the 3.5mm Audio Input
Requires a 3.5mm audio cable
(included).
1. Connect the 3.5mm audio cable to the
3.5MM Audio Input on the Speaker
Base and an audio output on an
MP3 player or other audio source.
2. Press the Source button to
switch to Line In mode.
3. Use the native controls on the
connected MP3 player or other
audio source to play and control
audio played through the speaker.
To download this User’s Guide in
English, Spanish, or French, or to
get answers to frequently asked
questions, visit the support section
at www.iliveelectronics.com.
Para descargar este Manual del
Usuario en inglés, español y francés, o
para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo
en www.iliveelectronics.com.
Pour télécharger ce guide de l’utilisateur
en anglais, espagnol ou français, ou pour
obtenir des réponses à des questions
fréquemment posées, consultez la rubrique
d’assistance sur www.iliveelectronics.com.
Phone: 1-888-999-4215
Email: [email protected]
Parts Email: [email protected]
Website: www.iliveelectronics.com
International Support
Contact Information
Company Information
Warranty
To get information on which iPod, iPhone,
or iPad products are compatible with this
product, go to www.iliveelectronics.com.
Compatibility
For Warranty Information and the most
up-to-date version of this User’s Guide,
go to www.iliveelectronics.com.
Loading...
