Page 1
USER’S GUIDE
V:0959-0117-11
For the most up-to-date version of this User’s Guide, go to www.ilive.net

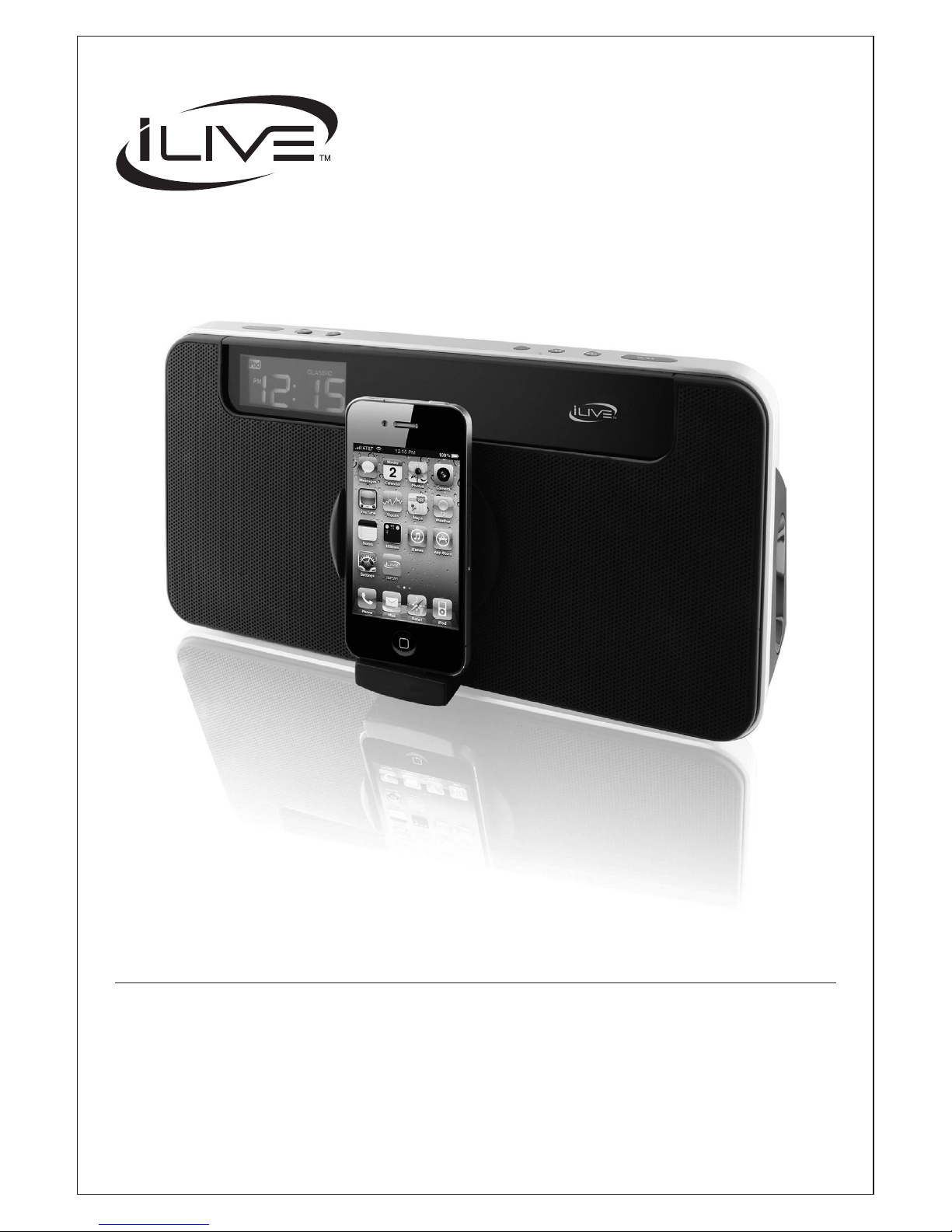

ISP591B
App-enhanced Speaker System
for iPod + iPhone
Page 2
2
• WARNING:Lithium batteries, like all rechargeable
batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact your
local government for disposal or recycling practices in
your area. They should never be incinerated since they
might explode.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS
OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect
device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains
completely, the Mains Plug or Direct plug-in adapter should
be disconnected from the mains socket outlet completely.
La che d’alimentation ou adaptateur de courant est utilisé
comme dispositif de déconnexion et doit rester accessible
pendant l’utilisation. Pour mettre l’appareil hors tension, la
che ou adaptateur de courant doit être débranché de la prise
de courant.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o
recargables (ni-cad, ni-mh, etc.).
• CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
• WARNING:To reduce the risk of re or electric shock,
do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie
ou de choc électrique, ne pas exposer cet appareil sous la
pluie et l’humidité.
• CAUTION: Use of any controls or adjustments or
performance of procedures other than those herein
specied may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
• WARNING: Do not place the unit on top of any soft,
porous, or sensitive surfaces to avoid damaging the
surface. Use a protective barrier between the unit and
surface to protect the surface.
• WARNING: Use of this unit near uorescent lighting
may cause interference regarding use of the remote. If
the unit is displaying erratic behavior move away from
any uorescent lighting, as it may be the cause.
• CAUTION:Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d’explosion si les piles sont
remplacées de façon incorrect. Remplacer les piles
seulement par le même type de pile ou l’équivalent.
• WARNING: There is a danger of explosion if you
attempt to charge standard Alkaline batteries in the unit.
Only use rechargeable NiMH batteries.
• WARNING:The battery, batteries, and battery pack
shall not be exposed to excessive heat such as sunshine,
re, or the like.
Warnings and Precautions
The lightning ash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufcient magnitude to constitute a risk of electric
shock to persons.
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Page 3
Customer Support: 1-888-999-4215 3
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
WARNING: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The apparatus shall not be exposed to dripping or splashing and
that no objects lled with liquids, such as vases, shall be placed on
apparatus.
L’appareil ne doit pas être exposé aux écoulements ou aux
éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase,
ne doit être placé sur l’objet.
• Battery shall not be exposed to excessive heat such as sunshine, re
or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la
lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the rear or back of the apparatus.
Attention marquage est situé à l’arrière ou à l’arrière de l’appareil
• The marking information is located at the rear or back of apparatus.
Les informations de marquage est situé à l’arrière ou à l’arrière de
l’appareil.
FCC Warnings
Additional Warnings
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
When the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12.
Important Safety Instructions
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user
accessible parts.
Use only with a cart, stand, tripod,
bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Special note: When placing your unit on a
lacquered or natural nish, protect your furniture
with a cloth or other protective material.
Page 4
4
• Play and charge iPod & iPhone
• App-enhanced: clock, alarm, weather,
nature sounds, photo slideshow with
background music, and line in mode
• Auto time sync with iPod and iPhone
• Rotating dock for viewing iPod and
iPhone in portrait or landscape modes
• High-power amplier
• Dynamic stereo speakers
• Audio input (3.5mm)
• Video output (composite)
• Remote control
• AC/DC adapter
• Remote control: requires a CR2025
battery (pre-installed)
• 2 spacers
• AC/DC power adapter
App-enhanced Speaker System for iPod + iPhone
Features
Included
Page 5
Customer Support: 1-888-999-4215 5
Table of Contents
App-enhanced Speaker System for iPod + iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features
Included
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Power
Backup Battery
Remote
iPod and iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the Spacers
Docking an iPod or iPhone
Rotating Dock
Playing a Docked iPod or iPhone
ISP591 App Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Automatically Downloading the App
ISP591 App
Manually Downloading the App
3.5mm Audio Input and Composite Video Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the 3.5mm Audio Input
Using the Composite Video Output
Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
International Support
Contact Information
Green Initiative
Page 6
6
Introduction
DISPLAY
ROTATING DOCK FOR
iPod and iPhone
EQ
Press to switch between
Rock, Classic, Jazz, and
Pop preset equalizer
modes.
COMPOSITE VIDEO
OUTPUT
DC POWER INPUT
3.5mm AUDIO INPUT
POWER/PLAY/PAUSE
Press to power on the speaker. Press and hold to
power o the speaker. When powered on, press to
play or pause a docked iPod or iPhone.
SKIP/SEARCH
Press to skip between tracks on a docked iPod
or iPhone. Press and hold to search through an
individual track. Press to adjust the time when
setting the clock.
CLK SET
With the power o,
press and hold to begin
setting the clock.
VOLUME
Press to adjust the
volume.
Page 7
Customer Support: 1-888-999-4215 7
POWER/PLAY/PAUSE
Press to power on the
speaker. Press and
hold to power o the
speaker. When powered
on, press to play or
pause a docked iPod or
iPhone.
STOP
Press to stop a docked
iPod or iPhone during
play.
CLK SET/MENU
With the power o,
press and hold to begin
setting the clock. Press
to move through the
menus on a docked
iPod or iPhone.
SKIP/SEARCH
Press to skip between
tracks on a docked iPod
or iPhone. Press and
hold to search through
an individual track.
Press to adjust the time
when setting the clock.
REPEAT
Press to cycle through
repeat options on a
docked iPod or iPhone.
CHAPTER
Press to switch between
chapters on a docked
iPod or iPhone.
EQ
Press to switch between
Rock, Classic, Jazz, and
Pop preset equalizer
modes.
VOLUME
Press to adjust the
volume.
SLEEP
Press repeatedly to set
the sleep timer.
SELECT
Press to make selections
on a docked iPod or
iPhone.
SHUFFLE
Press to activate or
deactivate the shue
mode on the docked
iPod or iPhone.
ALBUM
Press to switch between
albums on a docked
iPod or iPhone.
PLAYLIST
Press to switch between
playlists on a docked
iPod or iPhone.
MUTE
Press to mute the volume.
Page 8
8
DC power input: requires an AC/DC power
adapter (included)
Backup battery: requires 2 AAA batteries
(not included)
The backup battery will save the set time in
case of an unexpected power outage.
Requires a CR2025 battery (pre-installed)
Power
Backup Battery
Remote
Setup
WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead
recycle or dispose of as hazardous waste.
LITHIUM BATTERY
CR 2025
3V
CR2025
PUSH
OPEN
Page 9
Customer Support: 1-888-999-4215 9
iPod and iPhone
Docking an iPod or iPhone
Connecting the Spacers
1. Follow the instructions for Connecting
the Spacers and use as needed to t
your iPod or iPhone into the dock.
2. Connect the iPod or iPhone to the
connector on the ROTATING DOCK
FOR iPod and iPhone.
3. When the speaker is plugged in, using
AC power, the docked iPod or iPhone
will charge.
1. Place the spacer onto the dock and turn clockwise to lock the spacer into place.
2. To remove the spacer, turn counter-clockwise.
Playing a Docked iPod or iPhone
Rotating Dock
1. Follow the instructions for Docking an
iPod or iPhone.
2. Press the POWER button to turn the
speaker on.
3. Press the POWER/PLAY/PAUSE button
to begin playing the docked iPod or
iPhone.
COUNTER-CLOCKWISE
UNLOCKS
CLOCKWISE
LOCKS
Page 10
10
ISP591 App Overview
Automatically Downloading the App Manually Downloading the App
ISP591 App
1. Follow the instructions for Docking an
iPod or iPhone.
2. Once the iPod or iPhone is docked a
screen will appear prompting you to
download the ISP591 app from the
App Store.
3. Press Yes to automatically download
the ISP591 app.
1. Go to the App Store on your iPhone or
iPod touch.
2. Search for ISP591.
3. Download the App.
CLOCK
The clock will automatically sync with the
time on the iPod or iPhone, so there’s no
need to set it.
ALARM
Add as many alarms as you like. You can
set them to wake to iPod music, Nature
Sounds, Buzzer, or you can record your own
alarm.
WEATHER
Type in your location and view your current
weather conditions along with the time on
the home page of the app.
PHOTO SLIDE SHOW
Select photos that are already on your iPod
or iPhone and play a slideshow with your
music in the background.
SOURCES
When docked with the App-enhanced
Speaker System (ISP591) you can use the
app to control the source on the speaker
system.
Choose iPod to play music directly from
your iPod or iPhone or Line In to play music
from an audio source connected to the
3.5mm audio input on the speaker system.
Page 11
Customer Support: 1-888-999-4215 11
3.5mm Audio Input and Composite Video Output
Using the 3.5mm Audio Input
Using the Composite Video Output
Requires a 3.5mm audio cable
(not included)
1. Disconnect any iPod that is docked to
the ROTATING DOCK FOR iPod and
iPhone.
The speaker system will automatically
switch to Line In mode when a 3.5mm
audio cable is connected to the 3.5mm
AUDIO INPUT as long as there isn’t an
iPod docked in the ROTATING DOCK FOR
iPod and iPhone. An iPhone can remain
docked.
If you have downloaded the ISP591 App
you can use it to switch to Line In mode
while an iPod touch or iPhone is docked.
2. Connect a 3.5mm audio cable to the
3.5mm AUDIO INPUT on the speaker
and an audio output on an MP3 player
or other audio source.
3. Use the native controls on the
connected MP3 player or other audio
source to play and control audio
played through the speaker.
Requires an RCA composite video cable
(not included)
1. Connect the RCA composite video
cable to the COMPOSITE VIDEO
OUTPUT on the speaker and a
composite video input on a television.
2. Adjust the TV OUT settings on the
docked iPod to OK.
3. Videos played from the docked iPod or
iPhone will now play on the connected
television.
Photo slideshows played through the
ISP591 App cannot be output using the
Composite Video Output.
Page 12
Copyright © 2010 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are the property of their respective
owners. Specications are subject to change without notice
Environmental Commitment to ‘Protect for
Today and Sustain for Tomorrow’
2009 marked the ocial launch of
DPI, Inc.’s corporate campaign for
a greener and cleaner world. DPI is
building upon environmental initiatives
introduced at all of their facilities to
help formulate and sustain signicant
and important conservation eorts
within its manufacturing and marketing
communities. In addition to targeting and
selecting energy ecient product features,
and structuring ‘green oce’ procedures,
other initial program eorts include:
• Reduction of all packaging sizes
• Recyclable plastics for clamshell
packages, with a plan to eventually
replace plastic with recyclable paper
• Recycled ber board in place of the
polyfoam in packing boxes
• Recycled plastics in place of the virgin
material in product construction
To download this User’s Guide in English,
Spanish, or French, visit the support section
at www.ilive.net.
Para transferir esta guía de usuario en
inglés, español, o francés, visite la sección
de la ayuda en www.ilive.net.
Pour télécharger ce guide de l’utilisateur
en anglais, espagnol, ou français, visitez la
section de soutien chez www.ilive.net.
Phone: 1-888-999-4215
Email: [email protected]
Parts Email: [email protected]
Website: www.ilive.net
Green InitiativeInternational Support
Contact Information
Company Information
Loading...
