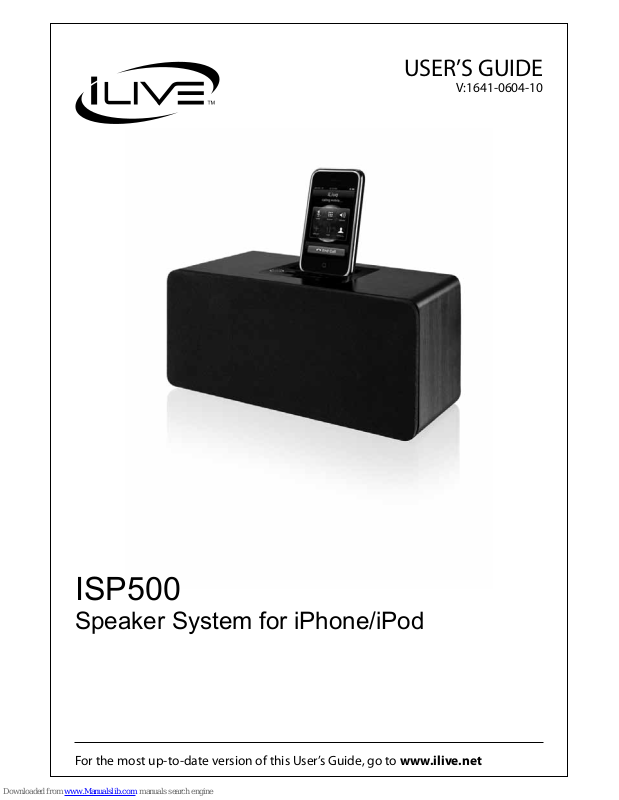

USER’S GUIDE

V:1641-0604-10

For the most up-to-date version of this User’s Guide, go to www.ilive.net

ISP500

Speaker System for iPhone/iPod

Page 2

iLive2

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AveRTIssemeNT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

Warnings and Precautions

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Page 3

Customer Support: 1-888-999-4215 iLive 3

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The apparatus shall not be exposed to dripping or splashing and

that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux

éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Main plug is used as disconnect device and it should remain

readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

La prise du secteur ne doit pas être obstruée ou doit être

facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur.

• Battery shall not be exposed to excessive heat such as sunshine,

re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or back of the apparatus.

Attention marquage est situé à l’arrière ou à l’arrière de

l’appareil

• The marking information is located at the rear or back of

apparatus.

Les informations de marquage est situé à l’arrière ou à l’arrière

de l’appareil.

FCC Warnings

Additional Warnings

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Important Safety Instructions

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Page 4

iLive4

• Works with iPhone

• Made for iPod

• Cherry wood nish

• Enhanced audio quality

• 2.1 channel system

• Auxiliary input (RCA)

• Line input (3.5mm)

• Subwoofer output (RCA)

• Video output (RCA)

• Supports Universal docking brackets

• Remote control

• DC power input: requires AC/DC power adapter (included)

• ISP500

• Remote control, requires 1 CR2025 battery (pre-installed)

Speaker System for iPhone/iPod

Features

Included

Page 5

Customer Support: 1-888-999-4215 iLive 5

TABLE OF CONTENTS

Warnings and Precautions . . . . . 2

Important Safety Instructions . . . . 3

• FCC Warnings

• Additional Warnings

Speaker System for iPhone/iPod . . . 4

• Features

• Included

Introduction . . . . . . . . 6

Setup . . . . . . . . . . 8

• Power

• Remote

iPod and iPhone . . . . . . . 9

• Docking an iPod or iPhone

• Playing an iPod or iPhone

Line Input and Aux Input . . . . . 10

• Using the Line Input

• Using the Aux Input

Subwoofer Output and Video Output . . 11

• Using the Video Output

• Using the Subwoofer Output

Company Information . . . . . . 12

• International Support

• Contact Information

Page 6

iLive6

Introduction

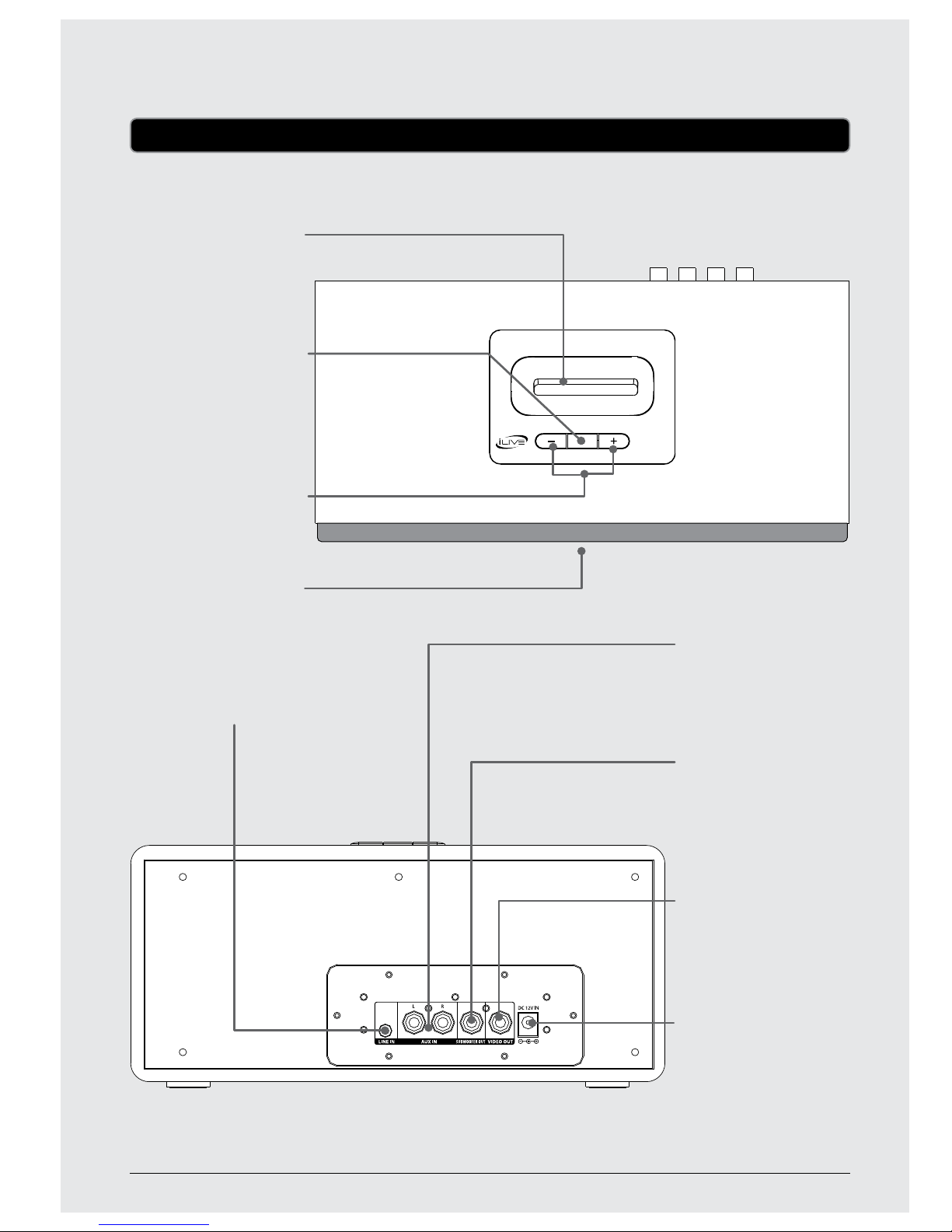

DOCK

Use to connect a

supported iPod or

iPhone to the speaker

system.

POWER

Press to turn the

speaker system o or

on.

VOLUME

Press to adjust the

volume on the speaker

system.

POWER INDICATOR

Illuminates red when

the power is turned o.

LINE INPUT(3.5mm)

AUX INPUT (RCA)

SUBWOOFER OUTPUT (RCA)

VIDEO OUTPUT (RCA)

DC POWER INPUT

Page 7

Customer Support: 1-888-999-4215 iLive 7

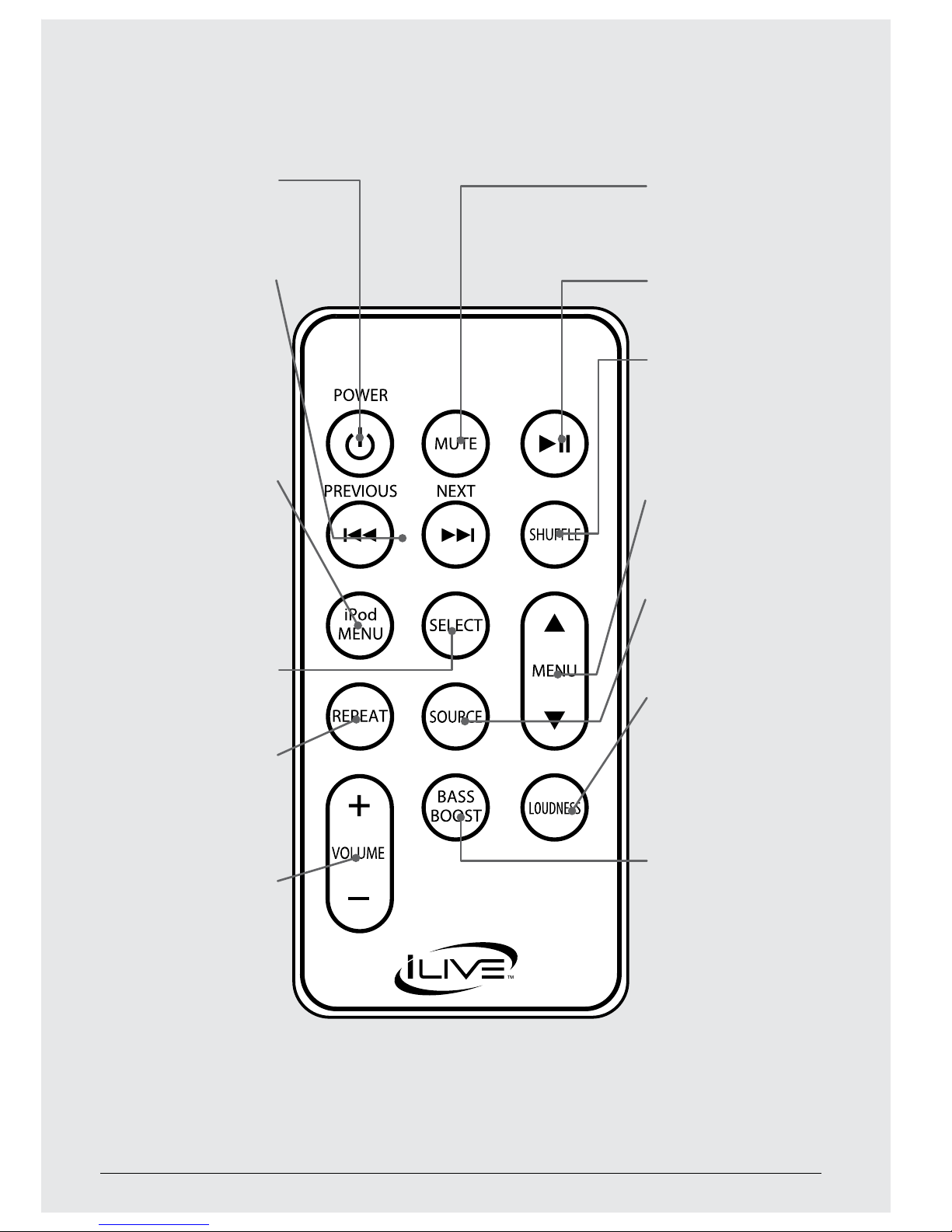

POWER

Press to power the

speaker system o or

on.

PREVIOUS/NEXT

Press to skip to the

previous or next track

on a docked iPod or

iPhone.

Press and hold to search

through the current

track.

iPod MENU

Press to go to the

previous menu on a

docked iPod or iPhone.

Press and hold to return

to the main menu on a

docked iPod or iPhone.

SELECT

Press to make selections

on a docked iPod or

iPhone.

REPEAT

Press to repeat the

current track or the

entire album on a

docked iPod or iPhone.

VOLUME

Press to adjust the

volume.

MUTE

Press to mute the speaker systems volume.

PLAY/PAUSE

Press to play or pause a docked iPod or iPhone.

SHUFFLE

Press to turn the shue o or on. In shue mode, the docked iPod or iPhone will play songs in random order.

Press to move up and down on the current iPod or iPhone menu.

SOURCE

Press to switch between iPod and LINE INPUT/ AUX INPUT modes.

LOUDNESS

Press to turn the loudness o or on.

The loudness increases the power output.

BASS BOOST

Press to turn the bass boost o or on.

The bass boost increases the bass output of the speaker system.

Page 8

iLive8

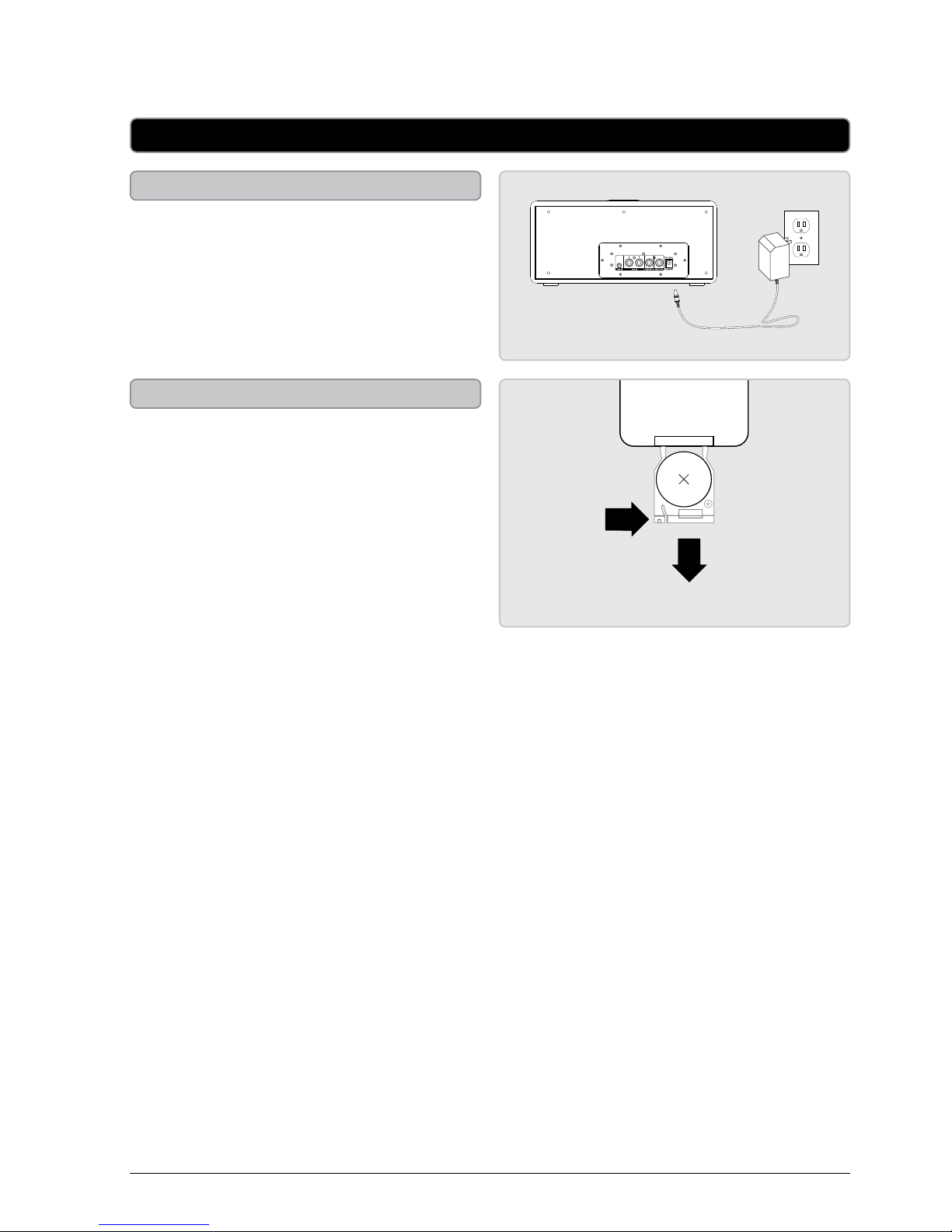

Plug the included AC/DC power adapter into the DC power input and an AC power outlet to power the speaker system.

Requires 1 CR2025 battery (preinstalled)

Power

Remote

PUSH

OPEN

Setup

Page 9

Customer Support: 1-888-999-4215 iLive 9

Docking an iPod or iPhone

Playing an iPod or iPhone

Universal Dock: designed to use the Dock Adapter included with your iPhone and iPod

1. Snap the bracket into place over the iPhone/iPod connector in the dock.

2. Connect the iPhone or iPod to the connector inside the Dock for iPhone/iPod.

When the speaker is plugged in, using AC power, the docked iPhone or iPod will charge.

1. Follow the instructions for DOCKING AN iPod or iPhone.

2. Press the POWER button to turn the speaker system on.

The POWER INDICATOR light will turn o when the speaker system powers on.

3. Press the PLAY/PAUSE button to begin playing music from the docked iPhone or iPod.

4. If your music doesn’t play, press the SOURCE button to switch to iPod mode.

iPod and iPhone

Page 10

iLive10

Line Input and Aux Input

Using the Line Input Using the Aux Input

1. Connect an audio source to the LINE INPUT using an 3.5mm line input cable (not included).

2. Press the POWER button to turn the speaker system on.

3. Use the native controls on the connected audio device to begin playing music through the connected speaker system.

4. If your music doesn’t begin playing, press the SOURCE button to switch to line input mode.

The LINE INPUT must be disconnected before using the AUX INPUT.

1. Connect an audio source to the AUX INPUT using an RCA stereo cable (not included).

2. When connecting the RCA stereo cable, match the colored plugs on the cable to the colored connections on the speaker system.

3. Press the POWER button to turn the speaker system on.

4. Use the native controls on the connected audio device to begin playing music through the connected bar speaker.

5. If your music doesn’t begin playing, press the SOURCE button to switch to aux input mode.

Page 11

Customer Support: 1-888-999-4215 iLive 11

Subwoofer Output and Video Output

Using the Video Output

Using the Subwoofer Output

1. Connect a television to the VIDEO OUTPUT using an RCA cable (not

included).

2. Make sure the docked iPhone or iPod’s TV out option is turned on.

3. Adjust the connected television to the correct input setting.

4. Video played through the docked iPhone or iPod will now play on the connected television.

1. Connect a subwoofer to the SUBWOOFER OUTPUT using an RCA audio cable (not included).

2. The connected subwoofer will automatically work when audio is played through the speaker system.
