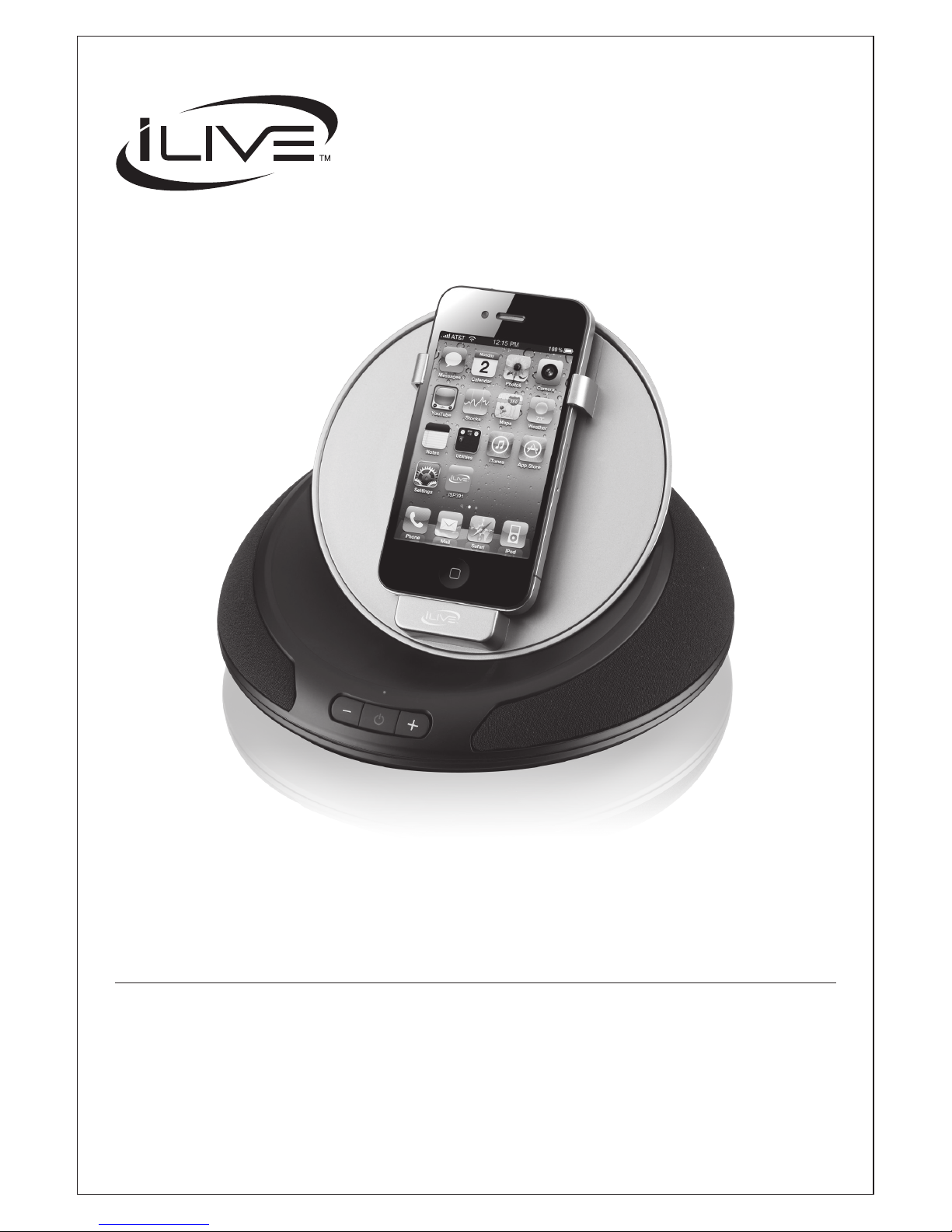

USER’S GUIDE
V:0927-1222-10
For the most up-to-date version of this User’s Guide, go to www.ilive.net
ISP391B
App-enhanced Speaker System
for iPod + iPhone
2
• CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
• WARNING:To reduce the risk of re or electric shock,
do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie
ou de choc électrique, ne pas exposer cet appareil sous la
pluie et l’humidité.
• CAUTION: Use of any controls or adjustments or
performance of procedures other than those herein
specied may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
• WARNING: Do not place the unit on top of any soft,
porous, or sensitive surfaces to avoid damaging the
surface. Use a protective barrier between the unit and
surface to protect the surface.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS
OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect
device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains
completely, the Mains Plug or Direct plug-in adapter should
be disconnected from the mains socket outlet completely.
La che d’alimentation ou adaptateur de courant est utilisé
comme dispositif de déconnexion et doit rester accessible
pendant l’utilisation. Pour mettre l’appareil hors tension, la
che ou adaptateur de courant doit être débranché de la prise
de courant.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o
recargables (ni-cad, ni-mh, etc.).
Warnings and Precautions
The lightning ash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufcient magnitude to constitute a risk of electric
shock to persons.
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Customer Support: 1-888-999-4215 3
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
WARNING: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The apparatus shall not be exposed to dripping or splashing and
that no objects lled with liquids, such as vases, shall be placed on
apparatus.
L’appareil ne doit pas être exposé aux écoulements ou aux
éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase,
ne doit être placé sur l’objet.
• Battery shall not be exposed to excessive heat such as sunshine, re
or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la
lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the rear or back of the apparatus.
Attention marquage est situé à l’arrière ou à l’arrière de l’appareil
• The marking information is located at the rear or back of apparatus.
Les informations de marquage est situé à l’arrière ou à l’arrière de
l’appareil.
FCC Warnings
Additional Warnings
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
When the provided plug does not t into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12.
Important Safety Instructions
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user
accessible parts.
Use only with a cart, stand, tripod,
bracket, or table specied by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Special note: When placing your unit on a
lacquered or natural nish, protect your furniture
with a cloth or other protective material.
4
• Made for iPod and iPhone
• Plays and charges docked iPod and
iPhone
• App-enhanced: clock, alarm, weather,
nature sounds, photo slideshow with
background music
• 2 channel stereo sound
• Rotating dock for iPod and iPhone
• iPod and iPhone authentication IC
• Composite video output
• 3.5mm audio input
• Digital volume control
• Built-in stereo speakers
• Portrait or landscape orientation
• Cloth speaker grill
• DC power input: requires an AC/DC
power adapter (included)
• 2 rubber spacers
• AC/DC power adapter
App-enhanced Speaker System for iPod + iPhone
Features
Included
Customer Support: 1-888-999-4215 5
Table of Contents
Warnings and Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
App-enhanced Speaker System for iPod + iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features
Included
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power
iPod and iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Docking an iPod or iPhone
Playing a Docked iPod or iPhone
Rotating Dock
App Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Automatically Downloading the App
Manually Downloading the App
ISP391 app
Video and Photo Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adding a Video to the App
Playing a Slideshow using the App
3.5mm Audio Input and Composite Video Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the 3.5mm Audio Input
Using the Composite Video Output
Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
International Support
Contact Information
Green Initiative
6
Introduction
DOCK FOR iPod and
iPhone
STATUS INDICATOR
GREEN: iPod Mode
ORANGE: Line In Mode
RED: Power O
VOLUME
POWER/SOURCE
COMPOSITE VIDEO
OUTPUT
3.5MM AUDIO INPUT
DC POWER INPUT
Customer Support: 1-888-999-4215 7
DC power input: requires an AC/DC power
adapter (included)
GREEN: iPod Mode
ORANGE: Line In Mode
RED: Power O
Power
Setup
8
The dock will rotate 90˚ to the right or left.
Rotating Dock
iPod and iPhone
Docking an iPod or iPhone
1. Use the included magnetic rubber
spacers as needed to adjust the depth
for your iPod or iPhone.
2. Connect the iPod or iPhone to the
DOCK FOR iPod AND iPhone.
3. When the speaker is plugged in, using
AC power, the docked iPod or iPhone
will charge.
Playing a Docked iPod or iPhone
1. Follow the instructions for Docking an
iPod or iPhone.
2. Press the POWER/SOURCE button to
switch to iPod mode or use the ISP391
app from the iTunes App Store to
adjust the speaker’s source.
3. Press the PLAY/PAUSE button on
the docked iPod or iPhone to begin
playing the docked iPod or iPhone.
Customer Support: 1-888-999-4215 9
App Introduction
Automatically Downloading the App
Manually Downloading the App
ISP391 app
1. Follow the instructions for Docking an
iPod or iPhone.
2. Once the iPod or iPhone is docked a
screen will appear prompting you to
download the ISP391 app from the
App Store.
3. Press Yes to automatically download
the ISP391 app.
1. Go to the App Store on your iPhone or
iPod touch.
2. Search for ISP391.
3. Download the App.
CLOCK
The clock will automatically sync with the
time on the iPod or iPhone, so there’s no
need to set it.
ALARM
Add as many alarms as you like. You can
set them to wake to iPod music, Nature
Sounds, or Buzzer.
WEATHER
Type in your location in the settings and
view your current weather conditions along
with the time on the home page of the app.
PHOTO SLIDE SHOW
Select photos that are already on your iPod
or iPhone and play a slideshow with your
music in the background.
SOURCES
When docked with the App-enhanced
Speaker System (ISP391B) you can use the
app to select the source for the Speaker
System.
Choose iPod to play music directly from your
iPod or iPhone, Video to view loaded MP4
videos through the App, or Line In to play
music from an audio source connected to the
3.5mm audio input.
10
Adding a Video to the App
1. Connect your iPod or iPhone to your
computer.
2. Open iTunes.
3. Select your connected iPod or iPhone
in the iTunes sidebar menu.
4. Click the apps tab to view the apps
being synced to your connected iPod
or iPhone.
5. Select the ISP391 app and click the
ADD button.
6. Add an MP4 video to the app.
7. The added video can now be accessed
and played from the iPod or iPhone
through the ISP391 app.
ISP191B
ISP391
ISP391
ISP191B
ISP391
ISP391
Video and Photo Slideshow
Playing a Slideshow using the App
1. Select Slideshow in the ISP391 app.
2. Press Select Photos.
3. Press the + button to add a photo to
the app.
Repeat this step until all the desired
photos have been added to the app.
4. Press the individual photos to add
them to the slideshow.
A check mark will appear next to the
photos that have been added to the
slideshow.
5. Press the Slideshow button, then
press the Start button to begin
playing the photo slideshow.
Customer Support: 1-888-999-4215 11
Using the Composite Video Output
Requires an RCA composite video cable
(not included)
1. Connect the RCA composite video
cable to the COMPOSITE VIDEO
OUTPUT on the speaker and a
composite video input on a television.
2. Adjust the TV OUT settings on the
docked iPod to OK.
3. Videos played from the docked iPod or
iPhone will now play on the connected
television.
Videos played from the ISP391 app
cannot be output to a connected
television.
3.5mm Audio Input and Composite Video Output
Using the 3.5mm Audio Input
Requires a 3.5mm audio cable (not
included)
1. Connect a 3.5mm audio cable to the
3.5MM AUDIO INPUT on the speaker
and an audio output on an MP3 player
or other audio source.
2. Press the POWER/SOURCE button to
switch to Line In mode.
3. Use the native controls on the
connected MP3 player or other audio
source to play and control audio
played through the speaker.
Copyright © 2010 Digital Products International (DPI, Inc.) | All other trademarks appearing herein are the property of their respective
owners. Specications are subject to change without notice
Environmental Commitment to ‘Protect for
Today and Sustain for Tomorrow’
2009 marked the ocial launch of
DPI, Inc.’s corporate campaign for
a greener and cleaner world. DPI is
building upon environmental initiatives
introduced at all of their facilities to
help formulate and sustain signicant
and important conservation eorts
within its manufacturing and marketing
communities. In addition to targeting and
selecting energy ecient product features,
and structuring ‘green oce’ procedures,
other initial program eorts include:
• Reduction of all packaging sizes
• Recyclable plastics for clamshell
packages, with a plan to eventually
replace plastic with recyclable paper
• Recycled ber board in place of the
polyfoam in packing boxes
• Recycled plastics in place of the virgin
material in product construction
To download this User’s Guide in English,
Spanish, or French, visit the support section
at www.ilive.net.
Para transferir esta guía de usuario en
inglés, español, o francés, visite la sección
de la ayuda en www.ilive.net.
Pour télécharger ce guide de l’utilisateur
en anglais, espagnol, ou français, visitez la
section de soutien chez www.ilive.net.
Phone: 1-888-999-4215
Email: customerservice@ilive.net
Parts Email: partsinfo@dpi-global.com
Website: www.ilive.net
Green InitiativeInternational Support
Contact Information
Company Information
Loading...
