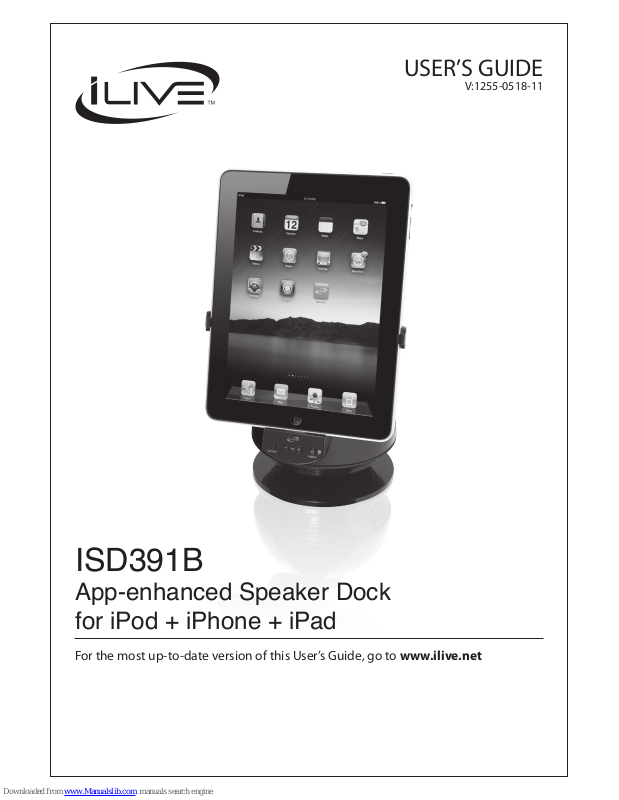

USER’S GUIDE

V:1255-0518-11

For the most up-to-date version of this User’s Guide, go to www.ilive.net

ISD391B

App-enhanced Speaker Dock for iPod + iPhone + iPad

Page 2

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING:The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, re, or the like.

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

Warnings and Precautions

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Page 3

Customer Support: 1-888-999-4215 3

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The apparatus shall not be exposed to dripping or

splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements

ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Battery shall not be exposed to excessive heat

such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau

arrière ou inférieur de l’unité.

• The marking information is located at the

rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

FCC Warnings

Additional Warnings

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Important Safety Instructions

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

Page 4

• Plays and charges docked iPod, iPhone, and iPad

• App-enhanced: internet radio, MyMusic™, clock, alarm, weather, slide show, voice reminders, calendar, preset EQs, and nature sounds

• Rotating dock for iPod, iPhone, and iPad

• Composite video output

• 3.5mm audio input

• 2.1 channel speaker system with builtin subwoofer

• Advanced remote control

• Remote control: requires a CR2025 battery (pre-installed)

• Dock adapters for iPod, iPhone and iPad

• 2 brackets for iPad 2

• AC/DC power adapter

App-enhanced Speaker Dock for iPod + iPhone + iPad

Features

Included

Page 5

Customer Support: 1-888-999-4215 5

Table of Contents

App-enhanced Speaker Dock for iPod + iPhone + iPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features Included

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Power Remote Rotating the Dock

iPod and iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Docking an iPod or iPhone

iPad and iPad 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Docking an iPad Docking an iPad 2 Playing a Docked iPad or iPad 2

ISD391 App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Automatically Downloading the App Manually Downloading the App App Features

Composite Video Output and 3.5mm Audio Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the Composite Video Output Using the 3.5mm Audio Input

Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

International Support Contact Information Green Initiative

Page 6

Introduction

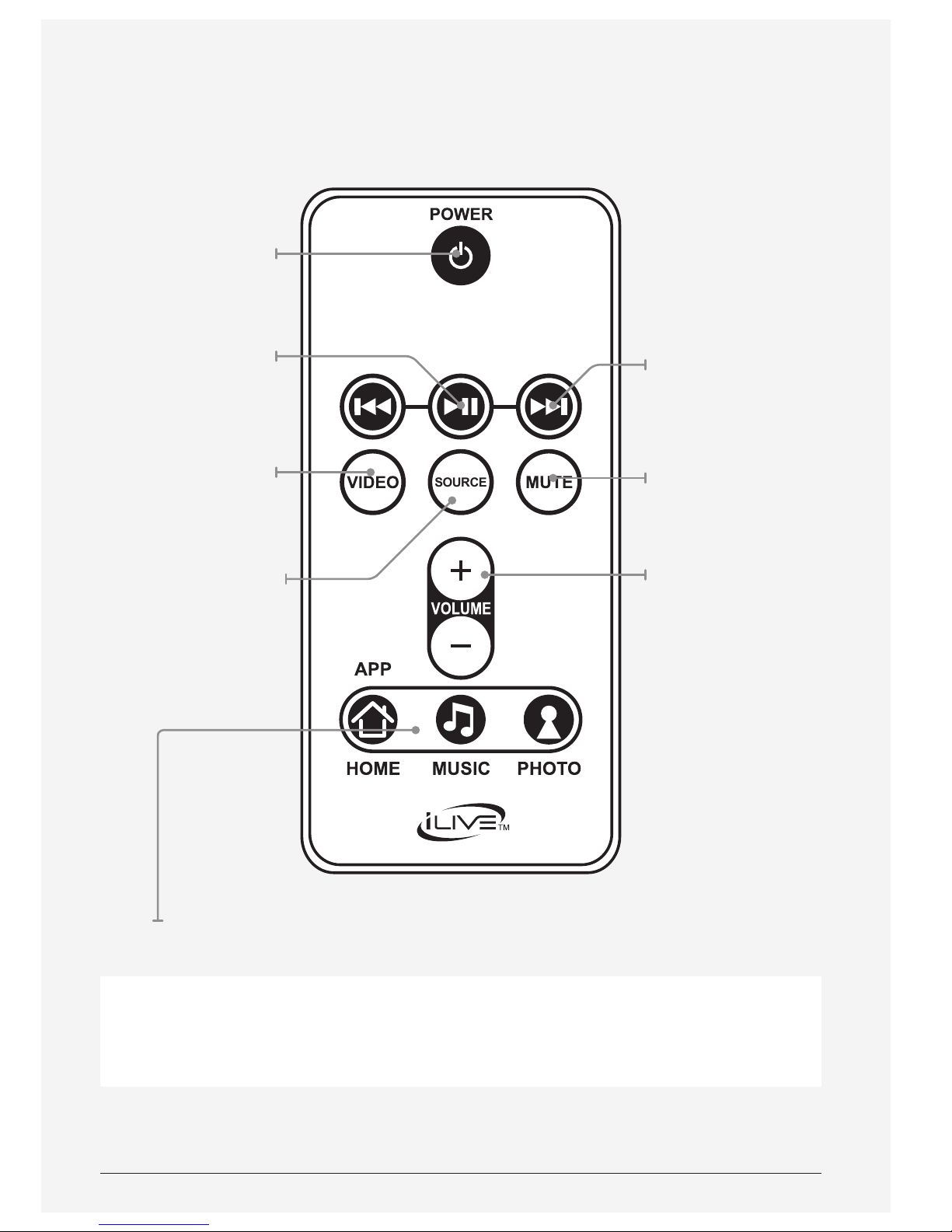

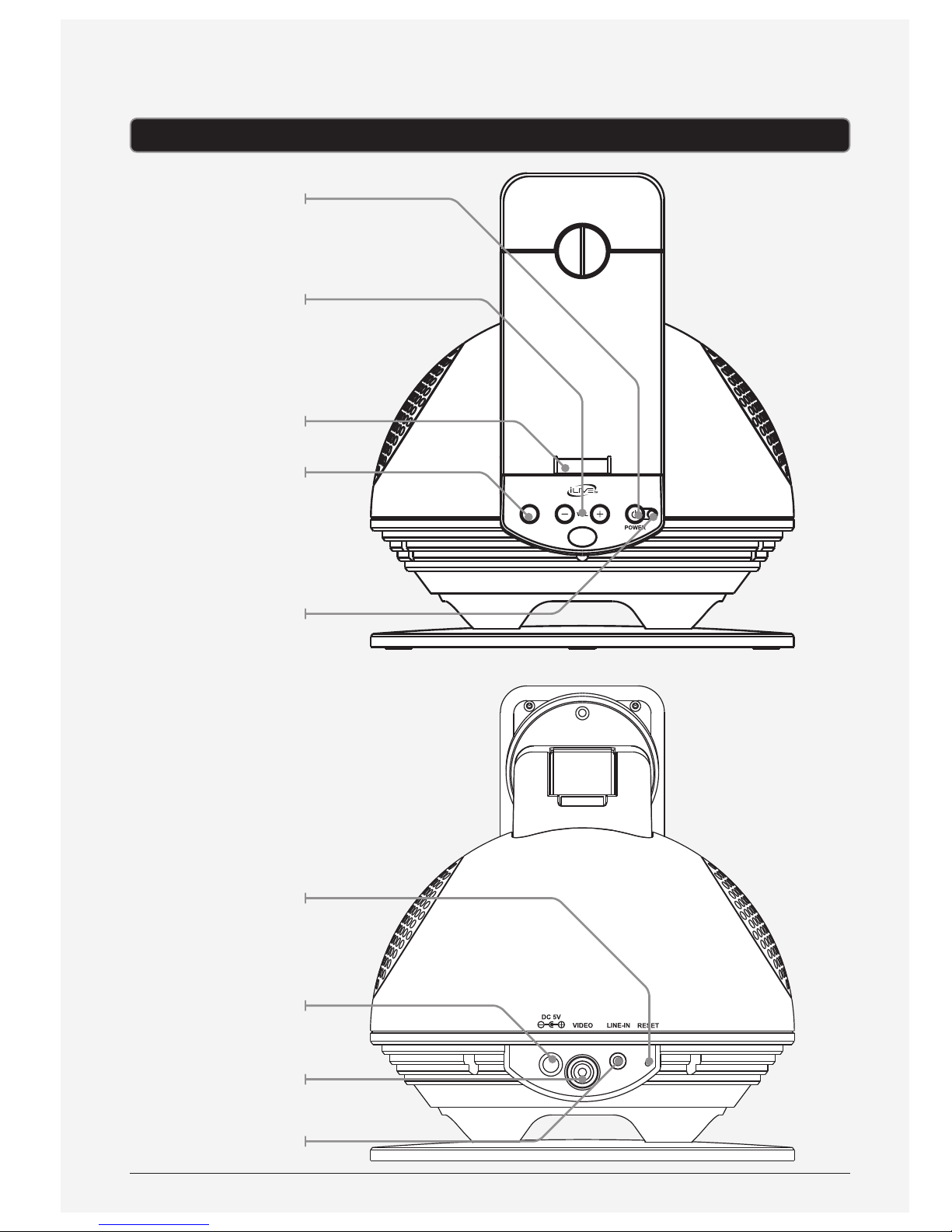

SOURCE

Power

Press to power the

speaker dock o and

on.

Volume

Press to adjust the

volume on the

speaker dock.

Dock for iPod,

iPhone, and iPad

Source

Press to adjust the

current source.

Indicator

RED = OFF

GREEN = iPod/Phone/

iPad mode

ORANGE = Aux In

mode

Reset

In case of

malfunction, use

a paperclip or like

object to reset the

speaker dock it’s

original settings.

DC Power Input

Composite Video

Output

3.5mm Audio Input

Page 7

Customer Support: 1-888-999-4215 7

SOURCE

Power

Press to power the

speaker dock o and

on.

Play/Pause

Press to play or pause

a docked iPod or the

iPod app on a docked

iPhone or iPad.

Video

Press to access video

output mode.

Source

Press to adjust the

current source.

Skip/Search

Press to skip between tracks on a docked iPod, iPhone, or iPad. Press and hold to search between tracks.

Mute

Press to mute the volume.

Volume

Press to adjust the volume on the speaker dock.

Home

Press to access the home

page in the ISD391 app.

Music

Press to access the music

section in the ISD391 app.


Press to access the photo

section in the ISD391 app.

Note: These buttons are designed to work with the free ISD391 app from the App Store.

App Buttons

Page 8

DC power input: requires an AC/DC power adapter (included)

Requires a CR2025 battery (pre-installed)

The dock can only rotate 90˚ counterclockwise.

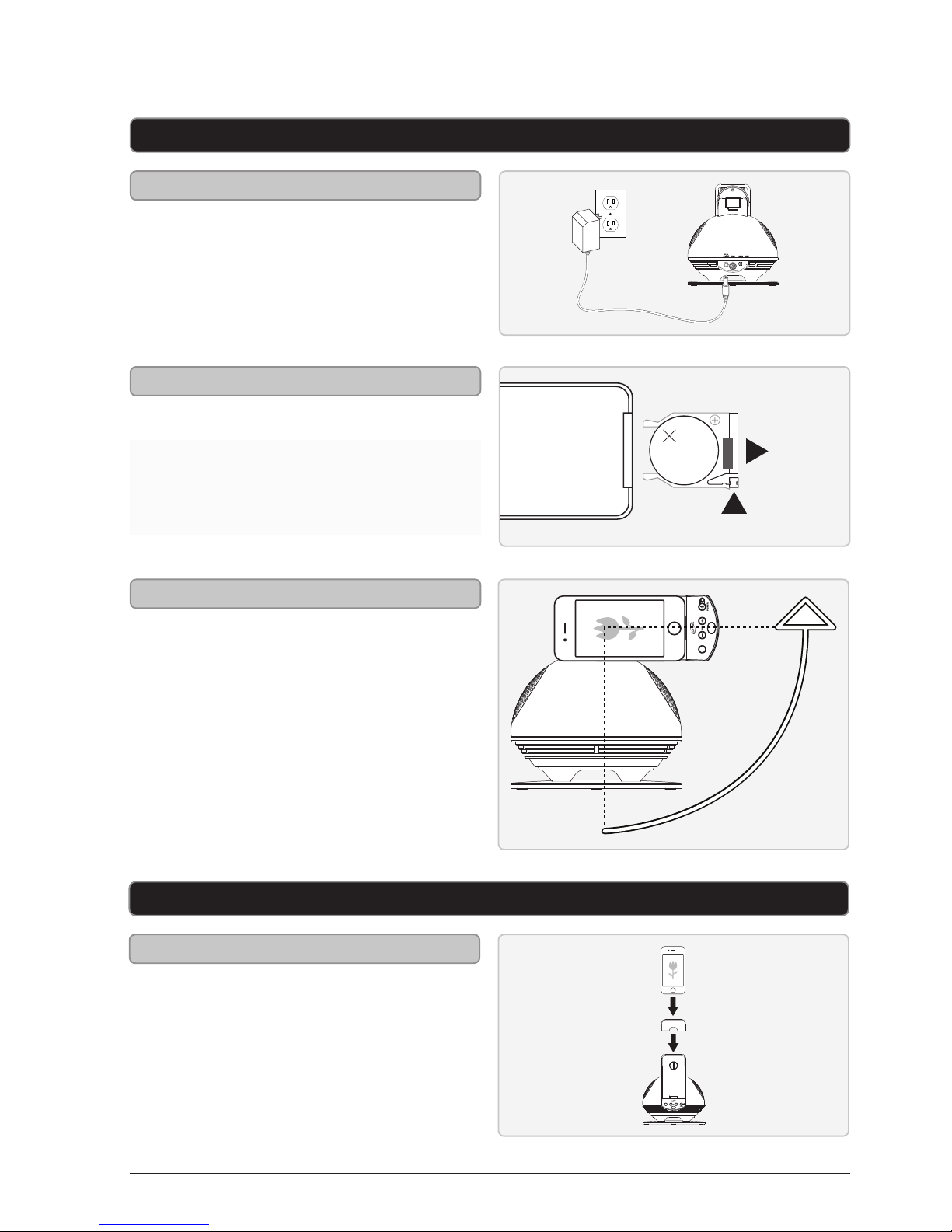

Power

Remote

Rotating the Dock

LITHIUM BATTERY

CR 2025

PUSH

OPEN

Setup

iPod and iPhone

SOURCE

90˚

Docking an iPod or iPhone

1. Attached the iPod and iPhone

dock adapter to the Dock.

2. Connect the iPod or iPhone to

the connector on the Dock.

3. When the dock is plugged in,

using AC power, the docked iPod or iPhone will charge.

WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste.

Page 9

Customer Support: 1-888-999-4215 9

iPad and iPad 2

SOURCE

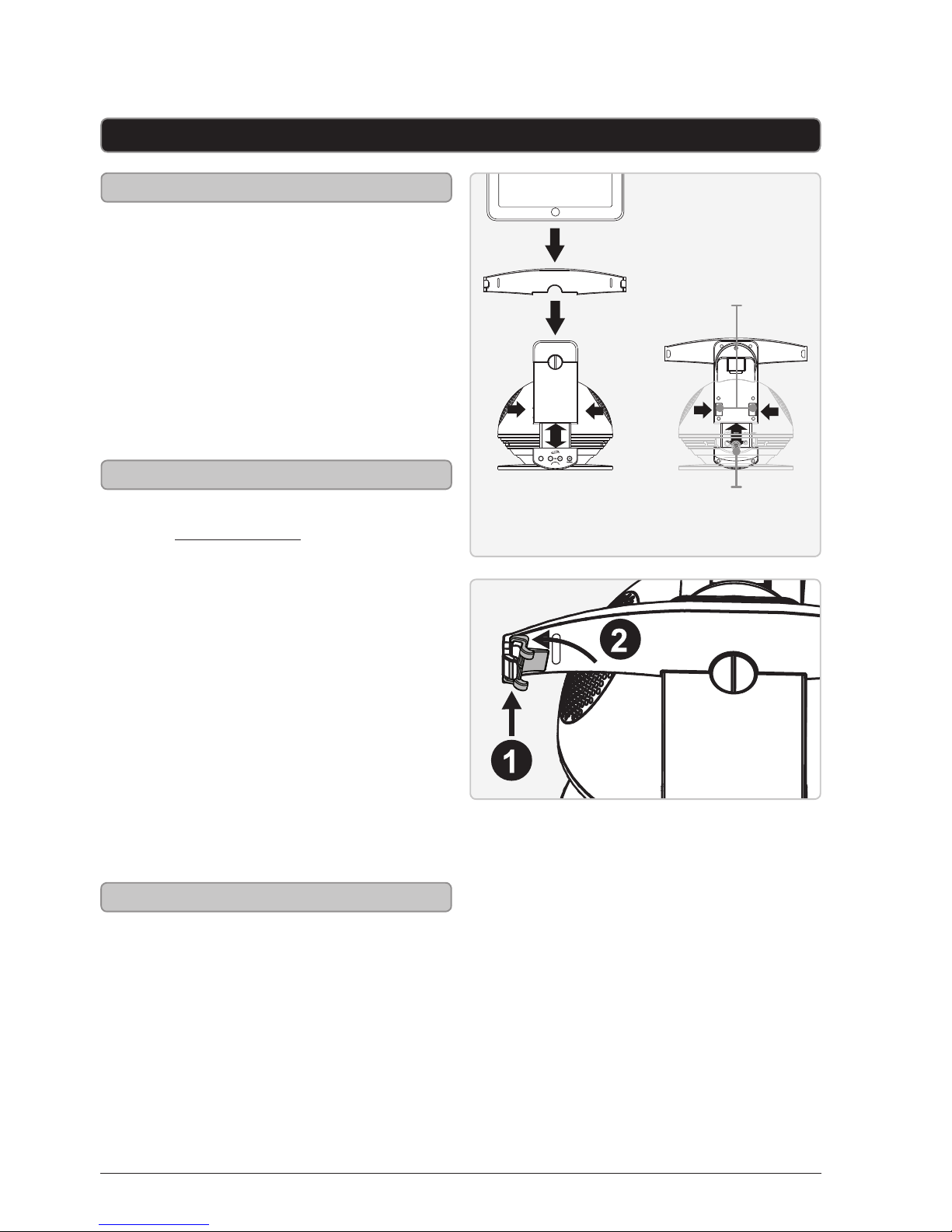

Docking an iPad

Docking an iPad 2

1. Attached the iPad dock adapter to the Dock.

2. Press in the side buttons on the dock to slide it down towards the dock connector.

3. Connect the iPad to the connector on the Dock.

4. When the dock is plugged in, using AC power, the docked iPad will charge.

1. Follow the instructions for Docking an iPad.

2. Attach the lower part of the iPad 2 bracket onto the lower part of the left dock arm.

3. Press the upper part of the iPad 2 bracket onto the upper part of the left dock arm until it snaps into place.

4. Repeat steps 1 and 2 for the right dock arm.

5. Connect the iPad 2 to the connector on the Dock.

6. When the dock is plugged in, using AC power, the docked iPad 2 will charge.

Playing a Docked iPad or iPad 2

1. Follow the instructions for docking an iPad, or iPad 2.

2. Press the Source button to switch to iPod mode.

3. Press the Play/Pause button to begin playing the docked iPad, or iPad 2.

side buttons

dock connector

Page 10

ISD391 App

Automatically Downloading the App

Manually Downloading the App

1. Follow the instructions for docking an iPod touch, iPhone, or iPad.

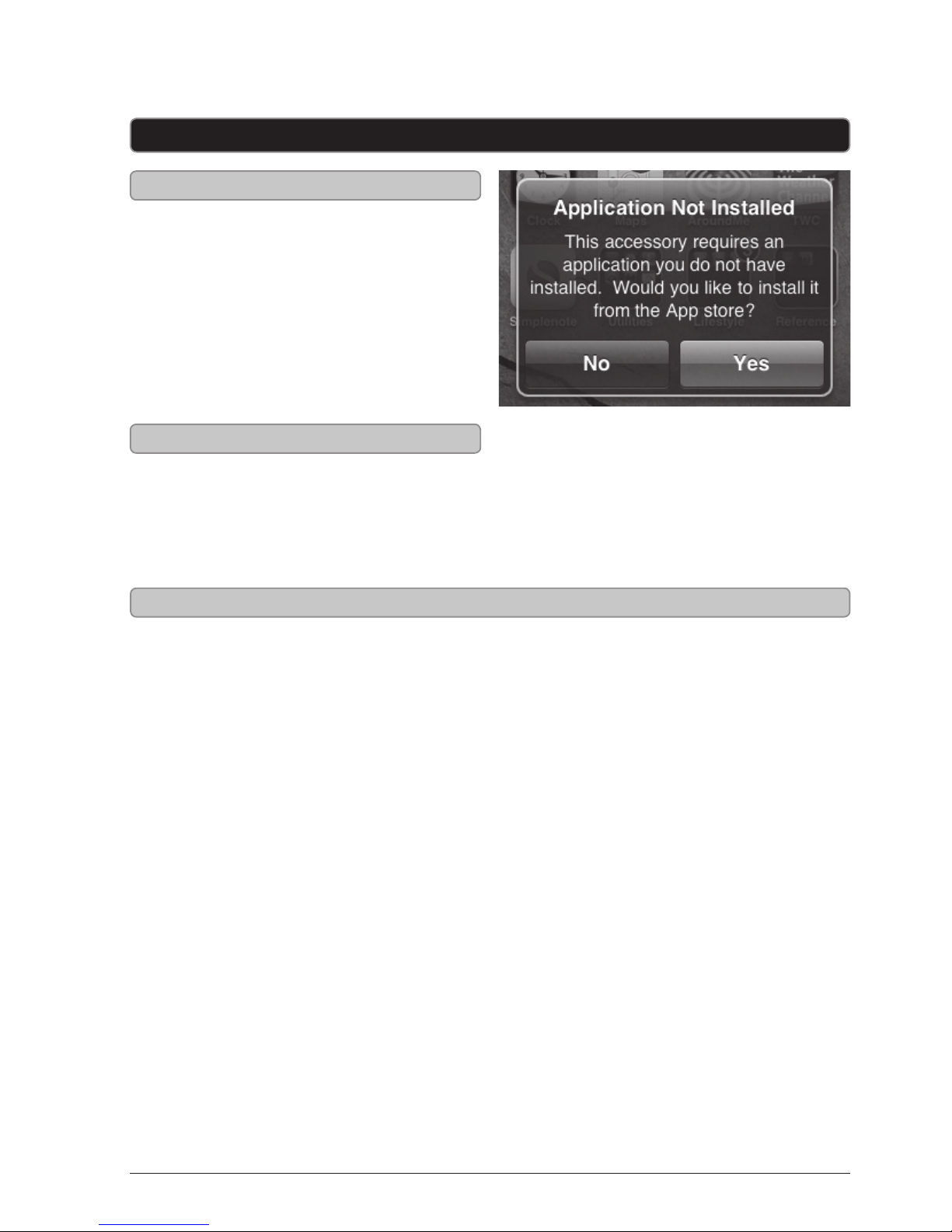

2. Once the iPod touch, iPhone, or iPad is docked a screen will appear prompting you to download the ISD391 app from the App Store.

3. Press Yes to automatically download the ISD391 app.

1. Go to the App Store on your iPod touch, iPhone, or iPad.

2. Search for ISD391.

3. Download the App.

App Features

CLOCK

The clock will automatically sync with the time on the iPod touch, iPhone, or iPad, so there’s no need to set it.

ALARM

Add as many alarms as you like. You can set them to wake to iPod music, Nature Sounds, Buzzer, or a Pre-Recorded Message.

WEATHER

Type in your location in the settings and view your current weather conditions along with the time on the home page of the app.

PHOTO SLIDE SHOW

Select photos that are already on your iPod touch, iPhone, or iPad and play a slideshow with your music in the background.

Adjust between multiple preset EQs.

SLEEP

CALENDAR with VOICE MESSAGE

Internet Radio

Enter to sign up for free Internet Radio and play anywhere.

MyMusic™

Enter to sign up for a trial of “MyMusic™ Pro” and stream your entire music collection from anywhere.

Page 11

Customer Support: 1-888-999-4215 11

Composite Video Output and 3.5mm Audio Input

Using the Composite Video Output

Requires an RCA composite video cable (not included)

1. Connect the RCA composite video cable to the Composite Video Output on the speaker and a composite video input on a television.

2. When docking an iPod, navigate to the settings on your iPod and adjust the “TV Out” setting to On.

3. When docking an iPod touch, iPhone, or iPad, use the video button on the remote to turn the video output o or on.

4. Videos played from the docked iPod, iPhone, or iPad will now play on the connected television.

Using the 3.5mm Audio Input

Requires a 3.5mm audio cable (included)

1. Connect a 3.5mm audio cable to the

3.5mm Audio Input on the speaker and an audio output on an MP3 player or other audio source.

2. Press the Source button to switch to Line In mode.

3. Use the native controls on the connected MP3 player or other audio source to play and control audio played through the speaker.

Page 12

Environmental Commitment to ‘Protect for Today and Sustain for Tomorrow’

2009 marked the ocial launch of DPI, Inc.’s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain signicant and important conservation eorts within its manufacturing and marketing communities. In addition to targeting and selecting energy ecient product features, and structuring ‘green oce’ procedures, other initial program eorts include:

• Reduction of all packaging sizes

• Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper

• Recycled ber board in place of the polyfoam in packing boxes

• Recycled plastics in place of the virgin material in product construction

To download this User’s Guide in English, Spanish, or French, visit the support section at www.ilive.net.

Para transferir esta guía de usuario en inglés, español, o francés, visite la sección de la ayuda en www.ilive.net.

Pour télécharger ce guide de l’utilisateur en anglais, espagnol, ou français, visitez la section de soutien chez www.ilive.net.

Phone: 1-888-999-4215 Email: [email protected] Parts Email: [email protected] Website: www.ilive.net

Green InitiativeInternational Support

Contact Information
