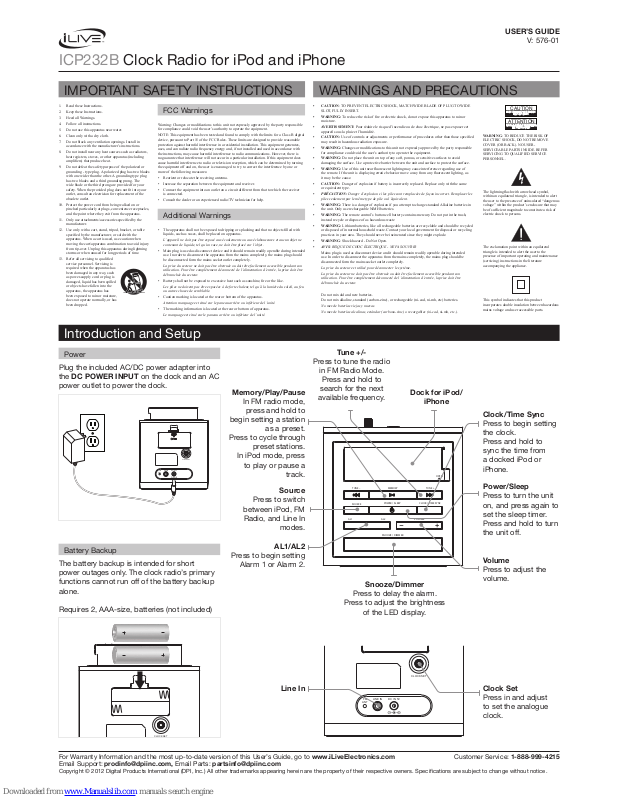

iLive ICP232B User Manual
Plug the included AC/DC power adapter into
the DC POWER INPUT on the dock and an AC
power outlet to power the dock.
LINE IN
DC IN 5V
FM
ANT
CLOCK SET
USER’S GUIDE
V: 576-01
LINE IN
DC IN 5V
FM
ANT
CLOCK SET
POWER / SLEEP
SNOOZE / DIMMER
CLOCK / TIME SYNC
SOURCE
MEMORY
VOLUME
TUNE +
TUNE –
AL 1 AL 2
OPEN
Dock for iPod/
iPhone
Memory/Play/Pause
In FM radio mode,
press and hold to
begin setting a station
as a preset.
Press to cycle through
preset stations.
In iPod mode, press
to play or pause a
track.
Tune +/-
Press to tune the radio
in FM Radio Mode.
Press and hold to
search for the next
available frequency.
Source
Press to switch
between iPod, FM
Radio, and Line In
modes.
AL1/AL2
Press to begin setting
Alarm 1 or Alarm 2.
Volume
Press to adjust the
volume.
Power/Sleep
Press to turn the unit
on, and press again to
set the sleep timer.
Press and hold to turn
the unit off.
Clock/Time Sync
Press to begin setting
the clock.
Press and hold to
sync the time from
a docked iPod or
iPhone.
Snooze/Dimmer
Press to delay the alarm.
Press to adjust the brightness
of the LED display.
Clock Set
Press in and adjust
to set the analogue
clock.
Line In
ICP232B Clock Radio for iPod and iPhone
Warning: Changes or modications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The apparatus shall not be exposed to dripping or splashing and that no objects lled with
liquids, such as vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne
contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.
• Main plug is used as disconnect device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains completely, the mains plug should
be disconnected form the mains socket outlet completely.
La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son
utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être
débranchée du secteur.
• Battery shall not be exposed to excessive heat such as sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu
ou autres choses de semblable.
• Caution marking is located at the rear or bottom of the apparatus.
Attention marquage est situé sur le paneau arrière ou inférieur de l’unité.
• The marking information is located at the rear or bottom of apparatus.
Le marquage est situé sur le paneau arrière ou inférieur de l’unité.
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong are provided for your
safety. When the provided plug does not t into your
outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over. Unplug this apparatus during lightning
storms or when unused for long periods of time.
13. Refer all servicing to qualied
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as power-supply cord or plug is
damaged, liquid has been spilled
or objects have fallen into the
apparatus, the apparatus has
been exposed to rain or moisture,
does not operate normally, or has
been dropped.
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet
appareil sous la pluie et l’humidité.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specied
may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid
damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of
the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as
it may be the cause.
• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les
piles seulement par le même type de pile ou l’équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in
the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash,
instead recycle or dispose of as hazardous waste
• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled
or disposed of in normal household waste. Contact your local government for disposal or recycling
practices in your area. They should never be incinerated since they might explode.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
Mains plug is used as disconnect device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains completely, the mains plug should be
disconnected form the mains socket outlet completely.
La prise du secteur est utilisé pour déconnecter le système.
La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son
utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être
débranchée du secteur.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
This symbol indicates that this product
incorporates double insulation between hazardous
mains voltage and user accessible parts.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufcient magnitude to constitute a risk of
electric shock to persons.
IMPORTANT SAFETY INSTRUCTIONS
Introduction and Setup
FCC Warnings
Power
The battery backup is intended for short
power outages only. The clock radio’s primary
functions cannot run off of the battery backup
alone.
Requires 2, AAA-size, batteries (not included)
CLOCK SET
Battery Backup
Additional Warnings
WARNINGS AND PRECAUTIONS
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com Customer Service: 1-888-999-4215
Email Support: prodinfo@dpiinc.com, Email Parts: partsinfo@dpiinc.com
Copyright © 2012 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specications are subject to change without notice.
1. Press and hold the Power/Sleep
button to turn the unit off.
2. Press the Al1 or Al2 button to
display the alarm time.
3. Press and hold the Al1 or Al2
button until the display begins to
blink, then release the button.
4. Press the Tun+/- button to adjust the hour.
The PM indicator will light when
the hour is set in the PM.
5. Press the Al 1 or Al 2 button.
6. Press the Tun+/- button to
adjust the minute.
7. Press the Al 1 or Al 2 button.
8. Press the Tun+/- button to switch
between beep, radio, and iPod.
9. Press the Al 1 or Al 2 button
to nish setting the time.
10. Once the set alarm time is
reached, the alarm will sound.
To set the other alarm, follow
the above steps and choose
the alarm not currently set.
1. Press the Power/Sleep button
to turn the clock radio on.
2. Press the Source button to
switch to FM radio mode.
The Radio Indicator will be lit
3. Press the Tun+ and Tun-buttons to adjust
the radio to the desired frequency.
4. Press and hold the Tun+ and Tun- buttons
to search for the next available frequency.
5. Press the Vol+/- buttons to
adjust the volume.
6. Press and hold the Power/
Sleep to turn the radio off.
Alarm
Radio
Setting the Alarm
1. Follow the instructions for
Setting the Alarm.
2. Press the Al1 or Al2 buttons repeatedly
until the indicator is no longer lit.
Cancelling the Alarm
After the alarm sounds:
Press the Snooze/Dimmer button to
delay the alarm for several minutes.
OR
Press the Power/Sleep button
to turn the alarm off until the set
alarm time is reached again.
Snooze and Alarm Reset
Tuning the FM Radio
1. Follow the instructions for
Tuning the FM Radio.
2. Tune to the desired station.
3. Press and hold the Memory/
Play/Pause button.
4. Press the Tun+/- button to adjust
to the desired preset number.
Up to 20 stations may be saved as presets.
5. Press the Memory/Play/Pause button to
save the current radio station as a preset.
Saving a Station as a Preset
1. Follow the instructions for Tuning the
Radio and Saving a Station as a Preset.
2. Press the Memory/Play/Pause button
to cycle through preset radio stations.
Tuning to a Preset Radio Station
Adjust the position of the FM Antenna
to improve FM radio reception.
Note: All clock functions apply
only to the digital clock.
Radio Reception
To download this User’s Guide in English,
Spanish, or French, or to get answers to
frequently asked questions, visit the support
section at: www.iLiveElectronics.com
Para descargar este Manual del
Usuario en inglés, español y francés, o
para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo
en www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur
en anglais, espagnol ou français, ou pour
obtenir des réponses à des questions
fréquemment posées, consultez la rubrique
d’assistance sur www.iLiveElectronics.com
International Support
To get information on which iPod, iPhone,
or iPad products are compatible with this
product, go to www.iLiveElectronics.com.
Compatibility
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com Customer Service: 1-888-999-4215
Email Support: prodinfo@dpiinc.com, Email Parts: partsinfo@dpiinc.com
Copyright © 2012 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specications are subject to change without notice.
Requires a 3.5mm audio cable (not included)
1. Connect a 3.5mm audio cable to the
Line In on the unit and an audio output
on an MP3 player or other audio source.
2. Press the Power/Sleep button
to switch to Line In mode.
The display will show “AU” and
the Line in Indicator will be lit.
3. Use the native controls on the
connected MP3 player or other audio
source to play and control audio
played through the clock radio.
Line In
Using the Line In
1. Press and hold the Power/Sleep
button to turn the unit off.
2. Press the Clock/Time Sync button.
The LED display will show the time.
3. Press the Clock/Time Sync button again.
4. Press the Tun+/- button to adjust the hour.
5. Press the Clock/Time Sync button.
6. Press the Tun+/- button to
adjust the minute.
7. Press the Clock/Time Sync button
to nish setting the time.
Clock and Sleep Timer
Setting the Clock
1. Press the Power button to turn the
unit on, and press the button again
to begin setting the sleep timer.
2. Press the Snooze/Sleep button
repeatedly to set the sleep timer ( 90,
80, 70, 60, 50, 40, 30, 20, 10, 5, or 00 ).
3. Once the set sleep time has expired
the unit will automatically power off.
Setting the Sleep Timer
1. Connect the iPod or iPhone to
the connector inside the Dock
for iPod and iPhone.
2. When the dock is plugged in,
using AC power, the docked
iPod or iPhone will charge.
iPod and iPhone
Docking an iPod or iPhone
1. Follow the instructions for
Docking an iPod or iPhone.
2. Press the Source button to
switch to iPod mode.
3. Press the Memory/Play/Pause button to
begin playing the docked iPod or iPhone.
Playing a Docked iPod or iPhone
1. Follow the instructions for
Docking an iPod or iPhone.
Note: Auto time sync will not work
with some older model iPods.
2. Upon initial use, the clock will
automatically sync to the time of
the docked iPod or iPhone.
3. After initial use, press and hold the Clock/
Time Sync button to sync the time
from the connected iPod or iPhone.
Auto Time Sync For the LED Clock
Loading...
