USER’S GUIDE

V:2114-0125-11

For the most up-to-date version of this User’s Guide, go to www.ilive.net

ICP131B

Clock Radio for iPod + iPhone

Page 2

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING:The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, re, or the like.

Warnings and Precautions

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Page 3

Customer Support: 1-888-999-4215 3

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The apparatus shall not be exposed to dripping or splashing and

that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements ou aux

éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Battery shall not be exposed to excessive heat such as sunshine, re

or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la

lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or back of the apparatus.

Attention marquage est situé à l’arrière ou à l’arrière de l’appareil

• The marking information is located at the rear or back of apparatus.

Les informations de marquage est situé à l’arrière ou à l’arrière de

l’appareil.

FCC Warnings

Additional Warnings

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Important Safety Instructions

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

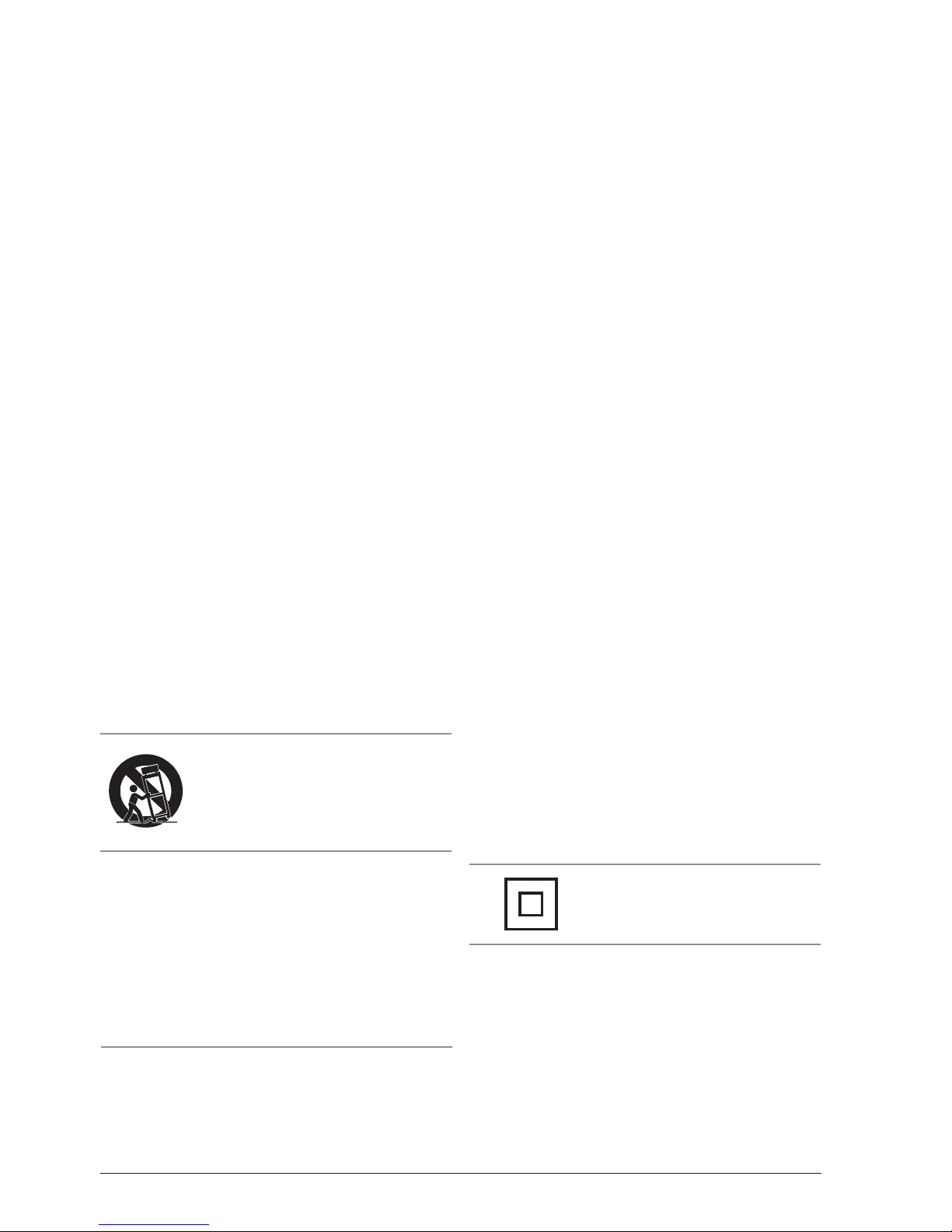

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

Page 4

• Made for iPod and iPhone

• Plays and charges docked iPod and iPhone

• iPod and iPhone authentication IC

• FM radio (PLL)

• Dual alarm

• Auto time sync with iPod and iPhone

• 0.9” red LED display

• 3.5mm audio input

• Composite video output

• Gradual wake to iPod and iPhone, radio and alarm

• Digital clock

• Sleep timer

• Snooze

• Dimmer control

• Digital volume control

• Station memory presets (20 FM)

• Last channel memory

• Built-in speakers

• Built-in FM wire antenna

• DC power input: requires an AC/DC power adapter (included)

• AC/DC power adapter

• Warranty card

• User’s guide

Clock Radio for iPod + iPhone

Features

Included

Page 5

Customer Support: 1-888-999-4215 5

Table of Contents

Clock Radio for iPod + iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features Included

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Power Battery Backup

iPod and iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Docking an iPod or iPhone Playing a Docked iPod or iPhone

Clock, Alarms, and Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Auto Time Sync for iPod and iPhone Setting the Alarms Manually Setting the Time Setting the Sleep Timer Activating or Deactivating an Alarm

Radio, Composite Video Output, and 3.5mm Audio Input . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Tuning the FM Radio Saving a Station as a Preset Tuning to Preset Stations

3.5mm Audio Input

Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

International Support Contact Information Green Initiative

Page 6

Introduction

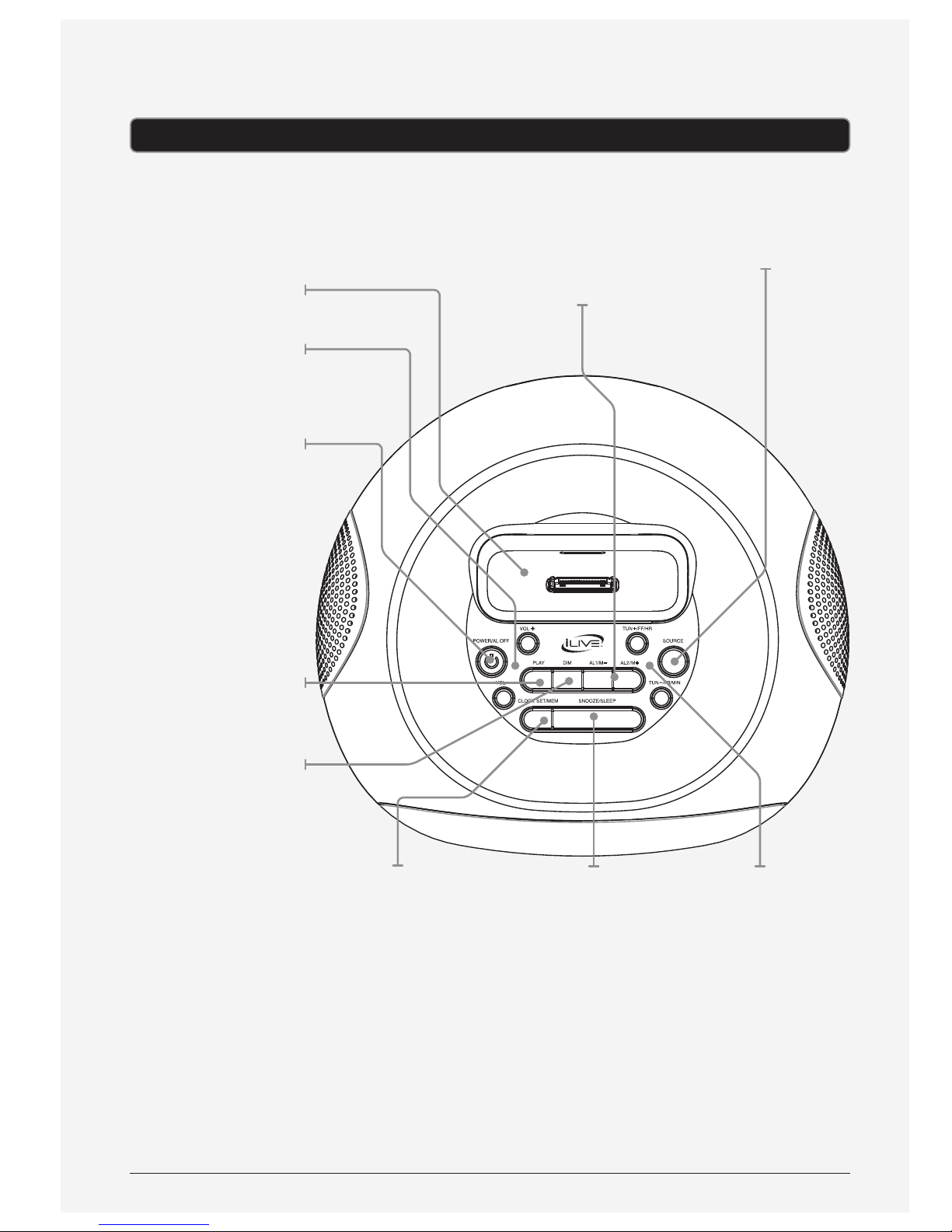

DOCK

VOLUME

Press to adjust the

volume.

POWER/AL OFF

Press to turn the

radio, iPod, or

auxiliary mode on or

o. After the alarm

sounds, press to turn

the alarm o until

the set alarm time is

reached again.

PLAY

Press to play or pause

music from a docked

iPod or iPhone.

DIM

Press repeatedly to

set the brightness of

the display.

TUN +/FF/HR

TUN -/FB/MIN

Press to tune the

radio, skip or search

between tracks on

a docked iPod or

iPhone, and set the

hour and minute on

the clock.

SNOOZE/SLEEP

After the alarm

sounds, press to

delay the alarm

for an additional

9 minutes. Press

repeatedly in iPod,

radio, or auxiliary

mode to set the sleep

timer.

CLOCK SET/MEM

With the power o,

press to set the clock.

In radio mode, press

to save the current station as a preset.

SOURCE

Press to cycle

through iPod, radio,

and auxiliary modes.

AL1/M-

AL2/M+

Press to set alarm 1

or alarm 2. Press to

select a preset radio

station.

Page 7

Customer Support: 1-888-999-4215 7

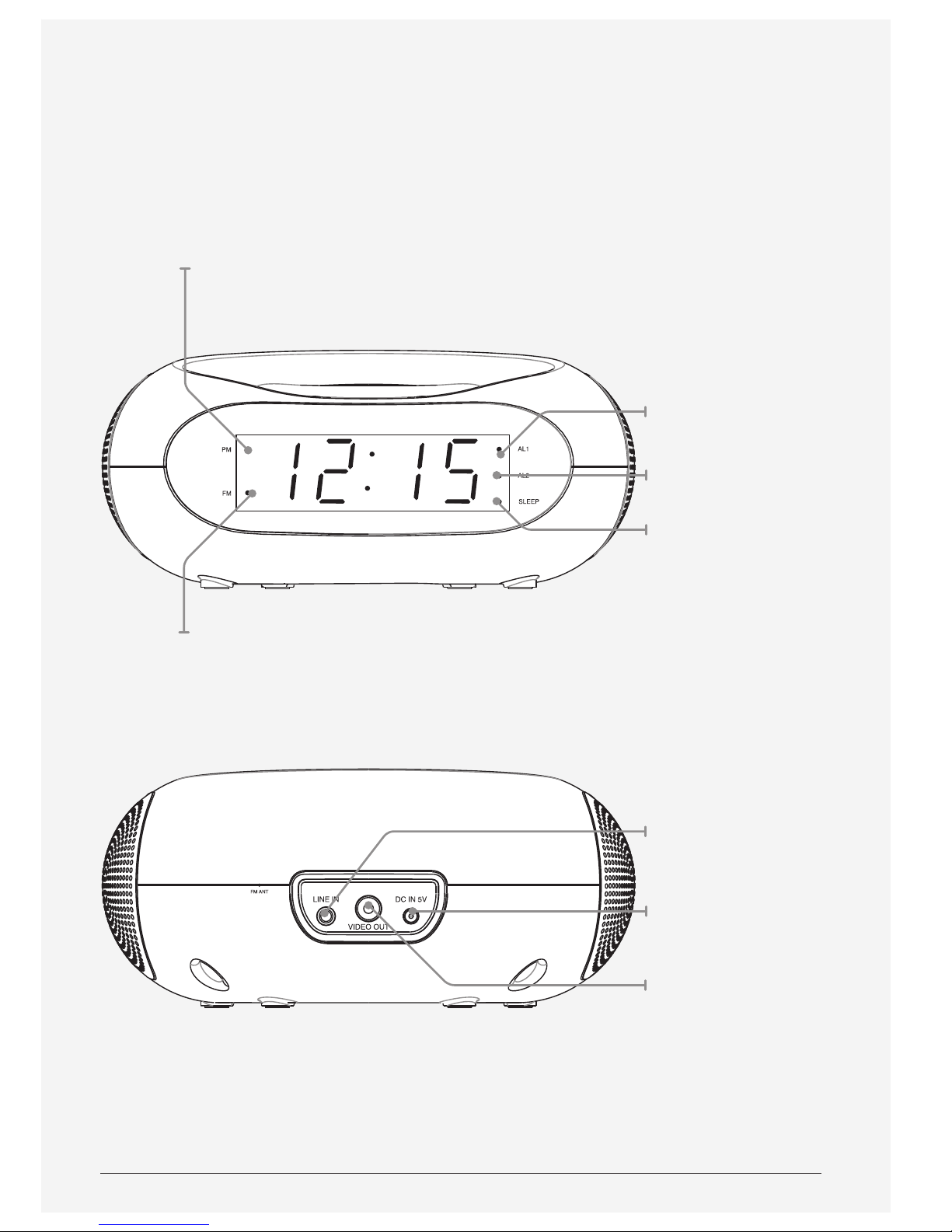

ALARM 1 INDICATOR

ALARM 2 INDICATOR

SLEEP INDICATOR

3.5mm AUDIO INPUT

DC POWER INPUT

COMPOSITE VIDEO OUTPUT

PM INDICATOR

FM RADIO

INDICATOR

Page 8

DC power input: requires an AC/DC power adapter (included)

Battery backup: requires 2 AA batteries (not included)

The battery backup is meant for short unexpected power outages. In the event of a power outage, the battery backup will retain the time, alarm settings.

The battery backup cannot power the primary functions of the clock ( eg. playing and charging a docked iPod or iPhone.)

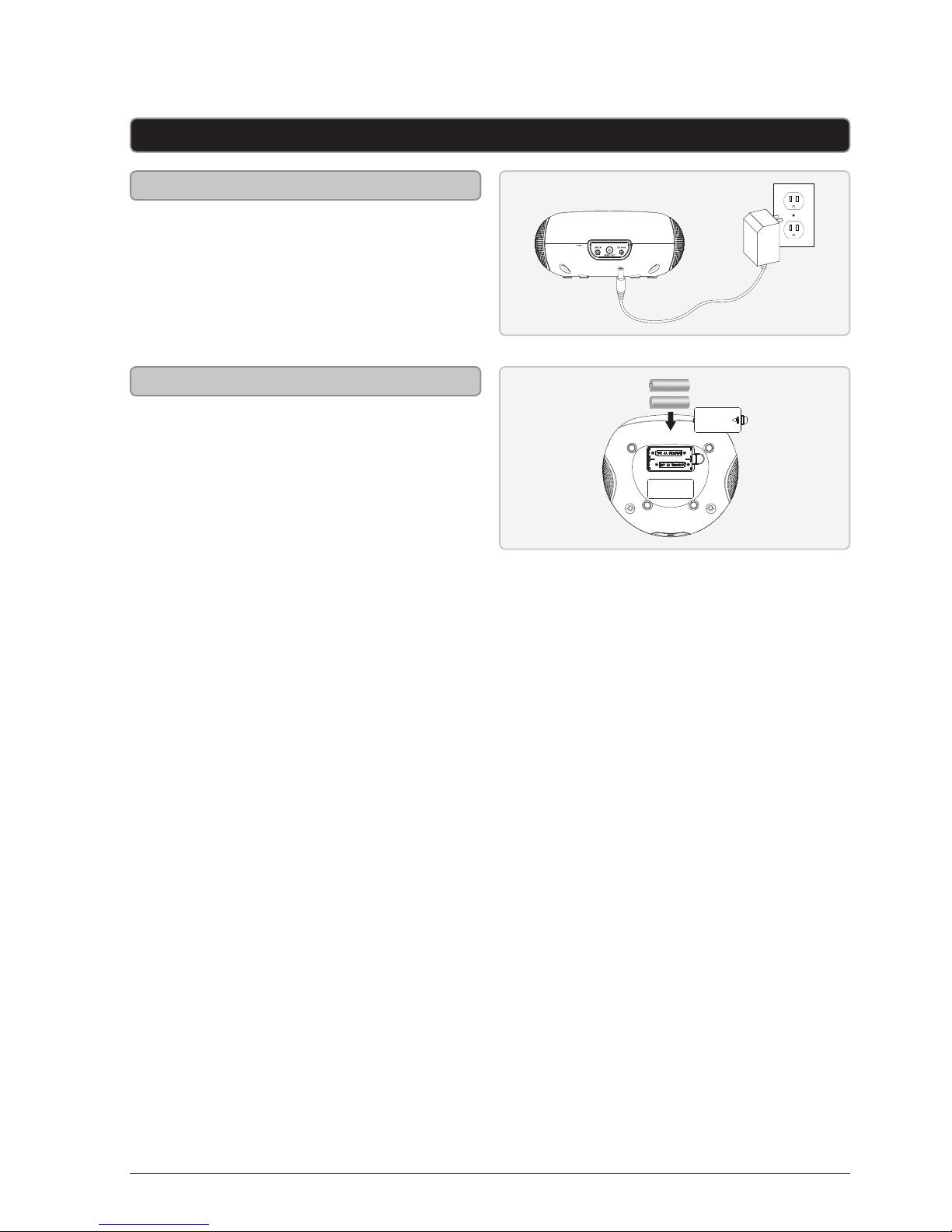

Power

Battery Backup

Setup

Page 9

Customer Support: 1-888-999-4215 9

iPod and iPhone

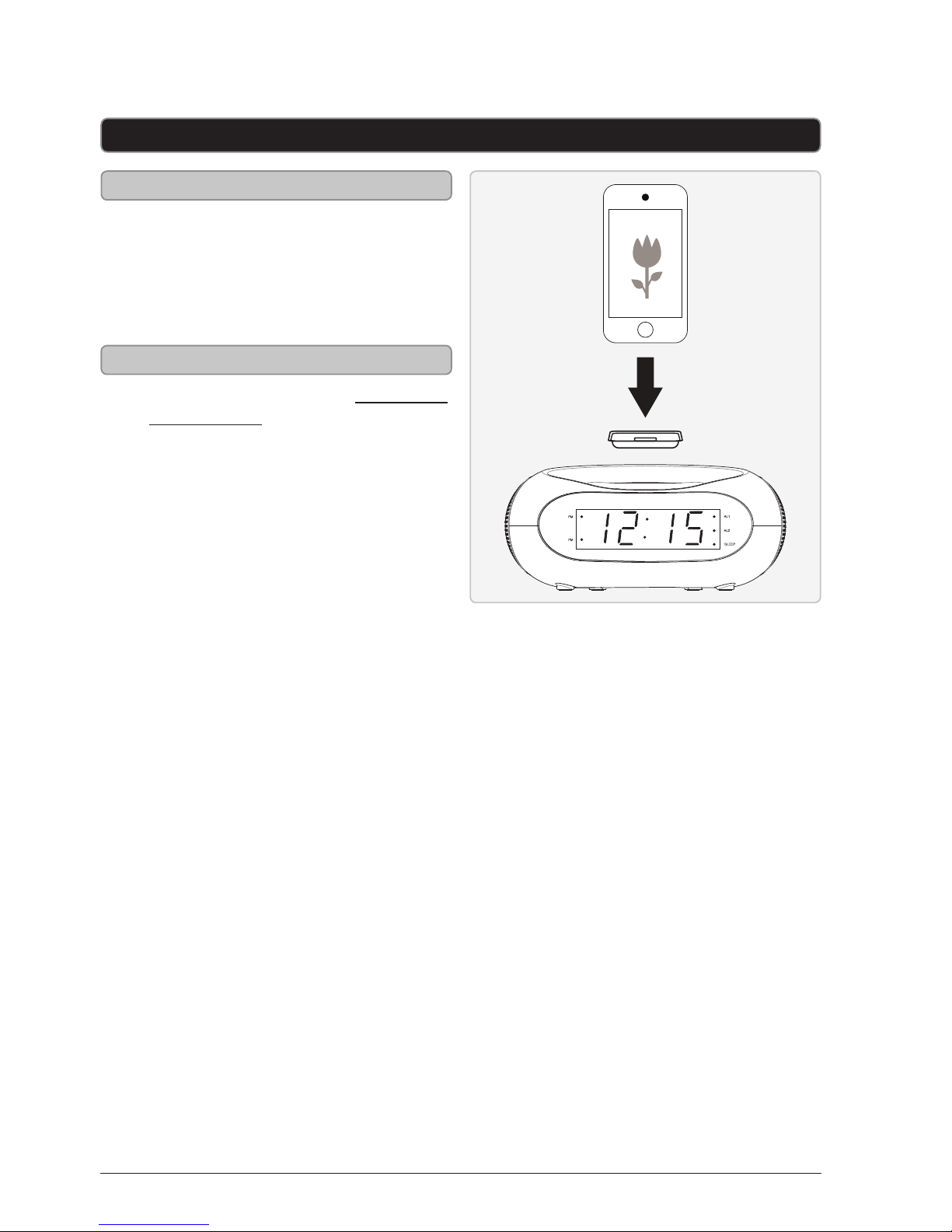

Docking an iPod or iPhone

1. Connect the iPod or iPhone to the connector inside the DOCK.

2. When the clock is plugged in, using AC power, the docked iPod or iPhone will charge.

Playing a Docked iPod or iPhone

1. Follow the instructions for Docking an iPod or iPhone.

2. Press the SOURCE button to switch to iPod mode.

3. Press the PLAY button to begin playing the docked iPod or iPhone.

Page 10

Clock, Alarms, and Sleep Timer

Manually Setting the Time

Setting the Alarms Activating or Deactivating an Alarm

1. Press the POWER/AL OFF button to turn the clock o.

2. Press CLOCK SET/MEM button.

3. Press the TUN +/FF/HR and TUN -/FB/ MIN to adjust the hour and minute.

4. Press the CLOCK SET/MEM button to nish setting the time.

1. Press the POWER/AL OFF button to turn the clock o.

2. Press and hold the AL1/M- or AL2/M+ button.

3. Press the TUN +/FF/HR and TUN -/FB/ MIN buttons to adjust the hour and minute.

4. Press the AL1/M- or AL2/M+ button.

5. Press the SOURCE button to select the alarm source. (IP=iPod, rd=Radio, bu=Buzzer)

6. Press the AL1/M- or AL2/M+ button.

7. Press the VOLUME buttons to adjust the alarm volume.

8. Press the AL1/M- or AL2/M+ button to nish setting the alarm.

The alarm will automatically be active after it is rst set.

When the alarm is set a red light will appear next to the Alarm 1 Indicator or the Alarm 2 Indicator.

1. Press the POWER/AL OFF button to turn the clock o.

2. Press the AL1/M- or AL2/M+ button.

3. With the alarm 1 or alarm 2 time showing on the display, press AL1/M- or AL2/M+ button again to activate or deactivate the alarm.

Auto Time Sync for iPod and iPhone

Setting the Sleep Timer

1. Follow the instructions for Docking an iPod or iPhone.

Auto time sync will not work with all iPods. Auto time sync will not work while Manually Setting the Time.

2. In less than 10 seconds, the clock will automatically set to the time of the docked iPod or iPhone.

To auto time sync again after the initial auto time sync, follow the instructions for Docking an iPod or iPhone, and press and hold the CLOCK SET button for 3 seconds.

1. In iPod, Radio, or Auxiliary mode, press the SNOOZE/SLEEP button repeatedly to set the sleep timer.

When set to “OFF” the sleep timer is turned o.

Page 11

Customer Support: 1-888-999-4215 11

Radio, Composite Video Output, and 3.5mm Audio Input

3.5mm Audio Input

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the 3.5mm AUDIO INPUT on the clock and an audio output on an MP3 player or other audio source.

2. Press the SOURCE button to switch to auxiliary mode.

3. Use the native controls on the connected MP3 player or other audio source to play and control audio played through the clock.

Using the Composite Video Output

Requires an RCA video cable (not included)

1. Connect an RCA video cable to the COMPOSITE VIDEO OUTPUT on the clock and a video input on a television.

2. Adjust the television to the input mode that matches the connection used in step 1.

3. Video played through a docked iPod or iPhone will now play through the connected television.

Tuning the FM Radio

Saving a Station as a Preset

Tuning to Preset Stations

1. Press the POWER/AL OFF button to turn the clock on.

2. Press the SOURCE button to switch to radio mode.

3. Press the TUN +/FF/HR and TUN -/FB/ MIN buttons to tune the radio.

1. Follow the instructions for Tuning the FM Radio.

2. Press the CLOCK SET/MEM button to begin saving the current station.

3. Press the AL1/M- or AL2/M+ button to select a preset channel to save the current station to.

4. Press the CLOCK SET/MEM button to save the current FM station to the selected preset channel.

1. Follow the instructions for Saving a Station as a Preset.

2. Press the AL1/M- or AL2/M+ button to cycle through saved preset stations.

Page 12

Environmental Commitment to ‘Protect for Today and Sustain for Tomorrow’

2009 marked the ocial launch of DPI, Inc.’s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain signicant and important conservation eorts within its manufacturing and marketing communities. In addition to targeting and selecting energy ecient product features, and structuring ‘green oce’ procedures, other initial program eorts include:

• Reduction of all packaging sizes

• Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper

• Recycled ber board in place of the polyfoam in packing boxes

• Recycled plastics in place of the virgin material in product construction

To download this User’s Guide in English, Spanish, or French, visit the support section at www.ilive.net.

Para transferir esta guía de usuario en inglés, español, o francés, visite la sección de la ayuda en www.ilive.net.

Pour télécharger ce guide de l’utilisateur en anglais, espagnol, ou français, visitez la section de soutien chez www.ilive.net.

Phone: 1-888-999-4215 Email: [email protected] Parts Email: [email protected] Website: www.ilive.net

Green InitiativeInternational Support

Contact Information
