USER’S GUIDE

V: 497-01

For the most up-to-date version of this User’s Guide, go to

www.iLiveElectronics.com

IBPD882B

Portable Music and Movie System

Page 2

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.

• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING:The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, re, or the like.

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Warnings and Precautions

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Page 3

Customer Support: 1-888-999-4215 3

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• The apparatus shall not be exposed to dripping or

splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements

ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Battery shall not be exposed to excessive heat

such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau

arrière ou inférieur de l’unité.

• The marking information is located at the

rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

FCC Warnings

Additional Warnings

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12.

Important Safety Instructions

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

Page 4

• 7” TFT LCD display

• Made for iPod and iPhone

• Plays and charges docked iPod and iPhone

• DVD player: DVD, DVD±R/RW

• CD player: CD, CD-R/RW, MP3 CD, JPEG CD

• SD/MMC/MS memory card reader: supports JPEG, MP3

• FM Radio (PLL)

• Station memory presets (20 FM)

• 480 x 234 native resolution

• Aspect ratio: 16:9, 4:3LB, 4.3PS

• Soft-eject drawer for iPod and iPhone

• Full-function remote

• Digital volume control

• Component video output for iPod/iPhone

• Composite video output for DVDs

• RCA stereo audio inputs

• 3.5mm audio input

• Power/Standby indicator

• DC battery power: requires 8 C batteries (not included)

• Battery life: ~3.5 hours

• AC power input: requires an AC power cable (included)

• Remote control: requires 2 AAA batteries (included)

• Component video cable

• 3.5mm to RCA audio cable

• AC power cable

• Dock adapters for iPod and iPhone

IBPD882B

Features

Included

AC power input: requires an AC power cable (included)

Requires 2 AAA batteries (included)

Power

Remote

Setup

Page 5

Customer Support: 1-888-999-4215 5

Table of Contents

IBPD882B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Features Included

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Power Remote

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

iPod and iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Docking an iPod or iPhone Playing a Docked iPod or iPhone

CD & DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Loading a CD Playing a CD Programming a CD Loading a DVD Playing a Loaded DVD Programming a DVD

FM Radio, Line In, & Memory Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Playing the Radio Radio Reception Saving a Radio Station as a Preset Tuning to a Saved Preset Station Using the Audio Input Connecting a Memory Card Accessing Content on a Memory Card

Audio Input & Video Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the RCA Audio Input Using the Component Video Output Using the Composite Video Output

Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

International Support Contact Information Compatibility Warranty Green Initiative

Page 6

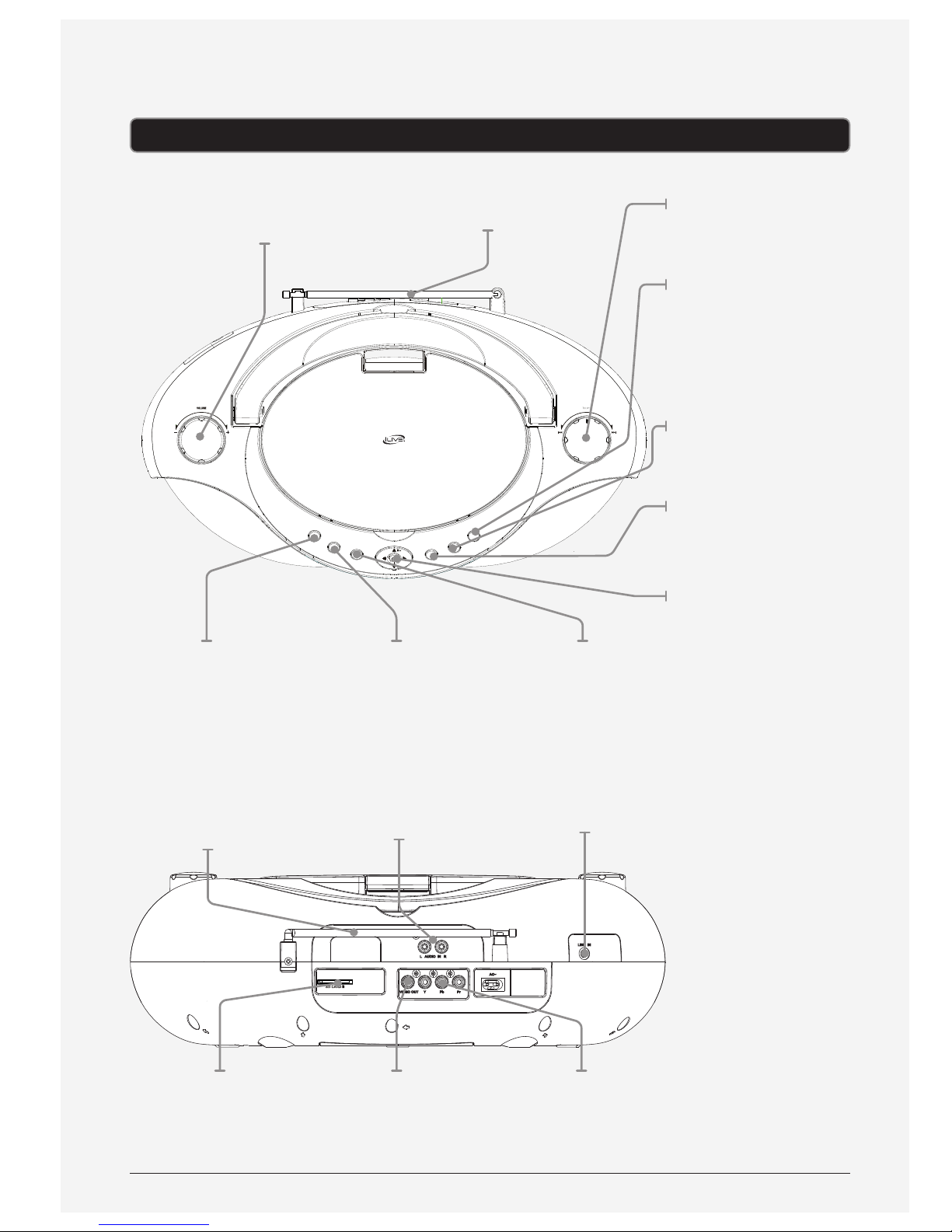

Introduction

SOURCE

POWER

SETUP

PLAY/PAUSE

STOP/DVD/SD

MEM

Telescopic FM AntennaVolume

Turn to adjust the volume.

Tuning

Adjust to tune the radio.

Power

Press to turn the unit on or o.

Source

Press to switch between CD/DVD, FM Radio, Aux In, Line In and iPod/ iPhone mode.

Setup

Press to access the DVD setup menu.

Arrows/Ok/M-/+

Press to make selections in disc or system menus. In FM Radio mode, press the up and down arrow keys to cycle through preset radio stations.

Play/Pause

Press to play or

pause a loaded disc.

Stop/DVD/SD

In DVD mode,

press and hold to

enter Disc/Card

selection mode.

Telescopic FM

Antenna

Component

Video Output for

iPod/iPhone

RCA Audio Input

Composite

Video Output

for DVD

Line In

Mem

In FM Radio mode,

press to begin setting

a station as a preset.

Memory Card Slot

Page 7

Customer Support: 1-888-999-4215 7

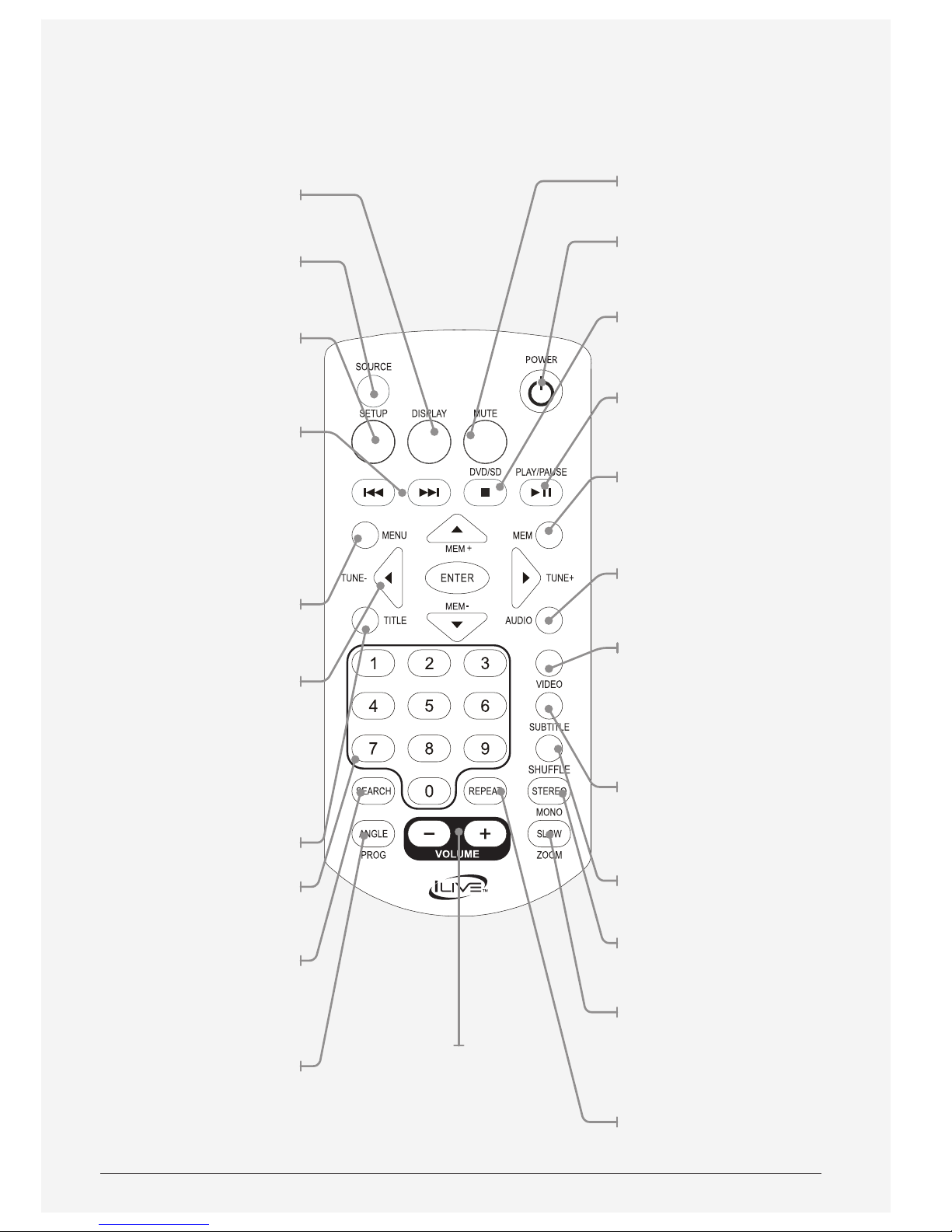

Display

Press to view the on-

screen display.

Source

Press to switch between CD/

DVD, FM Radio, Aux In, Line

In and iPod/iPhone mode.

Setup

Press to access the

DVD setup menu.

Rew/Fwd

Press to skip between chapters

or tracks on a loaded disc.

Press and hold to search

through the current chapter

or track on the loaded disc.

Press to skip between tracks

on a docked iPhone or iPod.

Press and hold to search

the current track on a

docked iPhone or iPod.

Press to access the DVD menu.

Arrows/Enter/

Mem+/-/Tune+/-

Use to navigate the disc

and system menus.

In FM Radio mode, press

the up and down arrow

keys to cycle through

preset radio stations.

Press the left and right

keys to tune the radio.

Title

Press to view the title menu

on the loaded DVD.

Number Keypad

During play, press and

enter in a specic title,

chapter, track, and or time

to go to on a loaded disc.

Program/Angle

Press to program a loaded disc

to play chapters and titles or

tracks in a specified order.

Press and hold to access different viewing angles

on supported DVDs.

Mute

Press to mute the volume.

Power

Press to turn the unit on or o.

Stop/DVD/SD

Press to stop a loaded disc. In DVD mode, press and hold to enter Disc/ Card selection mode.

Play/Pause

Press to play or pause a loaded disc or iPod/iPhone.

Mem

In FM Radio mode, press to begin setting a station as a preset.

Audio

Press repeatedly to cycle through available audio options for the playing DVD.

Video

Press to play video from a docked iPod/iPhone to the local display or a display connected with the component video output.

For iPod/iPhone only.

Subtitle

Press repeatedly to cycle through available subtitle options for the playing DVD.

Shue

Press to shue through tracks on a docked iPod/iPhone.

Stereo/Mono

Press to switch between stereo and mono in FM mode.

Slow/ Zoom

Press and hold to view the loaded DVD in slow motion. Press repeatedly to zoom in or out on a loaded DVD.

Repeat

Press repeatedly to cycle through repeat options for the loaded disc.

Volume

Press to adjust the volume.

Page 8

iPod and iPhone

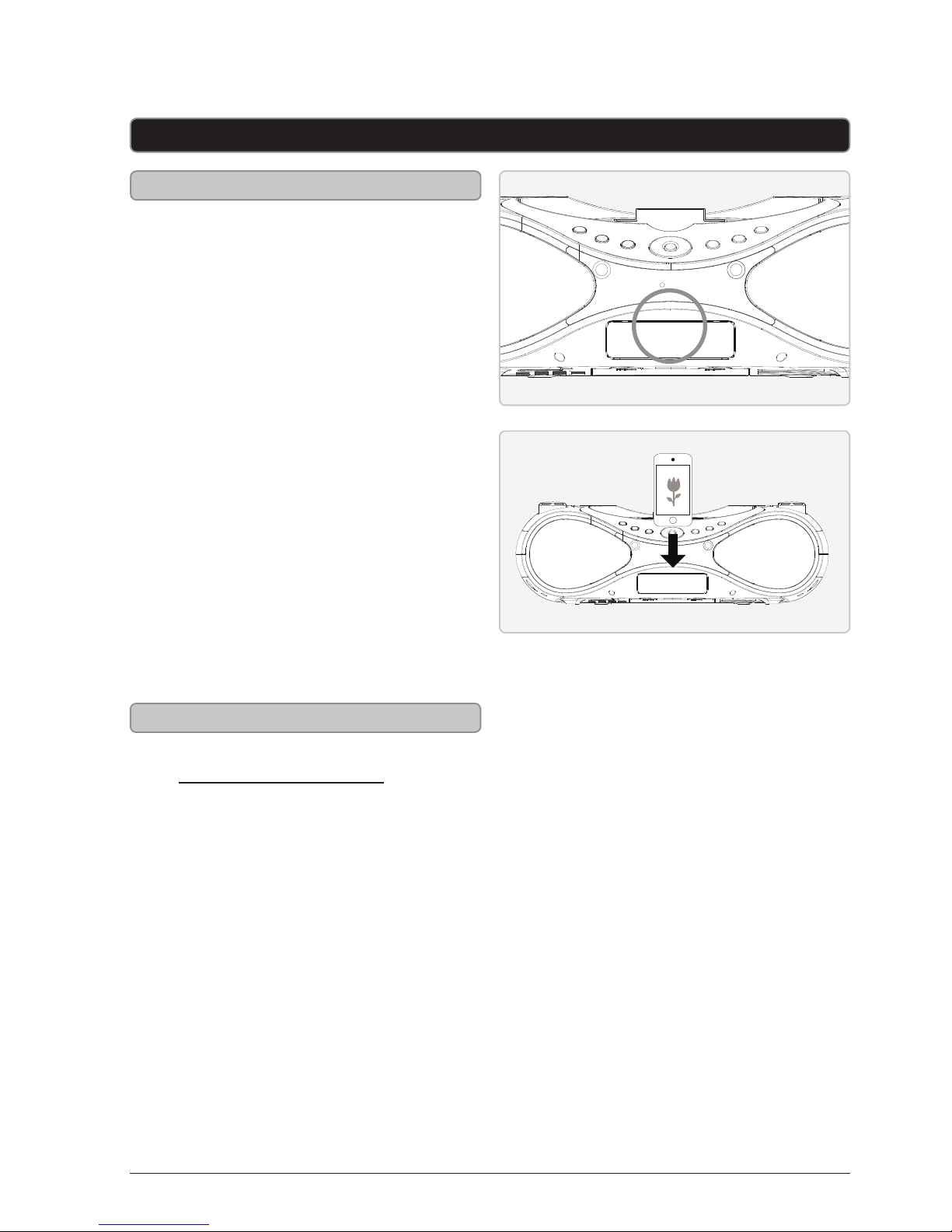

Docking an iPod or iPhone

1. Gently press on the dock it open it.

2. Locate the numbered adapter that ts the iPod or iPhone that will be docked.

Each included adapter has a number on it, indicating which iPod or iPhone model that adapter is compatible with.

To get information on which iPod, iPhone, or iPad products are compatible with this product, go to www.iLiveElectronics.com.

3. Snap the adapter into place over the iPod and iPhone connector in the dock.

4. Connect the iPod or iPhone to the connector inside the Dock for iPod and iPhone.

5. When the dock is plugged in, using AC power, the docked iPod or iPhone will charge.

Playing a Docked iPod or iPhone

1. Follow the instructions for Docking an iPod or iPhone.

2. Press the Source button to switch to iPod mode.

3. Press the Play/Pause button to begin playing the docked iPod or iPhone.

POWER

PUSH OPEN

POWER

PUSH OPEN

Page 9

Customer Support: 1-888-999-4215 9

CD & DVD

Loading a CD

1. Open the Disc Door.

2. Place a CD into the unit, label side facing up.

3. Close the Disc Door.

Playing a CD

1. Follow the instructions for Loading a CD.

2. Press the Source button to switch to CD mode.

3. Press the Play/Pause button to begin playing the loaded CD.

Programming a CD

1. Follow the instructions for Loading a CD and Playing a CD.

2. Press the Stop button to stop the CD during play.

3. Press the Program button on the remote.

4. Use the Number Keypad and Arrow buttons to enter the desired track number.

5. Repeat step 3 until the desired number of CD tracks are programmed.

6. Highlight the on-screen “Play” button and press the Enter button on the remote to begin playing the programmed tracks.

Loading a DVD

1. Gently lift open the Disc Door.

2. Load a disc into the DVD player, label side facing up.

3. Manually close the Disc Door.

4. Press the Source button to switch to DVD mode.

Playing a Loaded DVD

Programming a DVD

1. Follow the instructions for Loading a DVD.

2. If the disc does not begin playing automatically, press the Play/Pause button.

1. Follow the instructions for Loading a DVD and Playing a Loaded DVD.

2. While the loaded disc is playing, press the Program button on the remote.

3. Use the Number Keypad and Arrow/Enter buttons to enter in the titles and chapters in the order you want to view them.

DVD Titles will play in the order they are programmed.

4. Repeat step 3 until the desired DVD titles and chapters are programmed.

5. Highlight the on-screen “Play” button and press the Enter button on the remote to begin playing the programmed titles and chapters.

Page 10

FM Radio, Line In, & Memory Card Slot

Using the Audio Input

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the 3.5mm Audio Input and the audio output on an MP3 player or other audio device.

2. Press the Source button to switch to Line In mode.

3. Use the native controls on the connected MP3 player or other audio source to play your audio through the unit.

Playing the Radio

1. Press the Source button to switch to FM Radio mode.

2. Adjust the Tuning dial to tune the radio.

Radio Reception

Adjust the position of the Telescopic FM Antenna to improve FM radio reception.

1. Follow the instructions for Playing the Radio.

2. Press the Mem button on the remote or the unit.

3. Press the Mem+/- buttons on the remote to select a preset number.

Up to 20 stations may be preset.

4. Press the Mem button to save the current station to the selected preset.

Saving a Radio Station as a Preset

1. In FM Radio mode, press the Mem+/- buttons to cycle through saved presets.

Tuning to a Saved Preset Station

Connecting a Memory Card

Accessing Content on a Memory Card

1. Insert a SD, MMC, or MS memory card into the Memory Card Slot.

1. Follow the instructions for Connecting a Memory Card.

2. In DVD mode, press and hold the DVD/SD button to enter Disc/Card selection mode.

3. Press the Enter button to select Card mode.

4. Use the Arrows and Enter buttons to select and play content from the connected SD, MMC, or MS memory card.

Page 11

Customer Support: 1-888-999-4215 11

Audio Input & Video Outputs

Requires a component video cable (included).

1. Connect a component video cable (included) to the Component Video Output and a television.

2. Adjust the connected television to the correct input setting.

3. Press the Source button on the remote to switch to iPod/iPhone Mode.

4. Video played through the docked iPhone or iPod will now play on the connected television.

Press the Video button on remote to play video from a docked iPod/ iPhone to the local TFT display or an external display connected by the component out ( For iPod/iPhone only).

1. Connect an RCA AV cable (not

included) to the Composite Video Output and a television.

2. Adjust the connected television

to the proper input setting.

3. Video from a loaded disc can

now be played through the unit to the connected television.

1. Connect an RCA cable (included) to the RCA Audio Input on the unit and an audio source.

2. Press the Power button to turn the unit on.

3. Press the Source button to switch to AUX mode.

4. Use the native controls on the connected audio device to begin playing music through the unit.

Using the RCA Audio Input Using the Component Video Output

Using the Composite Video Output

Page 12

Green Initiative
