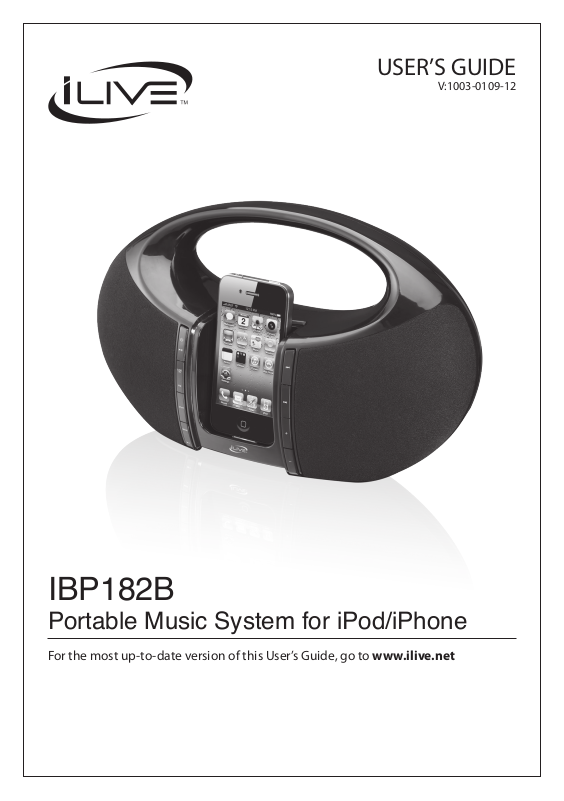

iLive IBP182B User Manual

USER’S GUIDE
V:1003-0109-12
IBP182B
Portable Music System for iPod/iPhone
For the most up-to-date version of this User’s Guide, go to www.ilive.net
Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specied may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.
La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.
Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
2
Important Safety Instructions
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12.
Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
FCC Warnings
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Additional Warnings
• The apparatus shall not be exposed to dripping or
splashing and that no objects lled with liquids, such as vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements
ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.
• Battery shall not be exposed to excessive heat
such as sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à
la lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the rear or bottom of the apparatus.
Attention marquage est situé sur le paneau
arrière ou inférieur de l’unité.
• The marking information is located at the
rear or bottom of apparatus.
Le marquage est situé sur le paneau arrière ou inférieur de l’unité.
This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.
Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.
Customer Support: 1-888-999-4215 3
Introduction
Line In/FM
Press to switch to
Line In or FM Mode.
Power Indicator
Power/Play/Pause
Press to turn
the unit on.
Press and hold to
turn the unit o.
Press to play or
pause a docked
iPod or iPhone.
Tuning +/-
Press to tune the FM
radio in FM Mode.
iPod
Press to switch to
iPod/iPhone Mode.
4
Mem/M+
Press and hold to
save the current
radio station
as a preset. Press repeatedly to cycle through
preset stations.
Volume +/-
Press to adjust
the volume.
FM Antenna
Line In
Customer Support: 1-888-999-4215 5
Setup
Power
DC power input: requires an AC/ DC power adapter (included)
Battery Power
Requires 4 C batteries (not included)
iPod and iPhone
Docking an iPod or iPhone
1. Connect the iPod or iPhone to the connector on the unit.
2. When the unit is plugged in, using AC power, the docked iPod or iPhone will charge.
6
Playing a Docked iPod or iPhone
1. Press the Power button to turn the unit on.
2. Press the iPod button to switch to iPod mode.
3. Follow the instructions for Docking an iPod or iPhone.
4. Press the Play/Pause button to begin playing the docked iPod or iPhone.
Radio and 3.5mm Audio Input
Tuning the FM Radio
1. Press the Line In/FM button to switch to FM mode.
2. Press the Tuning +/- buttons to tune the FM radio. Press and hold the Tuning +/-buttons to search for the next available station.
Adjust the FM Antenna to improve FM radio reception.
Saving an FM Station as a Preset
1. Follow the instructions for Tuning the FM Radio.
2. After you have tuned to the desired station, press and hold the Mem/ M+ button to begin saving the current station as a preset.
3. Press the Tuning +/- buttons to adjust the preset channel.
4. Press and hold the Mem/M+ button to save the current radio station to the selected preset channel.
Up to 20 stations may be saved as presets.
Using the 3.5mm Audio Input
Requires a 3.5mm audio cable (not included)
1. Connect a 3.5mm audio cable to the Line In on the unit and an audio output on an MP3 player or other audio source.
2. Press the Line In/FM button to switch to Line In mode.
3. Use the native controls on the connected MP3 player or other audio source to play and control audio played through the clock radio.
Using Preset Stations
1. Follow the instructions for Saving an FM Station as a Preset.
2. Press the Mem/M+ button repeatedly to cycle through saved radio stations.
Customer Support: 1-888-999-4215 7
Company Information
International Support
To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at www.iliveelectronics.com.
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en www.iliveelectronics.com.
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur www.iliveelectronics.com.
Contact Information
Phone: 1-888-999-4215 Email: customerservice@ilive.net Parts Email: partsinfo@dpi-global.com Website: www.iliveelectronics.com
Compatibility
To get information on which iPod, iPhone, or iPad products are compatible with this product, go to www.iliveelectronics.com.
Warranty
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iliveelectronics.com.
Green Initiative
Environmental Commitment to ‘Protect for Today and Sustain for Tomorrow’ On a continual basis DPI, Inc. is making eorts to sustain the environment and improve the recyclability of its products and packaging.
Focusing on “protecting for today and sustaining for tomorrow” DPI, Inc. has committed to reducing packaging size, increasing the usage of recyclable plastics, and ensuring that packaging and manuals are made with up to 85% recycled material. In addition to material consideration, DPI, Inc. has also focused on the ner details that positively impact the environment such as employing the usage of soy-based inks.
DPI, Inc. also ensures that the factories that produce the company’s wide variety of consumer electronics adhere to environmentally friendly air and water restrictions. This is yet another example that every step of the way DPI, Inc. is making eorts to lessen any impact on the environment.
In 2011 DPI, Inc. also began conversations with Energy Star in order to ensure that the consumer electronics being produced meet high standards of energy eciency. The ultimate goal is keeping energy costs for consumers low while providing quality, feature-rich products.
8
