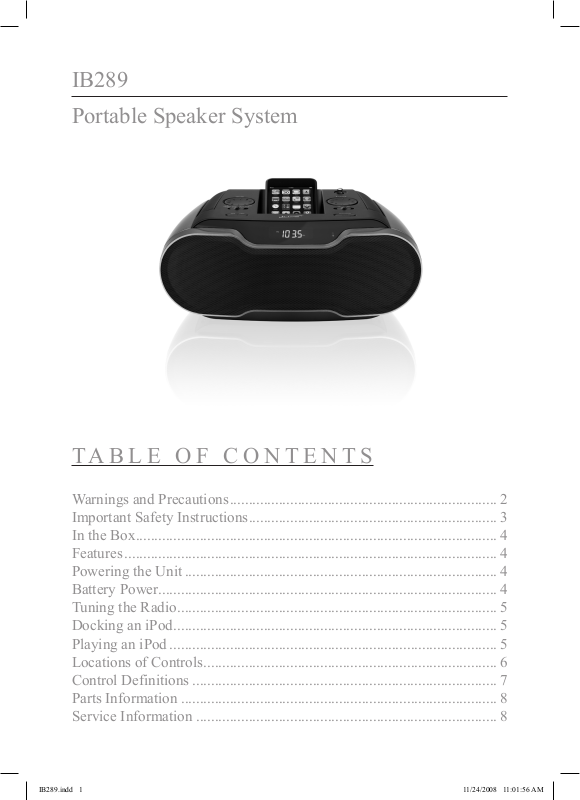

iLive IB289 Instruction Manual
IB289
Portable Speaker System
T A B L E O F C O N T E N T S
Warnings and Precautions ....................................................................... 2
Important Safety Instructions ..................................................................3
In the Box ................................................................................................4
Features ................................................................................................... 4
Powering the Unit ................................................................................... 4
Battery Power .......................................................................................... 4
Tuning the Radio ..................................................................................... 5
Docking an iPod ...................................................................................... 5
Playing an iPod ....................................................................................... 5
Locations of Controls .............................................................................. 6
Control Definitions ................................................................................. 7
Parts Information .................................................................................... 8
Service Information ................................................................................ 8
IB289.indd 1 11/24/2008 11:01:56 AM
2
Warnings and Precautions
WARNING: To prevent re or shock hazards, do not expose this unit to rain or moisture.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This symbol, located on back or
bottom of the unit, is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufcient magnitude to constitute a
risk of electric shock to persons.
This symbol, located on back or
bottom of the unit, is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
To reduce the risk of electric shock, do not remove cover (or back). There are no user-serviceable parts
inside. Please refer any servicing to qualied service personnel.
IB289.indd 2 11/24/2008 11:01:56 AM
3
Important Safety Instructions
1. Read Instructions - All the safety and operating
instruction should be read before the product is
operated.
2. Retain Instructions - The safety and operating
instruction should be retained for future
reference.
3. Heed Warnings - All warning on the product
and in the operating instructions should be
adhered to.
4. Follow instructions - All operating and use
instructions should be followed.
5. Cleaning - Unplug this product from the wall
outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Clean only with a dry cloth.
6. Attachments - Do not use attachments not
recommended by the product manufacturer as
they may cause hazards.
7. Water and Moisture - Do not use this product
near water - for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub; in a wet
basement, or near a swimming pool, and the like.
The apparatus shall not be exposed to dripping or
splashing and that no objects lled with liquids,
such as vases, shall be placed on apparatus.
L’ appareil ne doit pas être exposê aux
écoulements ou aux éclaboussures et aucun objet
ne contenant de liquide, tel qu’un vase, ne doit
être placé sur l’objet.
8. Accessories - Do not place this product on an
unstable cart, stand tripod, bracket, or table. The
product may fall, causing serious injury to a
child or adult, and serious damage to the product.
Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold
with the product. Any mounting of the product
should follow the manufacturer’s instructions,
and should use a mounting accessory
recommended by the manufacturer.
9. Use only with the cart, stand, tripod, bracket, or
table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
See gure:
10. Ventilation - Slots and openings in the cabinet
are provided for ventilation and to ensure reliable
operation of the product and to protect it from
overheating, and these openings must not be
blocked or covered. The openings should never
be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should
not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instruction have
been adhered to.
11. Power Sources - This product should be
operated only from the type of power source
indicated on the marking label. If you are not
sure of the type of power supply to your home,
consult your product dealer or local power
company. For products intended to operate from
battery power, or other sources, refer to the
operating instruction.
12. Grounding or Polarization - This product may
be equipped with a polarized alternating-current
line plug (a plug having one blade wider than
the other). This plug will t into the power outlet
only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail
to t, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose
of the polarizes plug.
Alternate Warnings - This product is equipped
with a three-wire grounding-type plug, a plug
having a third (grounding) pin. This plug will
only t into a grounding-type power outlet. This
is a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
13. Power-Cord Protection - Power supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them, paying particular attention to cords
at plugs, convenience receptacles, and point
where they exit from the product.
14. Protective Attachment Plug - The product
is equipped with an attachment plug having
overload protection. This is a safety feature. See
Instruction Manual for replacement or resetting
of protective device. If replacement of the plug is
required, be sure the service technician has used
a replacement plug specied by the manufacturer
that has the same overload protection as the
original plug.
15. Outdoor Antenna Grounding - If an outside
antenna is connected to the receiver, be sure the
antenna system is grounded so as to provide
some protection against voltage surges and built-
up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of
the mast and supporting structure, grounding of
the mast and supporting structure, grounding
of the lead-in wire to an antenna-discharge
unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode.
See gure:
16. Lightning - For added protection for this
product during a lightning storm, or when it
is left unattended and unused for long periods
of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will
prevent damage to the product due to lightning
and power-line surges.
17. Power Lines - An outside antenna system should
not be located in the vicinity of overhead power
lines or other electric light or power circuits, or
where it can fall into such power lines or circuits.
When installing an outside antenna system,
extreme care should be taken to keep from
touching such power lines or circuits as contact
with them might be fatal.
18. Overloading - Do not overload wall outlets,
extension cords, or integral convenience
receptacles as this can result in a risk of re or
electric shock.
19. Object and Liquid Entry - Never push objects
of any kind into this product through openings
as they may touch dangerous voltage points
or short-out parts that could result in a re or
electric shock. Never spill liquid of any kind on
the product.
20. Servicing - Do not attempt to service this
product yourself as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualied service
personnel.
21. Damage Requiring Service - Unplug this
product from the wall outlet and refer servicing
to qualied service personnel under the
following conditions:
a) When the power-supply cord or plug is
damaged,
b) If liquid has been spilled, or objects have
fallen into the product,
c) If the product has been exposed to rain, water
or moisture.
d) If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualied technician
to restore the product to its normal operation.
e) If the product has been dropped or damaged
in any way, and
f) When the product exhibits a distinct change in
performance - this indicates a need for service.
22. Replacement Parts - When replacement parts
are required, be sure the service technician
has used replacement parts specied by the
manufacturer or have the same characteristics as
the original part. Unauthorized substitutions may
result in re, electric shock, or other hazards.
23. Safety Check - Upon completion of any
service or repairs to this product, ask the service
technician to perform safety checks to determine
that the product is in proper operating condition.
24. Wall or Ceiling Mounting - The product
should be mounted to a wall or ceiling only as
recommended by the manufacturer.
25. Heat - The product should be situated away from
heat sources such as radiators, heat registers,
stoves, or other products (including ampliers)
that produce heat. Battery shall not be exposed
to excessive heat such as sunshine, re, or the
like.
Les piles ne doivent pas être exposées à de forte
chaleur, tel qu’à la lumière du soleil, au feu ou
autres choses de semblable.
26. Main plug is used as disconnect device and it
should remain readily operable during intended
use. In order to disconnect the apparatus from
the mains completely, the mains plug should
be disconnected from the mains socket outlet
completely.
La prise du secteur ne doit pas être obstruée
ou doit être facilement accessible pendant son
utilisation. Pour être complètement déconnecté
de l’alimentation d’entrée, la prise doit être
débranchée du secteur.
27. Excessive sound pressure from earphones and
headphones can cause hearing loss.
Des pressions acoustiques excessives provenant
d’écouteurs ou de casques peuvent provoquer
des pertes de l’audition.
28. To prevent re or shock hazard, do not use this
plug with an extension cord, receptacle or other
outlet unless the blades can be fully inserted to
prevent blade exposure.
29. Symbol is used to indicate that a
specic component shall be replaced
only by the component specied in
that documentation for safety reasons.
30. This symbol indicates that this
product incorporates double
insulation.
31. Rating label and “CAUTION MARKING” are
located at bottom of enclosure.
IB289.indd 3 11/24/2008 11:01:57 AM
Loading...
