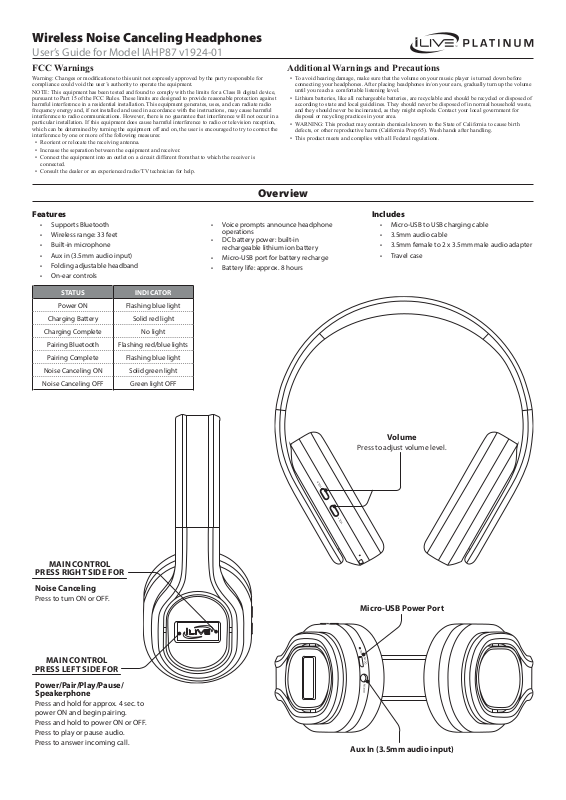

iLive IAHP87 User Manual
Wireless Noise Canceling Headphones
User’s Guide for Model IAHP87 v1924-01
FCC Warnings
Warning: Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Overview
Additional Warnings and Precautions
• To avoid hearing damage, make sure that the volume on your music player is turned down before
connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume
until you reach a comfortable listening level.
• Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of
according to state and local guidelines. They should never be disposed of in normal household waste,
and they should never be incinerated, as they might explode. Contact your local government for
disposal or recycling practices in your area.
• WARNING: This product may contain chemicals known to the State of California to cause birth
defects, or other reproductive harm (California Prop 65). Wash hands after handling.
• This product meets and complies with all Federal regulations.
Features
• Supports Bluetooth
• Wireless range: 33 feet
• Built-in microphone
• Aux in (3.5mm audio input)
• Folding adjustable headband
• On-ear controls
STATUS INDICATOR
Power ON Flashing blue light
Charging Battery Solid red light
Charging Complete No light
Pairing Bluetooth Flashing red/blue lights
Pairing Complete Flashing blue light
Noise Canceling ON Solid green light
Noise Canceling OFF Green light OFF
• Voice prompts announce headphone
operations
• DC battery power: built-in
rechargeable lithium ion battery
• Micro-USB port for battery recharge
• Battery life: approx. 8 hours
Includes
• Micro-USB to USB charging cable
• 3.5mm audio cable
• 3.5mm female to 2 x 3.5mm male audio adapter
• Travel case
Volume
Press to adjust volume level.
MAIN CONTROL
PRESS RIGHT SIDE FOR
Noise Canceling
Press to turn ON or OFF.
MAIN CONTROL
PRESS LEFT SIDE FOR
Power/Pair/Play/Pause/
Speakerphone
Press and hold for approx. 4 sec. to
power ON and begin pairing.
Press and hold to power ON or OFF.
Press to play or pause audio.
Press to answer incoming call.
Micro-USB Power Port
Aux In (3.5mm audio input)
Charging the Battery
Bluetooth Wireless Audio
Requires a Micro-USB to USB cable (included). The low battery indicator will ash
for 1 minute, then the unit will automatically power OFF.
1. Using a Micro-USB to USB cable (included), connect the headphones to the
USB port of a powered on computer or USB power adaptor (not included).
Noise Canceling
The Noise Canceling feature will electronically mute background noise. It can be
used with the Bluetooth or Aux In modes to enhance the quality of any music or
audio that is playing through the headphones.
Noise Canceling mode will function even if the headphones are not powered ON.
To conserve battery power, it is recommended to power the headphones OFF if
you want to use the Noise Canceling feature without playing audio.
1. To activate noise cancelling, press the right side of the Main Control
button. A green LED light in the button will turn ON.
2. To deactivate noise cancelling, press the right side of the Main Control
button again. The green LED light in the button will turn OFF.
Pairing to a Device and Playing Audio
After initial pairing, the unit will stay paired unless unpaired manually by the user,
or erased due to a reset of the device. If your device should become unpaired or
you nd it is unable to connect, repeat the steps listed here.
1. Press and hold the left side of the Main Control button for approximately
4 seconds to power ON and begin pairing. LED lights in the button will
begin ashing red and blue. When pairing, remain within 3 feet of the unit.
2. Using the controls on your Bluetooth device, select the IAHP87 in your
Bluetooth settings/device menu. If your device requests a password, enter
the default password 0 0 0 0 . If need be, refer to the user’s manual for your
specic device for instructions on pairing and connecting Bluetooth devices.
3. When successfully paired, the LED lights will only ash blue and a chime will
sound through the unit. Audio played through the connected Bluetooth
device should now be heard through the headphones.
4. Use the controls on your Bluetooth device to select and begin playing
audio. To play or pause audio using the headphone controls, press the left
side of the Main Control button.
Using the Speakerphone
1. When a call is received, a ringtone will sound through the unit.
2. To accept the call, press the left side of the Main Control button, or use
the controls on the connected phone.
3. To refuse the call, press and hold the left side of the Main Control button,
or use the controls on the connected phone.
4. To call back, double press the left side of the Main Control button.
Aux In
Aux In mode will function even if the headphones are not powered ON.
To conserve battery power, keep them powered OFF when using Aux In.
Requires a 3.5mm audio cable (included).
1. Connect a 3.5mm audio cable to the Aux In on the unit and the
audio output on an audio device.
2. Use the controls on the connected device to select and play audio.
International Support
To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the
support section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes,
visite la sección de apoyo en: www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions
fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com
Customer Service: 1-888-999-4215 | Email Support: prodinfo@dpiinc.com | Email Parts: partsinfo@dpiinc.com
Copyright © 2017 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their
respective owners. Specications are subject to change without notice.
