iLike BM-886 Operation Manual

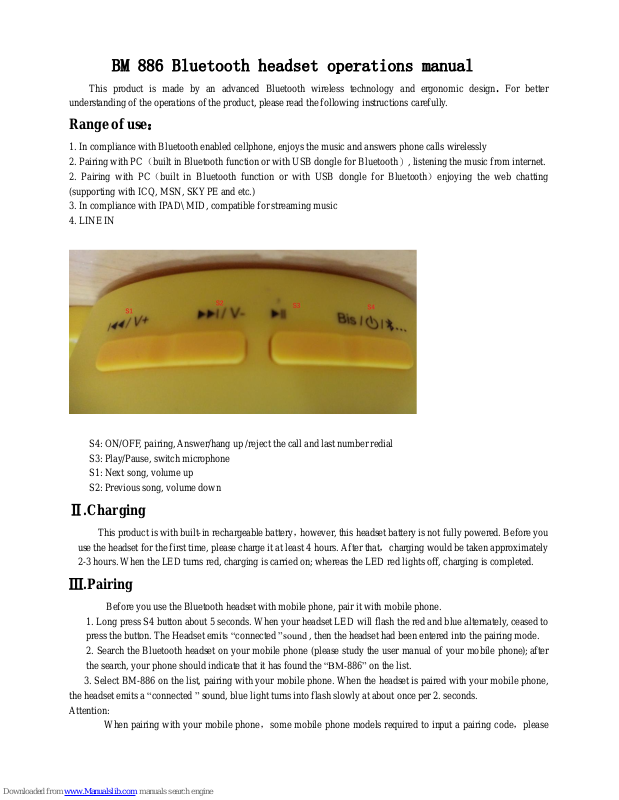

BM 886 Bluetooth headset operations manual

This product is made by an advanced Bluetooth wireless technology and ergonomic design. For better

understanding of the operations of the product, please read the following instructions carefully.

Range of use：

1. In compliance with Bluetooth enabled cellphone, enjoys the music and answers phone calls wirelessly

2. Pairing with PC（built in Bluetooth function or with USB dongle for Bluetooth）, listening the music from internet.

2. Pairing with PC（built in Bluetooth function or with USB dongle for Bluetooth）enjoying the web chatting
(supporting with ICQ, MSN, SKYPE and etc.)

3. In compliance with IPAD\ MID, compatible for streaming music

4. LINE IN

S4: ON/OFF, pairing, Answer/hang up /reject the call and last number redial
S3: Play/Pause, switch microphone
S1: Next song, volume up
S2: Previous song, volume down

Ⅱ.Charging

This product is with built-in rechargeable battery，however, this headset battery is not fully powered. Before you
use the headset for the first time, please charge it at least 4 hours. After that，charging would be taken approximately
2-3 hours. When the LED turns red, charging is carried on; whereas the LED red lights off, charging is completed.

Ⅲ.Pairing

Before you use the Bluetooth headset with mobile phone, pair it with mobile phone.

1. Long press S4 button about 5 seconds. When your headset LED will flash the red and blue alternately, ceased to
press the button. The Headset emits “connected ”sound , then the headset had been entered into the pairing mode.

2. Search the Bluetooth headset on your mobile phone (please study the user manual of your mobile phone); after
the search, your phone should indicate that it has found the “BM-886” on the list.

3. Select BM-886 on the list, pairing with your mobile phone. When the headset is paired with your mobile phone,
the headset emits a “connected ” sound, blue light turns into flash slowly at about once per 2. seconds.
Attention:
When pairing with your mobile phone，some mobile phone models required to input a pairing code，please

input“0000”(4 zeros).

If the headphone has not paired the device within 3 minutes, the headphone will automatically be turned off.

If the Bluetooth headset is not in the pairing mode, the headset cannot be searched by your mobile phone or
other Bluetooth device. Please set your headset into pairing mode and search again.

Ⅳ.Power On/Off and Reconnection

1. POWER ON（reconnect to the device）

Long press S4 button about 1 second，the LED turns purple for one second，the headphone emit a“power on ”
sound, the LED flashes quickly, about twice a second, the headset will automatically connect to the device; when the
headset is reconnected with your Bluetooth device, the headset emits a“connected ”sound, blue light flash slowly at
about once per 2 seconds.

Remark：Reconnection can only be connected with the headset which paired with Bluetooth devices

If the headphone is not reconnected to the device within 5 minutes, the headset will automatically be

turned off.

2. POWER OFF

Long press S4 button about 3 seconds, the LED turns purple for one second, the headset emits a“power off ”

sound, then power off.

Ⅴ.Making phone calls with your Bluetooth headset

When the Bluetooth headset and your mobile phone has been completed the pairing connection, you can use the

headset to answer a call or enjoy the stereo music over the cell phone.

（1）Dialing, answering and ending a call

1. Dialing a call

1.1 Use your mobile phone to dial as usual, you will hear a notice voice after dialing, then
the call has been connected，the call will automatically be switched to the Bluetooth headset. (Some smart phone may
to switch manually)

1.2 Redial the last number: press S4 button once to dial the last dialed number.

2. Answering and ending a call

*When a call comes in, you will hear a notice voice.

2.1 When a call comes in, press S4 button once for answering the call

2.2 When you are in an active call, press S3 button to transfer the call to the phone; press again S3 to transfer back
the active call from the phone to the headset. (some mobile phones may not support this function）

2.3 When a call comes in, to reject a call, long press S4 button about 1 second

2.4 Long press S1 button to decrease the volume, long press S2 button to increase the volume.

2.5 To end a call, press S4 button once

Ⅵ.Play music

*The mobile phone should support the Bluetooth A2DP profile
1．For next song, press S2 button once
2．For pervious song, press S1 button once
3．For play or pause, press S3 button once.

4. Long press S1 button, decrease the volume; long press S2 button, increases the volume.

5. Press S4, end up a call or the counterpart who ends the call. After ending the call, music will resume

automatically.

Ⅶ.LINE IN

If there any Bluetooth device to pair with or the battery power depletion. Use a LINE IN cable plug into a 3.5mm
audio jack, the Bluetooth headset will work as a wired one.

Ⅷ.Low battery indication – Switch off automatically

When there is sensed with battery power lower than 3.3V, the red light of headset flashes twice at every 10
seconds, the headset emits a twice “beep” sound. If the power is lower than 3.3V, it should shut down
automatically; please recharge the power.

Ⅸ.Package Contains

1. BM 886 Bluetooth headset 1 pc

2. USB charging cable 1pc

3. Operations manual 1pc

4. 3.5 MM stereo cable

Ⅹ.The product maintenance

— Using unoriginal accessories may cause performance degradation, personal injury, an electrical short circuit

and warranty failure.

— Disassemble the product can damage it and void your warranty.
— Do not place the headset in dusty environment.
— Use a clean, soft, dry cloth to clean your headset.
— Folds the product and loads in the sack to preserve.
— Keep children away from the headset.
— Avoid using the headset in extreme temperatures.

Battery maintenance

— Please send to the qualified repair center to remove or replace the battery.
— Use properly the headset, the life of rechargeable battery can be extended.
— Rechargeable battery works at the temperature of 10 ℃ to 45 ℃.
— Battery capacity can be fully utilized at room temperature environment.
— In outdoor conditions, battery capacity may decreases.
— If you does not use the headset for a long time, please charge the battery at least once at two months.

Ⅺ.Product function and characteristics

·Head wearing design, fashionable and comfortable

·Wireless cell phone stereo music playing and dialing, answering the call

·Wireless listening stereo music on your computer

·Via the Internet, achieving network communication function

·Play and control on your cell phone music

·High quality stereo sound effect

·High sensitivity, omnidirectional microphone, clear voice

Specifications

1.1

Assortment / Type

Bluetooth headphone

1.2

Model no.

BM-886

1.3

Operation frequency

2.402GHZ~2.480GHZ ISM Band

1.4

Power Class

CLASS 2

1.5

Channel

79channels of 1Mhz BW

1.6

Connection

P2P

1.7

Receiving range

<=10M

1.9

Frequency response

20HZ-20KHZ

1.10

Standby time

>=185h（fully charged）

1.11

SNR

80db

1.12

Indicator

Red & blue dual color LED

1.13

Bluetooth version

V4.0

1.14

Support device

PC,USB Bluetooth dongle, cellphone, MID, iPAD and so
on，which support HFP、HSP、A2DP、AVRCP Bluetooth

1.15

Battery

Polymer battery 3.7V 185mAh

1.16

Audio output power （max）

2*10mW

1.17

Operating time

8h（fully charged）

1.18

Charging hours

2-3 hours

1.19

Version

Bluetooth V4.0(CSR)
