1. INTRODUCTION
This document explains how to perform the installation of a headend based on HTI-404 modules.
The document describes how the headend is configured. For that, initially the physical mounting is descri­bed. After that, it explains how to connect the user pc to the headend through IKUSI HEADEND DISCOVERY application. Finally, all the menu options of the web interface are described.
To ensure the correct use and installation of the headend, it is necessary to read the user manuals and the installation manuals of the modules included in their own packages.
1.1 General safety instructions
Read all of this user manual carefully before plugging in the unit. Always have these instructions to hand during installation. Follow all of the instructions and safety notices regarding unit handling.
Danger of death or injury
DANGER
ATTENTION
This safety notice indicates a possible danger for the life and health of people. Not following these instructions may lead to serious consequences to health and may even cause fatal injuries.
Do not install the unit during an electrical storm. This could lead to electrostatic discharge from lightning.
Do not open the unit. There is a risk of electrostatic discharge.
Risk of damage to the unit
This safety notice indicates a possible dangerous situation. Not following these instructions may lead to the unit being damaged.
The unit must be appropriately ventilated. Install the unit in a dust-free location. Do not place the unit in a location where the ventilation slots are covered or blocked. Install the unit in a location with at least 20 cm around it free of other objects.
Do not expose the unit to rain or moisture. Install the equipment in a dry location with no infiltration or condensation of water. Should a liquid enter the unit, disconnect it immediately from the mains.
Keep the unit away from flammable objects, candles and anything that may cause a fire.
Connect the unit to an easily accessible power socket. In the event of an emergency, it will then be possible to quickly unplug the unit.
Do not expose the unit to sources of heat (sun, heating, etc.).
Handling the inside of the unit is forbidden
This notice forbids any work that may aect the working order of the unit or its warranty
Do not dispose of as urban waste
This type of notice indicates that the unit must not be disposed of as unselected urban waste.
NOTE: This type of notice is a note containing applicable advice and useful information for optimum use of the unit.
4
Page 5
Web Interface guide HTI-404
1.2 Installation enviroment recommendations
The headend is for indoor use only.
Do not plug in the headend in moist rooms.
Never operate the headend immediately after moving it from a cold location to a hot location. When the
device is exposed to such a change in temperature, moisture may condense on the crucial internal parts.
The device must have sucient ventilation and may not be covered.
Protect the device against direct sunlight, heat, intense temperature fluctuations and moisture. Do not place
the device in the vicinity of heaters or air conditioners.
Do not allow liquids to enter into the device. Turn o the device and disconnect it from the main supply if
liquids or foreign substances end up inside the device.
If the device gets too hot or emits smoke, shut it down immediately and unplug the power cable. Arrange
for your device to be investigated by a technical service centre.
Under the following conditions, a layer of moisture can appear inside the device which can lead to mal-
functions:
 if the device is moved from a cold to a warm area;
 after a cold room is heated;
 when this device is placed in a damp room.
The device should not be used in a very dusty or saline environment. Dust or salt particles and other foreign
objects may damage the device.
Do not expose the device to extreme vibrations. It may damage the internal components.

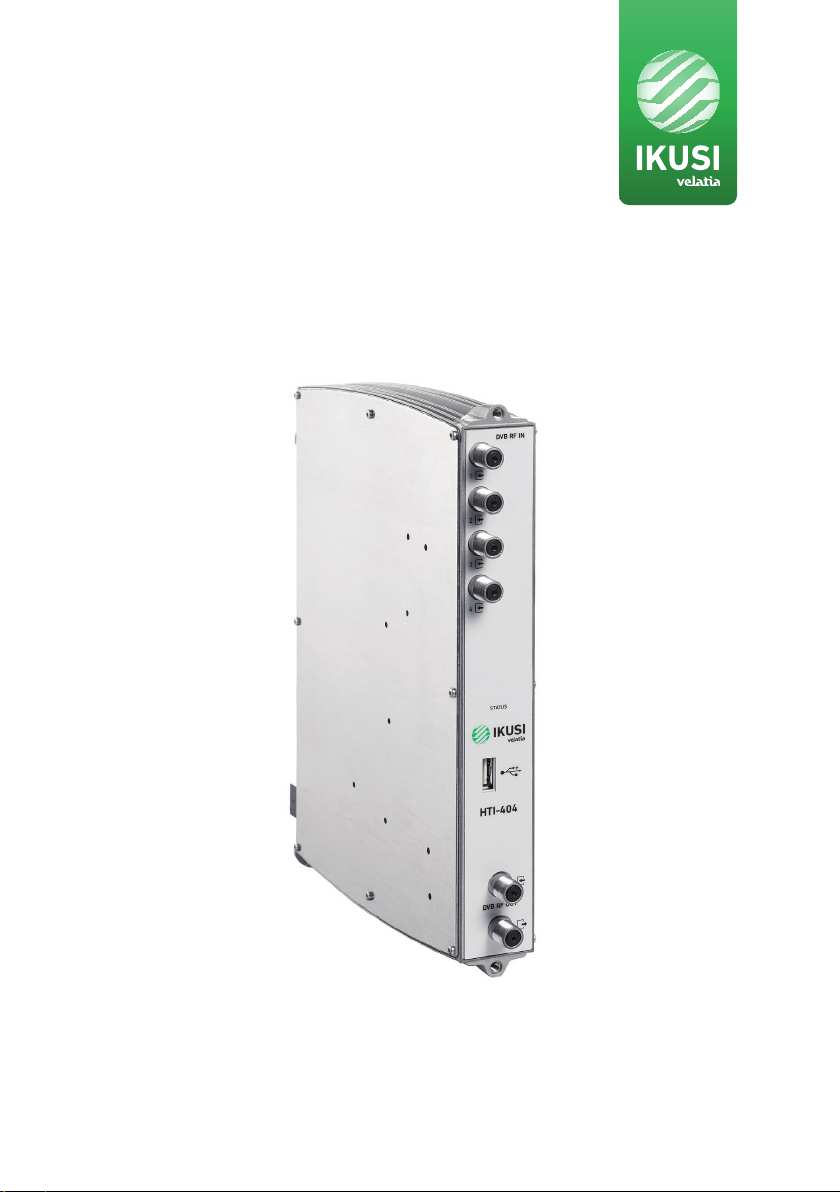

1.3 Description of the module HTI-404
DVB RF IN
1
2
1
3
4
STATUS
2
3
HTI-404
DVB RF OUT
4
1 Input (DVB-T/T2/S/S2/C) 2 Control LED 3 Management port (USB) 4 DVB-T/DVB-C output coupling loop
MSS-0512
Stand Alone Multiswitch (5 in-12 out)
FREQUENCY RANGE SAT: 950-2300 MHz TERR: 5-862 MHz
Slot Nº2
DVB RF IN
1
2
3
PSU-150
Master module
4
STATUS
STATUS
PSU-150
HTI-404
DVB RF OUT
BACK-500
Router
USB-300
USB-ethernet adapter
for remote or local configuration
Ref. 3654
DVB RF IN
DVB RF IN
1
2
3
4
STATUS
HTI-404
DVB RF OUT
-30 dB
1
OUTPUT TEST
2
OUTPUT
3
4
STATUS
EXT INPUT
HTI-404
HTA-125
DVB RF OUT
INPUT
INPUT TEST
Input
HTA-125
GAIN
STATUS
Gain 6 dB
-20 dB
5
Page 6
Web Interface guide HTI-404
2. HEADEND CONNECTION

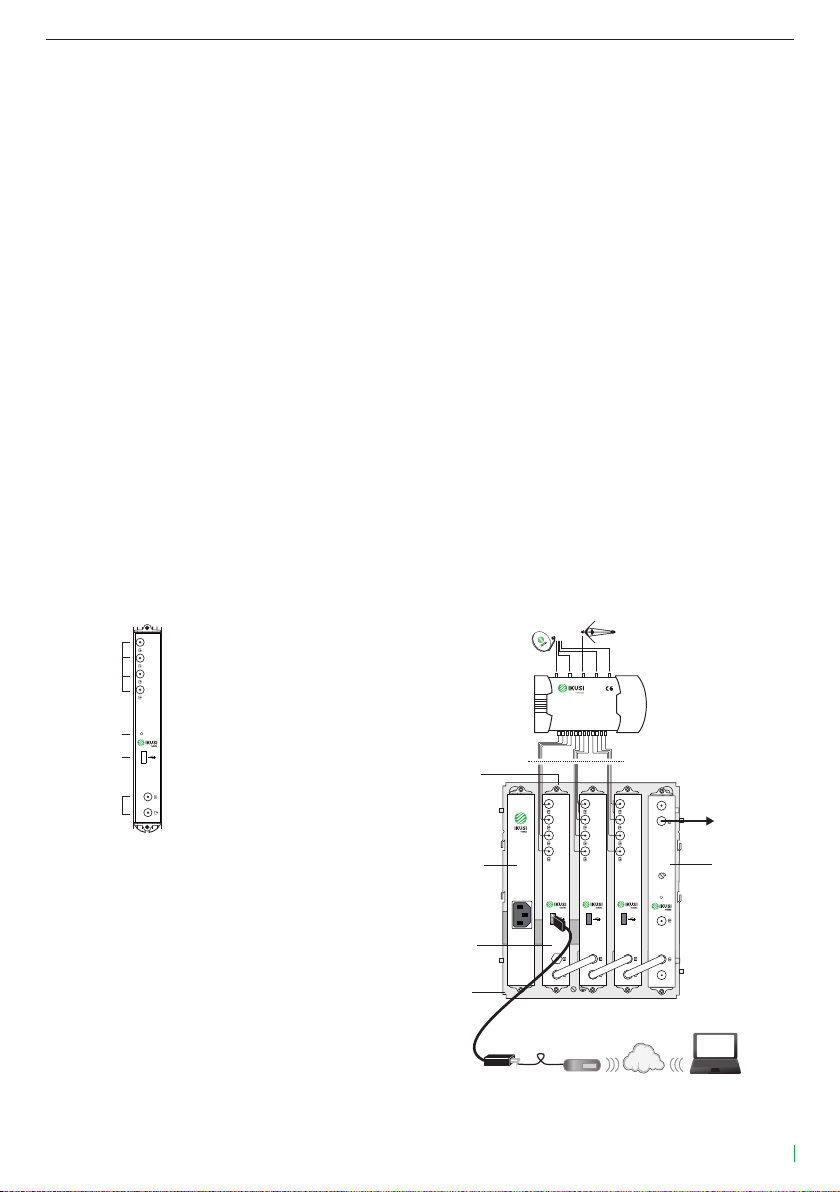

The instructions for connecting the headend are described in detail in the guide that is provided with the HTI module. Also, that guide can be downloaded from our web page www.ikusi.tv.
Briefly, the steps to follow are:
Insert the HTI modules and the PSU-150 power supply in the BACK-500 base-plate. One of the HTI modules
must be inserted in the slot 2 of the base-plate (master module).
Connect the dierent cables from the multiswitch to the module inputs.
Connect the pc to the USB port of the master module, located in the slot 2 of the base-plate, with a
USB-ethernet adapter.
NOTE: It is recommended to use USB-ethernet adapters based on AX88179 or AX88772 chipsets
3. COMMUNICATION WITH THE HEADEND
HTI is configured through a web page generated by the own headend. Use IKUSI HEADEND DISCOVERY application to access this web page without modifying manually the network configuration of your pc. You can download the IKUSI HEADEND DISCOVERY aplication from www.ikusi.tv web page.
NOTE: You must use IKUSI HEADEND DISCOVERY version 1.8.5 or higher

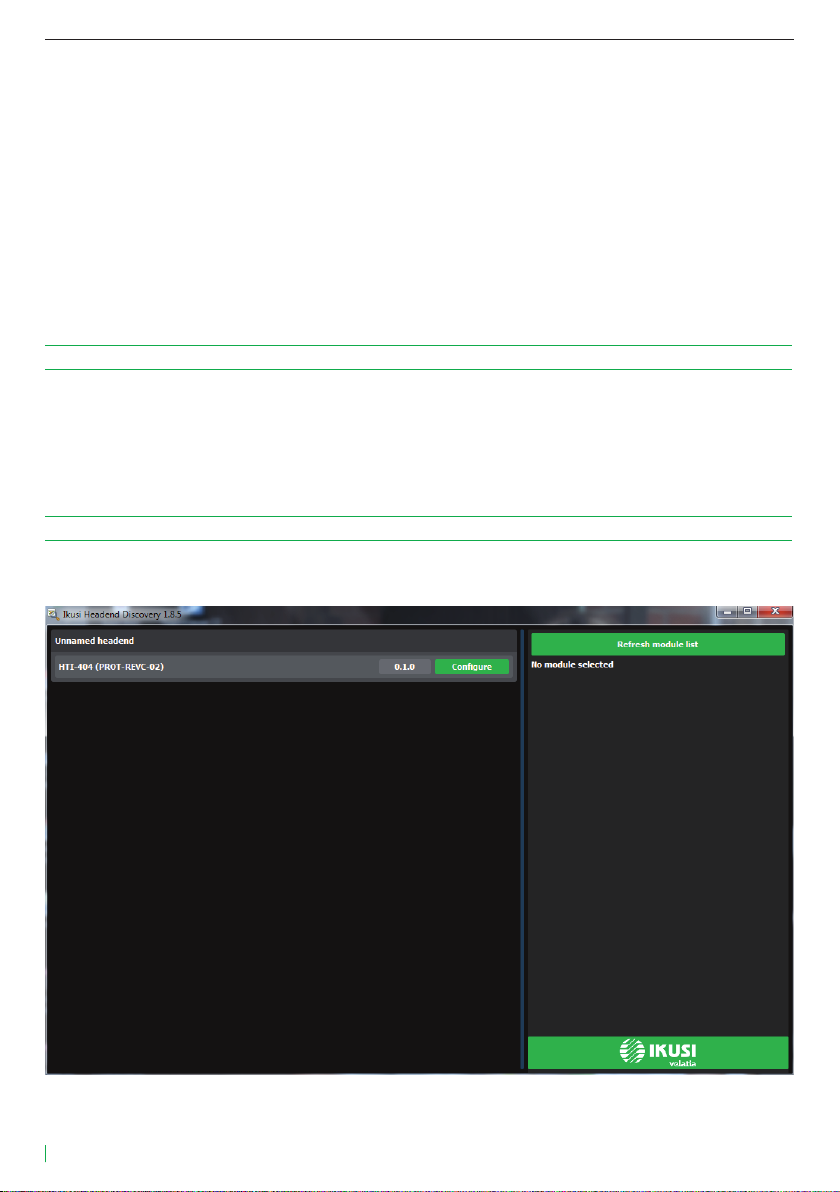

Open IKUSI HEADEND DISCOVERY application (the network card IPV6 protocol will be automatically enabled or permission will be requested to do so).
6
Page 7
Web Interface guide HTI-404
The window will show the name of the connected master module. Push browser of the PC will open automatically, showing the access page of the headend.
NOTE: HTI web interface uses https protocol. It is likely that your browser doesn’t recognize the security certificate generated by the HTI. To continue configuring the module without problems, add the security exception requested by your browser in a permanent way.
NOTE: It is recommended to use Mozilla Firefox or Google Chrome as browser.
Configure
button and the web

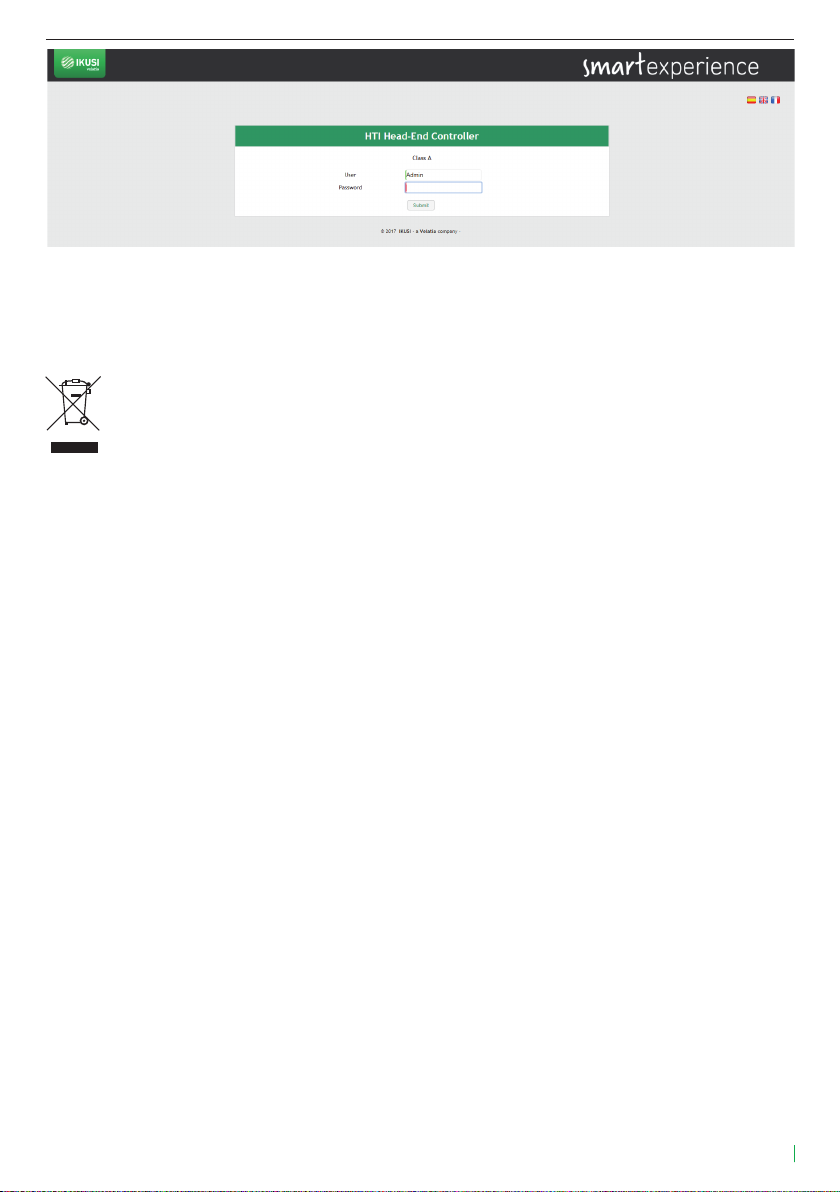

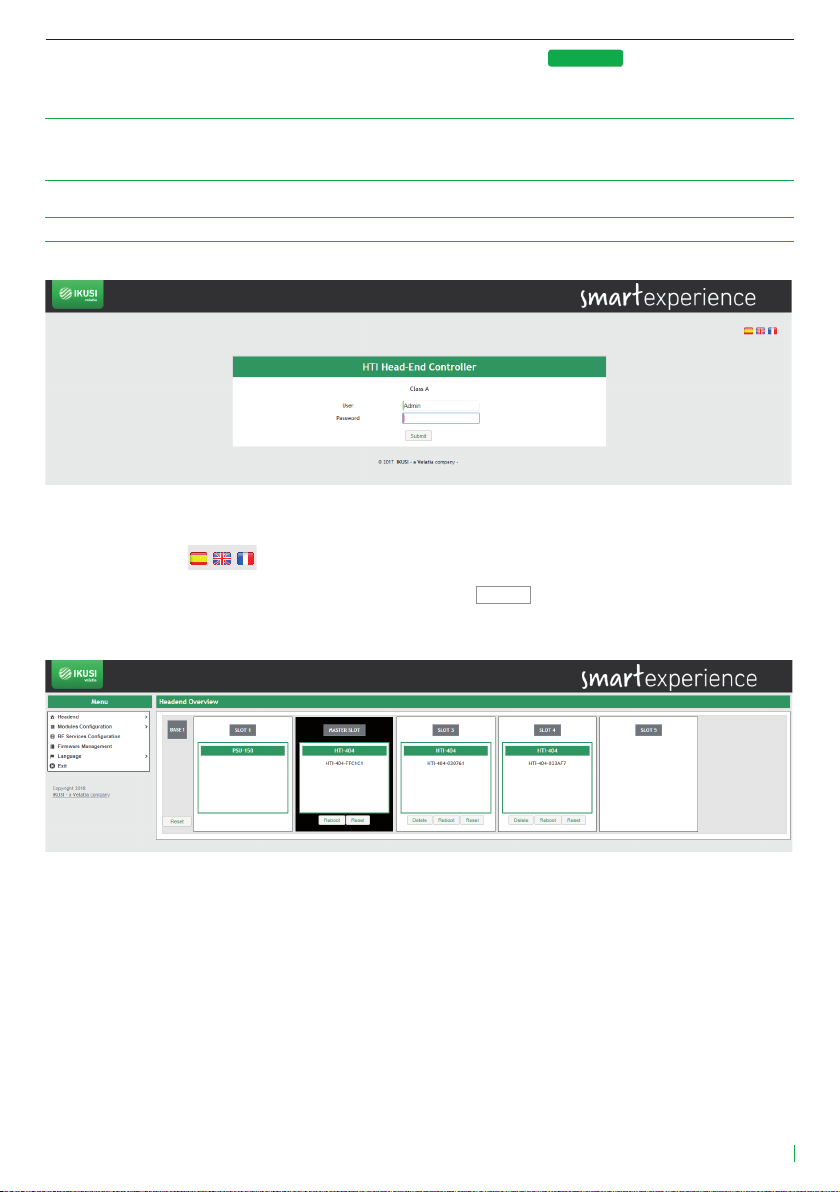

By default, the language of the web interface is the same than the one used by the browser. If you want to change it, choose in icon the flag related with the desired language.
Enter the folowing data, User: Admin Password: admin. Push configuration interface will open, from where you can configure the headend, as described in the next section.
Submit
button. The main screen of the
4. WEB INTERFACE
The web interface of the HTI allows to configure the headend, as well as to show status information of the modules. The following sections describe each of the menu options available.
4.1 Headend
Headend menu, through a series of submenus, allows to display status information and to configure the global parameters.
4.1.1 Overview
It is the menu that appears by default when entering the headend. The user can access this menu at any time. To do this, go to Headend Overview. A screen as the following one will be displayed:
7
Page 8
Web Interface guide HTI-404

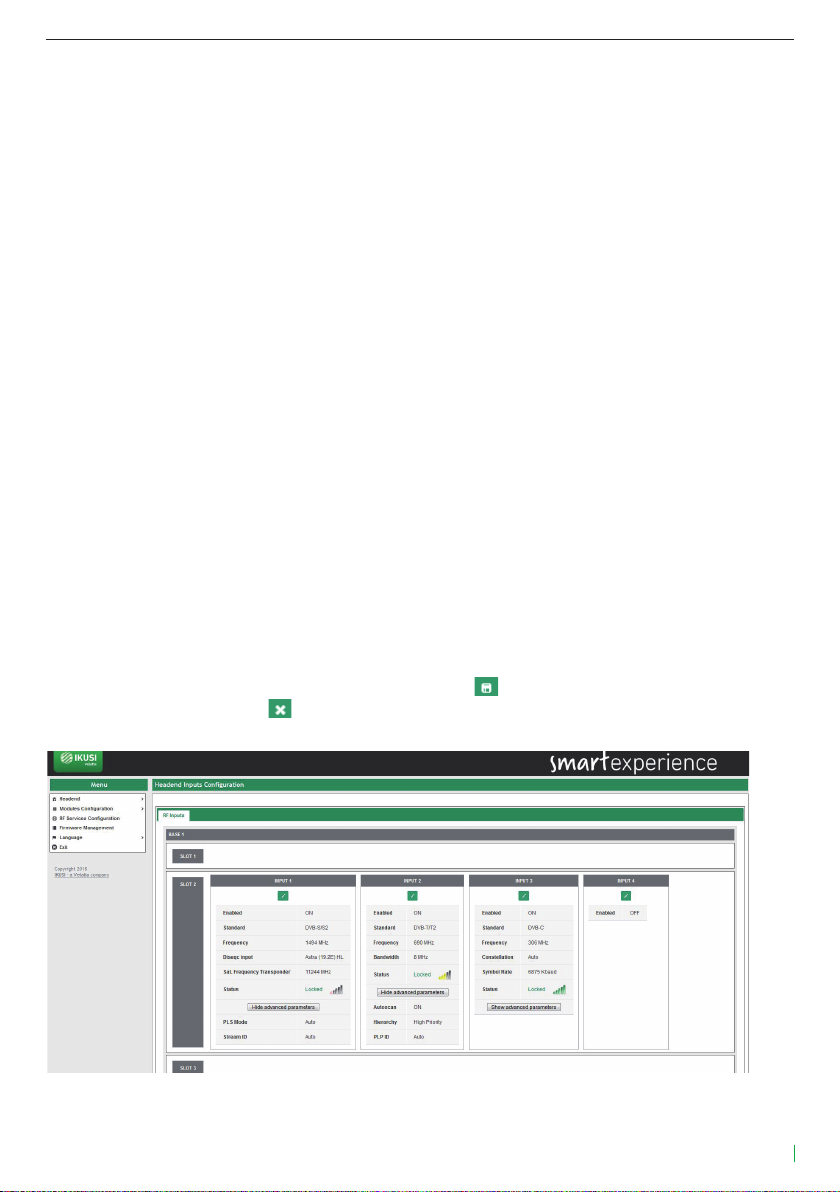

This screen shows the whole headend schematically. The essential information of each module inserted in the base-plate is displayed. The master module always corresponds with the module inserted in slot 2, and it appears in white on black background. The remaining modules appear on white background.

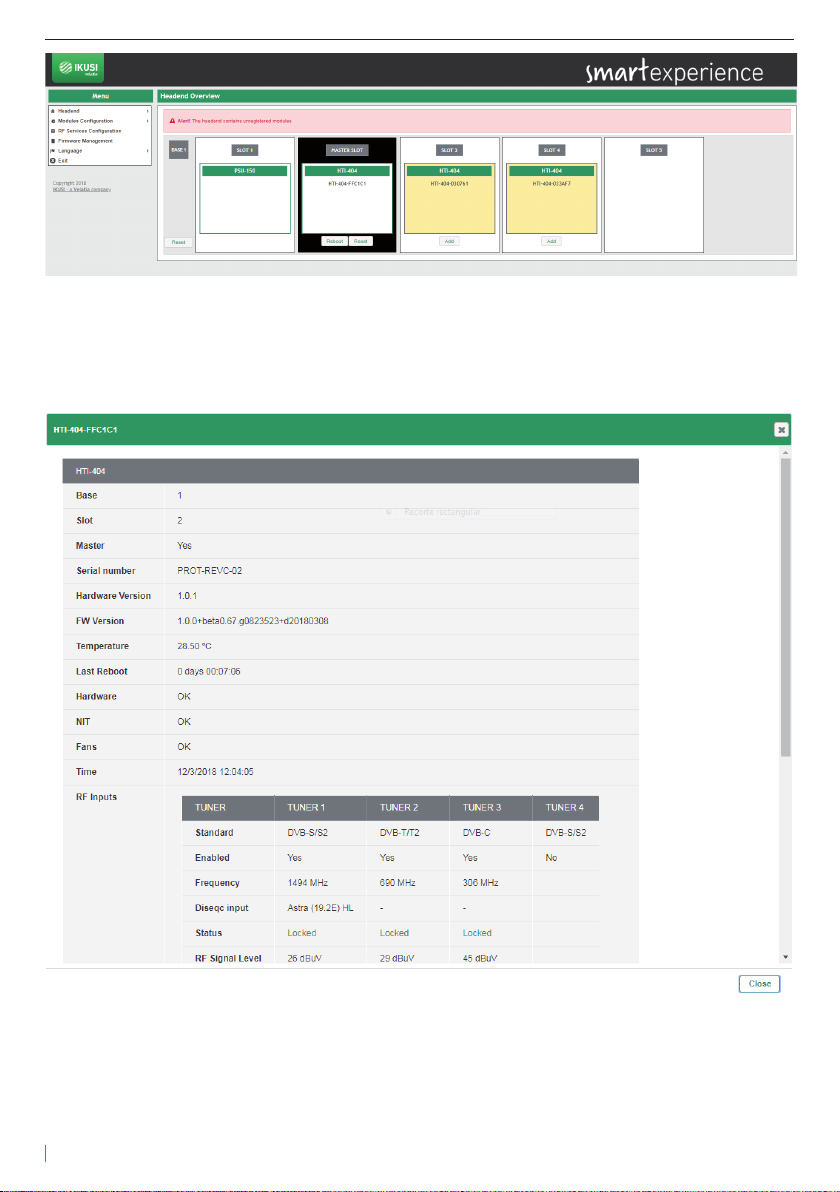

When selecting a specific module, a window with status information and alarms in detail will open.
8
Page 9
Web Interface guide HTI-404
In addition, through a series of buttons you can perform the following actions:
To register a module. To unregister a module. To clone settings from an old module to a new one. To reboot a module. To reset a module with its default settings. To reset all modules of a headend, loading their default settings.
4.1.1.1 Registering process

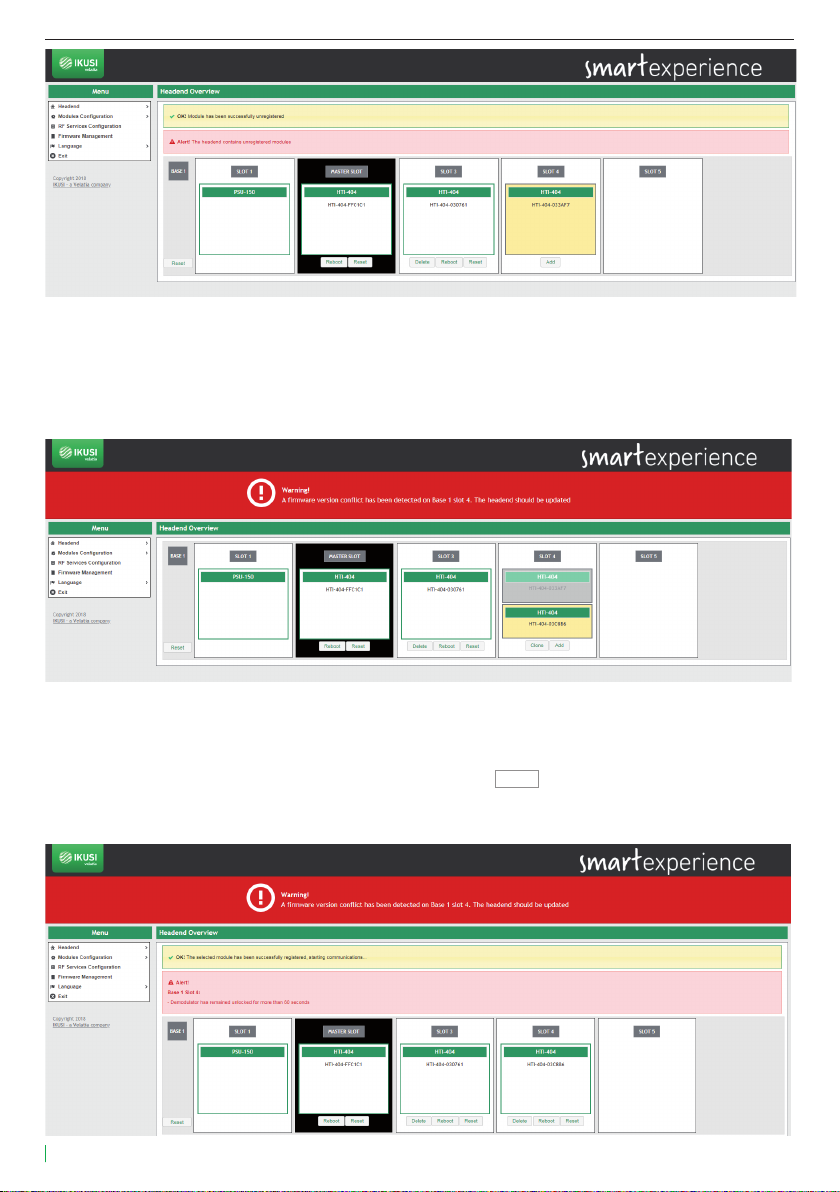

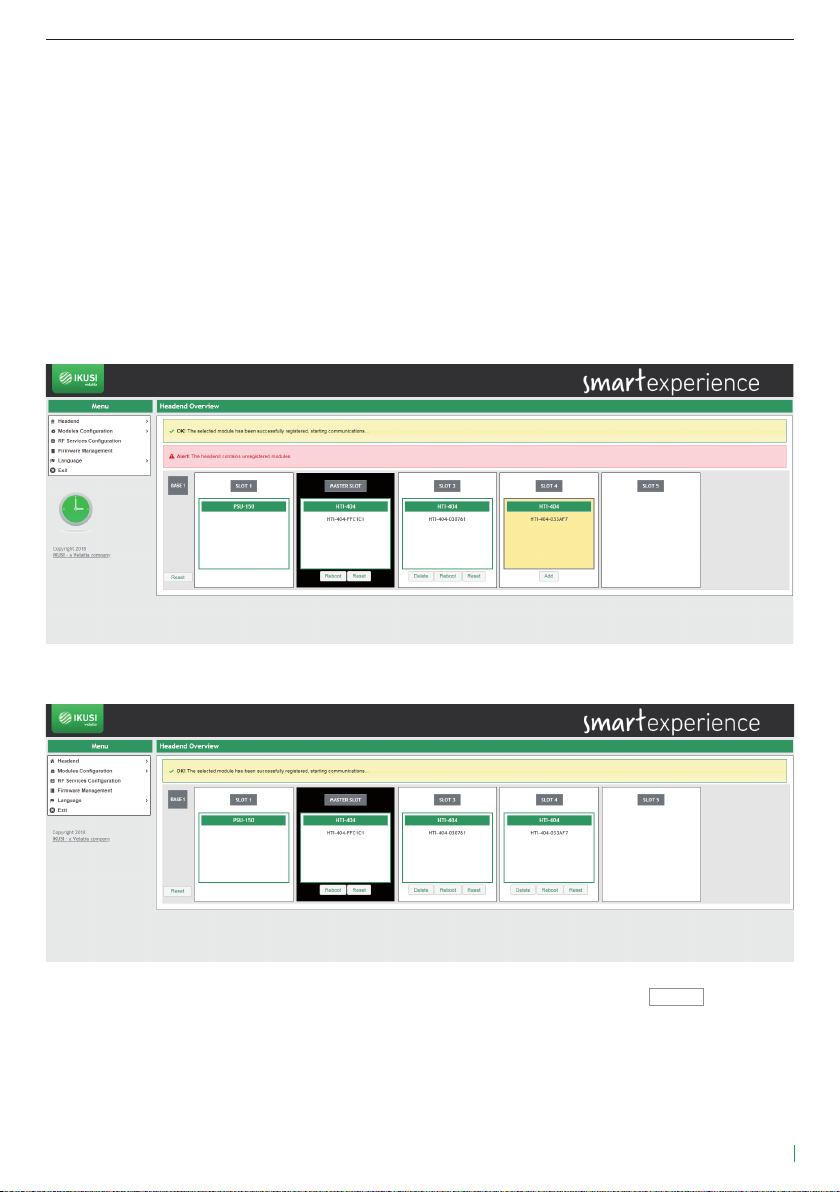

The headend only allows to configure those modules that have been registered previously. The unregiste­red equipments are shown in yellow on white background. By default, no module except the one inserted in slot 2 (master slot) is registered. To register a module that has been detected by the master module simply push Add button of that module. The background color change to white indicating that the module has been properly registered.
Repeat the registration process with all modules you want to include in the headend.
If, for any reason, you want to unregister a module of the headend, you must push the
Delete
module will be displayed in yellow background, indicating that has been unregistered correctly.
button. The
9
Page 10
Web Interface guide HTI-404
The registration process is dierent if it is the result of replacing a module (for example, due to failure). In that case, when placing a new module in the position of one that had been already registered by the headend, the user can choose between to add it without modifying the configuration of the module or to copy the configuration of the module that was previously registered in that slot. In the following example, starting from the previous headend with 3 HTIs, all registered, the HTI of slot 4 has been replaced with a new HTI:
A module with two possible configurations is displayed: one in grey background, corresponding to the previous module that was already registered in the headend, and another one in yellow background, corresponding to the configuration of the new module pending registration.
If you want to copy the settings from the previous module, push
Clone
button. If, instead, you only want to register the new module without copying the previous configuration, push Add button. In both cases, as result a screen will be displayed where the module appears as registered.
10
Page 11
4.1.1.2 Reboot and reset
The user can reboot a specific module. To do this, you must push
Reboot
button of that module.
Web Interface guide HTI-404
On the other hand, if you just want to load the default settings of the module, just as it comes from the
Reset
factory, you must use
Reset
button of that module. However, if you want to load the default settings on all modules of the
headend, you can do it pushing
button. If you want to load the default settings of a specific module, push
Reset
button associated with the Base.
In both cases, a warning message indicating that the module will return to its default settings will be displayed. Press
OK
if you understand the consequences of this action and you agree.
NOTE: In the case of resetting the master module, slave devices will be unegistered.
4.1.2 General configuration
This menu displays several tabs that allow to set global parameters of the headend. To access this menu, go to Headend General Configuration. A window as the following one will open:
4.1.2.1 Site identification

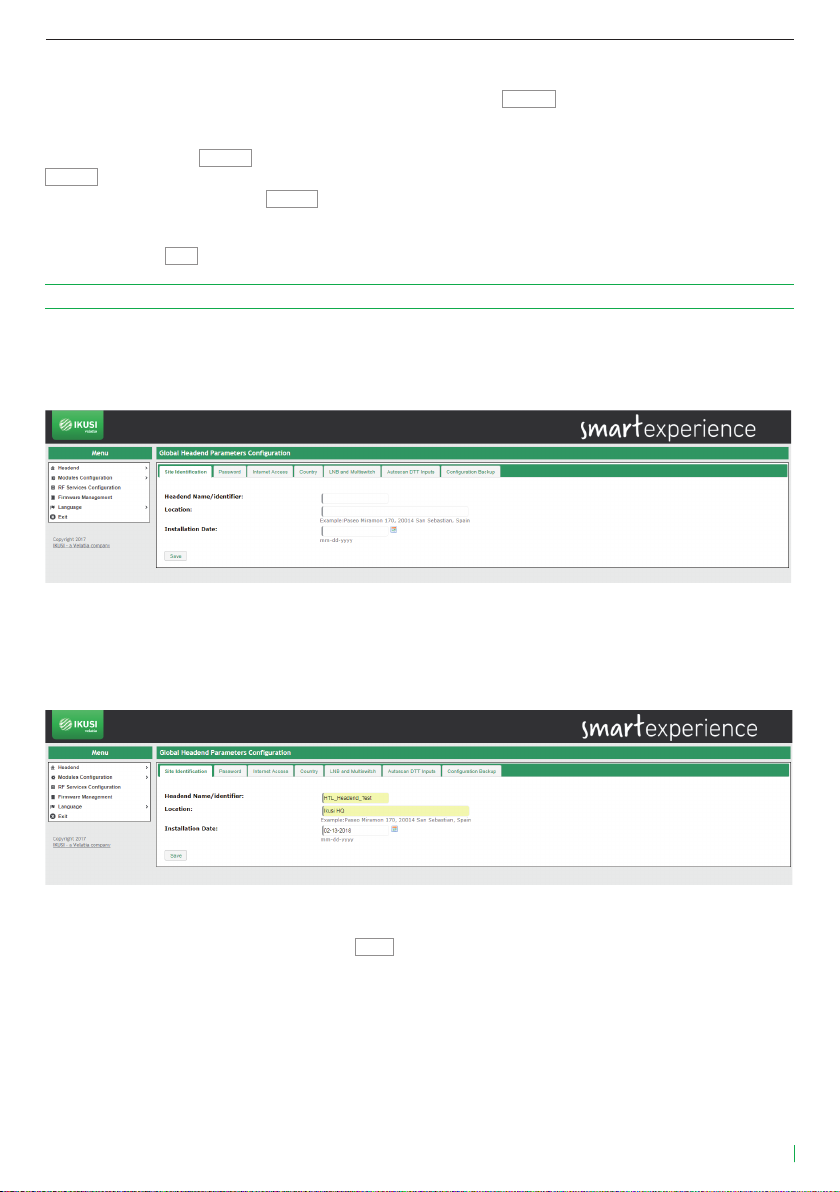

Select the Site Identification tab. In this screen you can introduce information about the headend to distin­guish this particular headend with respect to others. This information will appear in the installation report.
Introduce the headend name (or ID) and the facility location (free text). You can also specify the date on which the installation was performed. Push
Save
button to save the data.
4.1.2.2 Password
To change the password of the headend, select the Password tab.
11
Page 12
Web Interface guide HTI-404

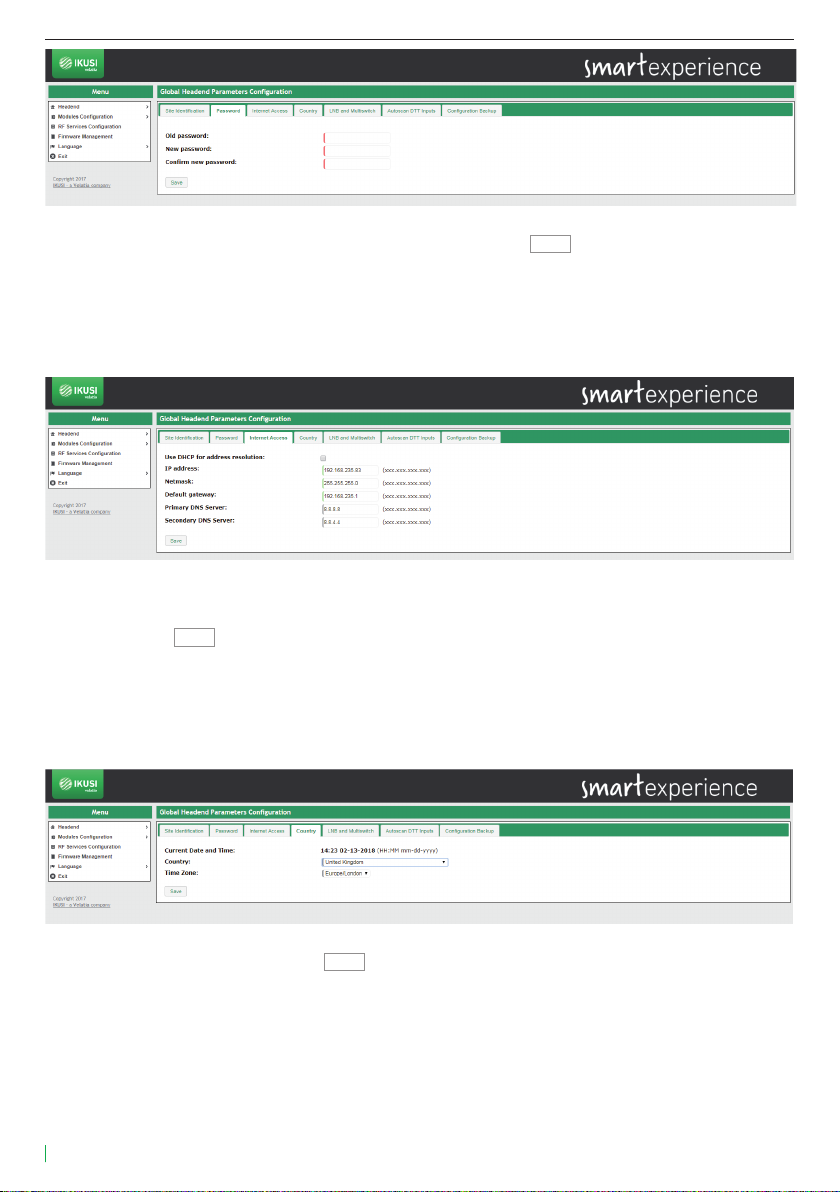

Follow the instructions on the screen to make the change of the password (enter the old password, enter the new password and confirm the new password) . Finally, push the
Save
button.
4.1.2.3 Internet access
If you want to access to the headend through internet, you must set previously the connectivity parame­ters of the headend. To do that, select the Internet Access tab.
Select Use DHCP for address resolution option if the network settings will be automatically provided by a DHCP server. Otherwise, unselect this option and manually enter the settings (IP address, Netmask, Default gateway, Primary DNS Server, Secondary DNS Server). Consult network manager to get those parameters. Push
button to save the changes.
Save
4.1.2.4 Country
To set the local time and customize certain parameters related to the specific country regulations (LCN, NIT, etc.) select the Country tab.
In this screen you can select the date and current time, time zone and the country in which the headend is installed. To save the changes push the
Save
button.
4.1.2.5 LNB and multiswitch
Select the LNB and Multiswitch tab to configure the parameters related with the used satellite installation.
12
Page 13
Web Interface guide HTI-404

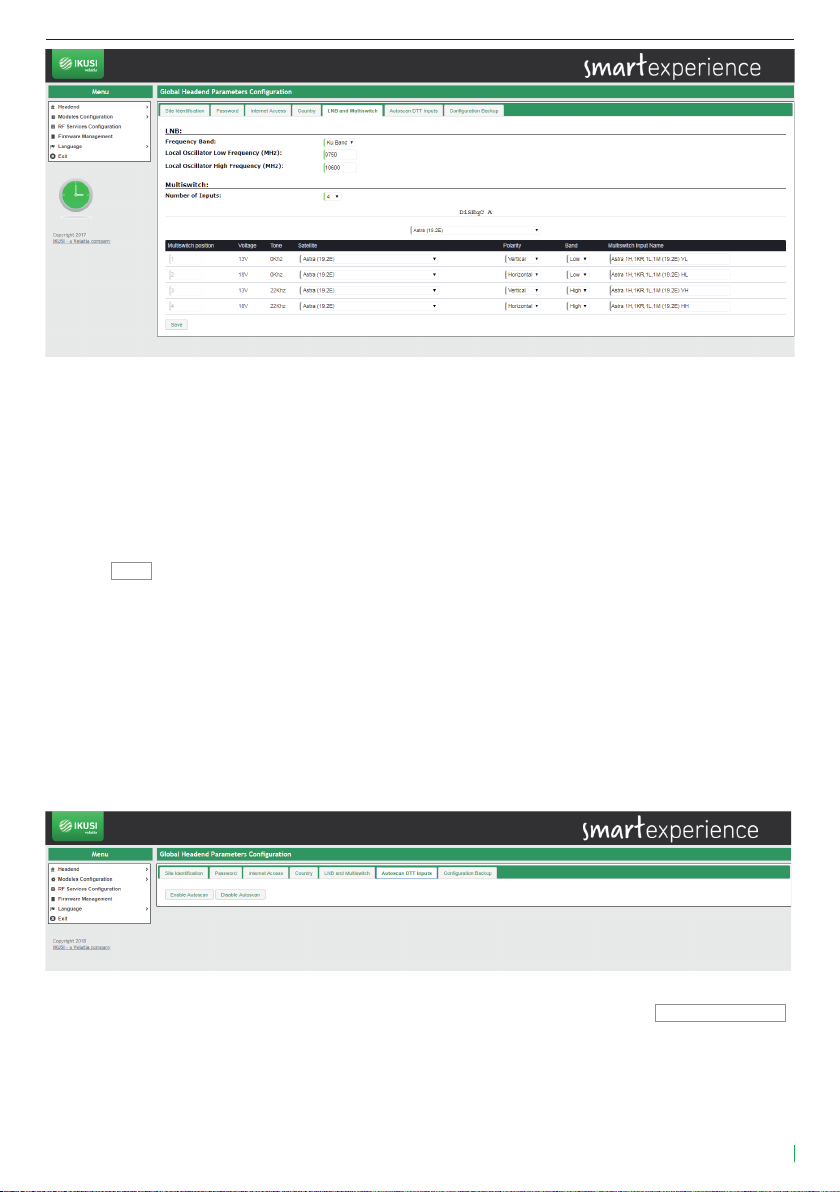

In the LNB area, set the parameters of the LNB that you are using (frequency band, local oscillator fre­quency for low polarity and local oscillator frequency for high polarity).
In the Multiswitch area you can describe how is the Multiswitch that is being used. To do that, introduce the number of inputs of the multiswitch (in the case there isn’t multiswitch, select 0). For each of the inputs, defined by its position and grouped in fours, you must identify which polarity is (Vertical or Horizontal) and in which band is transmitted (Low or High). The headend proposes a name for that input as a combination of the satellite name, polarity and band. This name can be edited.
Push the
Save
button to save the changes.
4.1.2.6 Autoscan DTT inputs
The Autoscan DTT Inputs tab allows to enable/disable automatic scanning of DTT inputs in case of a change in the frequency plan.
Thus, if Autoscan is enabled, when a frequency change is done in a DTT signal that was tuned previously, the HTI will lose sync and will launch a scan of the inputs, in order to search the new frequency of the signal (identified with the same TS_ID and SID values).
If the Autoscan is disabled, when a change in the frequency plan happens, the HTI must be reconfigured manually.
To enable the Autoscan of DTT inputs, push Enable Autoscan button. To disable it, push
Disable Autoscan
button. By default, the Autoscan is enabled.
13
Page 14
Web Interface guide HTI-404
4.1.2.7 Configuration backup

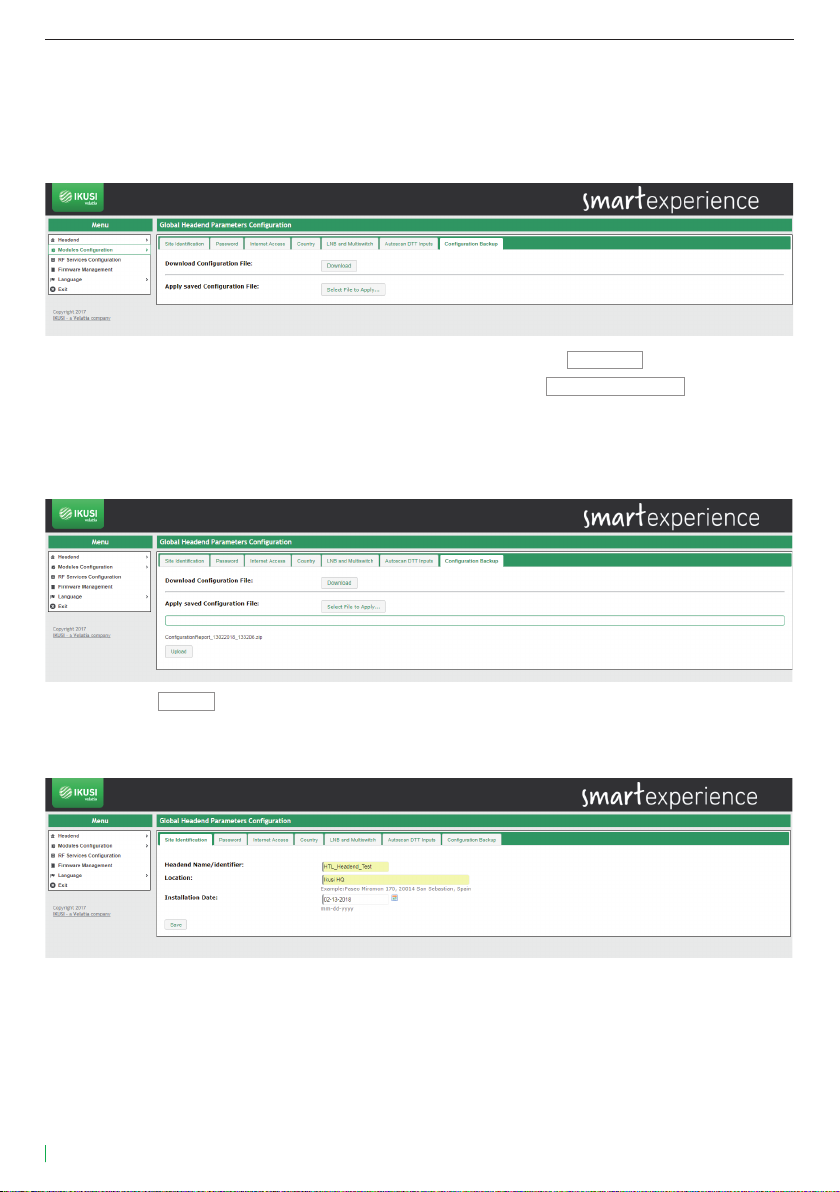

The Configuration Backup tab is used to download or upload a copy of the complete configuration of the headend. Thus, you can replicate the configuration of a headend over another one (or over the same one, if, for any mishandling, it reaches to an undesired state).
To download a file with the current configuration of the headend, push the
To apply a configuration previously stored, first choose the file pushing
After that, push
button. A message will appear, indicating configuration is being applied. After
Upload
Download
button.
Select File to Apply
button.
some seconds, the configuration will have been applied and the browser will redirect you to the Site identification screen.
4.1.3 Headend DVB network
This menu displays two tabs through which the user can configure the parameters associated with the transmission network. To access this menu, go to Headend Headend DVB Network.
14
Page 15
Web Interface guide HTI-404
4.1.3.1 Output network configuration

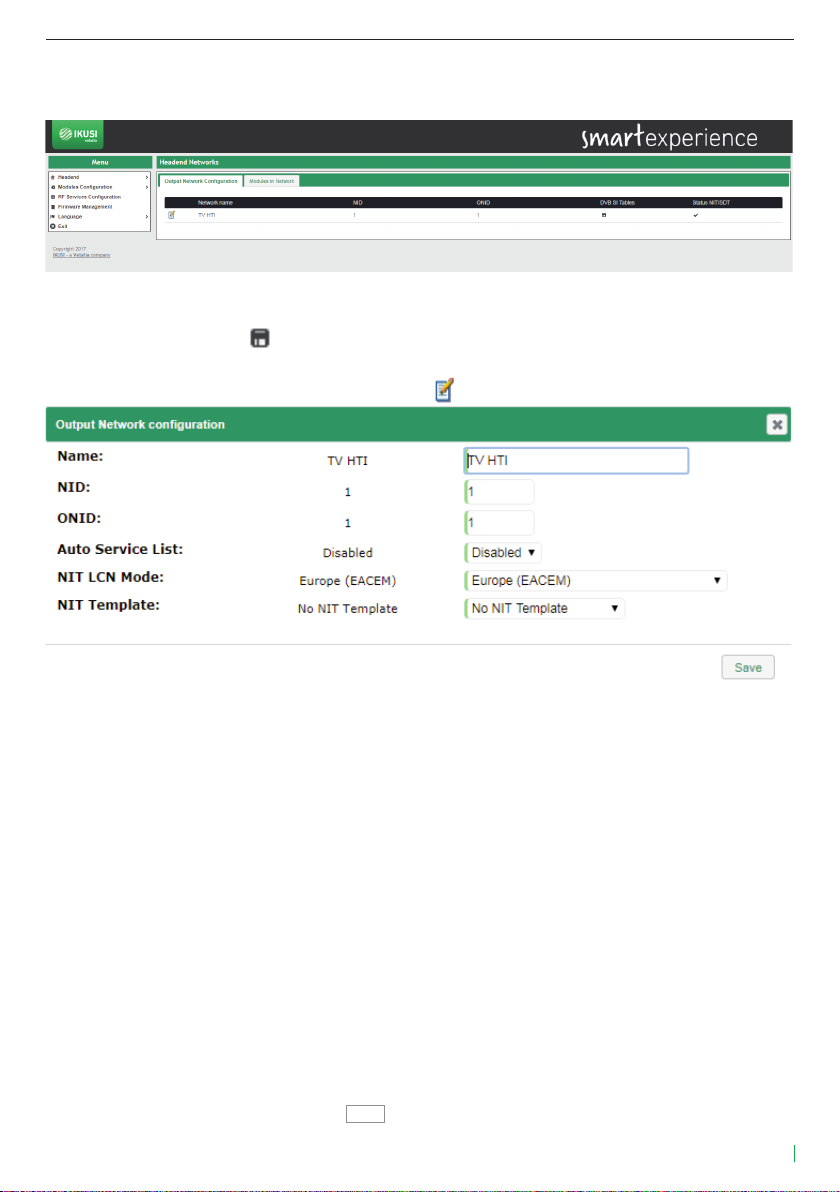

When selecting this first tab, a window as the following one will be displayed:
In this window, the name of the network included in the NIT will be shown, with the value of NID and ONID
that are being used. Pushing
, icon, you can download the NIT, SDT and TDT tables on your computer. In
addition, the Status NIT / SDT field will indicate whether the insertion of tables is correct or not.
To configure the parameters related with the NIT table,
. icon. A window as the following one will open:
In this window you can configure the following parameters:
• Name: is the network name that will be signalled in the NIT table.
• NID: is the value of the Network Identifier that will be signalled in the NIT table.
• ONID: is the value of the Original Network Identifier that will be signalled in the NIT table.
• Auto Service List: If you don’t want to send the service_list_descriptor, select Disabled. In other case, a
service_list_descriptor with the information of the services broadcasted by the headend will be included in the NIT table.
• NIT LCN Mode: if youn don’t want to send LCN, select Disabled. In other case, select the LCN mode used
by the TVs of the facility.
• NIT Template: it allows to select the method of generation of NIT in the case of several NITs exist in the
input. The user can choose between three options:
No NIT Template: the headend generates a NIT from zero, based on the selected output fre-
quencies, the output services and the selected LCNs.
Merged NITs: the headend generates a new NIT based on the descriptors of the NIT tables of
the input signals.
Available Input NITs: a new NIT is generated, based on the descriptors of the NIT table of a
specific input.
To save the selected parameters, push the
Save
button.
15
Page 16
Web Interface guide HTI-404

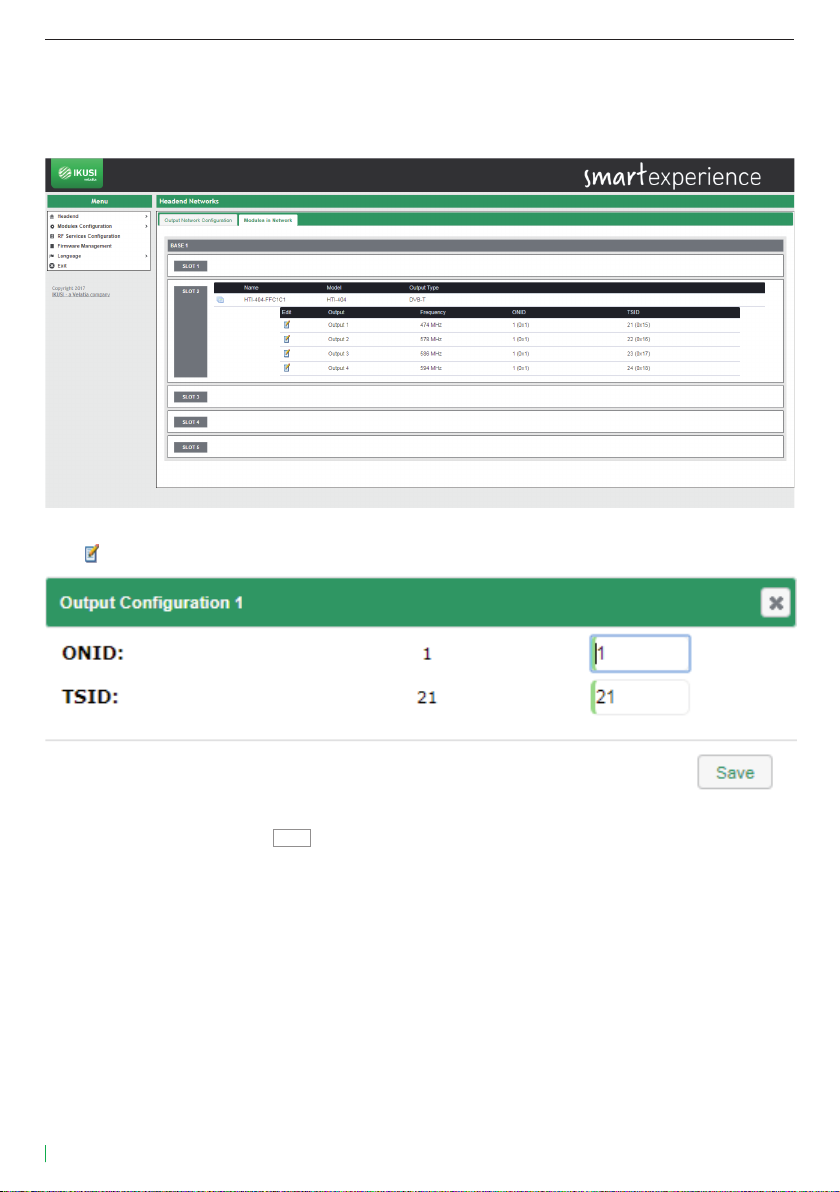

4.1.3.2 Modules in network
This tab shows the DVB signaling information of the output carriers of all the modules included in the broadcasting network.
Push icon to edit the information of a specific carrier. A window as the following one will open:
Edit ONID (Original Network Identifier) and TSID (Transport Stream Identifier) fields with the desired values for that carrier and push
Save
button.

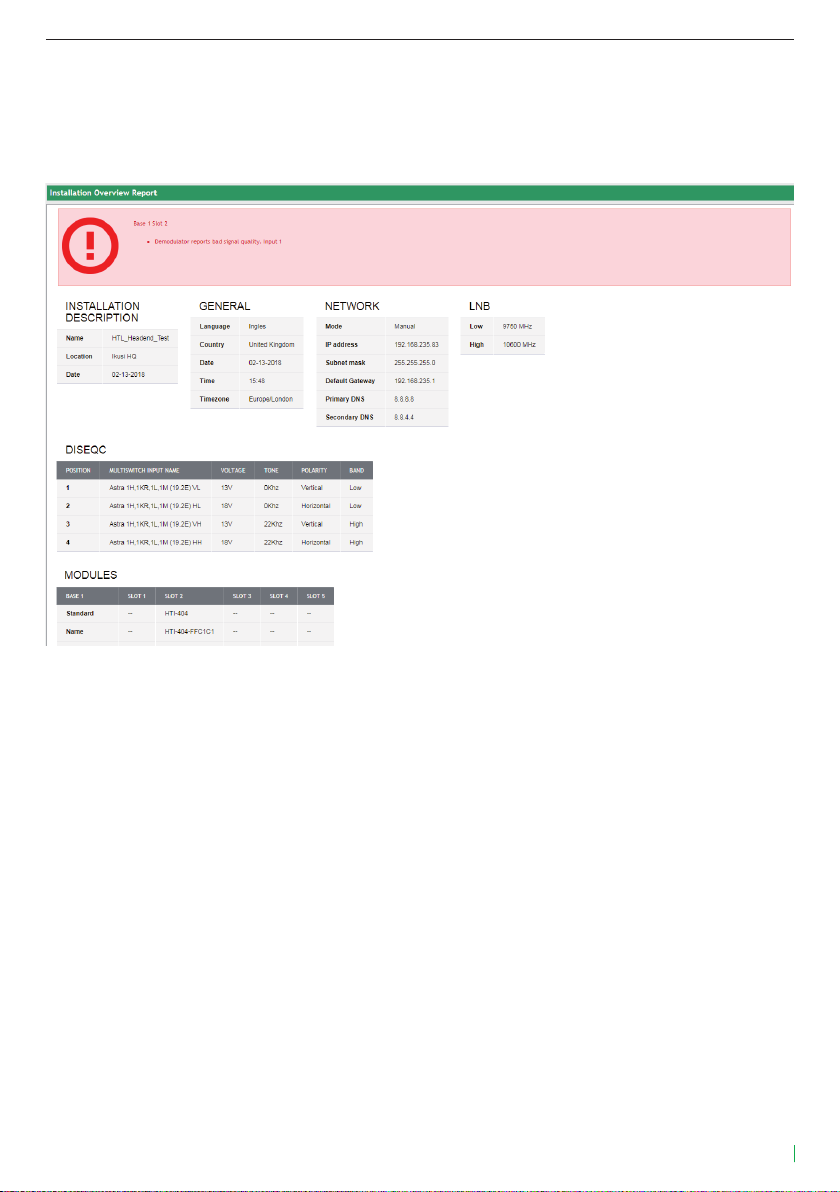

4.1.4 Installation report
Installation report option (Headend Installation Report) shows, in a grouped way, all the information of the headend. In this report you can find:
• Information about alarms, in the case there are any.
• Installation description.
• Language, data, hour and country information.
• Information about IP connectivity.
• Configuration of the LNB and Multiswitch.
• Headend composition.
• Relevant information of each module, such as serial number, sw version, hw version, temperature or
working hours.
16
Page 17
Web Interface guide HTI-404
• Information about the RF inputs of each module, such as standard, frequency, status, signal strength or
signal quality.
• Information about the RF outputs of each module, such as standard, frequency, available space or
number of services.
• Information about the services that are processed by each module.
4.2 Modules configuration
This menu allows you to configure the inputs you want to receive and the carriers that you want to
transmit.
4.2.1 Inputs

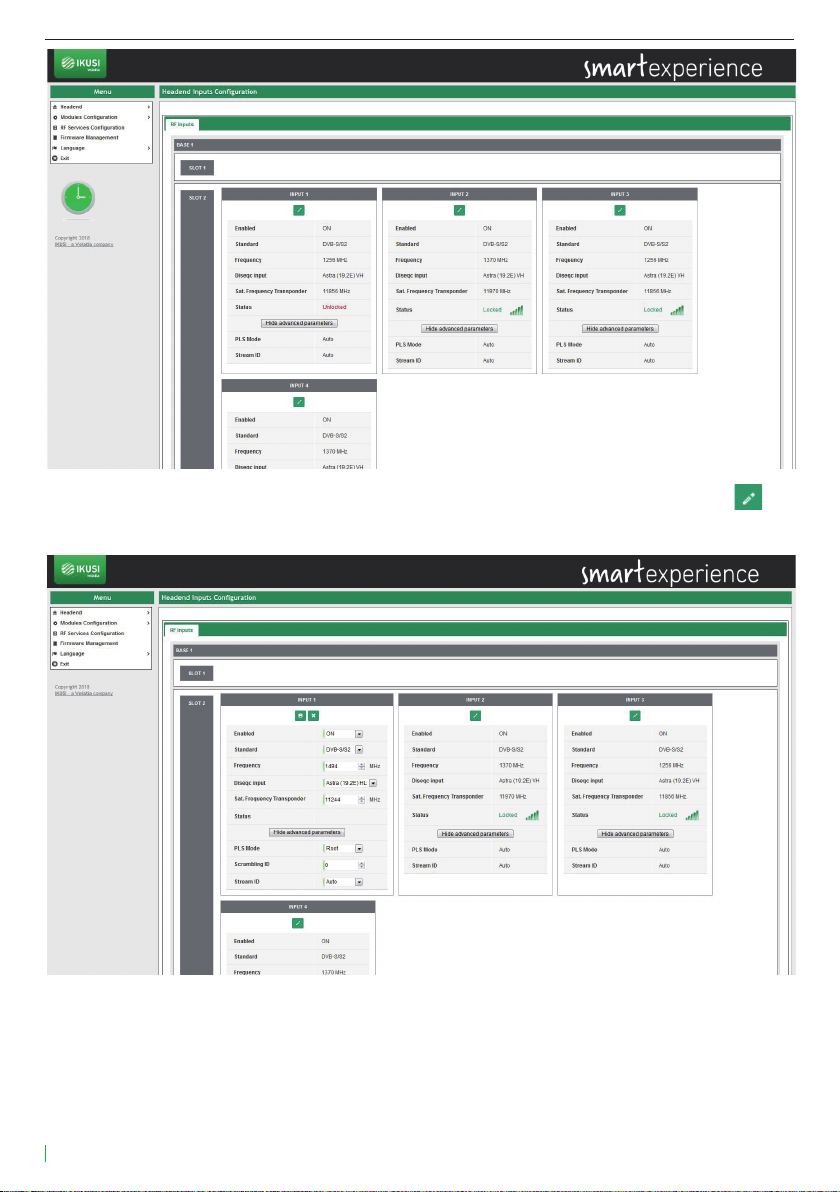

To configure the inputs you want to receive, select Modules Configuration Inputs. A window as the
following one will open:
17
Page 18
Web Interface guide HTI-404
In this window, the four inputs of each HTI are displayed. To configure one of them, select the icon
associated with that input.
For each input, you must configure if it is enabled or not and what is the reception standard (DVB-S / S2 for satellite, DVB-T / T2 for terrestrial or DVB-C for cable). The rest of parameters will depend on the selected standard, in the following way:
18
Page 19
Web Interface guide HTI-404
DVB-S/S2
• Frequency (MHz): it allows to select the intermmediate frequency value to be received.
• Diseqc input: it allows to select the multiswitch signal (or the LNB signal) to be received.
• Sat. Frequency Transponder (MHz): it allows to select the frequency value of the transponder to be
received. By modifying this parameter, the value of the Frequency field is automatically updated and vice versa.
• Advanced parameters: it allows to show or hide the advanced parameters related to the reception of
multistream signals. They are the following:

PLS Mode: choose between Auto, Root or Gold modes.
Scrambling ID: enter the scrambling identifier related to the selected PLS mode (it does not appear
with PLS Auto Mode).

Stream ID: choose the specific stream of the multistream signal that you want to receive.
DVB-T/T2
• Frequency (MHz): it allows to select the frequency value of the multiplex to be received.
• Bandwitdth (MHz): it allows to select the bandwith of the multiplex to be received.
• Advanced parameters: it allows to show or hide the advanced parameters related to the reception of
DVB-T/T2. They are the following:
Hierarchy: in broadcasting with several hierarchies, it allows to select the hierarchy of the signal to
be received.
Autoscan: it allows to enable or disable the automatic scan of the DTT inputs in case of a change in
the frequency plan.

PLP ID: choose the specific PLP that you want to receive in the case of a signal with multiple PLPs.
DVB-C
• Frequency (MHz): it allows to select the frequency value of the multiplex to be received.
• Constellation: it allows to select the constellation of the input signal. In the case it is configured as
"Auto", the module will detect the constellation automatically.
• Symbol Rate (Kbaud): it allows to select the symbol rate of the multiplex to be received.
Once the parameters of each input have been selected, push you want to discard them, push
icon.
icon to save the changes. If, however,
Tuning status (Locked or Unlocked) will appear in each of the inputs. Also, an icon indicating the level of signal and its quality, where red is bad quality, yellow medium quality and green good quality, will be displayed.
19
Page 20
Web Interface guide HTI-404
4.2.2 Outputs

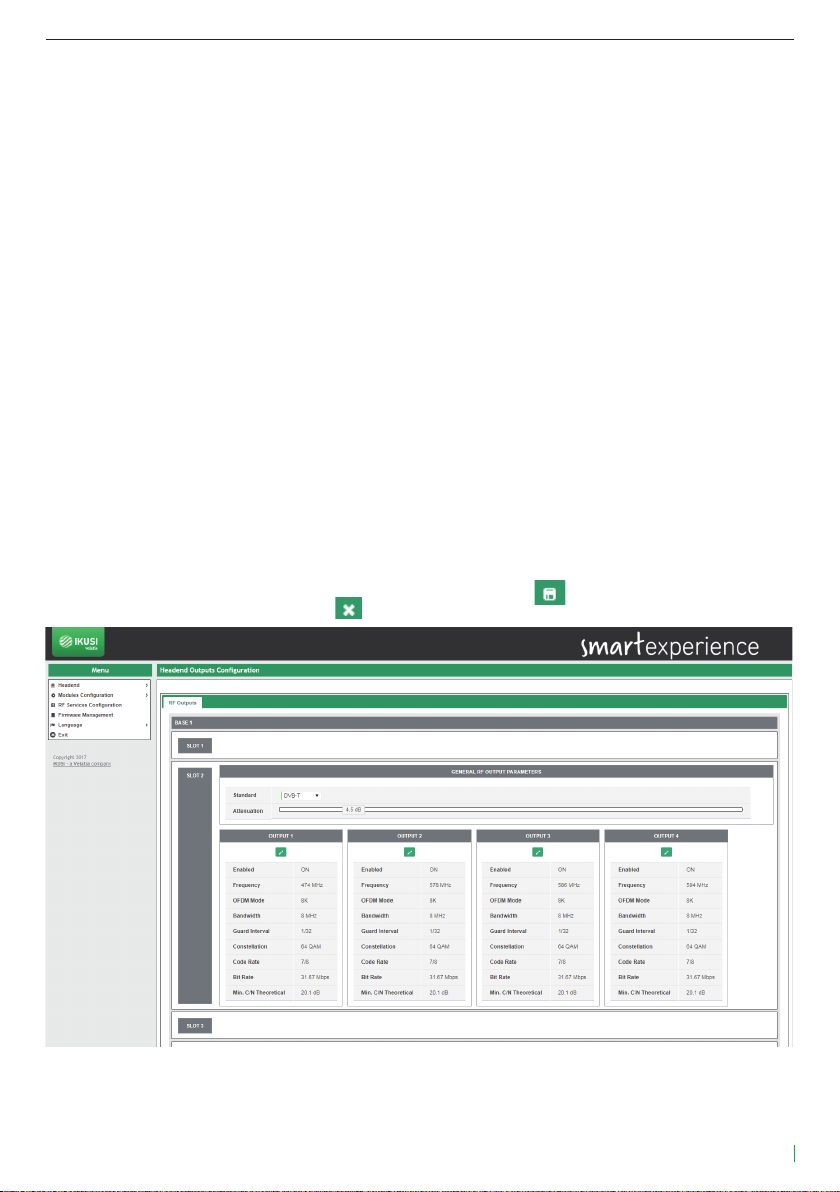

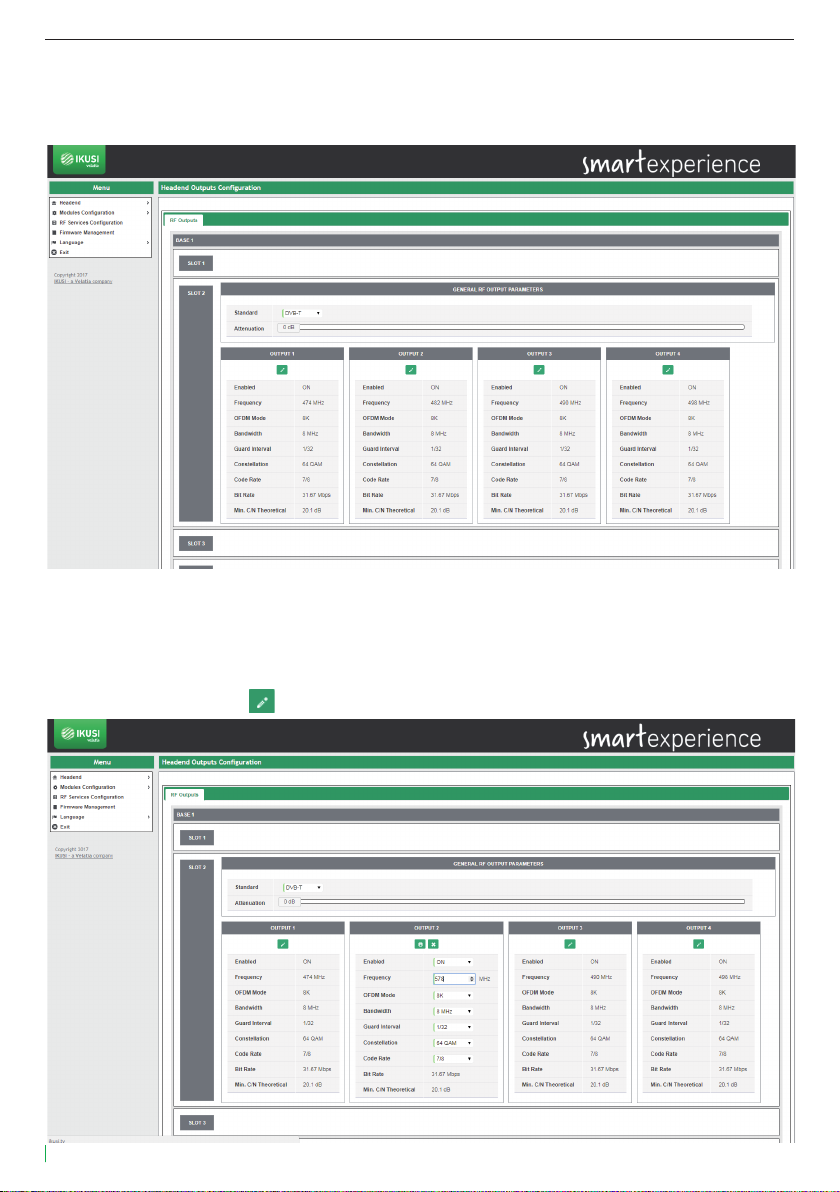

To configure the output carriers you want to transmit, select Modules Configuration Outputs. A window as the following one will open:
In this screen the output configuration of each module is displayed. This configuration is divided into two parts: a global part associated with the module and another part associated with each of the carriers.
In the global configuration, the output standard (DVB-T or DVB-C) and output attenuation (using a scroll bar) will be selected.
In the configuration associated with the output carriers, the four outputs of each HTI are shown. To confi­gure one of them, select the
icon associated with that output.
20
Page 21
Web Interface guide HTI-404
To enable an output carrier, select Enabled ON. Otherwise, select OFF.
The rest of parameters to configure will depend on the selected standard, in the following way:
DVB-T
• Frequency (MHz): it allows to select the frequency value of the carrier to be generated.
• OFDM Mode: it allows to select the number of subcarriers of the output COFDM carrier to be generated
(2K or 8K).
• Bandwith (MHz): it allows to select the bandwidth of the output carrier to be generated. Choose between
6 MHz, 7 MHz and 8 MHz.
• Guard Interval: it allows to select the guard interval of the output carrier to be generated. Choose bet-
ween 1/4, 1/8, 1/16 and 1/32.
• Constellation: it allows to select the constellation of each one subcarrier of the COFDM output carrier.
Choose between QPSK, 16QAM and 64QAM.
• Code Rate: it allows to select the value of the convolutional code rate used as error protection. Choose
between 1/2, 2/3, 3/4, 5/6 and 7/8.
DVB-C
• Frecuency (MHz): it allows to select the frequency value of the carrier to be generated.
• Symbolrate: it allows to select the symbol rate of the output carrier to be generated.
• Constellation: it allows to select the constellation of the output carrier. Choose between 16QAM, 32QAM,
64QAM, 128QAM, 256QAM.
Once the parameters of each output carrier have been selected, push however, you want to discard them, push icon.
icon to save the changes. If,
21
Page 22
Web Interface guide HTI-404
For informative purposes, the following data will appear in each of the outputs:
• Bit Rate (Mbps): it is the capacity of the carrier to transport information, in Mbps.
• Min C/N Theoretical (dB): it is the minimum C/N value that the signal must have at the reception point to
make possible its demodulation without erroneous bits.
Both data are theoretical and only depend on the selected modulation.
4.3 RF services configuration
Through the RF Services Configuration menu you can select which services you want to receive and in which output carrier they will be broadcasted. In addition, you can customize these services by changing their name, blocking certain streams or editing their LCN value. To access this menu, select RF Services Configuration. A window as the following one will open:
This window is composed of several tabs, one for each slot of the headend, plus one with the complete list of services broadcasted by the headend.

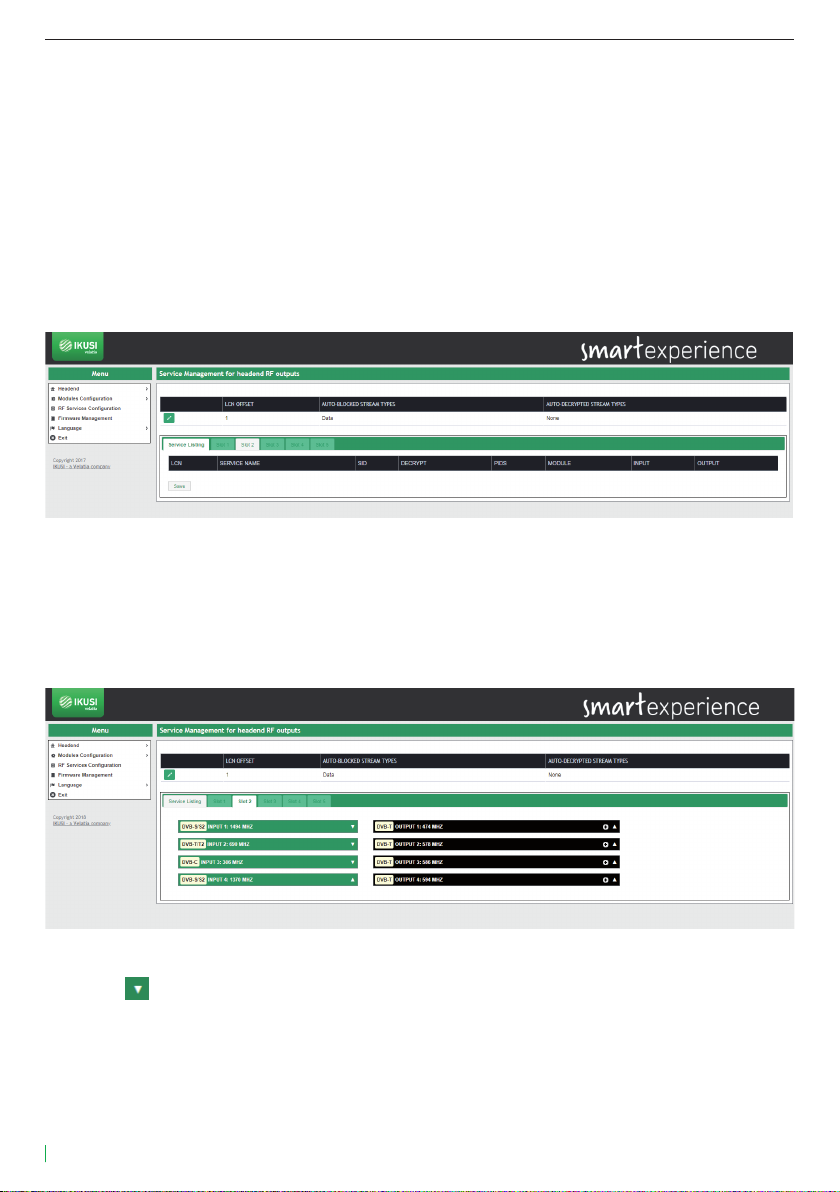

To add services in one of the modules, click the associated slot tab. A window as the following one will open:
In this window, four drop-down boxes appear on the left, one for each input, and on the right four others, one for each output. To add a service to the output channel lineup, first expand the input where the service is, pushing icon.
22
Page 23
Web Interface guide HTI-404
A list with all the services available in that input will appear. In that list, the encrypted services will be
identified with the

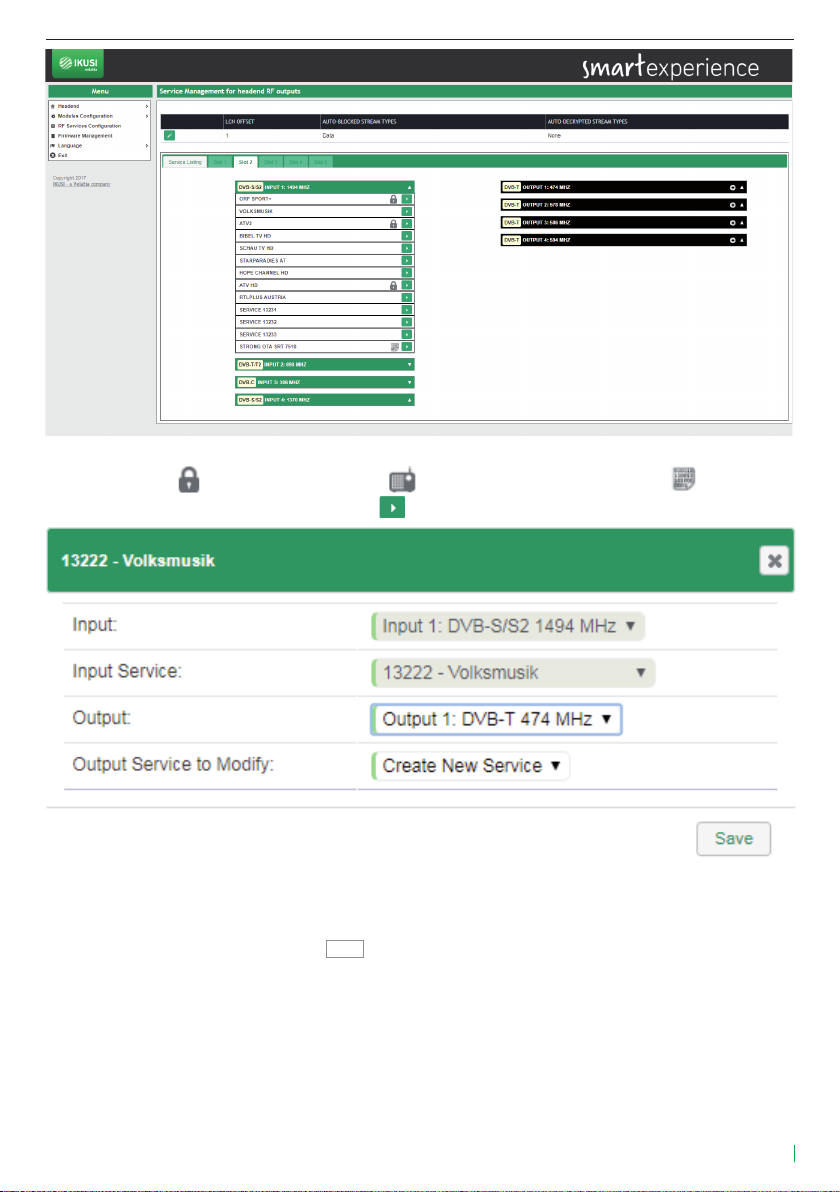

Select the service you want to add and pushing
, icon, the radios with the icon and the data services with the icon.
icon. A window as the following one will open:
In this window you can choose the output carrier to which the service will be added. You can also choose between creating a new service or reusing the space and signaling of an existing one in the output. In this example, since there are still no services in the outputs, we have chosen to create a new one. Once the desired changes have been made, push
button. The service will appear in the selected output.
Save
23
Page 24
Web Interface guide HTI-404
Repeat the process with all the services that you want to add.
The HTI headends also oer the option of presetting backup channels (empty services) that will allow to increase the lineup in the future without the need of launch a scan in the TVs. To create an empty service, push
icon in the output where you want to create the backup channel. A window as the following one
will open:
24
Page 25
Web Interface guide HTI-404

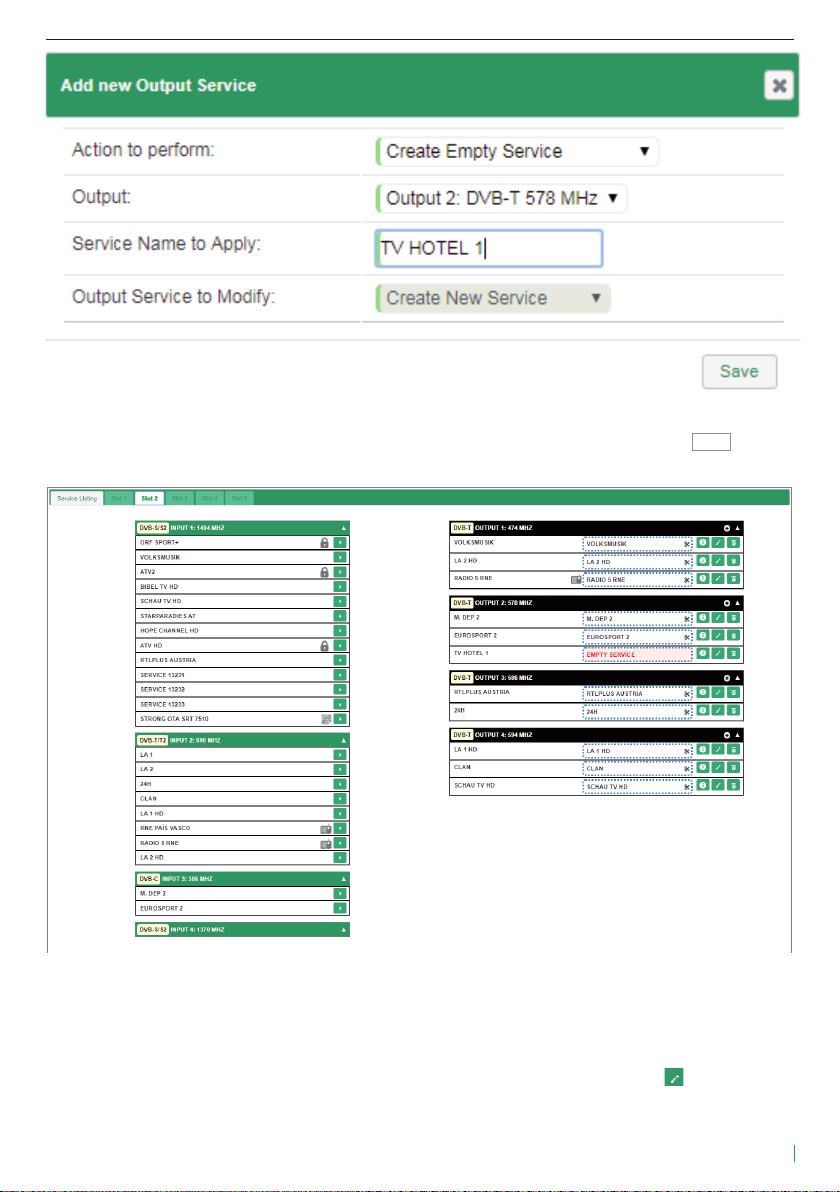

Enter the name you want to assign to the service (in the example, TV HOTEL 1) and push the
Save
button.
When launching a scan in the TVs, all the services will be stored in memory, empty services too. These backup services could be used in the future for conveying new contents, without the need of rescanning the TVs. In the same way, HTI headends allow to replace the content of an existing services by another one, without the need of rescanning the TVs of the facility.
To add content to an empty service or to replace the content of an existing service, push ted with that service. A window as the following one will open:
icon associa-
25
Page 26
Web Interface guide HTI-404

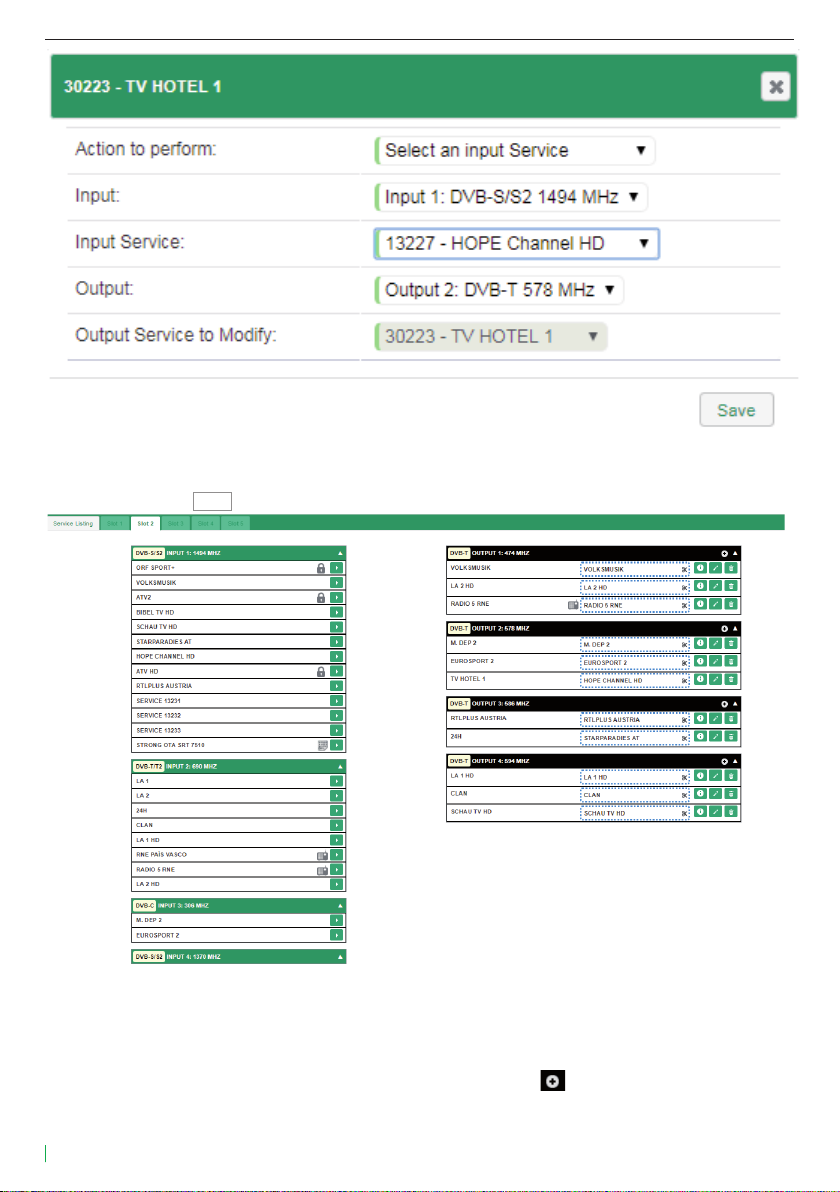

Select the input from which the service will be extracted. In Input Service drop-down select the new con-
tent that will be conveyed by the service already scanned in the TVs. Once the service configuration has
been modified, push
Save
button.
In the example above, HOPE CHANNEL HD service has been added in the TV HOTEL 1 empty service room
and the content of 24H service has been replaced by STARPARADIES AT service.

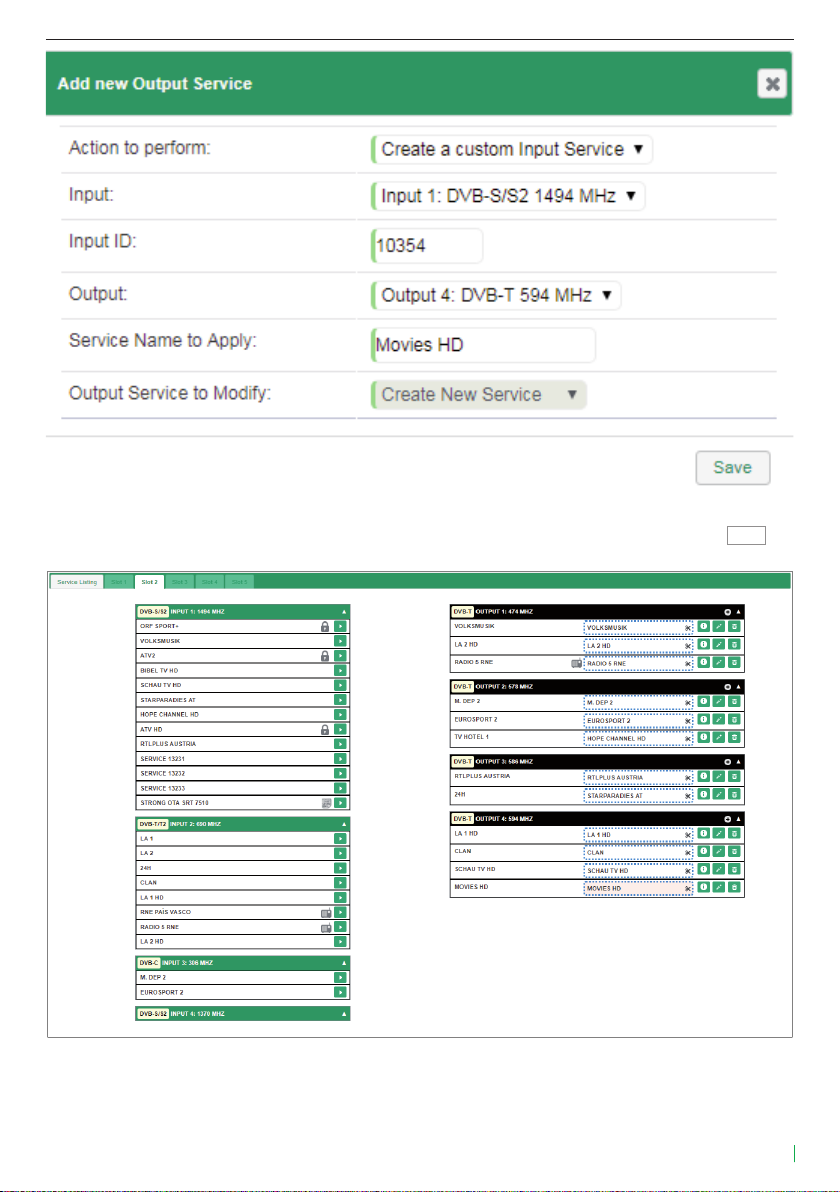

Finally, a service that is not currently being broadcasted can also be added to the channel lineup (for
example, services that are only broadcasted at night). To do this, push
iconon the output in which you want to broadcast this service and choose "Create a custom Input Service" in the "Action to perform" drop-down.
26
Page 27
Web Interface guide HTI-404
Enter from which input the service will be extracted, what is its SID (Service Identifier), what name will be assigned to the service and in what output will be broadcasted. To save the changes, push the
Save
button.
The added custom service will be highlighted on a pink background, which will turn white as soon as the service is available at the input.
Besides adding services, in this same tab you can perform the following actions:
27
Page 28
Web Interface guide HTI-404

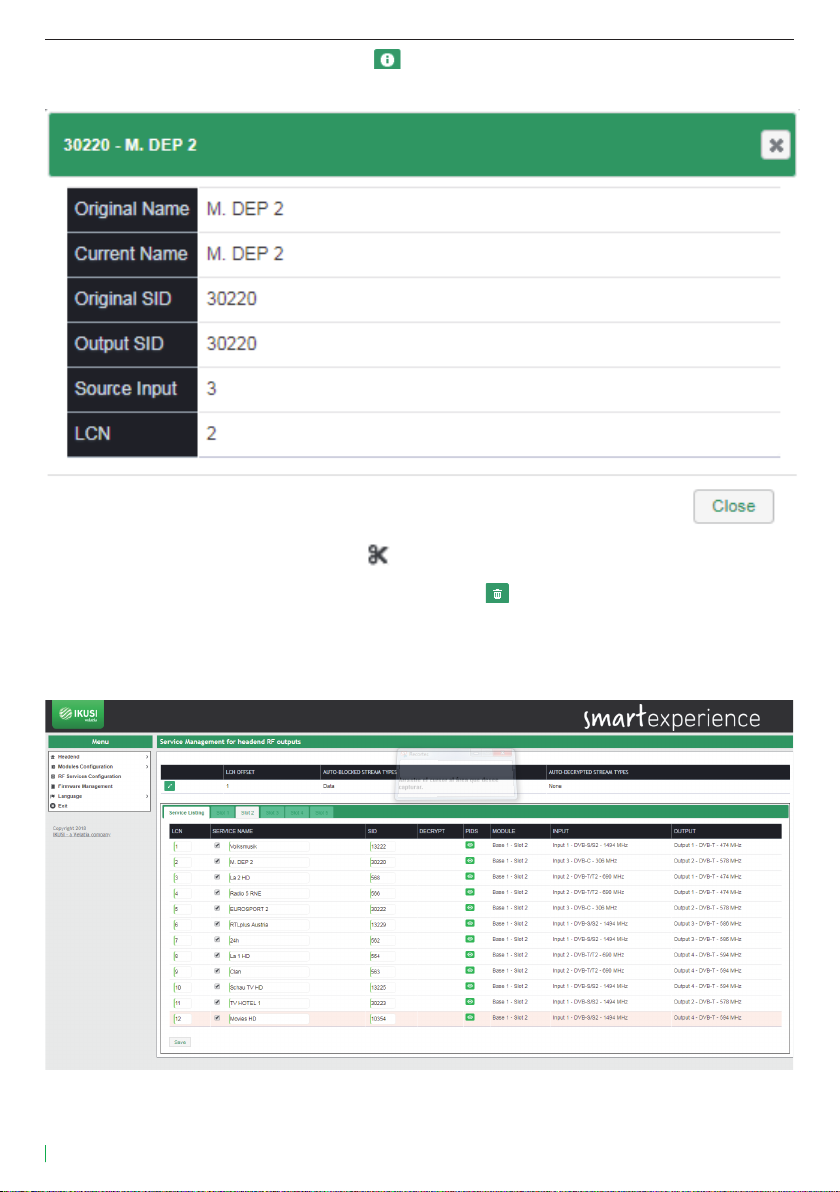

• To obtain information of the service. Pushing , icon, a window with information about name, SID and
LCN will open.
• To remove the content of a service. Pushing , icon, the content of the current service will be elimina-
ted, becoming an empty service.
• To remove a service from the output channel lineup. Pushing
, icon, the service will be completely
eliminated from the output channel lineup.

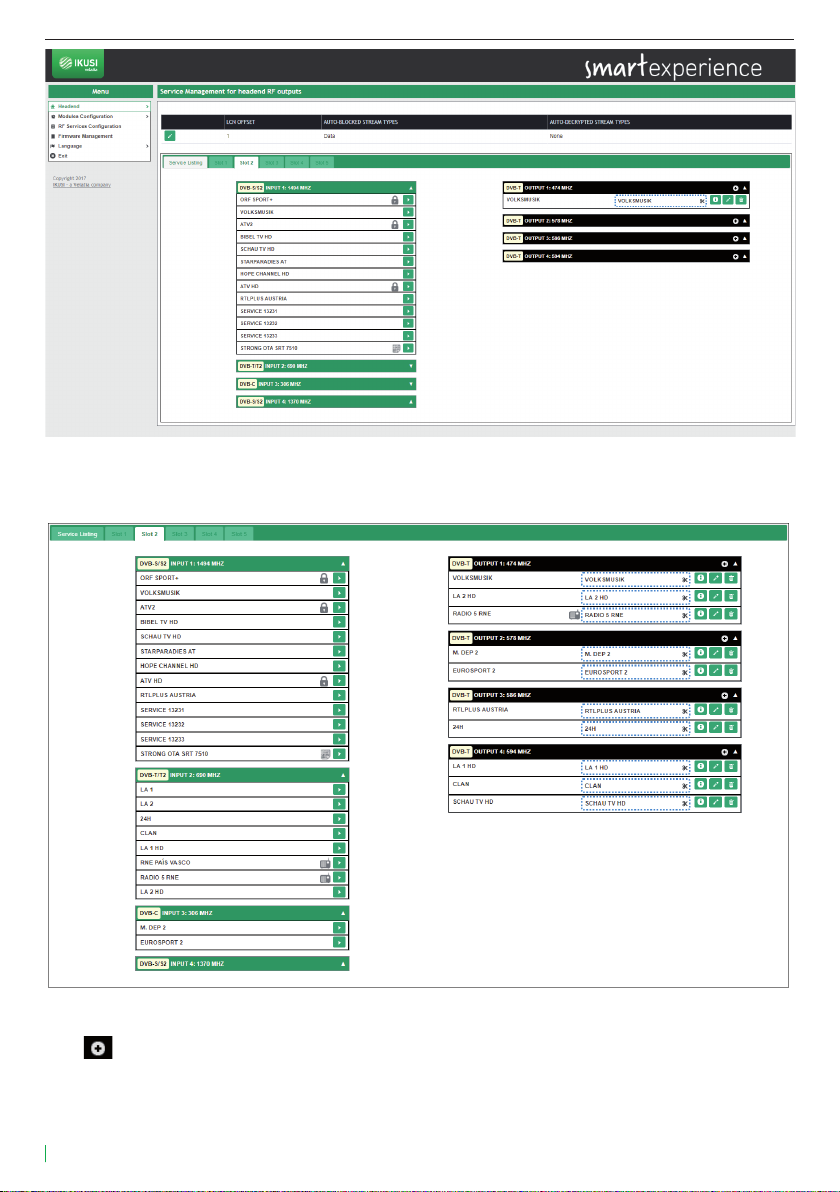

To see the final result of the channel lineup, select the Service Listing tab. A window as the following one will be displayed:
This window shows a list with all the services generated by the headend. In addition, several global confi­guration options appear at the top.
28
Page 29
Web Interface guide HTI-404
The following fields appear in the list of services:
• LCN: it is the value of the Logical Channel Number associated with the service. It is an editable value for the user.
• SERVICE NAME: it is the name of the service that will be transferred to the TVs. It is an editable value for the user. To force this name and to not depend on the name of the service in the input, enable the checkbox that appears on the left. On the other hand, if you want the name to change as the input name changes, leave the checkbox disabled.
• SID: it is the value of the Service Identifier associated with the service. It is an editable value for the user.
• DECRYPT: it is a field reserved for future modules that will include the ability to decrypt. .
• PIDS: it allows to modify the management of the elementary streams. Pushing
icon, a window will open, where the user can force the blocking of a specific PID, pass it to the output or let the headend makes the decision of processing it or not.
• MODULE: it indicates in which module the service is being processed.
• INPUT: it indicates which input is receiving the service
• OUTPUT: it indicates which output carrier is broadcasting the service.
Global options are edited by pushing
icon and they are the following ones:
• LCN OFFSET: it is the value from which the headend proposes LCNs.
• AUTO-BLOCKED STREAM TYPES: it indicates whether the Teletext, Subtitle or Data streams are automa-
tically blocked.
• AUTO-DECRYPTED STREAM TYPES: it indicates whether the Teletext, Subtitle or Data streams are auto­matically decrypted.
4.4 Firmware management
Firmware Management option allows to upgrade the headend with a new firmware version.
NOTE: the HTI headend does not allow to downgrade the modules to an older version.

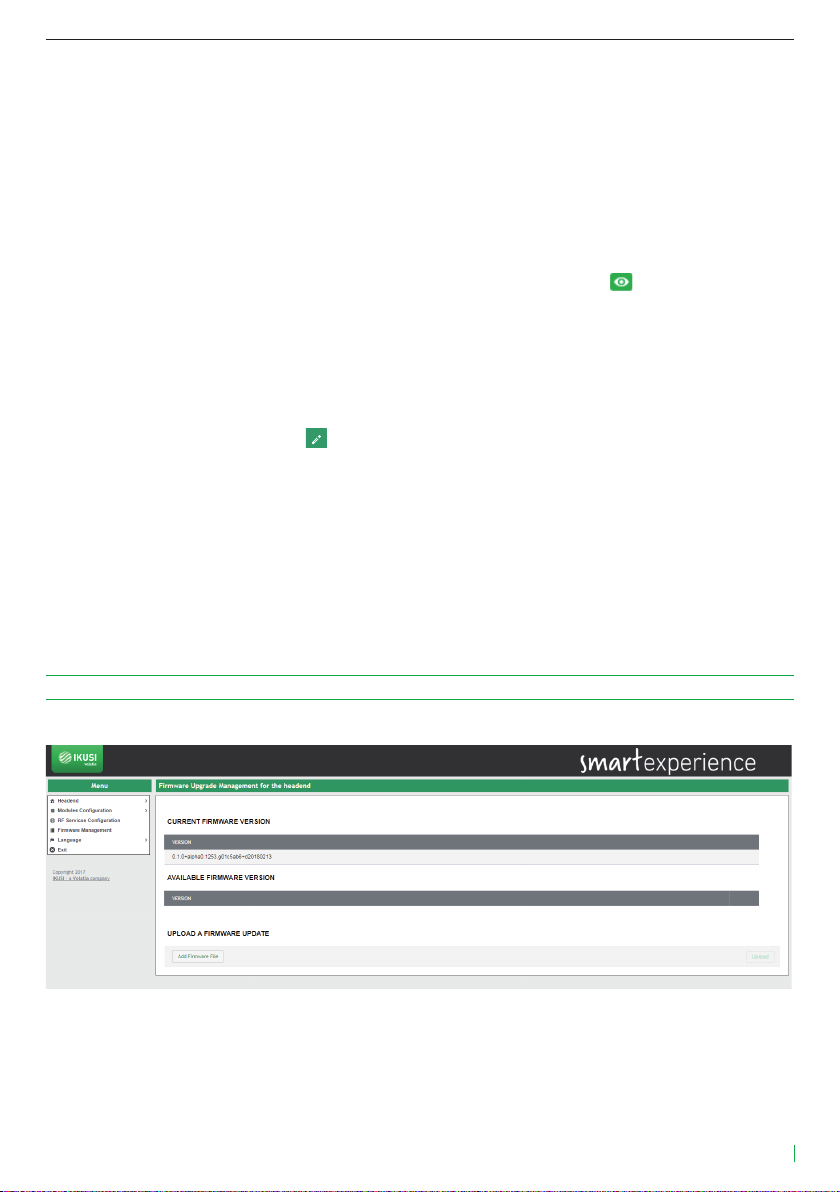

The screen to manage firmware files is as follows:
This screen is divided into three blocks:
• CURRENT FIRMWARE VERSION: it informs about the firmware version of the headend.
• AVAILABLE FIRMWARE VERSION: it allows to upgrade the whole headend with a firmware version that,
previously, has been uploaded from the PC. Push Install button to upgrade the headend with this version.
29
Page 30
Web Interface guide HTI-404
• UPLOAD A FIRMWARE UPDATE: use this option to upload to the headend a firmware version. Select the firmware through
Add Firmware File
button. After that, push Upload button. Once the firmware has
been uploaded, it will appear in the AVAILABLE FIRMWARE VERSION section.
To update the headend, push the
Install
button associated with the desired firmware version. If ne­cessary, upload the version previously through the web interface, using UPLOAD A FIRMWARE UPDATE option.
After pushing the
button, the upgrade progress screen will open.
Install

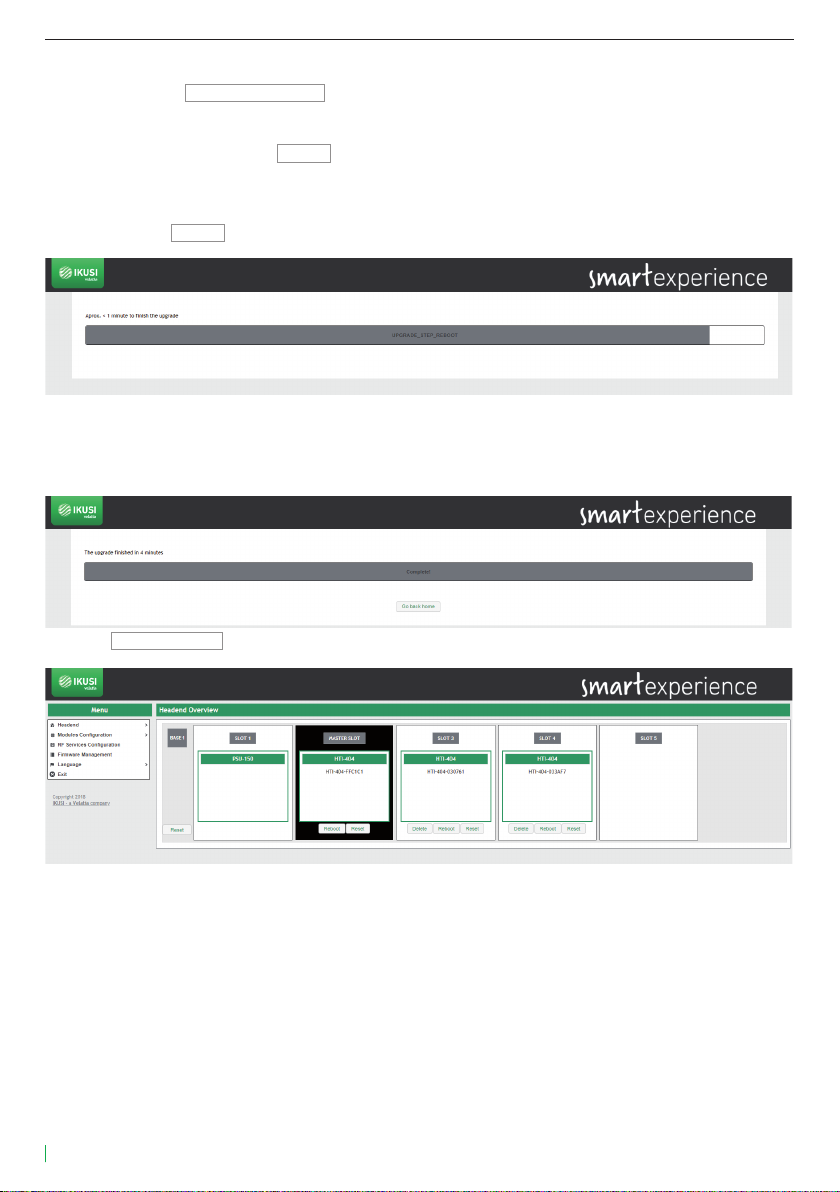

This screen shows an estimate of the time remaining to complete the update, a progress bar indicating
the progress of the update and information on what action is currently running.
At the conclusion of the upgrade, a message will appear as follows:
Push the
Go back home
button. The web interface will redirect you to Overview screen.
4.5 Language
Language menu allows to select the language you want the interface will be shown.
4.6 Exit
Select this option to close the session with the headend. The browser will redirect you to the welcome
screen.
30
Page 31
5. EQUIPMENT RECYCLING
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT
(Applicable in the European Union and in European countries with selective waste collection systems)
This symbol on your equipment or its packaging indicates that this product cannot be treated as general domestic waste and must be handed in at the corresponding point of collection for electric and electronic equipment. By ensuring this product is disposed of correctly you will help prevent negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. Recycling of materials helps preserve natural resources. For more detailed information on the recycling of this product, please contact your local council, your nearest collection point or the distributor from whom you purchased the product.
Web Interface guide HTI-404
31
Page 32
Paseo Miramón, 170 20014 San Sebastián Gipuzkoa, España Tel.: +34 943 44 89 44 Fax: +34 943 44 88 20 television@ikusi.com www.ikusi.tv
Web Interface guide HTI-404_en
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
