Ik Multimedia iRig Stream Solo USER MANUAL

3-in, mono out streaming audio interface

USER MANUAL

Contents

Table of Contents

Contents 2

English 3

iRig Stream Solo 3
Register your iRig Stream Solo 3
Installation and setup 4
Connection examples 9

Connecting headset/phones 9
Connecting line level signal to the RCA inputs 10
Using the loopback function 11

Troubleshooting 11
Specifications 12
Warranty 13
Support and more info 13

Regulatory 14

2

English

iRig Stream Solo

Thank you for purchasing iRig Stream Solo.

Your package contains:

• iRig Stream Solo.

• 2xAA batteries.

• Registration Card.

iRig Stream Solo is an easy-to-use audio interface for iPhone, iPad and Android that lets you connect up to 3
distinct sources and mix them into your stream. Connect mixers or keyboards, your earbuds or iRig mics, and
even audio played right on your device, and mix them together into a signal that’s optimized for streaming and
sent straight to your favorite apps.

It’s all you need to start streaming in a compact and battery-powered format.

Register your iRig Stream Solo

By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will
be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also
keeps you informed of all the latest software updates and IK products.

Register at: www.ikmultimedia.com/registration

3

English

Installation and setup

1. Insert the supplied AA batteries into the battery compartment of iRig Stream Solo.

2. Connect the iRig Stream Solo to the host device headphone socket. You will require a suitable adaptor (not
supplied) if your phone or tablet does not provide a headphone socket. If there is sufficient battery power (ie.
with new batteries) the LED in the iRig Stream Solo will display green.

*Not included

*

GREEN

GREEN

4

English

3. Download and launch the app.

iRig Recorder

LE

ikdownloads.com/irigstreamsolo

4. Connect any line level signal (such as from an audio mixer) to the two front RCA input sockets. To adjust the
volume of the device connected to these connectors, use the volume controls of that device and the Stream
Level thumbwheel on side of iRig Stream Solo.

RCA

5

English

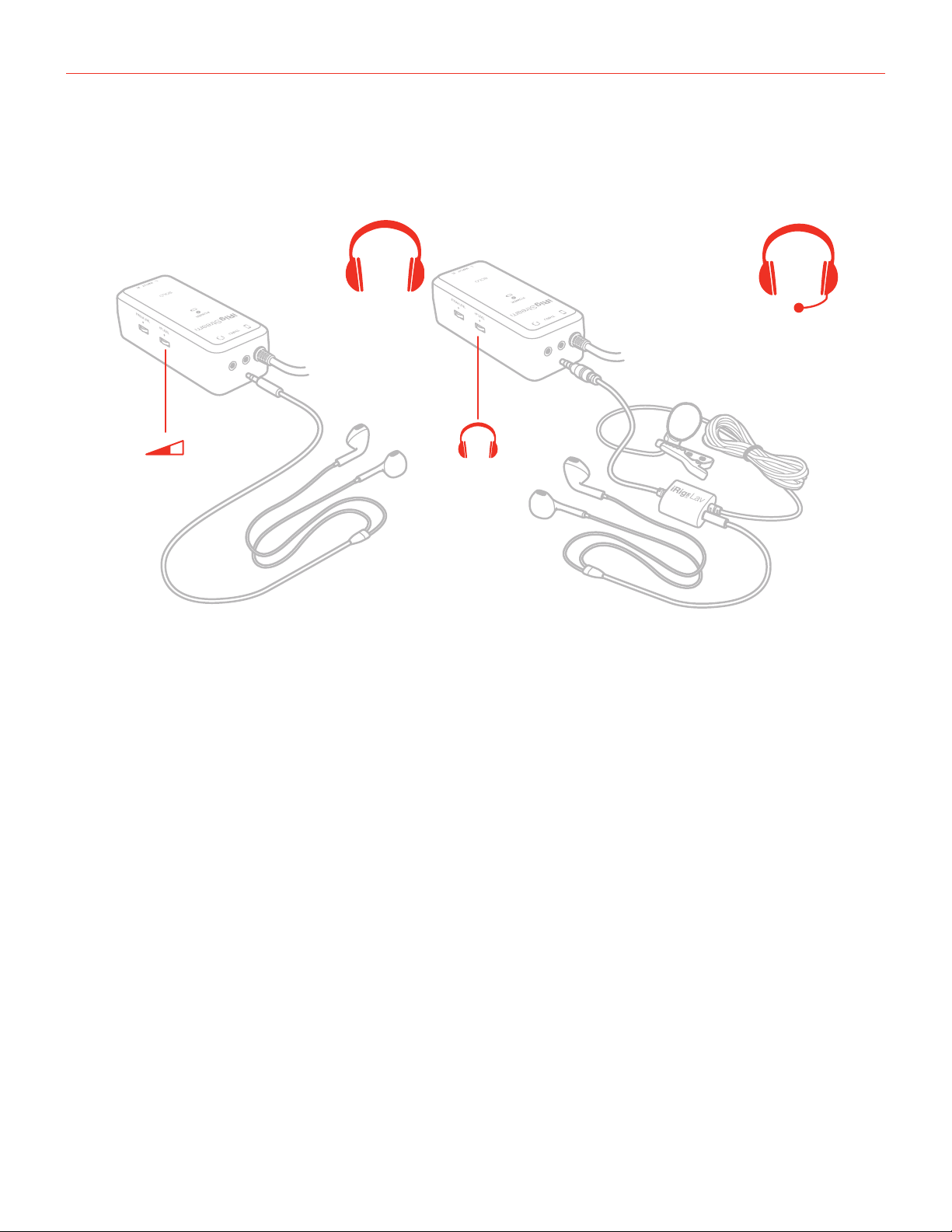

5. Connect a TRRS headset (compatible with CTIA standard) or an iRig analog microphone to the 1/8”
Headset/Phone jack. You can adjust the microphone level with the Stream Level thumbwheel and the
headphone level with the HP Level thumbwheel. Alternatively, you can directly connect a pair of headphone
to the Headset/Phone jack and set its level with the HP Level thumbwheel.

1/8"
TRS

1/8"
TRRS

6

English

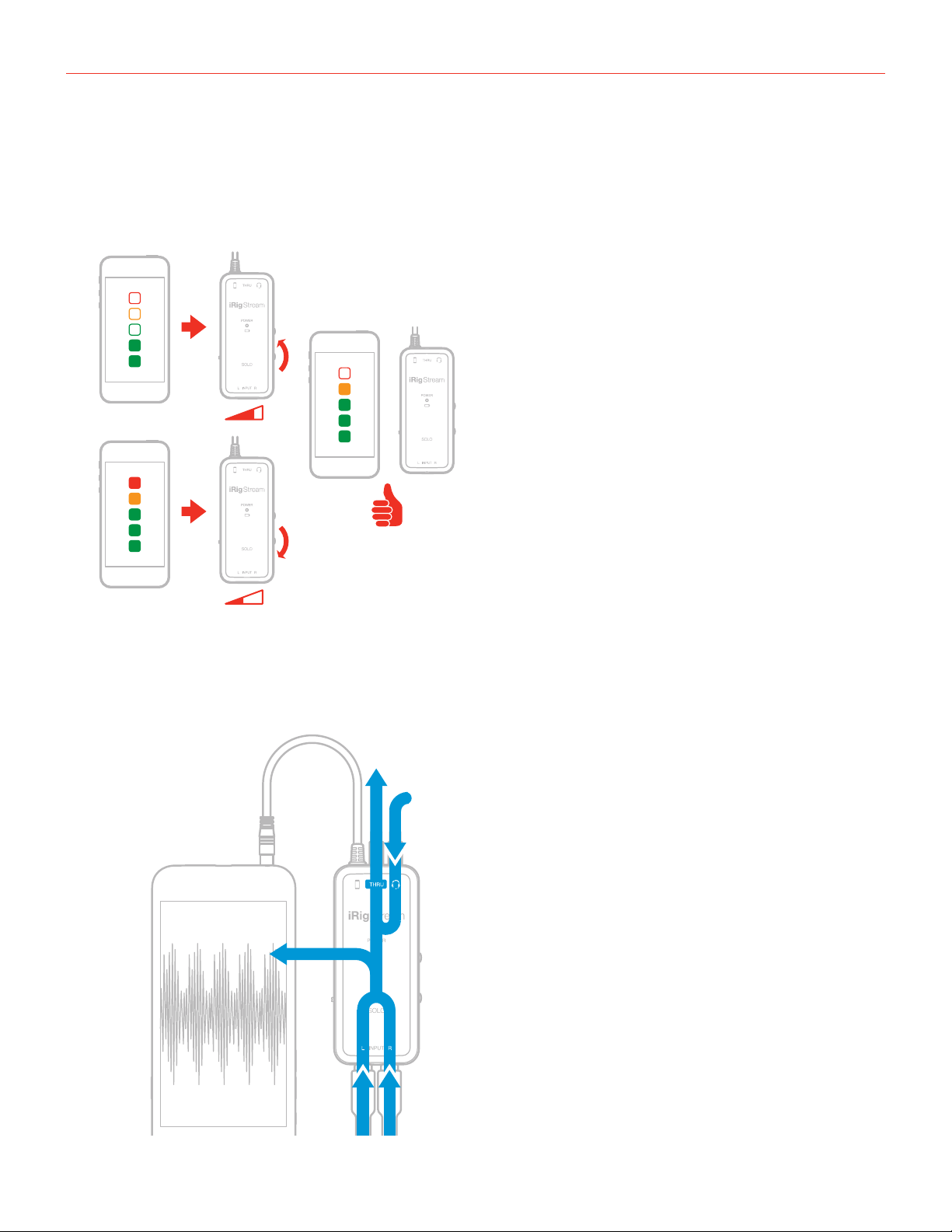

6. The main Level knob lets you control the overall audio input streaming level coming from the RCA line input
and from the (eventually) connected microphone/headset. Check the input level meter on the app you are
using to record (like iRig Recorder). This level meter should peak as high as possible but should never reach
the maximum or clipping level.

STREAM

LEVEL

7. Connect an external mixer, PA or any other device with a line input to the THRU output port. This is a mono
line level output that carries the mix of the RCA and headset input. Please note that the level of this output
won’t be controlled by the Stream Level thumbwheel.

THRU

7

English

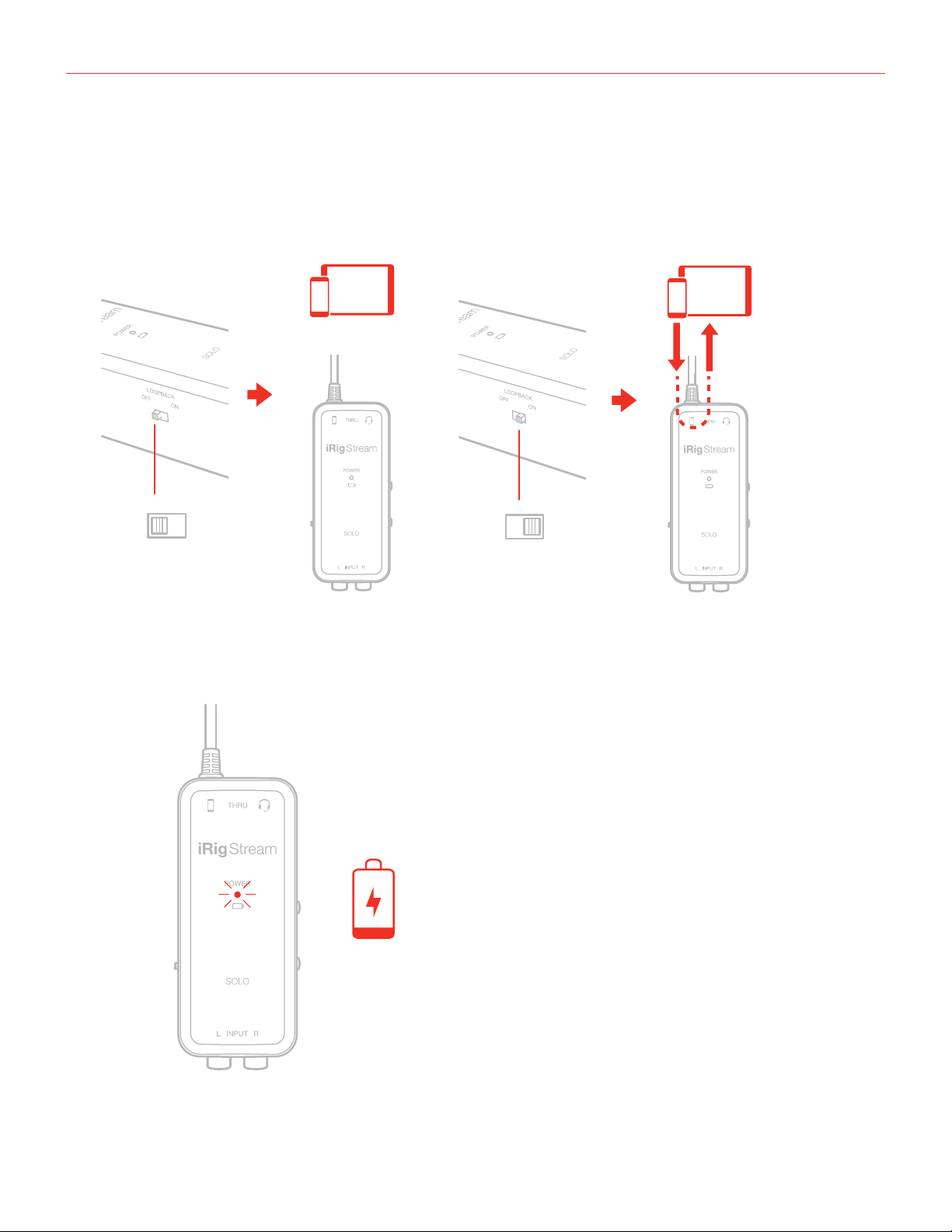

9. With the Loopback function turned on, the audio that is input to the iRig Stream Solo from your host via
TRRS is returned back to the host. Also in this case, the main Level knob will control the overall level that is
recorded.

OFF

LOOPBACK

10. When the battery level is low the LED will turn on RED. Replace the batteries as soon as possible.

LOOPBACK

ON

RED

LOW

8

English

Connection examples

Here are some examples of connecting mic or line level signals to iRig Stream Solo.

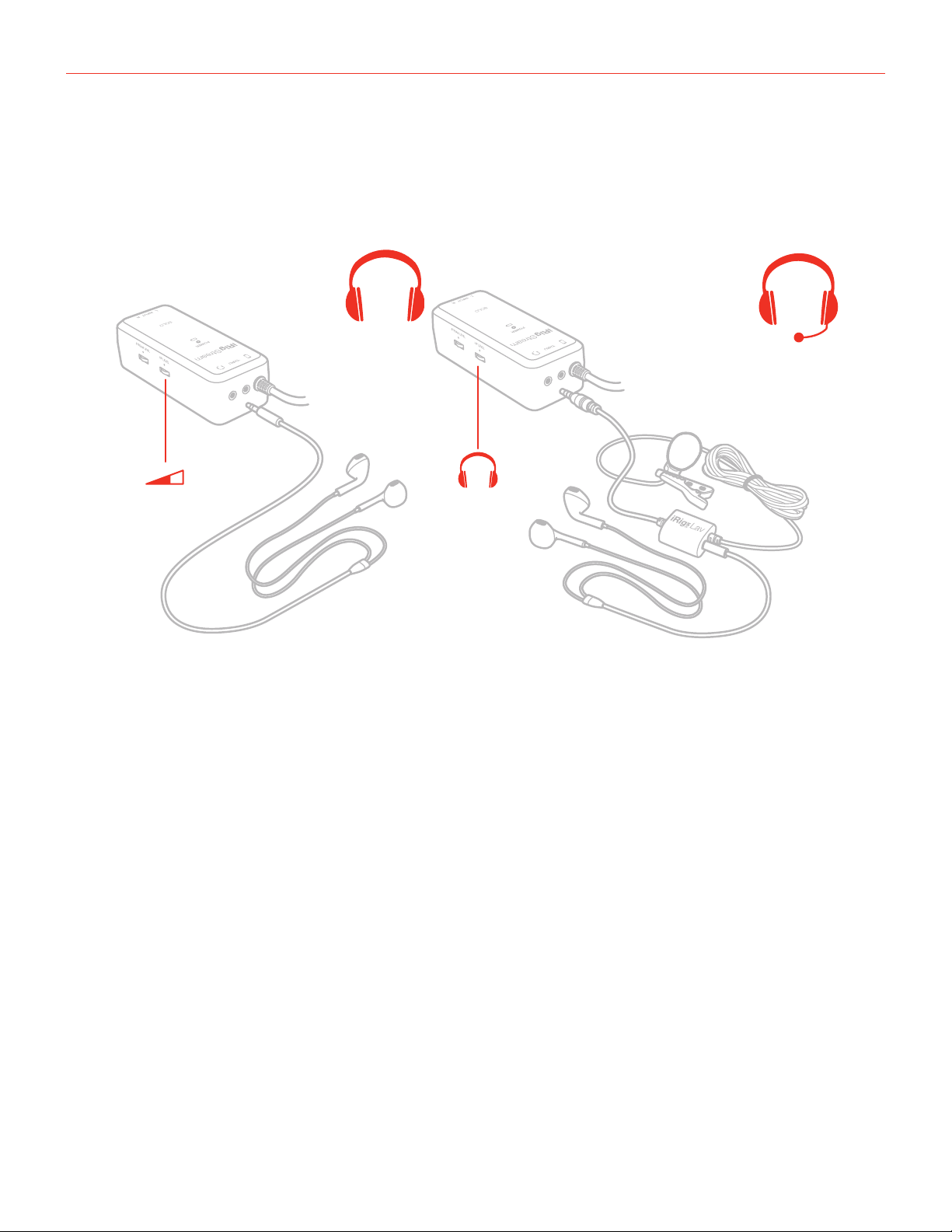

Connecting headset/phones

1/8"
TRS

Connect a TRRS headset (compatible with CTIA standard) or an iRig analog microphone to the 1/8” Headset/
Phone jack. You can adjust the microphone level with the Stream Level thumbwheel and the headphone level
with the HP Level thumbwheel. Alternatively, you can directly connect a pair of headphone to the Headset/
Phone jack and set its level with the HP Level thumbwheel.

1/8"
TRRS

9

English

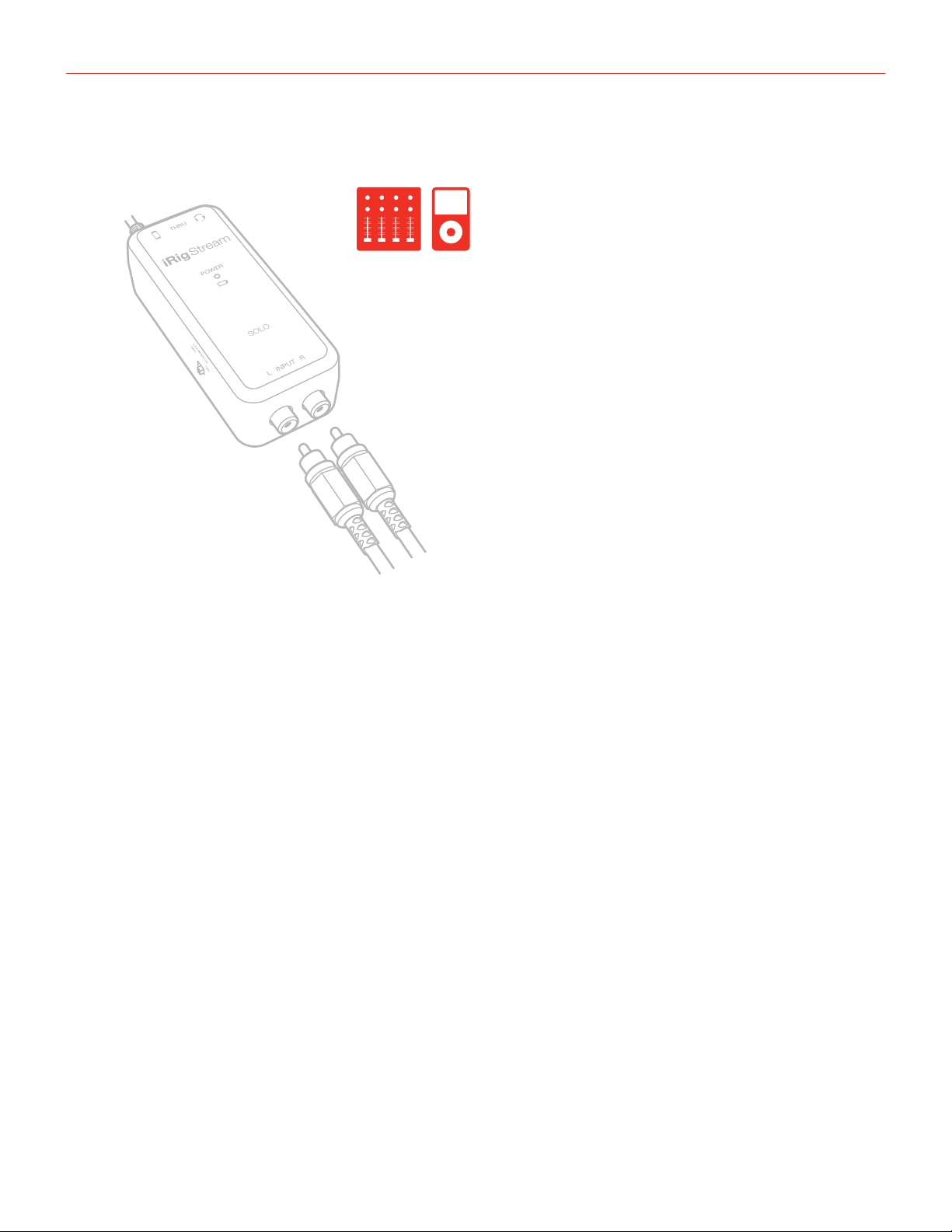

Connecting line level signal to the RCA inputs

RCA

It is possible to connect any line level source to the RCA inputs. This signal can come from an mp3 player, a
computer or an audio mixer. The main Stream Level thumbwheel adjusts the overall volume that is recorded. To
adjust the volume of the device connected to the RCA inputs, use the volume controls of the device.

IMPORTANT: please note that these are line level inputs and not PHONO inputs so, PHONO signal, needs to be
converted to a LINE LEVEL signal before to be connected.

10

English

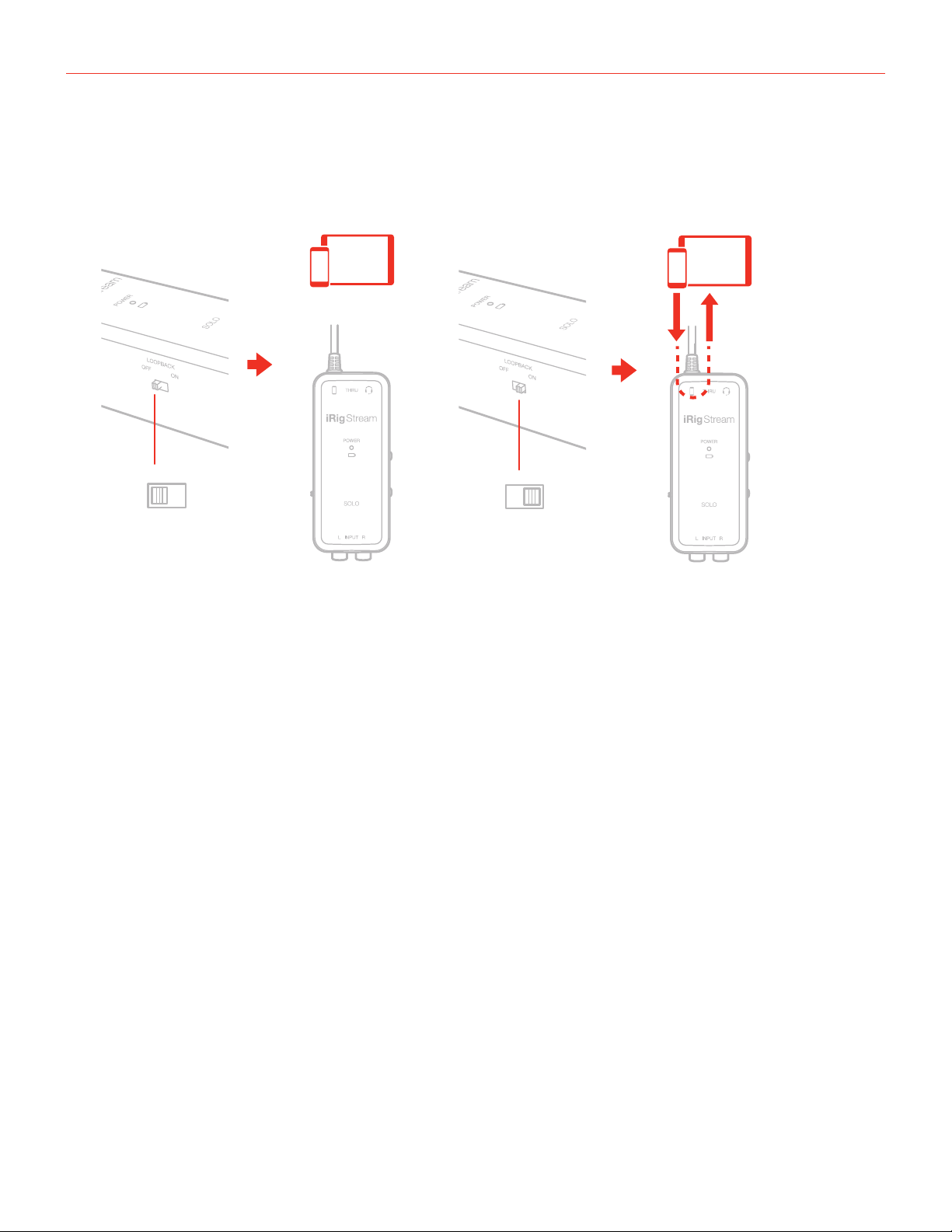

Using the loopback function

OFF

LOOPBACK

With the LOOPBACK function turned on, the audio that is input to the iRig Stream Solo from your host via TRRS
is returned back to the host. The main Stream Level thumbwheel will control the overall level that is recorded.

LOOPBACK

ON

Troubleshooting

Sound is distorted.

Check that the input level on iRig Stream Solo has been set properly: if your recording sounds distorted you
may need to decrease the Stream Level with the dedicated thumbwheel

A “phasing” sound is present while monitoring the incoming signal.

In order to monitor the incoming audio with apps and software that do not allow for audio input monitoring,
a direct monitoring function is always enabled on iRig Stream Solo. If a “phasing” effect is present, you can
disable the input monitoring from your recording app. For more details about its monitoring function, refer to the
documentation for your audio software.

11

English

Specifications

Common

Power: 2x AA batteries

Metering: Battery status LED

Device Connection: captive 1/8” / 3.5mm TRRS jack - CTIA/AHJ wiring standard

Dimensions: 45 x 105 x 34 mm

Weight (without batteries): 74g

Line input

Connector: 2x RCA (unbal.) Left/Right

Nominal Input Level: -10 dBV

Head Room: 9 dB

Input Impedance: 15 kOhms

Frequency Response: from 20 Hz to 20 kHz (-3 dB)

Headset/Phone

Connector: 1/8” TRRS jack (CTIA wiring standard)

Supply voltage: >= 2,5 V

Microphone gain: Fixed at 27dB

Headphone frequency response: from 20 Hz to 20 kHz (-3 dB)

Microphone frequency response: from 50 Hz to 20 kHz (-3 dB)

Headphone Level control: numbered thumbwheel

Thru out

Connector: 1/8” TRS jack

Frequency Response: rom 20 Hz to 20 kHz (-3 dB)

Battery Life

+50 hours (Alkaline batteries)

12

English

Warranty

Please visit:

www.ikmultimedia.com/warranty

for the complete warranty policy.

Support and more info

www.ikmultimedia.com/support

www.irigstreamsolo.com
