Contents

Table of Contents

Contents 2

English 3

iRig Stream 3
Register your iRig Stream 3
Overview 4
Installation and setup 5
Connecting iRig Stream to Mac/Pc 9
iRig Stream signal LEDs 9
Connection examples 10

Connecting headset/phones 10
Connecting line level signal to the RCA inputs 11
Connecting RCA and headset 11
Using the loopback function 12
Using the mono function 12

Troubleshooting 13
Specifications 13
Warranty 14
Support and more info 14

Regulatory 15

2

English

iRig Stream

Thank you for purchasing iRig Stream.

Your package contains:

• iRig Stream.

• Lightning cable.

• USB-A cable.

• USB-C cable.

• Quick Start Guide.

• Registration Card.

The iRig Stream is a compact MFi audio streaming interface perfect for the musician or content creator on
the go. The iRig Stream pre-mixes multiple sources of audio (line input and microphone) down to a Stereo (or
Mono) track that’s routed to your favorite streaming media service. And for true ready-to-go convenience, the
iRig Stream delivers continuous use via USB power (device powered) or, alternatively, it can be connected to an
optional PSU that will charge the connected iOS device.

Register your iRig Stream

By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will
be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also
keeps you informed of all the latest software updates and IK products.

Register at: www.ikmultimedia.com/registration

3

English

1

4

Overview

2

3

8 9 10

1_ mini-DIN host connection

2_ LED signal meter

3_ Main Level knob

4_ RCA line inputs

5_ Microphone gain control

6_ Headset/Phones jack

7_ Phones level control

8_ DC input for optional PSU

9_ Loopback switch

10_ Mono switch

5 6 7

4

English

Installation and setup

1. Connect the iRig Stream to the host device with the provided cable (Lightning, USB-A and USB-C).

1

2

2. Download and launch the app.

1

2

iRig Recorder

LE

ikdownloads.com/irigstream

5

English

3. In order to allows you to monitoring the incoming audio with apps and software that do not allow for audio
input monitoring, a direct monitoring function is always enabled on iRig Stream. If a “phasing” effect is
present, you can disable the input monitoring from your recording app. For more details about its monitoring
function, refer to the documentation for the audio software.

4. Connect any line level signal to the front RCA stereo input. To adjust the volume of the device connected to
these connectors, use the volume controls of that device and the Level knob on top of iRig Stream.

RCA

5. Connect a TRRS headset (compatible with CTIA standard) or an iRig analog microphone to the 1/8”
Headset/Phone jack. You can adjust the microphone level with the Mic thumbwheel and the headphone
level with the Phones thumbwheel. Alternatively, you can directly connect a pair of headphone to the
Headset/Phone jack and set its level with the Phones thumbwheel.

1/8" TRRS

1/8" TRS

6

English

6. The main Level knob lets you control the overall audio input streaming level coming from the RCA line input
and from the (eventually) connected microphone/headset.

BLUE

GREEN

RED

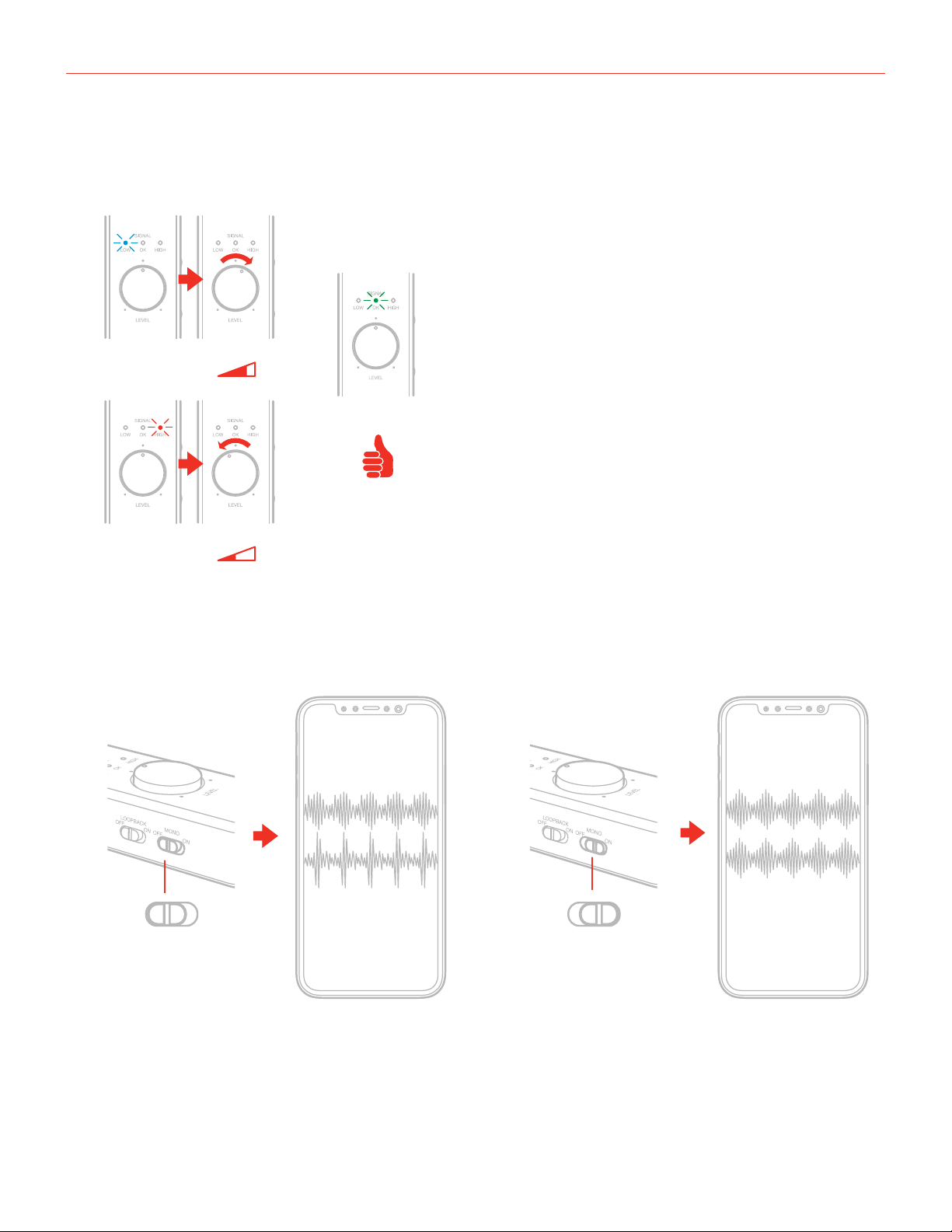

7. With the Mono switch turned on, the audio stream to your host will pass from a stereo streaming to a mono
streaming. This is helpful with apps that accepts mono audio streams.

OFF

MONO

STEREO

MONO

ON

MONO

7

English

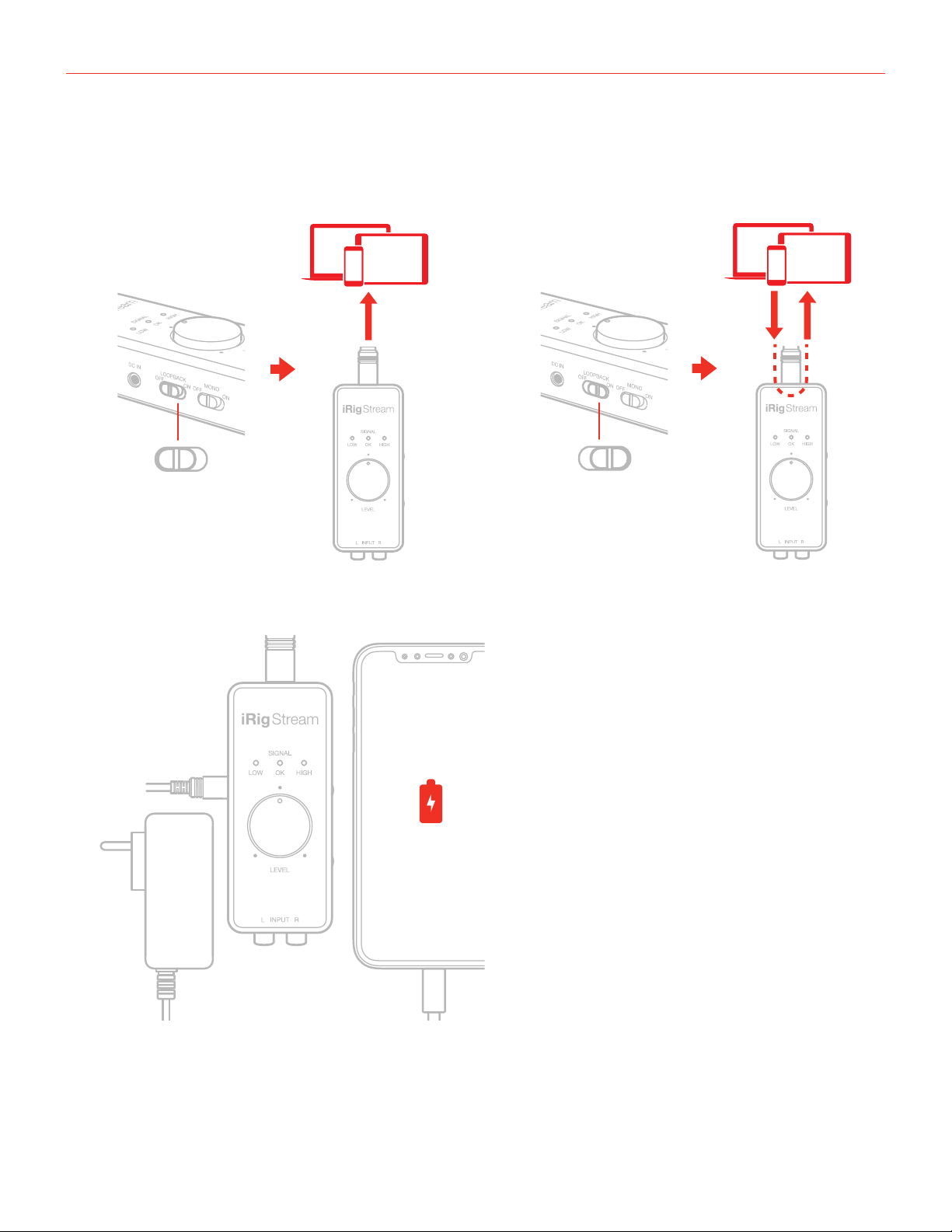

8. With the Loopback function turned on, the audio that is input to the iRig Stream from your host via USB is
returned back to the host. Also in this case, the main Level knob will control the overall level that is recorded.

OFF

LOOPBACK

9. With the optional PSU (iRig PSU 3A), the iRig Stream can charge the connected iOS device.

LOOPBACK

ON

DC IN

8

English

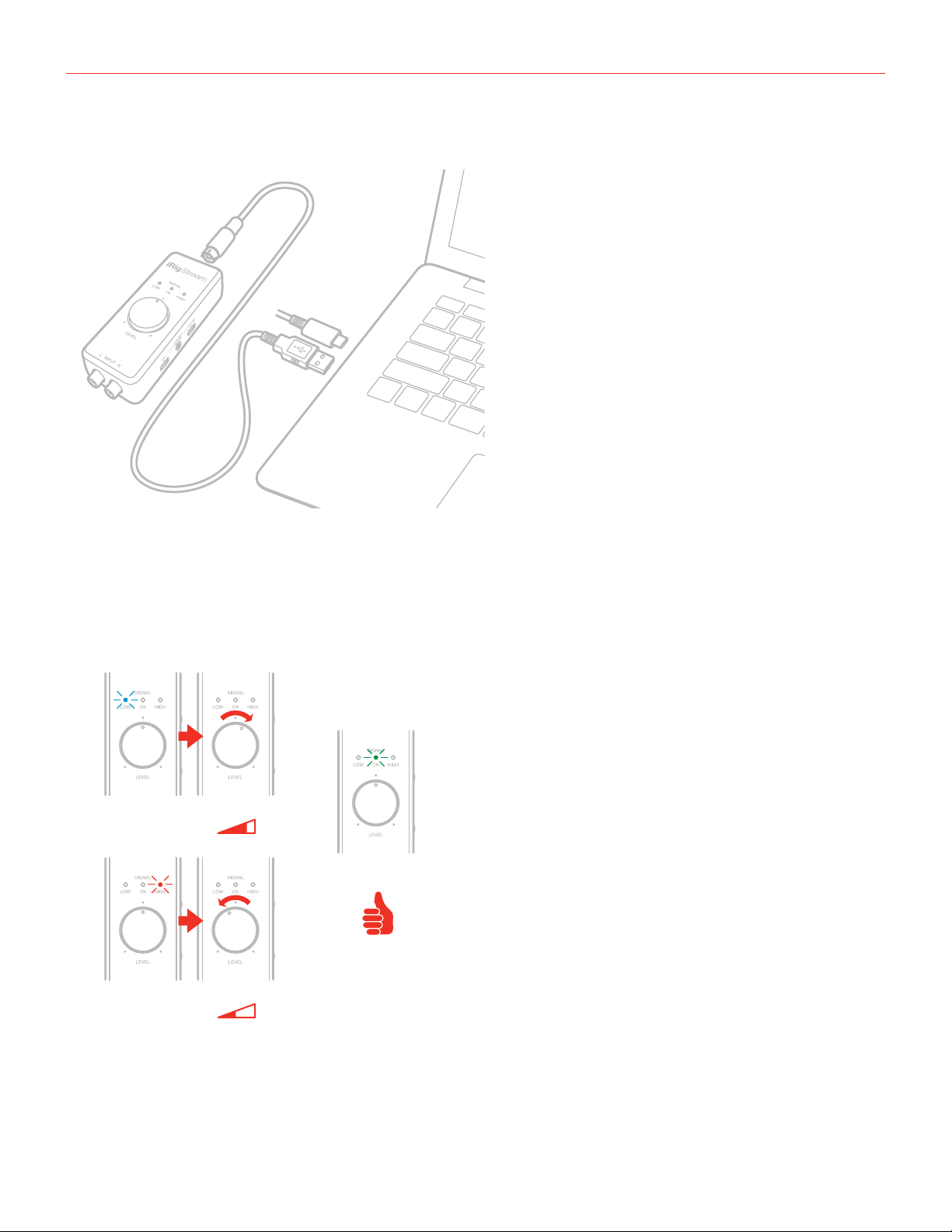

Connecting iRig Stream to Mac/Pc

Once the iRig Stream is connected to the host with the appropriate cable, launch your audio application
and select iRig Stream as the input/output device from your system’s audio preferences. All the functionality
described above allows you to cope with any registration and streaming needs.

iRig Stream signal LEDs

BLUE

GREEN

RED

The three LEDs on iRig Stream give you important information about the iRig Stream’s operating status. Each
status is indicated by a different color:

•SignalLOW: bright blue LED. iRig Stream is connected and active and the input signal is low. Use the main

Level knob to increase the overall level that is recorded.

9

English

•SignalOK:green LED. iRig Stream is active and the input signal is OK.

•SignalHIGH:red LED. iRig Stream is active and the input signal is too high. Use the main Level knob to

decrease the overall level that is recorded.

Connection examples

Here are some examples of connecting mic or line level signals to iRig Stream.

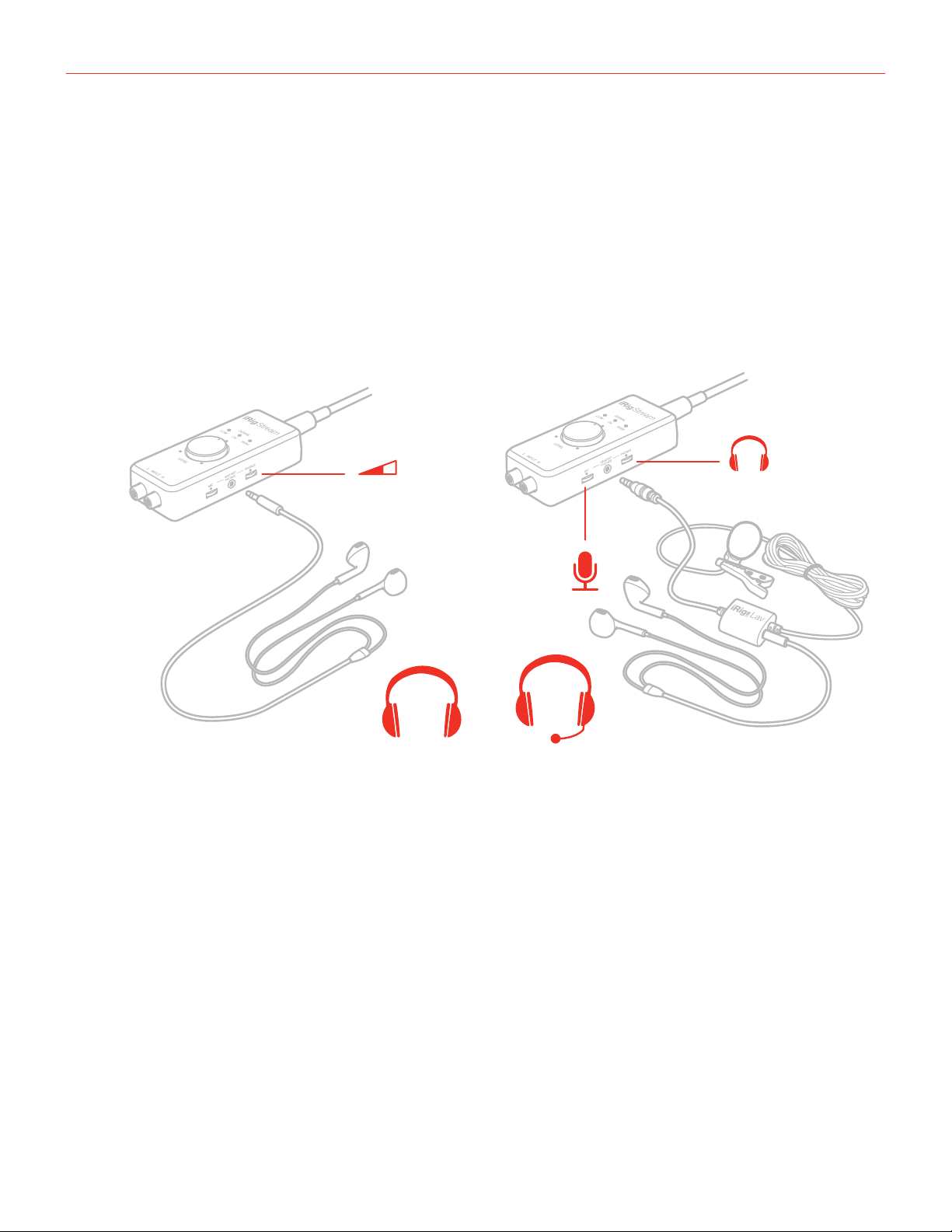

Connecting headset/phones

1/8" TRRS

1/8" TRS

It is possible to connect an headset (compatible with CTIA wiring standard) or an iRig analogue microphone
to the Headset/Phones port. The headset’s microphone gain can be controlled with the MIC thumbwheel. In
this case the main Level knob will control the overall signal level that is streamed to the connected host. If an
headphones is connected, its volume can be controlled with the PHONES thumbwheel.

10

English

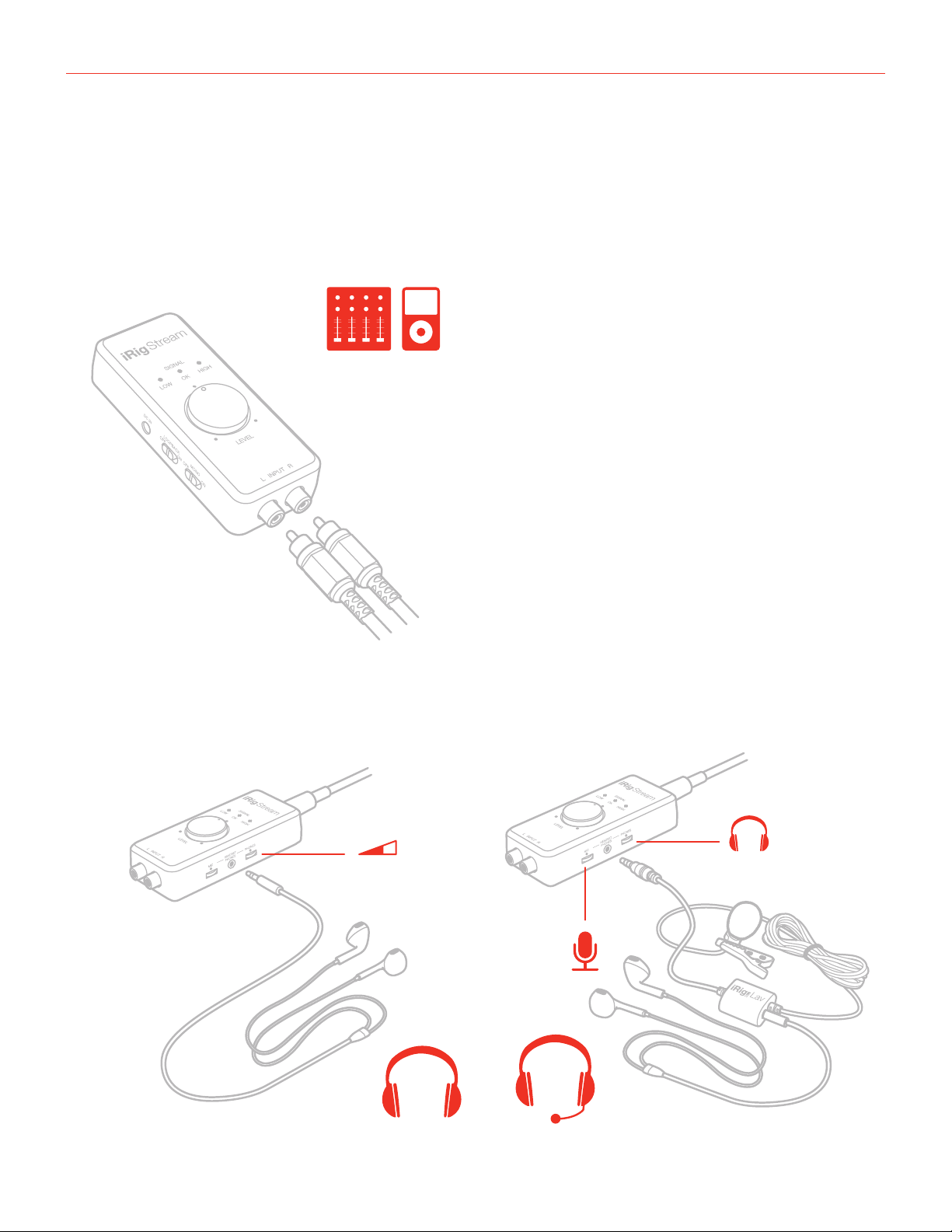

Connecting line level signal to the RCA inputs

RCA

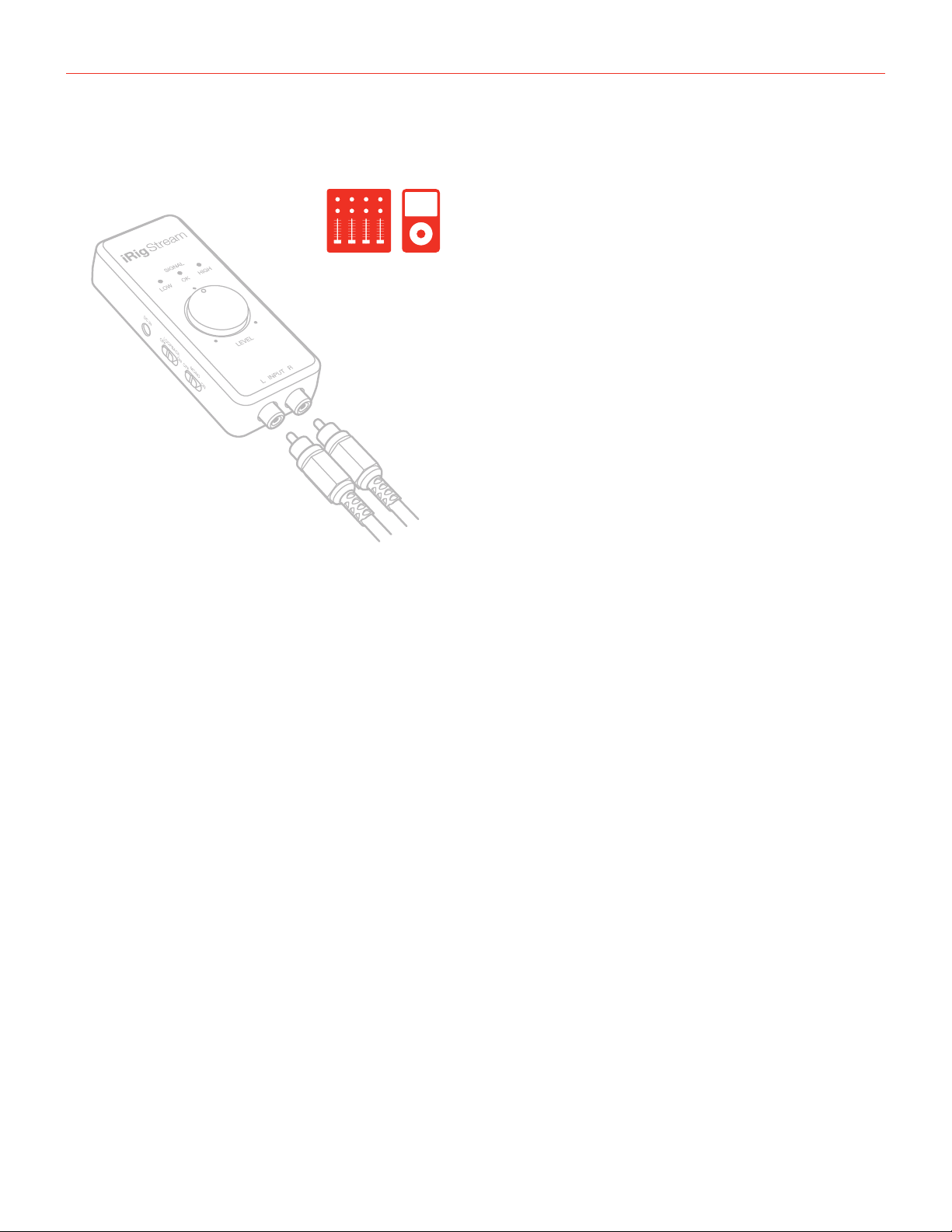

It is possible to connect any line level source to the RCA inputs. This signal can come from an mp3 player, a
computer or an audio mixer. The main Level knob adjusts the overall volume that is recorded. To adjust the
volume of the device connected to the RCA inputs, use the volume controls of that device.

IMPORTANT: please note that these are line level inputs and not PHONO inputs so, PHONO signal, needs to be
converted to a LINE LEVEL signal before to be connected.

Connecting RCA and headset

It is also possible to connect both RCA and headset at the same time. In this case the mic gain will be controlled
by the MIC thumbwheel and the overall volume that is recorded (RCA+Mic) is controlled by the main Level knob.

11

English

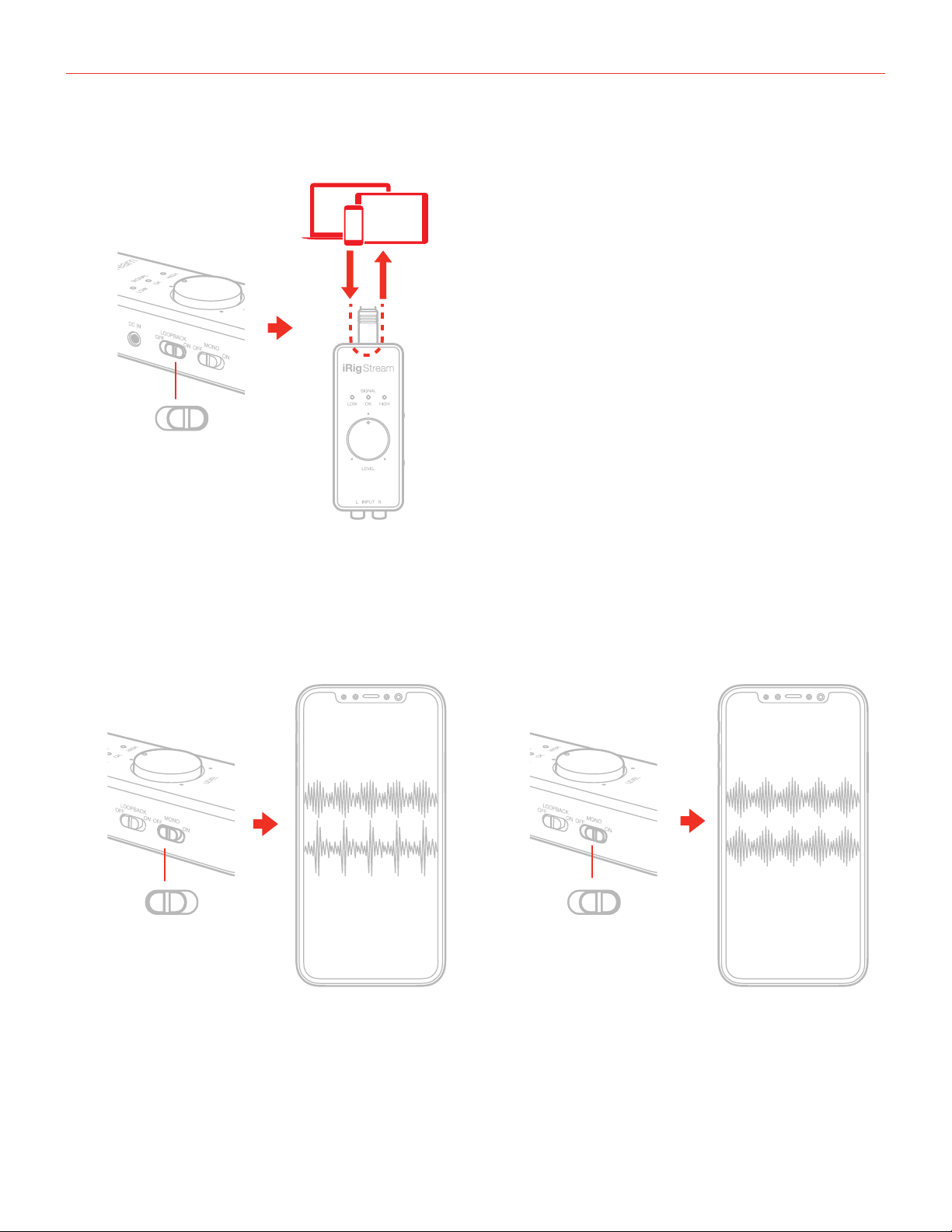

Using the loopback function

ON

LOOPBACK

With the LOOPBACK function turned on, the audio that is input to the iRig Stream from your host via USB is
returned back to the host. The main Level knob will control the overall level that is recorded.

Using the mono function

OFF

MONO

STEREO

MONO

ON

MONO

The stereo streaming to the host can be converted to a mono streaming thanks to the MONO switch. This is
helpful with apps that accepts mono audio streams.

12

English

Troubleshooting

Sound is distorted.

Check that the input level on iRig Stream has been set properly. If the signal LED is red (HIGH) when you stream
your audio, decrease the input level as described in this guide.

I don’t get any sound.

In order for iRig Stream to turn on, a Core Audio-compatible audio app must first be launched on your iOS
device or Mac.

•iOS:besureyouareusinganappthatworkswithaudioinputfromtheLightningdockconnector.

•Mac:besureyouhaveset“iRigStream”astheaudioinputdeviceontheaudioappyouareusing.

A “phasing” sound is present while monitoring the incoming signal.

In order to allows you to monitoring the incoming audio with apps and software that do not allow for audio input
monitoring, a direct monitoring function is always enabled on iRig Stream. If a “phasing” effect is present, you
can disable the input monitoring from your recording app. For more details about its monitoring function, refer to
the documentation for your audio software.

Specifications

Common

Conversion: 24-bit A/D, 24-bit D/A

Sampling Rate: 32 kHz ,44.1 kHz, 48 kHz

Power: USB bus powered or, DC IN. When connected to an external PSU (iRig PSU 3A, not included), iRig
Stream charge the connected iOS lightning device.

Metering: 3x LEDs

Device Connection: mini-DIN

Dimensions: 105.5mm x 44.5mm x 24mm (4,15”x1,75”x0,94”)

Line input

Connector: 2x RCA (unbal.) Left/Right

Nominal Input Level: -10dBV

Head Room: 12dB

Input Impedance: 16.5kOhms

Frequency Response: 20 Hz – 20kHz

Headset/Phone

Connector: 1/8” TRRS jack (CTIA wiring standard)

Supply voltage: > 2,5V

Microphone gain: Adjustable with numbered thumbwheel

Frequency Response: 20 Hz – 20kHz

Headphone Level control: numbered thumbwheel

Headphone Output Power: 100mW into 50Ohms

13

English

Warranty

Please visit:

www.ikmultimedia.com/warranty

for the complete warranty policy.

Support and more info

www.ikmultimedia.com/support

www.irigstream.com

14

Regulatory

IK Multimedia

IK Multimedia Production Srl

Via dell’Industria 46, 41122 Modena, Italy
Phone: [phone] - Fax: [phone]

IK Multimedia US LLC

590 Sawgrass Corporate Pkwy, Sunrise, FL 33325
Phone: [phone] - Fax: [phone]

IK Multimedia Asia

TB Tamachi Bldg. 1F, MBE #709,
4-11-1 Shiba, Minato-ku, Tokyo 108-0014

www.ikmultimedia.com/contact-us
