Ik Multimedia iRig Pre HD USER MANUAL
Portable Audio interface for iOS, USB
USER MANUAL
Contents
Table of Contents
Contents |
2 |
||
English |
3 |
||
|
iRig Pre HD |
3 |
|
|
Register your iRig Pre HD |
3 |
|
|

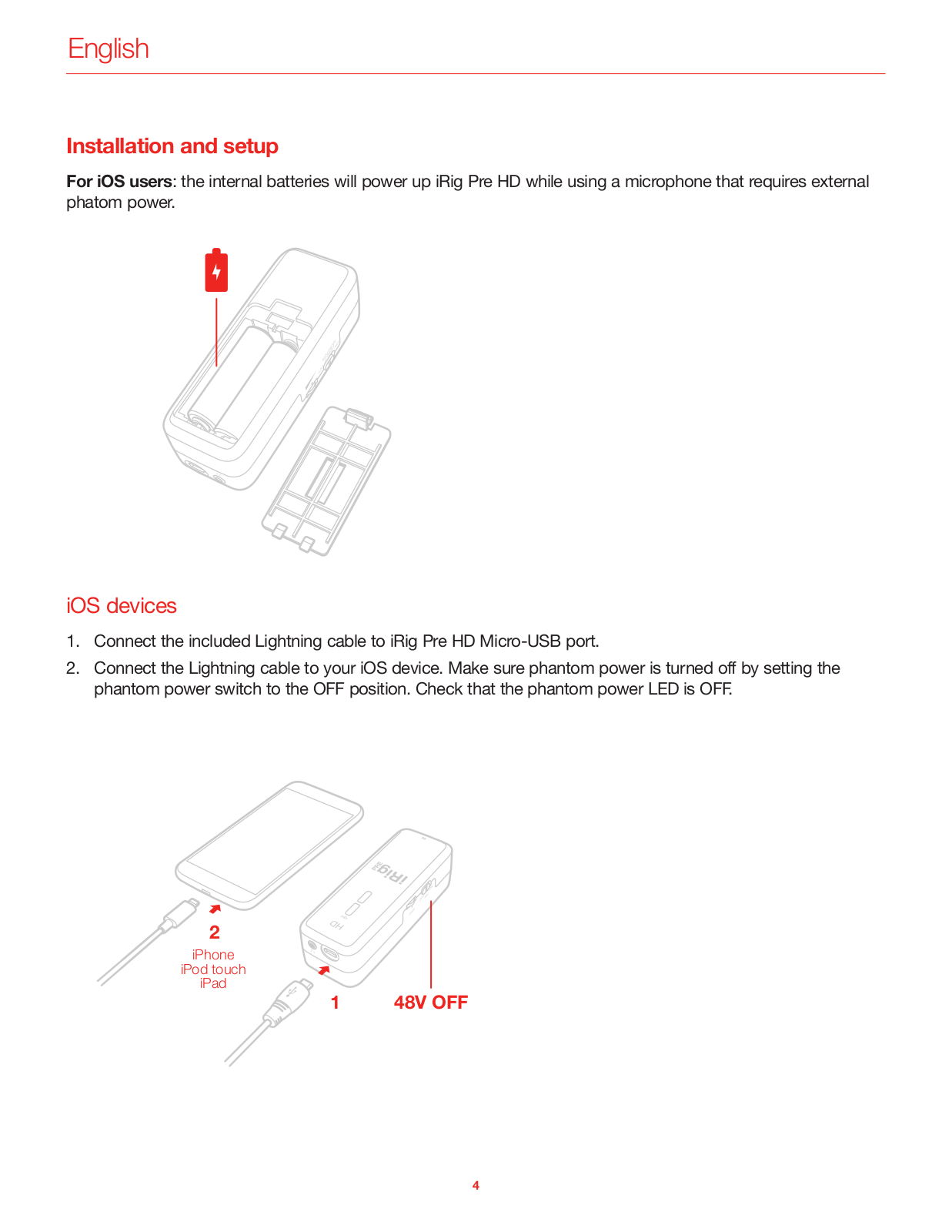

Installation and setup |
4 |
|
|
|
iOS devices |
4 |
|
|

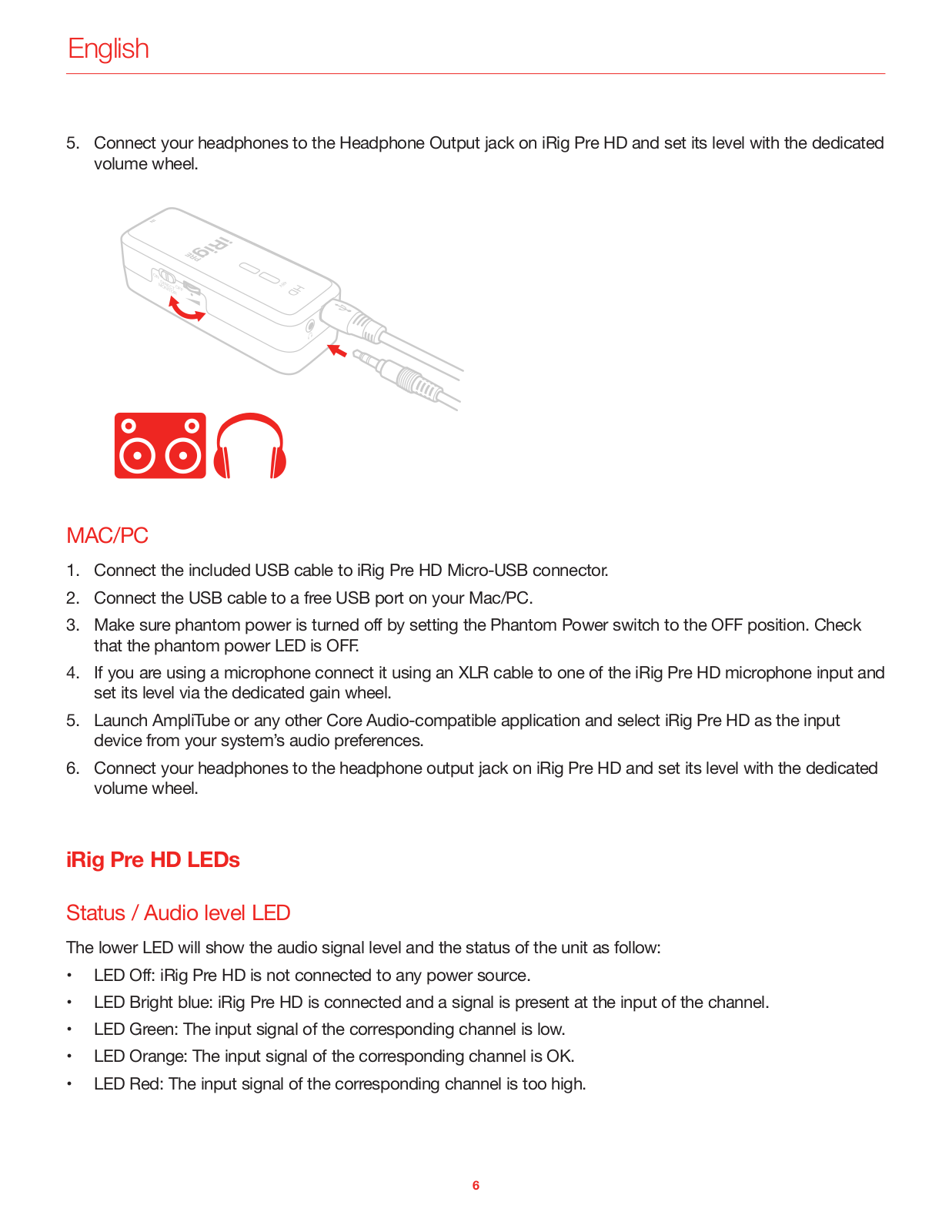

MAC/PC |
6 |
|
iRig Pre HD LEDs |
6 |
|
|
|
Status / Audio level LED |
6 |
|
|

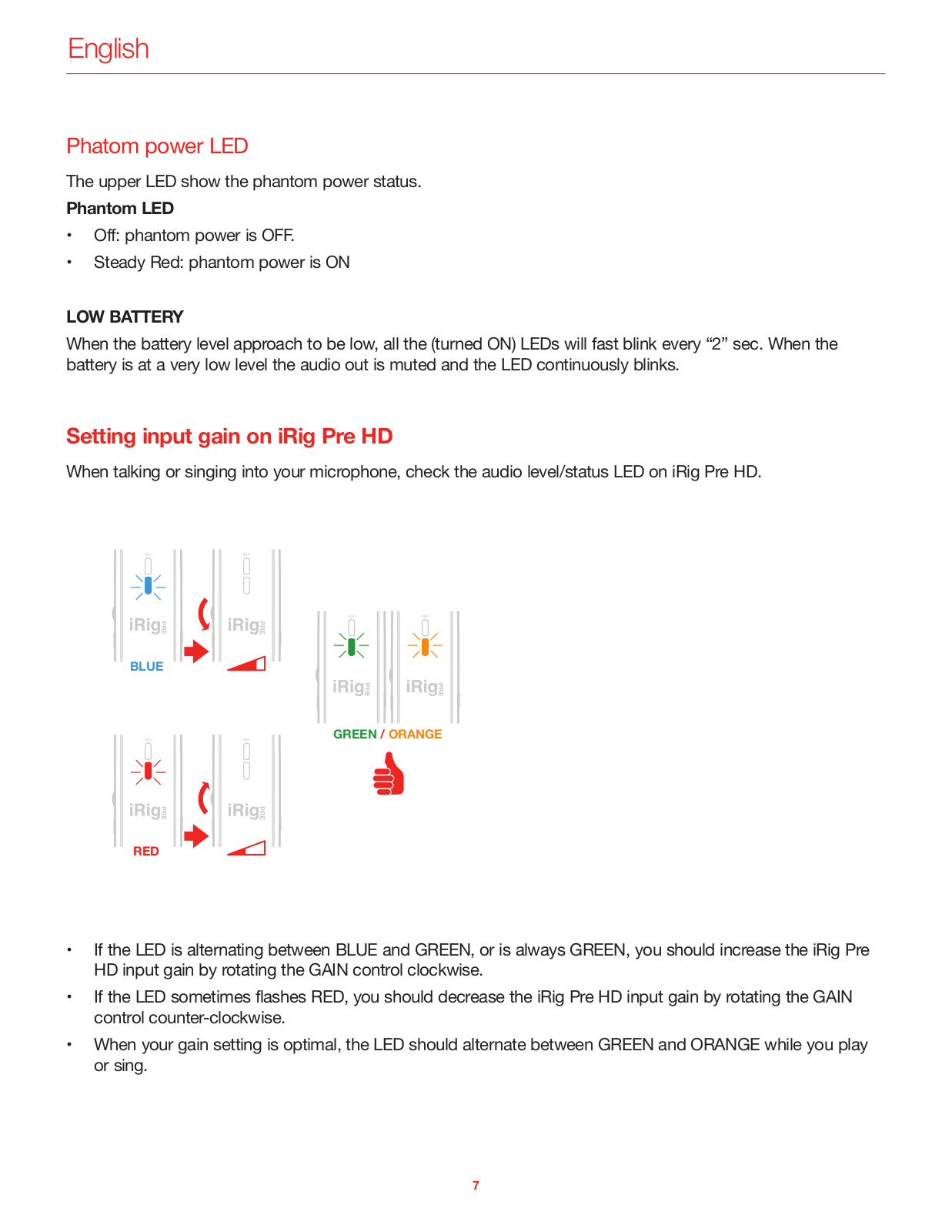

Phatom power LED |
7 |
|
Setting input gain on iRig Pre HD |
7 |
|
|

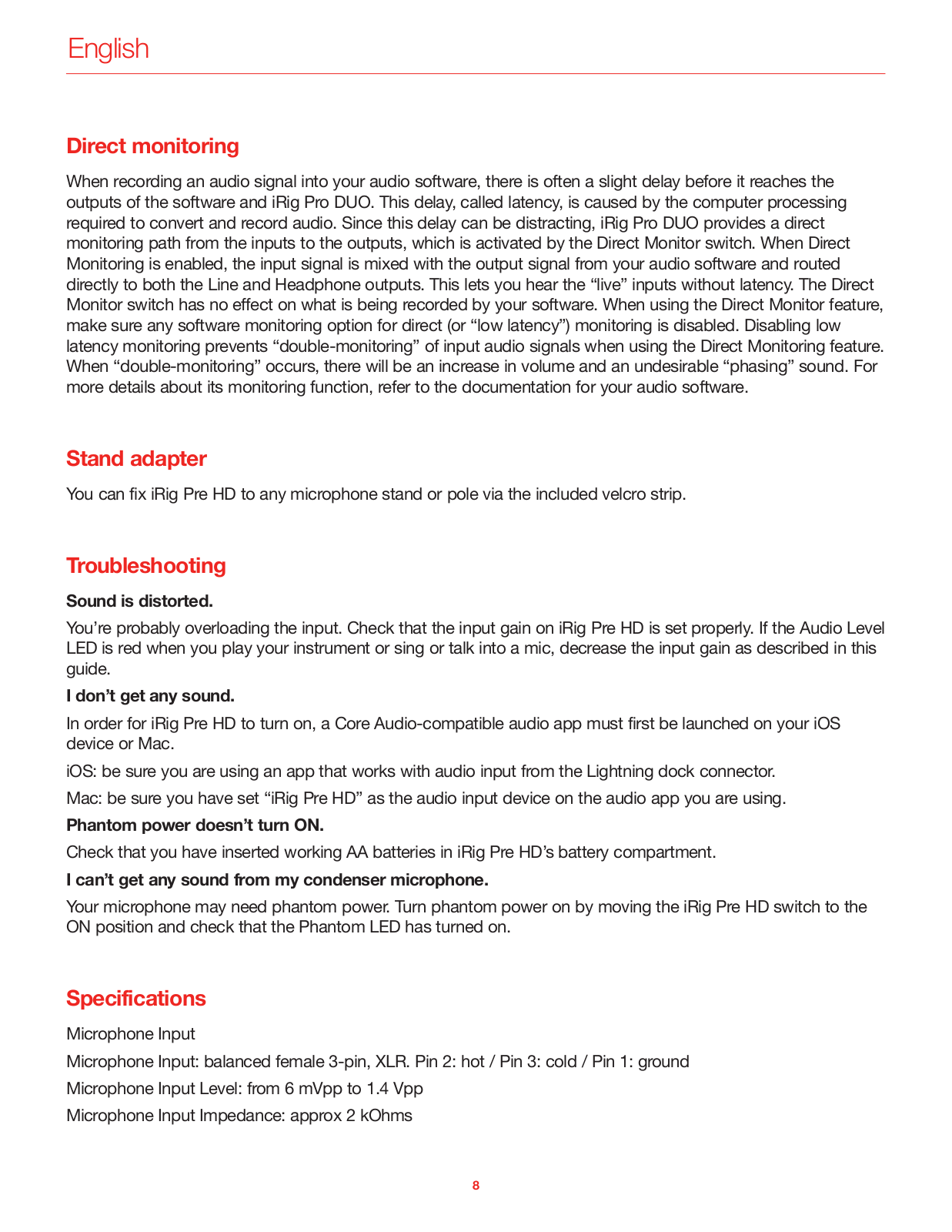

Direct monitoring |
8 |
|
|
Stand adapter |
8 |
|
|
Troubleshooting |
8 |
|
|

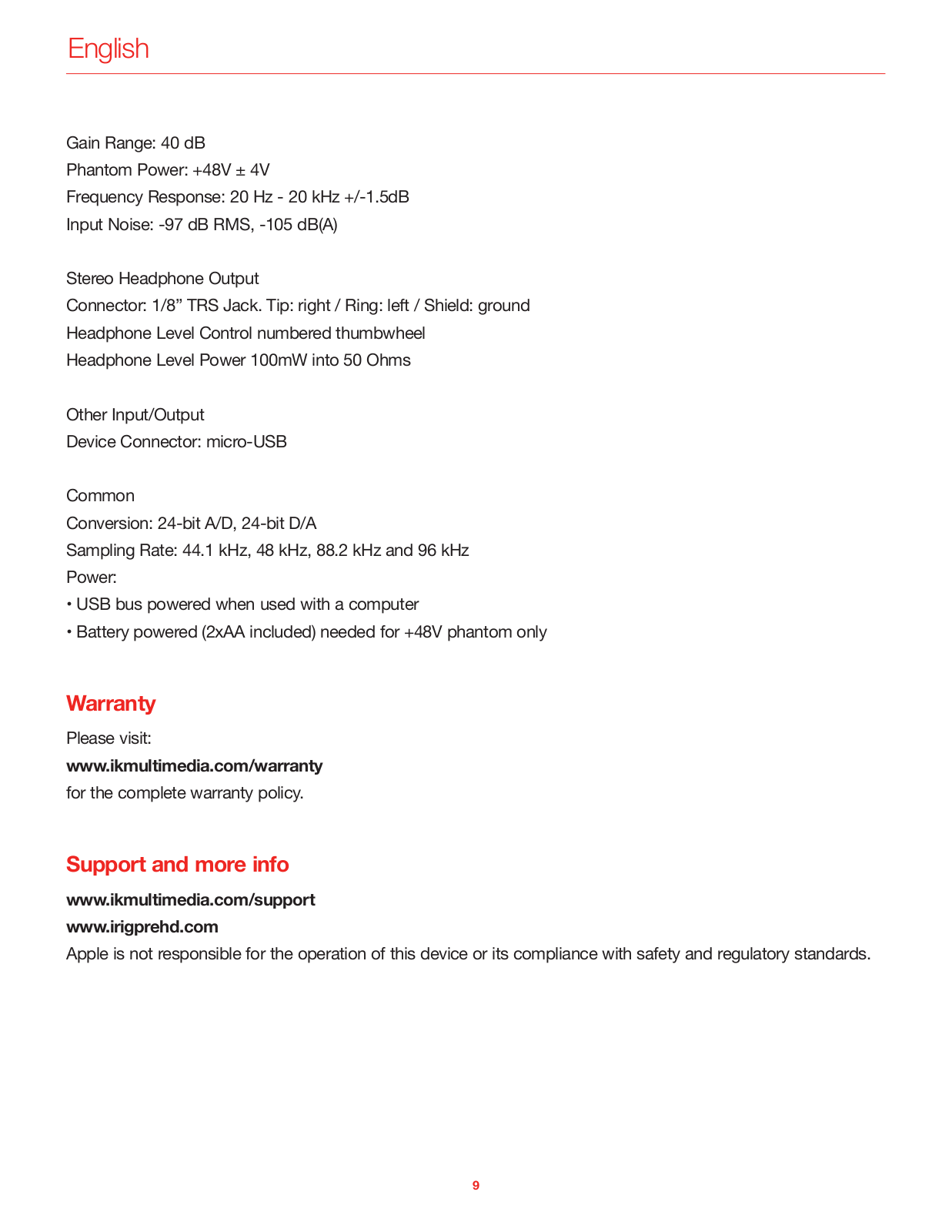

Specifications |
8 |
|
|
Warranty |
9 |
|
|
Support and more info |
9 |
|
2
English
iRig Pre HD
Thank you for purchasing iRig Pre HD. Your package contains:
•iRig Pre HD
•2 AA batteries (alkaline)
•Micro-USB to Lightning cable
•Micro-USB to USB cable
•Velcro strap
•Quick start guide
•Registration card
|
1x |
1x |
1x |
|
2x |
1x |
|
iRig Pre HD is a digital microphone interface for iOS/MAC devices. It features a 3-pin XLR connector for connecting microphones (accepts also phantom powered microphone, thanks to the internal batteries). The new design sports also an Headphones output 1/8” jack to allows to connect your headphone.
Register your iRig Pre HD
By registering, you can access technical support, activate your warranty and receive free JamPointsTM which will be added to your account. JamPointsTM allow you to obtain discounts on future IK purchases! Registering also keeps you informed of all the latest software updates and IK products.
Register at: www.ikmultimedia.com/registration
3
