Ik Multimedia iRig Mic Studio USER MANUAL

Digital studio microphone

USER MANUAL

Contents

Table of Contents

Contents 2

English 3

iRig Mic Studio 3
Register your iRig Mic Studio 3
iRig Mic Studio overview 4
Installation and setup 5

iOS/Android devices 5
Mac/PC 7

Mounting iRig Mic Studio on a stand 7
Status LED 8
Setting optimal gain 9
Usage note 9

Signal flow 9
Cardioid unidirectional pickup pattern 10
Proximity effect 10

Recording applications 10

Vocals and speech 10
Acoustic instruments 11
Electric guitars 11
An all around microphone 11

Troubleshooting 11
Specifications 12
Warranty 12
Support and more info 12

2

English

iRig Mic Studio

Thank you for purchasing iRig Mic Studio.

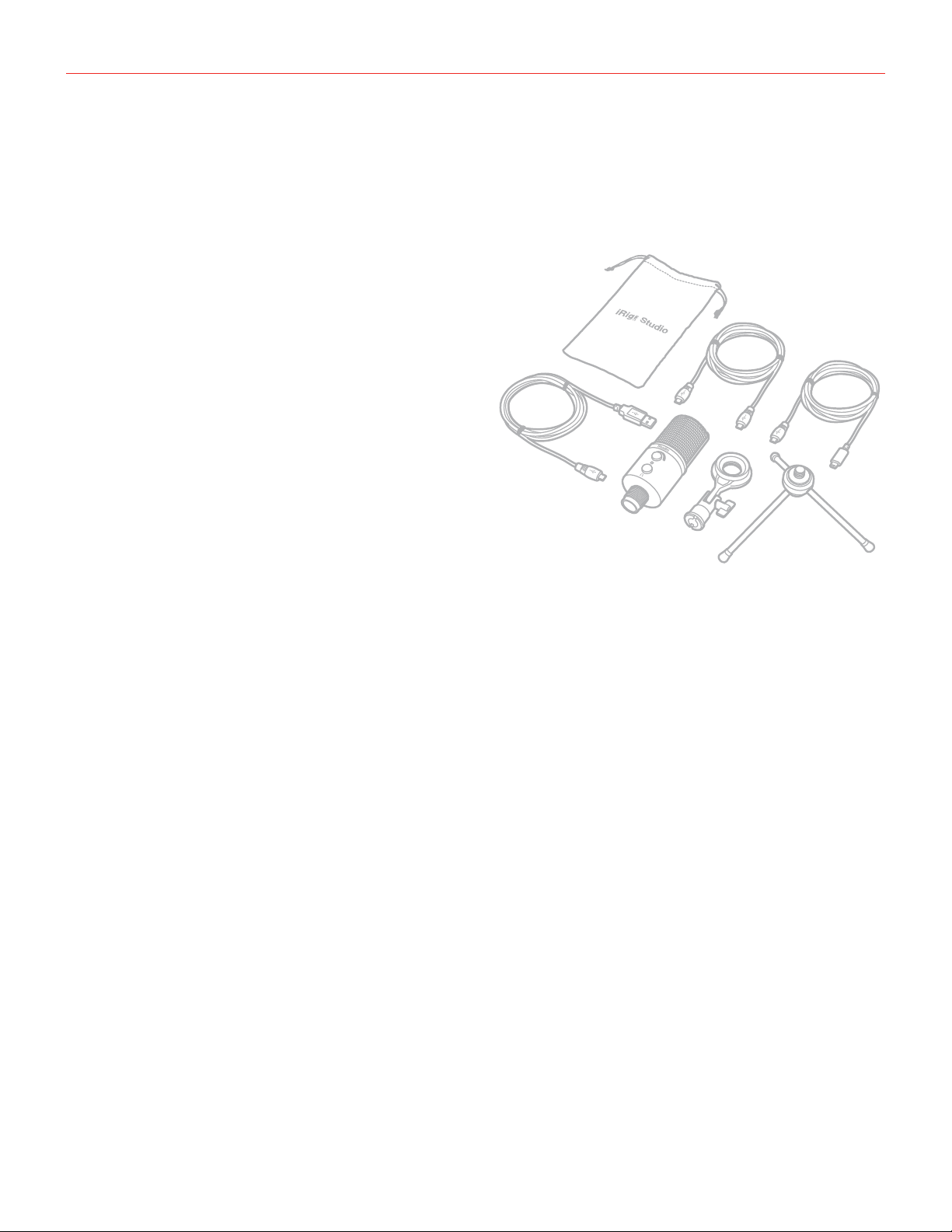

Your package contains

1x

1x

1x

1x

1x

1x

• iRig Mic Studio

• Micro-USB to Lightning cable

• Micro-USB to USB cable

• OTG cable

• Microphone stand mount

• Tabletop stand

• Velvet pouch

• Quick start guide

• Registration card

1x

iRig Mic Studio is a professional USB condenser microphone, designed to work with iOS and Android devices,
MAC and PC. This microphone completes IK’s range of digital microphones that also includes iRig Mic Field
and iRig Mic HD. Developed for professional recordings, iRig Mic Studio uses a studio-quality 1” capsule, low­noise preamp and high-quality A/D-D/A converter for high-definition 24 bit - 44.1/48kHz sound. iRig Mic Studio
includes a gain potentiometer, a multicolor LED indicator and a built-in stereo output for monitoring that can be
used with headphones. Despite its professional features iRig Mic Studio is extremely compact. With just a 45
mm diameter and a length of only 117mm, it lets you capture pro quality sound anytime and everywhere. iRig
Mic Studio is available in black or silver version.

Register your iRig Mic Studio

By registering, you can access technical support, activate your warranty and receive free JamPoints™ which will
be added to your account. JamPoints™ allow you to obtain discounts on future IK purchases! Registering also
keeps you informed of all the latest software updates and IK products.

Register at: www.ikmultimedia.com/registration

3

English

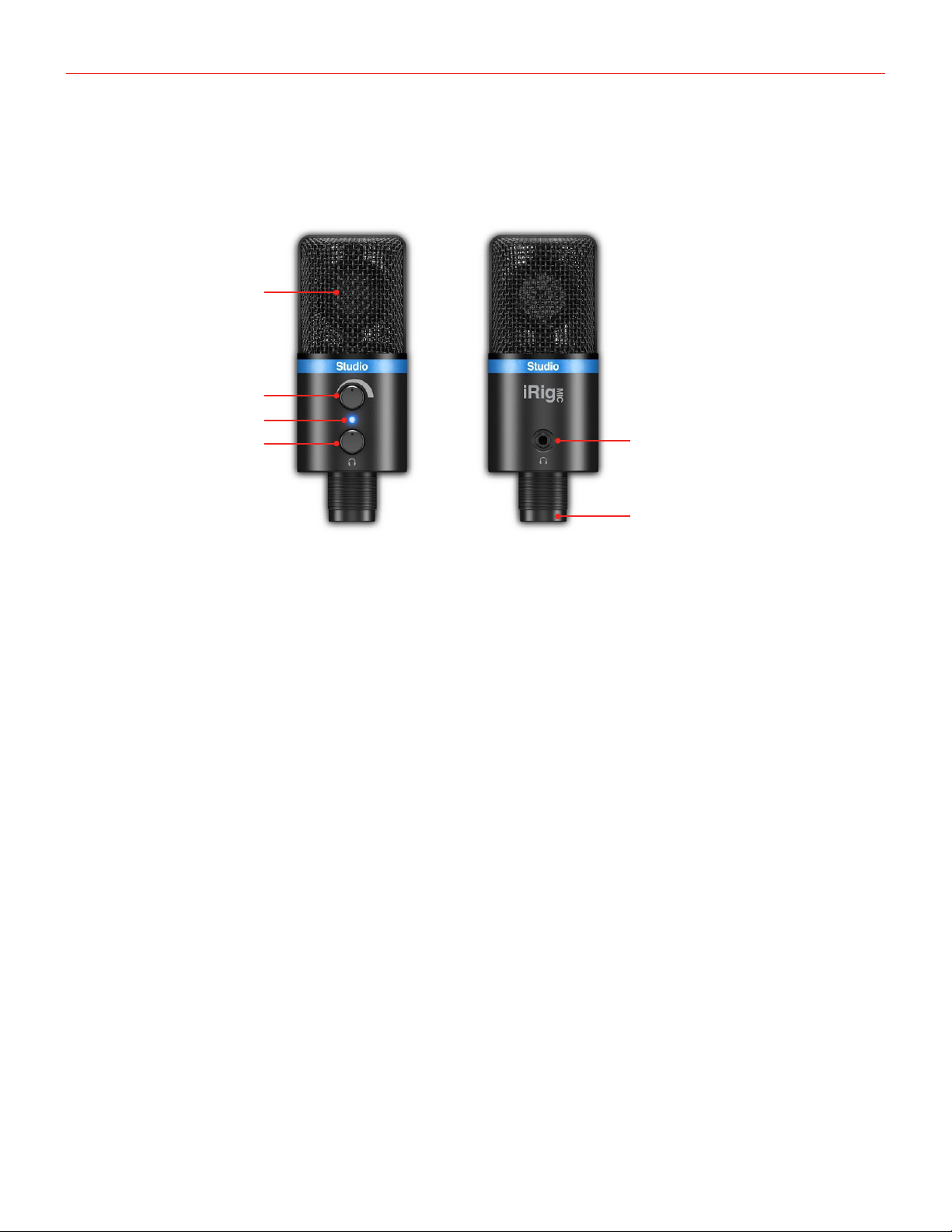

iRig Mic Studio overview

1

2
3

4 5

1. Studio-quality 1” condenser capsule (front side)

2. Microphone gain

3. Status LED

4. Headphone level

5. Headphone output jack

6. Micro-USB port

6

4

English

Installation and setup

iOS/Android devices

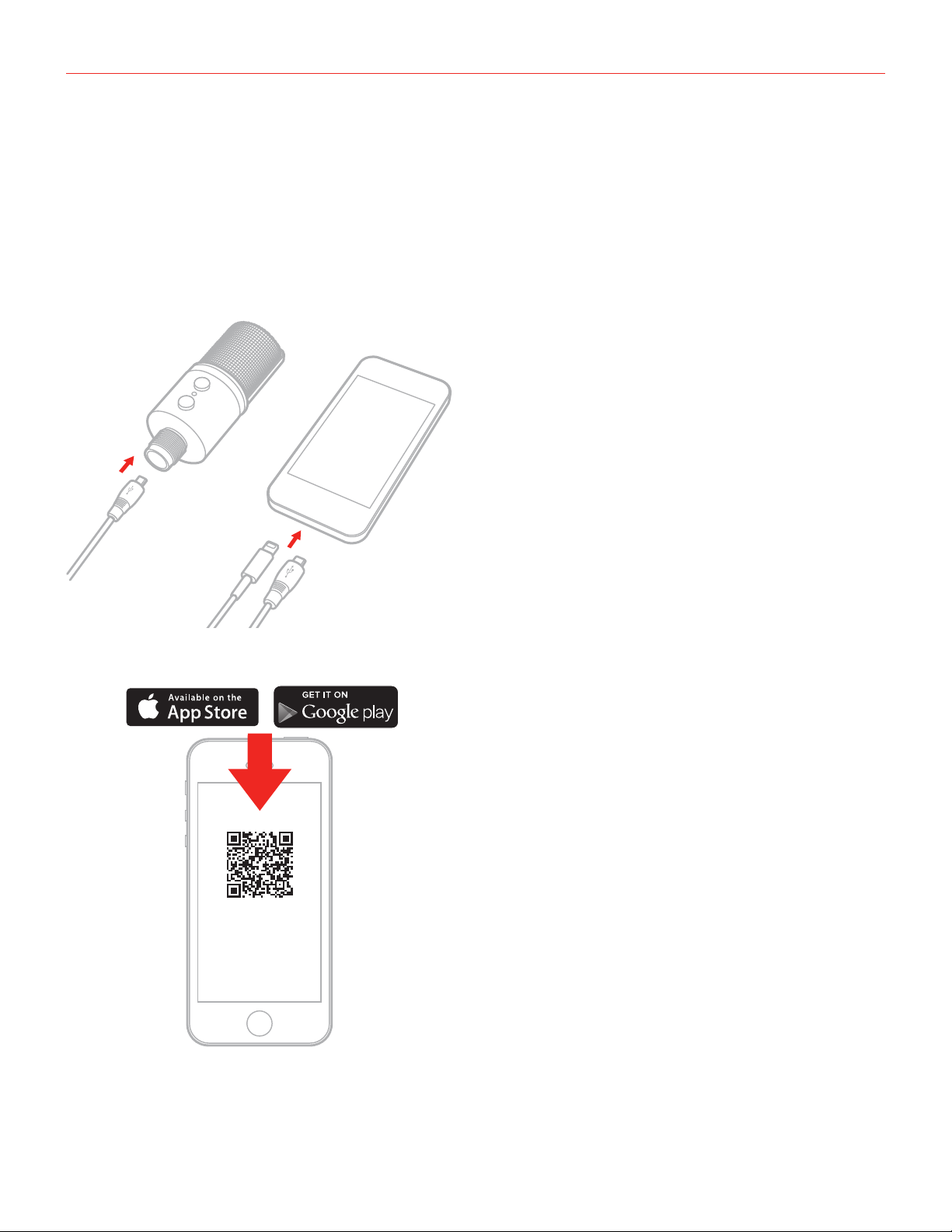

1. Connect the included “Lightning to Micro-USB cable” (for iOS) or “OTG to Micro-USB cable” (for Android) to
the Micro-USB port on iRig Mic Studio.

2. Connect the Lightning or OTG cable to the port on your iOS or Android (that supports USB host mode)
device. The status LED on iRig Mic Studio will turn dark blue.

1

iPhone

iPod touch

iPad

3. Download your preferred audio processing or recording app like VocaLive, EZ Voice or iRig Recorder, and
launch it. The status LED on iRig Mic Studio will turn bright blue.

VocaLive

iRig Recorder

2

Android

EZ Voice

ikdownloads.com/irigmicstudio

5

English

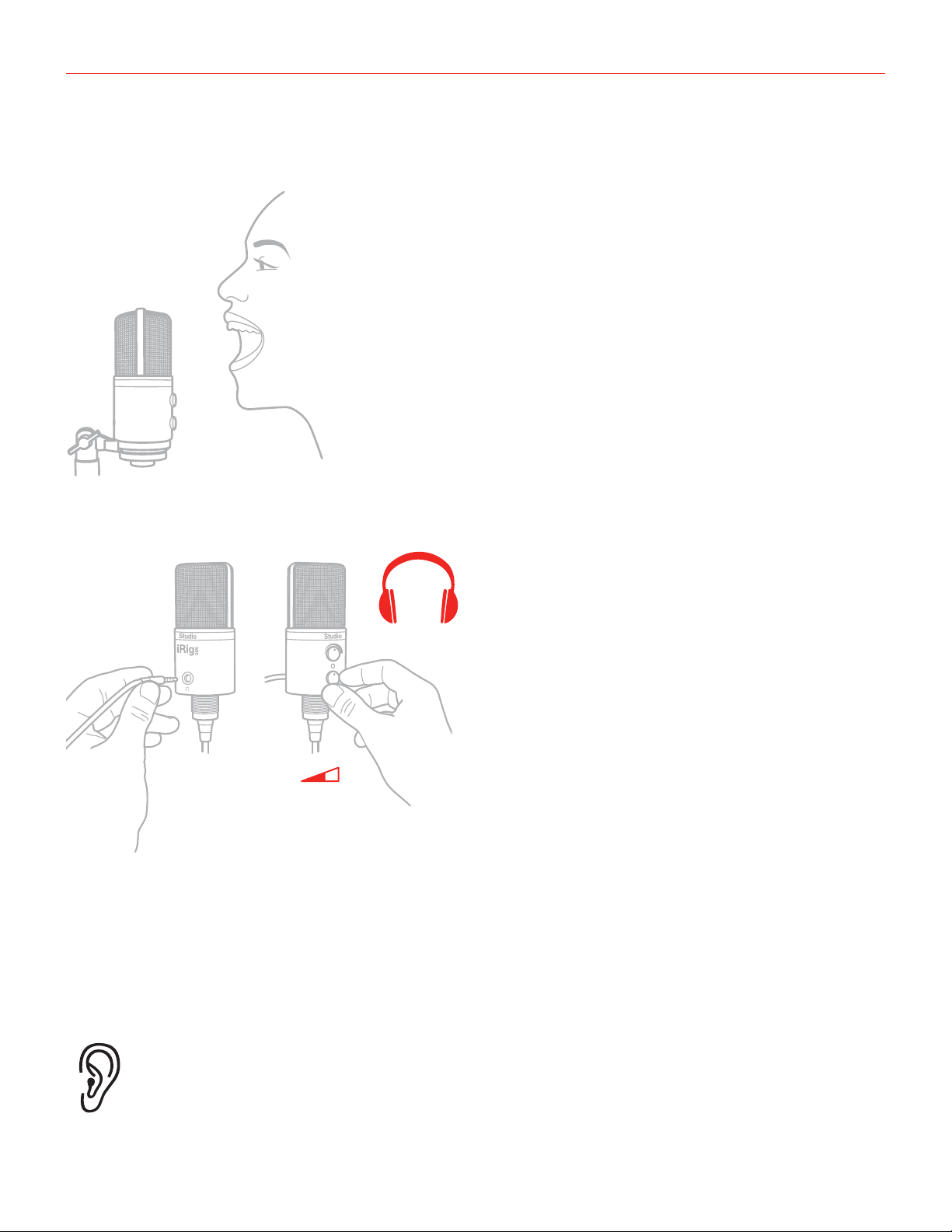

4. Start talking or singing into iRig Mic Studio. Adjust the input level as required by using the gain knob (see the
“Setting optimal gain” section in this manual).

5. Connect your headphones to the iRig Mic Studio headphone output to monitor your recording and adjust its
level.

The on board headphone output lets you
monitor the processed signal coming from
your device. Make sure that your app
supports “real-time monitoring”.

1/8"

WARNING: Permanent hearing loss may occur if earbuds or headphones are used at high

volume. You can adapt over time to a higher volume of sound, which may sound normal but can
be damaging to your hearing. Set your device volume to a safe level before that happens. If you
experience ringing in your ears, reduce the volume or discontinue use of earbuds or headphones
with your device.

6

English

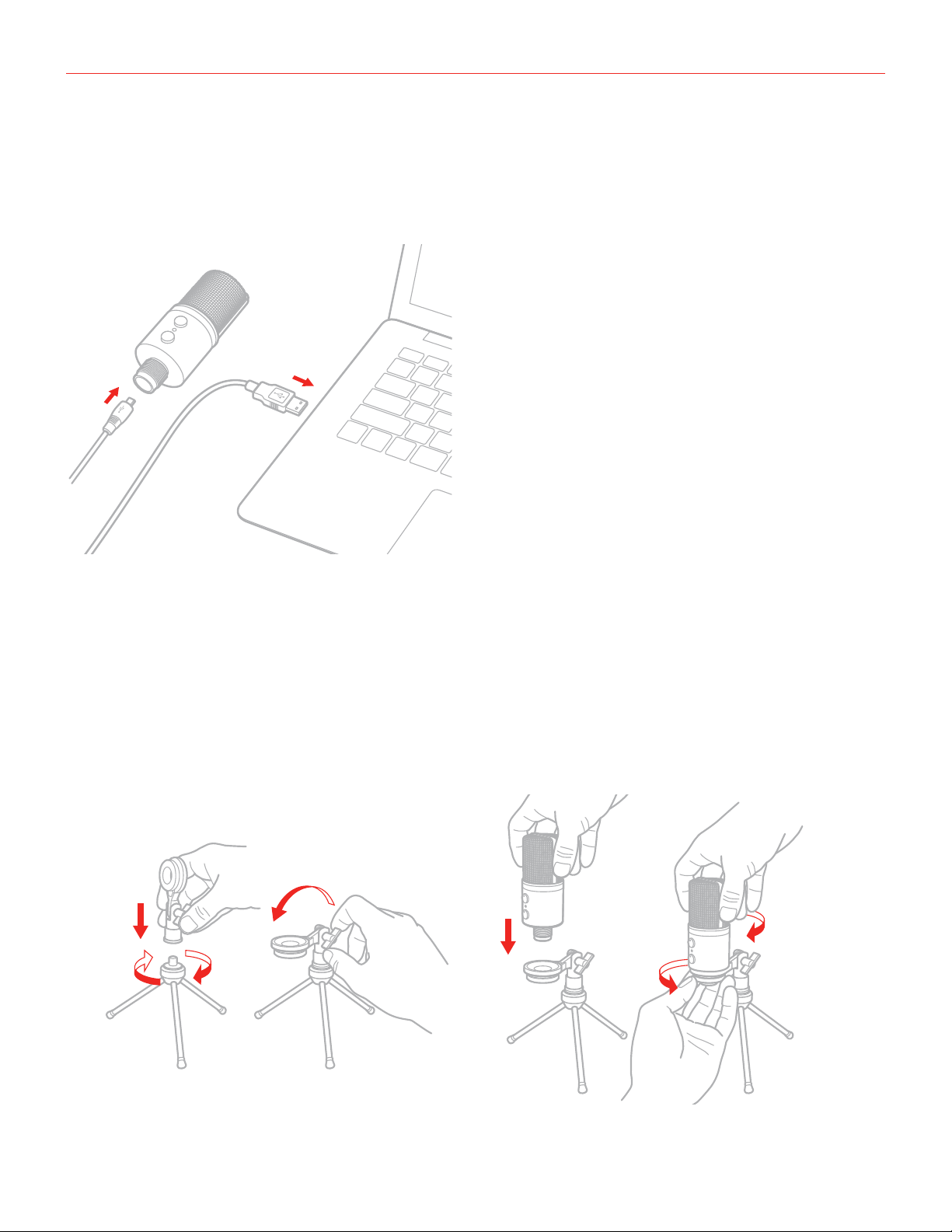

Mac/PC

1. Connect the included “Micro-USB to USB cable” to iRig Mic Studio.

2. Connect the USB cable to a free USB port on your computer, the status LED on iRig Mic Studio will turn
dark blue.

2

1

3. Launch any Core Audio-compatible application and select iRig Mic Studio as the input device from the audio
preferences. The status LED on iRig Mic Studio will turn bright blue.

4. Start talking or singing into iRig Mic Studio. Adjust the input level as required using the gain knob.

5. Connect your headphones to the iRig Mic Studio headphone output to monitor your recording and adjust its
level.

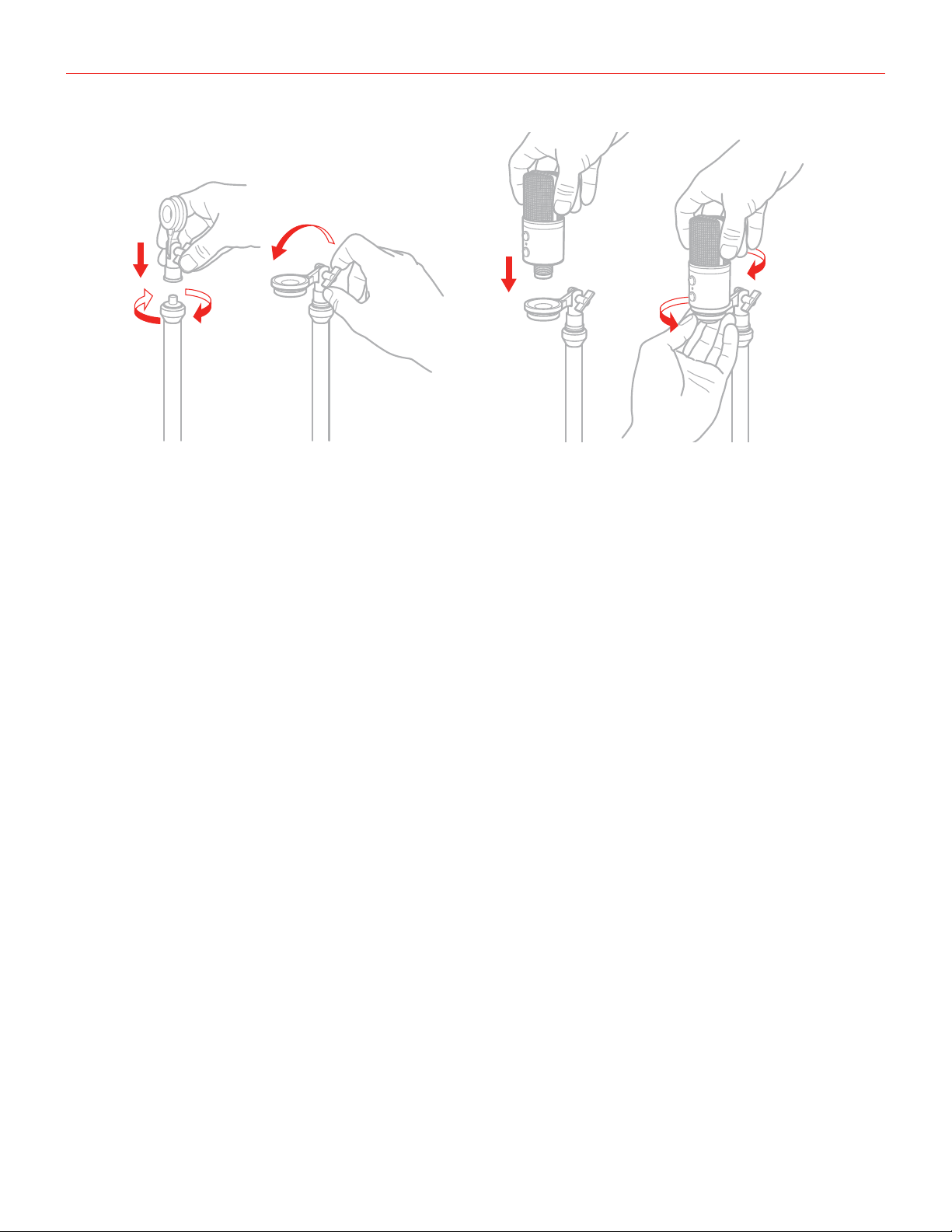

Mounting iRig Mic Studio on a stand

You can mount iRig Mic Studio to its table top stand or to any microphone stand.

7

English

Status LED

The multicolor LED on iRig Mic Studio gives you important information about the iRig Mic Studio’s operating
status. Each status is indicated by a different color:

•LEDisoff: iRig Mic Studio is not connected to any power source.

•LEDisdark blue: iRig Mic Studio is connected and in standby mode.

•LEDisbright blue: iRig Mic Studio is connected and active.

•LEDisgreen: iRig Mic Studio is active and the input signal is low.

•LEDisorange: iRig Mic Studio is active and the input signal is OK.

•LEDisred: iRig Mic Studio is active and the input signal is too high.

8

English

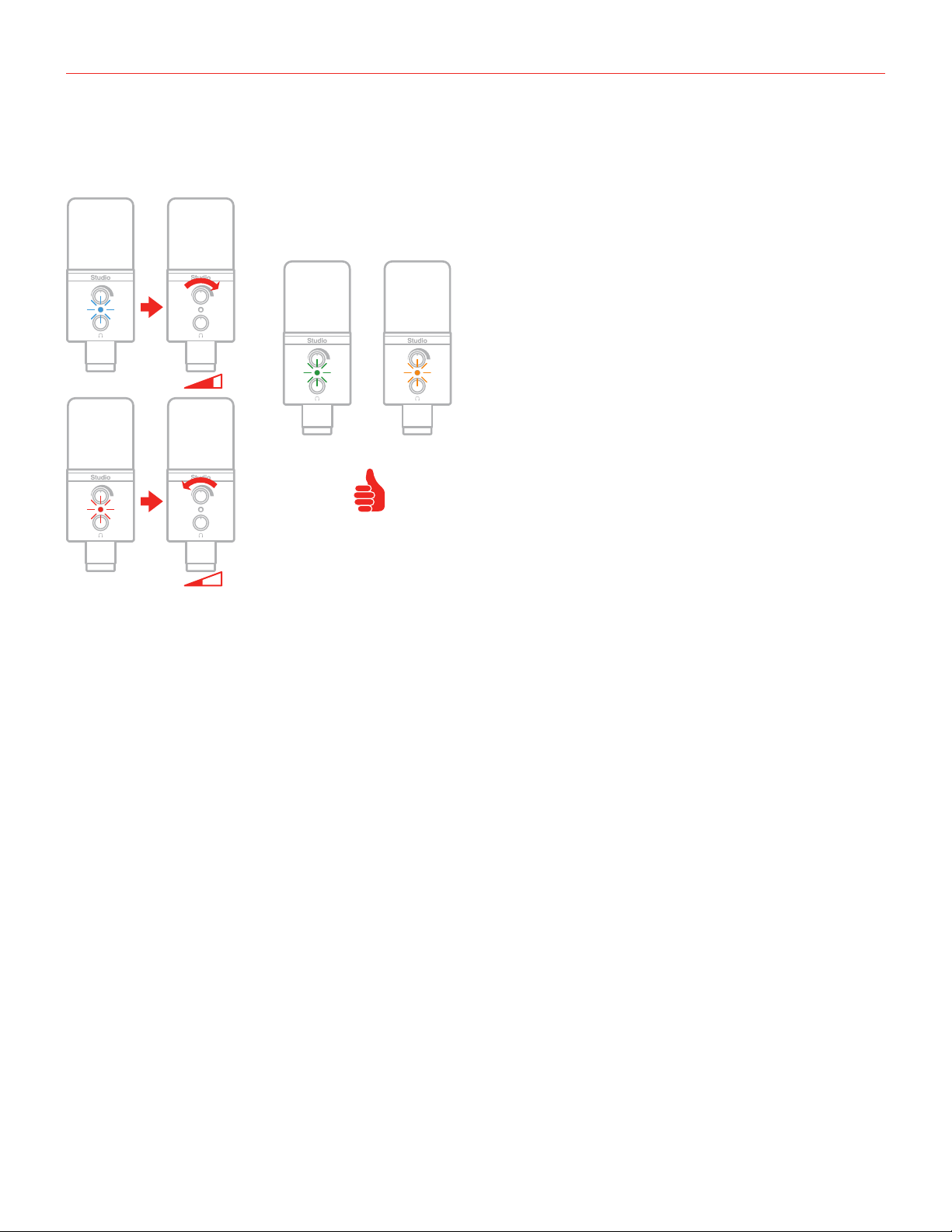

Setting optimal gain

Check the status LED when singing or talking into iRig Mic Studio.

GAIN

BLUE

GREEN / ORANGE

RED

•IftheLEDisalternatingbetweenBLUE and GREEN or is always BLUE or GREEN, you should increase the iRig

Mic Studio input gain by rotating the level control clockwise.

•IftheLEDissometimesflashingRED you should decrease the iRig Mic Studio input level by rotating the gain

control counterclockwise.

•Whenyourlevelsettingisoptimal,theLEDshouldalternatebetweenGREEN and ORANGE while you talk or

sing.

Usage note

The frequency response of iRig Mic Studio features a slight boost in the top-end at about 7-10kHz. This bump
adds definition and clarity, creating a pleasant presence in your recordings, much like listening to the recorded
signal right next to your ear. The mid and lo-mid range of iRig Mic Studio features a smooth and linear response
that‘s very well suited for recording voices as well as acoustic instruments, giving an accurate recording of the
sound source.

Signal flow

iRig Mic Studio employs only quality electronic components. Its studio-quality diaphragm (the mic capsule)
converts sound into electrical energy which is then amplified as accurately as possible and with minimal
coloration. This signal is then passed off to the microphone’s digital conversion circuitry which converts the
analog signal into digital data. All these features make iRig Mic Studio the ideal microphone for recording no
matter whether you’re capturing vocals, acoustic instruments or electric instruments in a studio or using it for
podcasts or radio — the possibilities are endless.

9

English

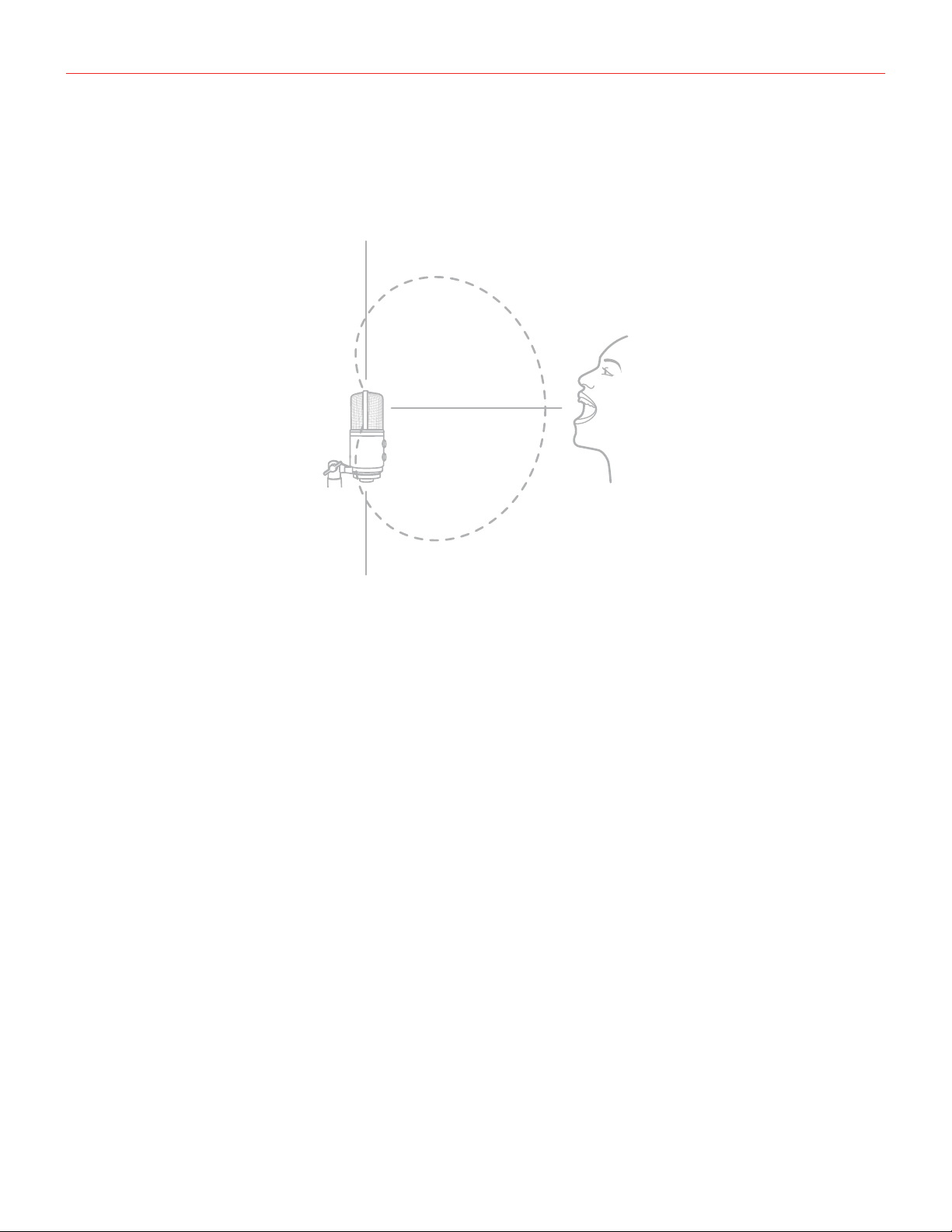

Cardioid unidirectional pickup pattern

iRig Mic Studio has a cardioid (unidirectional) pickup pattern. This design means that it primarily picks up
sounds arriving in front of the microphone as opposed to from the sides or behind. This minimizes the risk of
feedback. This makes it ideal for capturing singing, vocals, speech and instruments.

Sounds arriving from the sides
or rear of the iRig Mic Studio:
sounds are rejected.

Sounds arriving at the front
of the iRig Mic Studio: sound
capture is optimal.

Proximity effect

iRig Mic Studio is unidirectional, therefore it changes its response to low frequencies depending on the distance
from the sound source.

If you want more warmth and bass (fuller, bigger voices, for example), speak or sing very close to the
microphone, just a few inches or even less.

If you are searching for a lighter and brighter sound, speak or sing at a further distance from the microphone,
greater than 10 inches/25 centimeters.

This rule not only applies to vocals, the microphone will also respond this way with all instruments and sound
sources.

Recording applications

Vocals and speech

iRig Mic Studio is a great microphone for recording voice and speech thanks to its large diaphragm condenser
capsule and its premium electronics. As said, the proximity effect allows you to model the sound of your
recording. The closer you get to the mic, the more warmth and bass you’ll get. For a “big” vocal sound with
maximum presence, get the vocalist within one to three inches of the capsule (microphone head). For a lighter
sound, place iRig Mic Studio further from the vocalist. The use of a Pop Filter helps avoiding plosives during
vocal recording.

The acoustic environment plays a key role in the success of a good recording. A room with carpet and curtains

10

English

will cause much less reverberation in your vocals, making the recording sound more dry. This allows your
recording to be more easily manipulated during the mixing process. By contrast, a room with glass surfaces,
marble, wood floors or tile will yield natural reverb, which may be pleasing to the ear but difficult to remove at a
later time, and may make your recording more difficult to mix.

Acoustic instruments

Thanks to its features, iRig Mic Studio can also be used for recording acoustic instruments with studio-quality
sound. For example, place iRig Mic Studio so that it’s facing the neck of an acoustic guitar— right where the
neck joins the body (usually around the 12th or 14th frets) — for a balanced sound with plenty of sparkling high­end. Place the microphone in front of the sound hole to capture a blend of low-end. Or, for more high-end detail,
place the microphone farther from the guitar either at the same neck position or above the instrument near the
guitarist’s head. Experiment with different positions to reach the sound you want.

Electric guitars

For the brightest sound, position iRig Mic Studio 6” to 8” from the grill cloth, with the capsule centered on the
dome of the speaker. This position usually sounds too bright, but it’s a good starting point.

The tone becomes warmer as you move the microphone from the center towards the edge of the speaker.
Keeping the mic 6” to 8” from the grill cloth, move the mic halfway between the dome and the outside edge of
the speaker.

Try the same position but closer to the cabinet (3” to 5” from the grill cloth). Being closer to the speaker, you’ll
notice more direct sound with very little room ambiance. You’ll also notice the bass building up as you move
the mic closer to the cabinet: this is due to proximity effect, as explained above. You can balance the bass and
bring more highs in by moving the mic closer to the center of the speaker.

You can also try to move the mic back to a distance of two or three feet. You’ll get speaker and cabinet
development, and the spaciousness can sound remarkably good. The sound of the room you’re recording in will
affect your results - a good sounding room can add a nice character to your guitar tracks.

An all around microphone

What do you want to record with your iRig Mic Studio? Thanks to its wide gain range and supported sound
pressure level it is possible to record an extremely broad range of instruments: piano, drums, wind instruments
— you name it, iRig Mic Studio is a true all-around microphone.

Troubleshooting

I have connected iRig Mic Studio to my iOS device, but it is not recognized and none of my audio apps
work with it.

Remember to always connect the Lightning cable to the iRig Mic Studio before connecting it to the iOS device.

Sound is distorted.

Check that the input level on iRig Mic Studio has been set properly. If the red LED is lighting when you talk or
sing decrease the input level as described in this guide.

I’ve connected iRig Mic Studio, the headphone to the device headphone out and launched the recording
app, but no sound comes out.

Make sure to connect the headphone to your device only after you launched the recording app.

11

English

The iRig Mic Studio status LED is always dark blue and I don’t get any sound.

In order for iRig Mic Studio to turn on, a Core Audio-compatible audio app must first be launched on your iOS
device or Mac.

iOS: Be sure you are using an app that works with digital audio input from the 30-pin or Lightning dock
connector.

Mac: Be sure you have set “iRig Mic Studio” as the audio input device on the audio app you are using.

Specifications

- Type: Large diaphragm, back electret 1” condenser capsule

- Polar pattern: Cardioid

-Diaphragm:3μmNickelsputtered

- Resolution & Sample Rate: 24 bit, 44.1kHz / 48kHz

- Freq. response: 20Hz – 20kHz ±3dB

- Max SPL: 133dB SPL for THD=0.5%

- Sensitivity: -42±3dB (@1 kHz,0dB=1V/Pa)

- Gain range: 40dB

- 3,5mm headphone out jack

- Supply voltage: power supply via USB

- Multicolor LED for status and level indication

- Controls: Gain knob and headphone volume knob

- Size: Ø 45mm x 117mm

- Connection: Micro-USB

- 30-pins cable sold separately

Warranty

Please visit:
www.ikmultimedia.com/warranty
for the complete warranty policy.

Support and more info

www.ikmultimedia.com/support

www.irigmicstudio.com

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

12

FCC statement

This device complies with Part 15.107 and 15.109 Class B of the FCC Rules CFR47: October 2010.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.

“MadeforiPod,”“MadeforiPhone,”and“MadeforiPad”meanthatanelectronicaccessoryhasbeendesignedtoconnectspecicallyto iPod,iPhone,oriPad,respectively,andhasbeencertied

by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of
this accessory with iPod, iPhone, or iPad may affect wireless performance.

iRig® Mic Studio, AmpliTube®, iRig® Recorder, VocaLive® are trademarks property of IK Multimedia Production Srl. iPad, iPhone, iPod touch, Retina and Mac are trademarks of Apple Inc., registered
in the U.S. and other countries. iPad Air, iPad mini, and Lightning are trademarks of Apple Inc. All other trademarks are property of their respective owners.
