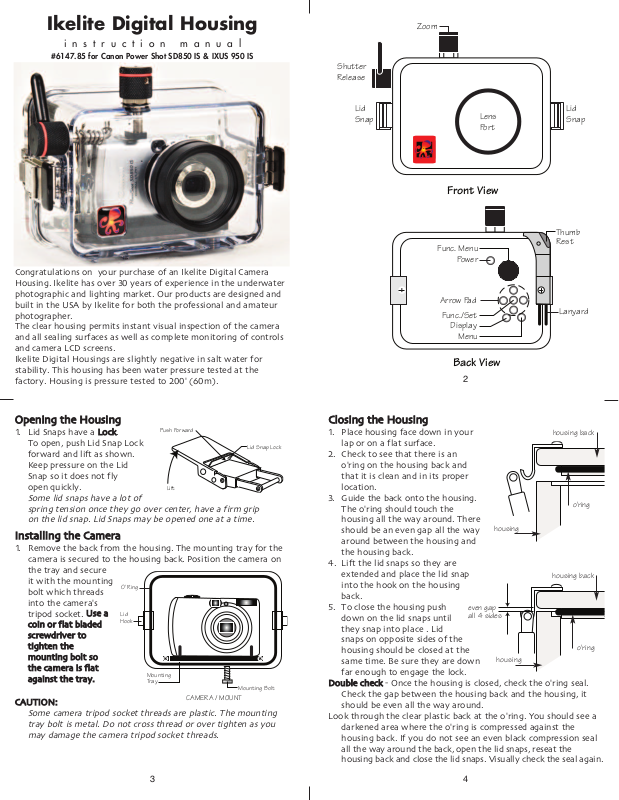

Ikelite Digital Housing
Zoom
Front View
Shutter
Release
Lid
S
nap
Display
Menu
Func./Set
Func. Menu
Lid
S
nap
Lens
Port
Back View
Lanyard
Thumb
Rest
Power
Arrow Pa d
Lift
Push For ward
Lid Snap Lock
CAMERA / MOUNT
Lid
Hook
O' Ring
Mounting
Tray
Mounting Bolt
i n s t r u c t i o n m a n u a l
#6147.85 for Canon Power Shot SD850 IS & IXUS 950 IS
Congratulations on your purchase of an Ikelite Digital Camera
Housing. Ikelite has over 30 years of experience in the underwater
photographic and lighting market. Our products are designed and
built in the USA by Ikelite for both the professional and amateur
photographer.
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens.
Ikelite Digital Housings are slightly negative in salt water for
stability. This housing has been water pressure tested at the
factory. Housing is pressure tested to 200' (60m).
2
OOppeenniinngg tthhee HHoouussiinngg
1. Lid Snaps have a
To open, push Lid Snap Lock
forward and lift as shown.
Keep pressure on the Lid
Snap so it does not fly
open quickly.
Some lid snaps have a lot of
spring tension once they go over center, have a firm grip
on the lid snap. Lid Snaps may be opened one at a time.
IInnssttaalllliinngg tthhee CCaammeerraa
1. Remove the back from the housing. The mounting tray for the
camera is secured to the housing back. Position the camera on
the tray and secure
it with the mounting
bolt which threads
into the camera's
tripod socket.
ccooiinn oorr ffllaatt bbllaaddeedd
ssccrreewwddrriivveerr ttoo
ttiigghhtteenn tthhee
mmoouunnttiinngg bboolltt ssoo
tthhee ccaammeerraa iiss ffllaatt
aaggaaiinnsstt tthhee ttrraayy..
CCAAUUTTIIOONN::
Some camera tripod socket threads are plastic. The mounting
tray bolt is metal. Do not cross thread or over tighten as you
may damage the camera tripod socket threads.
LLoocckk
UUssee aa
.
3
CClloossiinngg tthhee HHoouussiinngg
1. Place housing face down in your
lap or on a flat surface.
2. Check to see that there is an
o'ring on the housing back and
that it is clean and in its proper
location.
3. Guide the back onto the housing.
The o'ring should touch the
housing all the way around. There
should be an even gap all the way
housing
around between the housing and
the housing back.
4. Lift the lid snaps so they are
extended and place the lid snap
into the hook on the housing
back.
5. To close the housing push
down on the lid snaps until
even gap
all 4 sides
they snap into place . Lid
snaps on opposite sides of the
housing should be closed at the
same time. Be sure they are down
housing
far enough to engage the lock.
DDoouubbllee cchheecckk
- Once the housing is closed, check the o'ring seal.
Check the gap between the housing back and the housing, it
should be even all the way around.
Look through the clear plastic back at the o'ring. You should see a
darkened area where the o'ring is compressed against the
housing back. If you do not see an even black compression seal
all the way around the back, open the lid snaps, reseat the
housing back and close the lid snaps. Visually check the seal again.
4
housing back
o'ring
housing back
o'ring
CChheecckkiinngg CCoonnttrroolls
+-
+-
Once the housing has been closed, make sure the housing
controls line up with the camera's controls. If the housing
controls are misaligned slightly make sure the camera hold
down bolt has been tightened down firmly so the camera
is flat against the tray.
s
ZZoooomm CCoonnttrrooll
(NOTE:) After you have used the
housing's zoom control it must be
eturned to the center position to
r
disengage. If the housing zoom
control is pushing the zoom lever
in either direction you may not
e able to take a picture or access
b
any other function as the camera
is receiving a signal from the
engaged zoom control.
Zoom control
engaged
Zoom control
disengaged
(centered)
TTuurrnn CCaammeerraa OOnn
Turn the camera on and operate each of the housing controls
to get a feel for using the camera in the housing. Take a few
pictures above water with the camera in the housing.
LLuubbrriiccaanntts
1. Ikelite provides silicone lubricant with the housing. We recommend
you use only Ikelite lubricant on Ikelite products as some other
brands may cause the o'ring to swell and not seal properly.
2. Use only enough lubricant to lightly cover control shafts and
o'rings. Wipe off any excess lubricant with a clean cloth.
Lubricant is not a sealant, it is used to reduce friction. Excessive
lubricant can collect sand and dirt which may interfere with
proper sealing.
CCAAUUTTIIOONN
NNeevveerr uussee sspprraayy lluubbrriiccaannttss aass tthhee pprrooppeellllaanntt iinnggrreeddiieenntt ccaan
ccaauussee tthhee ppllaassttiicc hhoouussiinngg ttoo ccrraacckk.
s
n
.
5
LLeennss PPoorrtt
Treat the glass in the lens port as a camera lens. After use, rinse
and gently dry the lens port to avoid water spotting. To clean
use a mild soap solution or lens cleaner.
Do not use alcohol or window cleaner on the Lens Port.
The Lens Port will accept (2) Wide-Angle Adapters. The WideAngle Adapter #9306.80 which is required to mount the Inon
UWL-150AD Bayonet style wide-angle lens. The Wide-Angle
Adapter #9306.81 is required to mount the #6420 Ikelite W-20
Wide-Angle Lens and other manufacturers (67mm) screw
thread style wide-angle lenses.
These lenses can be secured onto the Wide-Angle Adapter
above or below water as they are designed to have water
between the front of the port and the accessory lens. Make sure
no air bubbles are trapped between the port and the accessory
lens. Any vignetting that occurs can be eliminated by zooming
the camera lens slightly. The camera’s built-in flash cannot be
used with wide angle
lenses. The front of the
lenses are so large they
block the camera’s flash.
To properly light subjects
when using a wide angle
lens an external strobe
should be used. Due to
the wide-angle of
coverage of these lenses,
the DS125 Substrobe is
recommended or two
DS51 Substrobes
Wide-Angle Adapter
wide-angle lens
6

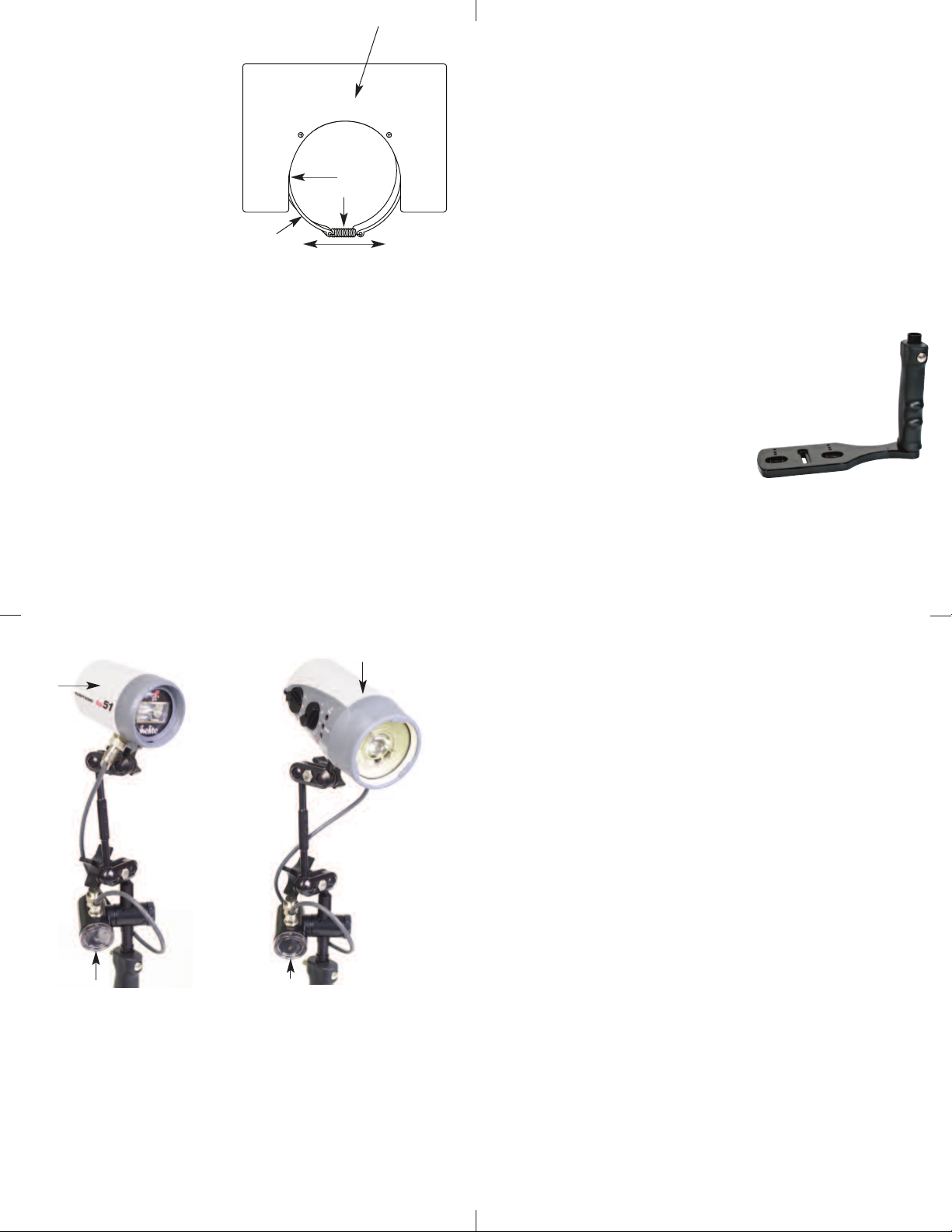

DDiiffffuusseerr && DDeefflleeccttoorr IInnssttaallllaattiioonn
Diffuser
Housing shown with
Diffuser installed.
7
8
DDiiffffuusseerr aanndd DDeefflleeccttoorr ccoonntt.
A diffuser and deflector are
included with the housing.
The diffuser is white
transparent plastic. The
deflector is also white but
is not transparent.
To install the diffuser or
deflector spread the port
clamp at the spring end and
slide over the lens port. The
white plastic should be
placed in front of the camera
flash. The port clamp should
be pushed back against the
front of the housing.
.
This edge
against
housing
Port Clamp
Spring
Spread to Install
Diffuser/
Deflector
material
DDiiffffuusseerr
The diffuser should be installed when using the camera's built
in flash. When shooting with the camera's built-in flash at
approximately 2 feet (0.6 m) or less, the lens port on the
housing may block a portion of the light from the camera's
built-in flash, creating a shadow in the lower left of the photo.
If this occurs, zoom the lens slightly to eliminate the shadow.
(You can test this above water)
DDeefflleeccttoorr
The deflector should be installed when using an external strobe
such as the DS51 or DS125 Substrobe and EV Controller. The
deflector will redirect the camera's flash to the EV Controller
which controls the external strobes output.
9
OOppttiioonnaall AAcccceessssoorriiees
BBaacckk oo--rriinngg
O-rings last for several years if properly maintained. (See
maintenance) Always carry a spare in case o-ring becomes
damaged or lost.
##00110099
WWiiddee--AAnnggllee AAddaapptteerr
Required to mount Inon UWL-150AD Bayonet style wide-angle lens.
WWiiddee--AAnnggllee AAddaapptteerr
Required to mount Ikelite W-20 and other Screw Thread
(67mm) style wide-angle lenses.
UURR//PPrroo FFiilltteerr ((BBlluuee WWaatteerr))
The UR/Pro underwater color correcting filter is designed to
restore some of the warm colors filtered out by the water. For
available light use only, not recommended for use with flash.
GGrreeeenn WWaatteerr FFiilltteerr
Enhances contrast and alters the color of green water to
give our subject a rich, natural tone. For available light
only, not recommended for use with flash.
TTrraayy wwiitthh RReelleeaassee HHaannddllee
Tray and Release Handle is required
to mount external Substrobes.
IIkkeelliittee WW--2200 WWiiddee--AAnnggllee LLeennss
Wide-Angle lenses allow you to capture more of the scene and
get closer to your subject which results in clearer images and
more vivid color. Can be installed or removed underwater for
maximum versatility. (Note: some housings may require an
adapter, see instructions.)
s
##99330066..8800
##99330066..8811
##66444411..3322
##66444411..7722
##99552233..3311
##66442200
10
OOppttiioonnaall AAcccceessssoorriieess CCoonnttiinnuueedd
Substrobe
DS51
SA-100R
Arm
EV Controller
SSuubbssttrroobbee DDSS5511
The Substrobe DS51 covers the
equivalent of a 28mm lens. It is
the ideal choice when using only
the camera lens or the camera
lens with a macro accessory lens.
SSuubbssttrroobbee PPaacckkaaggeess aavvaaiillaabblle
#3944.47 SubStrobe DS51 with EV Controller & Strobe Arm
#3944.54 SubStrobe DS51 with EV Controller & Ball Socket Arm
#3944.77 SubStrobe DS125 with EV Controller & Ball Socket Arm
EV Controller
SSuubbssttrroobbee DDSS112255
The Substrobe DS125 covers the
equivalent of a 18mm lens, 100
degrees. It is the ideal choice
when using accessory wide angle
lenses greater than 28mm.
e
11
SA-100R
Arm
Substrobe
DS125

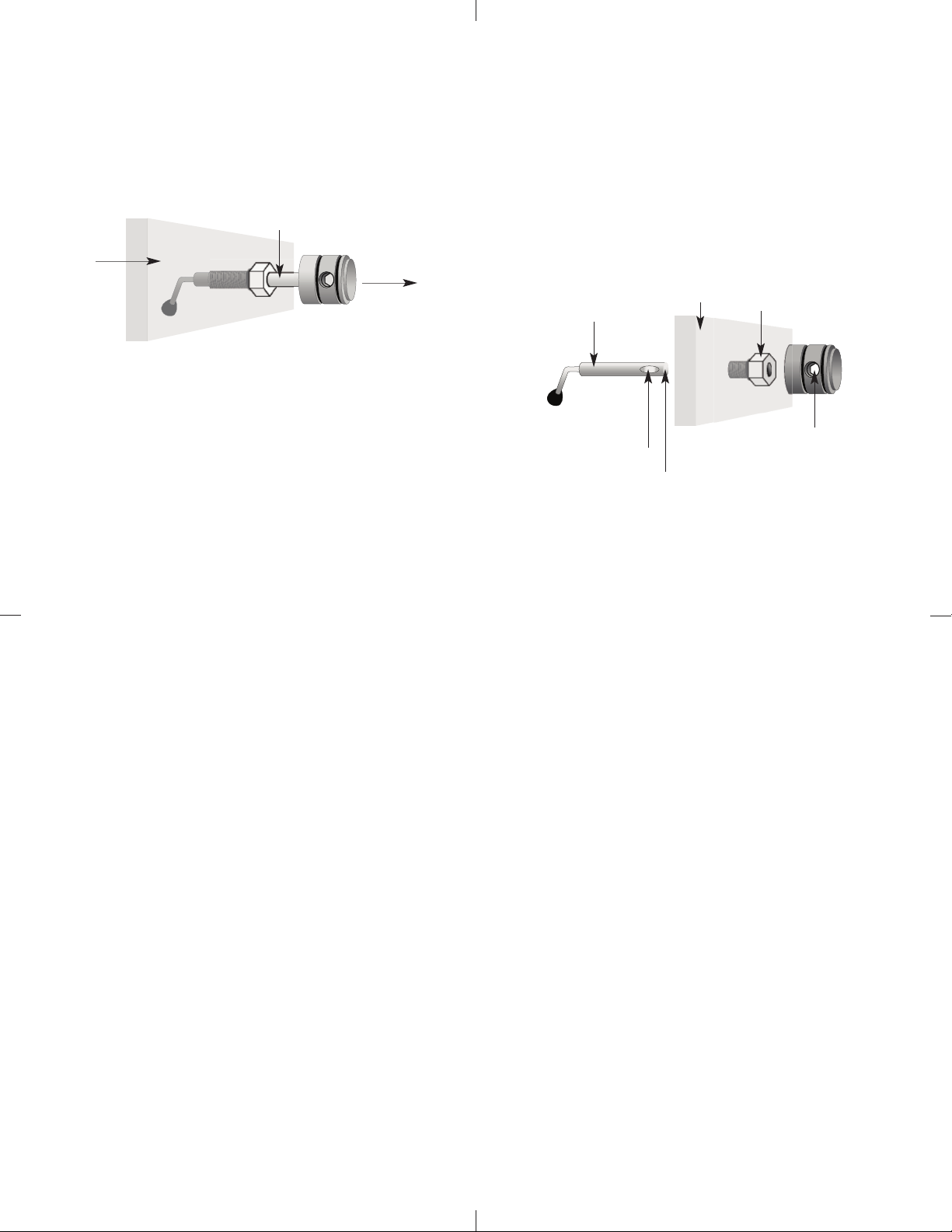

MMaaiinntteennaannccee
The Ikelite Digital Housing should be given the same care and
attention as your other photographic equipment. In addition to
normal maintenance we recommend that the housing be returned
to Ikelite periodically to be checked and pressure tested.
DDoo NNoott
1.
prolonged periods. Heat may damage the camera.
DDoo NNoott
2.
3. Before using the housing, always check the tightness of the
ssccrreeww
Check each
a slight chance that either could vibrate loose during travel.
4. Keep the back o'ring clean and lightly lubricated. To lubricate
remove the o'ring from the back. Put a small amount of lkelite
lubricant on your fingers. Draw the o'ring through your fingers
to apply a light coating of lubricant. Only apply enough
lubricant to make the o'ring feel slick.
This light coating of lubricant will help to keep the o'ring from
drying out and will help to show a dark sealing line when the
housing back is properly sealed.
5. Keep the area where the o'ring fits and the sealing surface of
the housing clean.
6. Rinse the housing exterior in fresh water after each salt water
use. Dry with a soft cloth. Dry lens port to eliminate spotting.
After several uses in salt water soak the housing in a mild soap
solution, rinse and dry before storage. When storing the
housing, remove the back o'ring, lightly lubricate and place in a
plastic bag. Place the plastic bag with o'ring inside the housing
for safe keeping.
leave the camera and housing in direct sunlight for
ship the camera in the housing.
in each control knob.
ccoonnttrrooll ggllaanndd
to make sure they are tight. There is
DDoo NNoott ssttrreettcchh tthhee oo''rriinngg
sseett
CCAAUUTTIIOONN
NNeevveerr uussee sspprraayy lluubbrriiccaannttss aass tthhee pprrooppeellllaanntt iinnggrreeddiieenntt ccaan
ccaauussee tthhee ppllaassttiicc hhoouussiinngg ttoo ccrraacckk.
.
12
n
.
CCoonnttrrooll MMaaiinntteennaanncce
e
Ikelite controls are designed to provide years of reliable service
with minimal maintenance.
1. Push button controls require no maintenance other than rinsing
in fresh water after saltwater use. If a push button control
becomes difficult to push or if it sticks when depressed, soak the
housing in luke warm fresh water. After a few minutes operate
the push button. If this does not correct the problem, return the
housing to Ikelite for maintenance.
2. Some of the controls have long shafts. These controls can be
lubricate shaft
housing
3. Some of the controls have a short shaft and cannot be pulled
out exposing the shaft for lubrication. In the unlikely event one
f these controls sticks or becomes difficult to operate you can
o
remove the control from the housing and lubricate it, or return
the housing to Ikelite for maintenance. To remove the control,
loosen the set screw in the knob (allen wrench required);
emove the knob. If there is salt or dirt build-up on the exposed
r
control shaft, clean the shaft. Open the housing and gently slide
the control shaft out of the control gland. Clean and lightly
lubricate the shaft, including the end of the shaft. Slide the
shaft back into the control gland and gently slide it back and
forth a few times without fully removing the shaft from the
gland. Replace the knob, NOTE the flat area on the shaft, the
set screw in the knob should tighten down against the flat area
on the control so the knob does not turn on the shaft.
pull out to
expose shaft
pulled out, exposing the shaft (see drawing).
To lubricate the control, gently pull on the knob until the
stainless steel shaft is exposed. Lightly lubricate the shaft, then
move the shaft in and out several times. This will lubricate the
x'ring in the Ikelite control gland. This should be done before
using the housing after a prolonged storage period, or once a
week when the housing is in use.
continued on next page
13
GGeenneerraall TTiippss
1. Due to the power required to operate the camera, flash, and
LCD screen it is a good idea to start each dive with a fresh set
of batteries.
2. Some cameras reset their flash to AUTO when the camera is
turned on. If you prefer another setting be sure to select it.
3. As soon as you enter the water, take a moment and check the
housing to see that it is properly sealed.
4. Next, check to see if there are any bubbles on the face of the
lens port. If there are, take your finger and remove them. If
there are bubbles on the lens port they can produce soft focus
spots in your photographs.
5. If you use the housing Zoom control, make sure to move it
back to the center position. If the housing Zoom control is
pushing the camera zoom lever to either side the camera will
not function.
control
shaft
Flat
Tighten set screw down
against this area when
replacing the knob.
housing
Lubricate end of shaft
before reinserting into
gland
gland
Loosen set screw
(allen wrench required)
14
PPhhoottoo TTiippss
1. The number one rule in underwater photography is eliminate
as much water between camera and subject as possible. Get
as close as you can to the subject, then use the zoom. If you
are using flash, subjects beyond 6 feet (1.8m)will not have
much color.
2. Digital cameras have a slight lag time between when you press
the shutter release button and the camera actually takes the
picture. Hold the camera steady a second or two after pressing
the shutter release button.
3. Do not shoot down on subjects as they will quite often blend
into the background and be difficult to see in the photograph.
Shoot subjects straight on or shoot up at a slight angle using
the blue water as a contrasting background.
4. Underwater flash is used to restore the warmer colors filtered
out by the water as well as to illuminate the subject. When
photographing underwater, set the camera to use flash on
every shot. If the camera's flash is set to AUTO and the sun is
behind your subject, the camera may see enough light that it
does not fire the flash. With the sun behind the subject the
subject is shaded (dark) and needs flash for a good exposure.
15
16
PPhhoottoo TTiippss CCoonntt.
5. Since opinions vary on what is the correct exposure you may
want to adjust your camera for what you like exposure wise.
Many cameras allow you to adjust both available light and flash
xposure with an EV control.
e
6. Many photographers transfer their images to the computer
where they can fine tune the appearance of the image. Many
of the image manipulation programs make you think you can
magically correct any image taken and make a good picture.
One thing to remember when using image manipulation
programs, if the image is overexposed much of the color is
missing. If the color is missing you cannot adjust it. If images
are underexposed some color and detail may be there, it is just
dark and you can adjust it to some degree. So if you error in
exposure it is better to have the image slightly underexposed
than over exposed.
.
IIkkeelliittee LLiimmiitteedd WWaarrrraanntty
All Ikelite products are warranted against any manufacturing defects
for a period of one year from the date of purchase. Defective products
should be returned prepaid to Ikelite. Ikelite will, at its discretion,
repair or replace such products, and will return to customer prepaid.
All other claims, of any nature, including but not limited to bulb
failure are not covered. Except as mentioned above, no other
warranty expressed or implied, applies to this Ikelite product.
y
RReettuurrnniinngg PPrroodduuccttss ffoorr SSeerrvviiccee
Ikelite is most interested in preforming any service to assure that
all products perform as intended. For repair or service, return the
roduct to the address below with your name, address, phone
p
number and a brief description of the problem. Evidence of
purchase date must be provided to obtain warranty service.
IIkkeelliittee UUnnddeerrwwaatteerr SSyysstteemmss
5500 WW 3333rrdd SSttrreeeett
IInnddiiaannaappoolliiss,, IINN 4466220088 UUSSAA
331177--992233--44552233
eemmaaiill:: iikkeelliittee@@iikkeelliittee..ccoomm
wwwwww..iikkeelliittee..ccoomm
17
66114477..8855--0011--00770077
Loading...
