Ikelite 6870.40 User Manual

Ikelite SLR-DC Housing

instruction manual

#6870.40 for Canon EOS 40D

Congratulations on your purchase of an Ikelite Digital Camera
Housing. Ikelite has over 40 years of experience in the underwater
photographic and lighting market. Our products are designed and
built in the USA by Ikelite for both the professional and amateur

photographer.
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens.

Ikelite Digital Housings are slightly negative in salt water for
stability. This housing has been water pressure tested at the
factory. Housing is pressure tested to 200' (60m).

2

Opening the Housing

Lid Snaps have a Lock.
To open, push Lid Snap Lock
forward and lift as shown.

Keep pressure on the Lid
Snap so it does not fly open
quickly.

Some lid snaps have a lot of
spring tension once they go over center, have a firm grip on the
lid snap. Lid Snaps may be opened one at a time.

3

Installing the Camera

1. Remove the back from
the housing. The
mounting tray for the
camera is secured to the
housing back. Position the
camera and lens on the
tray and secure it with
the mounting bolt which
threads into the camera's

tripod socket.

NOTE: Strobe ID Switch

located on bottom of

camera tray.

Setting the Conversion Circuitry Strobe ID Switch.

On the bottom of the camera tray is a switch for setting the DS
Substrobe ID. Set the switch to the Model of DS Substrobe being

used, SD125orDS51.

• When using dual strobes of
different models such as a DS51 and

a DS125, set the ID switch to DS51.

4

Flash Connection for External Strobes

When using an external strobe connect the housings Hot Shoe
Connector, slide the connector into the hot shoe of the camera
from the back of the camera as shown. Slide the connector

forward until

it stops. This can
be done after
the
camera is
secured with the
mounting

bolt.

Caution:

Do not remove the
External Strobe
Connector's
waterproof cap
unless an
external sync cord
is going to be

plugged in.

Installing Camera in Housing

Before installing the camera, pull out on the controls in the front
section of the housing. This will allow the camera to slide in
easier. Once the camera is installed and the lid snaps have been

closed, return the controls to their operating position.

5

Closing the Housing

1. Place housing face down in your
lap.

2. Check to see that there is an o'ring
on the housing back and that it is
clean and in its proper location.

3. Guide the back onto the housing.
The o'ring should touch the
housing all the way around. There
should be an even gap all the way
around between the housing and
the housing back.

4. Lift the lid snaps so they are
extended and place the lid snap
into the hook on the housing back.

5. To close the housing push
down on the lid snaps until
they snap into place . Lid
snaps on opposite sides of the
housing should be closed at the
same time. Be sure they are down
far enough to engage the lock.

Double check - Once the housing is

closed, check the o'ring seal. Check the gap between the
housing back and the housing, it should be even all the way

around.

Look through the clear plastic back at the o'ring. You should see a

darkened area where the o'ring is compressed against the
housing back. If you do not see an even black compression seal
all the way around the back, open the lid snaps, reseat the

housing back and close the lid snaps. Visually check the seal again.

6

Preparing to Install Zoom Clamp & Gear Sleeve

Determine the type
of lens being used

on the camera.

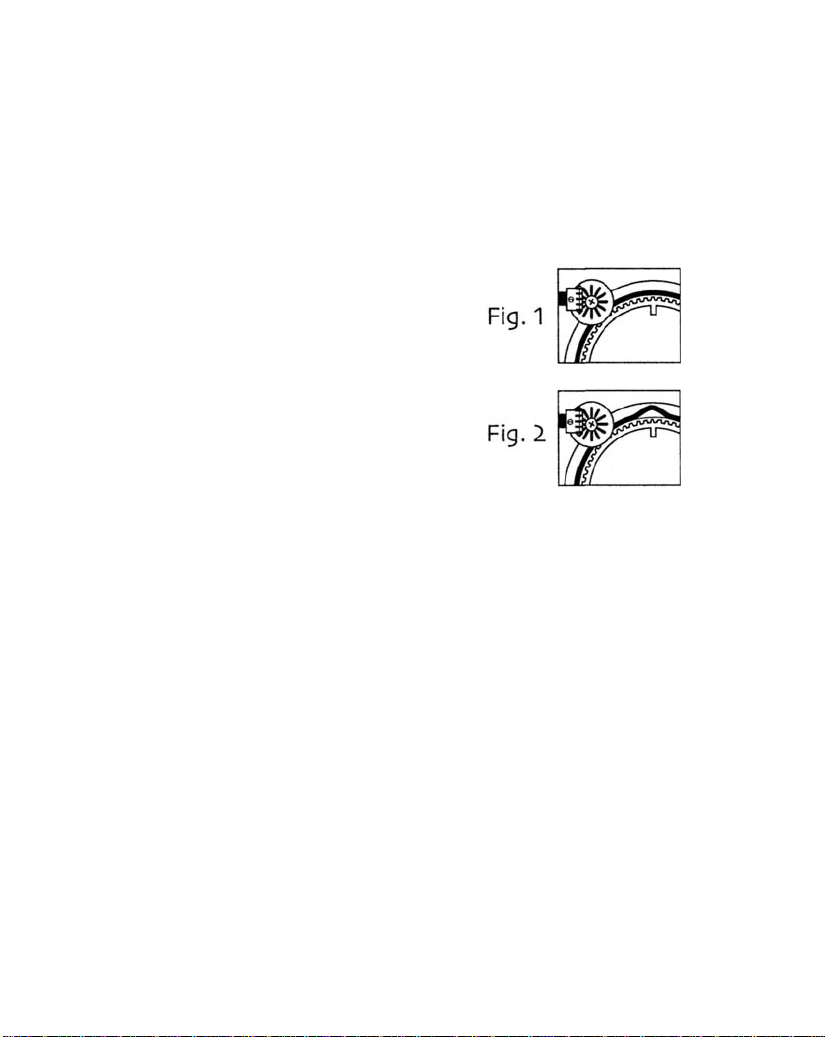

Type 1 Lenses have
a lens opening that
is NOT larger in
diameter than the

zoom ring. (Fig. 1).

Type 2 Lenses have a lens

opening that IS larger in

diameter than the zoom ring. (Fig. 2).

Zoom Clamps & Gear Sleeves Included with Housing

There are 2 different
Zoom Clamps and
Gear Sleeves
provided with the
housing. Start with
the suggested Zoom
Clamp and Gear
Sleeve depending
on the Type of
lens being used.

See (Fig. A or B)

Normally used with

Type 1 lens (Fig.1)

#9059.8 small diameter clamp:

For use with #0073 sleeve

Normally used with

Type 2 lens (Fig.2)

#5509.28 Package

#9059.9 large diameter clamp:

For use with #0073.1 sleeve

#0073 sleeve: Use with

small diameter zo m clamp o

#9059.8

Figure A

7

#0073.1 sleeve: Use with

large diameter zoom clamp

#9059.9

Figure B

Installing the Zoom Clamp & Gear Sleeve On the Type 1 Lenses
Installing the Zoom Clamp

The Zoom Clamp has springs so it can be expanded to fit over

the Zoom ring of the lens as shown in (Fig. Q. Install the Zoom

Clamp with the extension tabs toward the rear element of the
lens. After installing the Zoom Clamp, check that when rotating
the Zoom Clamp it rotates the Zoom ring on the lens. If the
Zoom Clamp is not tight enough to rotate the Zoom ring on the
lens, remove the Zoom Clamp and install the rubber strips

(supplied) to the inside of the Zoom Clamp as shown (Fig. F).

Two thicknesses of rubber strips are provided. Start by installing
the thinnest rubber strips, if the Zoom Clamp still is not tight

enough use the thicker rubber strips. Reinstall the Zoom Clamp.

Install the Gear Sleeve

After the Zoom Clamp is installed, lower the appropriate Gear
Sleeve over the Zoom Clamp aligning the Gear Sleeve ribs with the

grooves in the Zoom Clamps extended tabs as shown (Fig. D & E),

Note that the ribs of the Gear Sleeve should slide freely in the
grooves of the Zoom Clamp. If the Gear Sleeve does not slide
freely, remove any rubber strips on the inside of the Zoom Clamp,
if no rubber strips are installed then try using the Zoom Clamp

and Gear Sleeve for Type 2 lenses in the #5509.28 package.

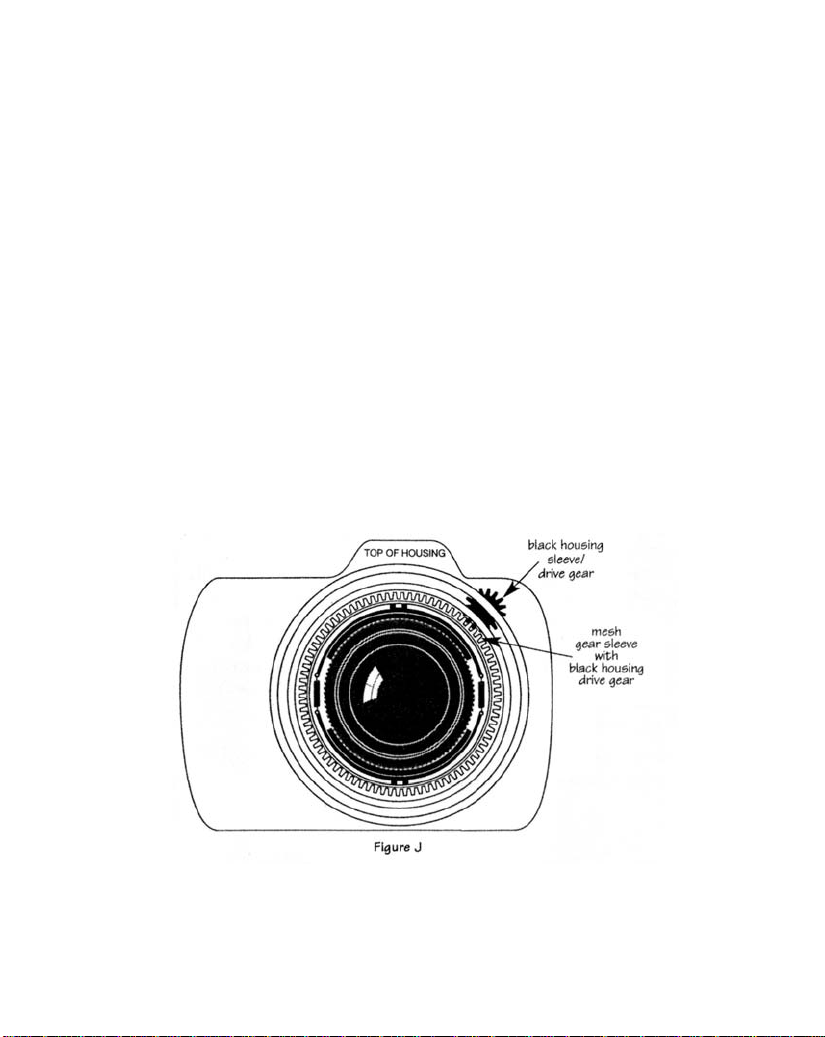

Lower the Gear Sleeve into the port opening of the housing so
the teeth on the Gear Sleeve mesh with the teeth on the housing

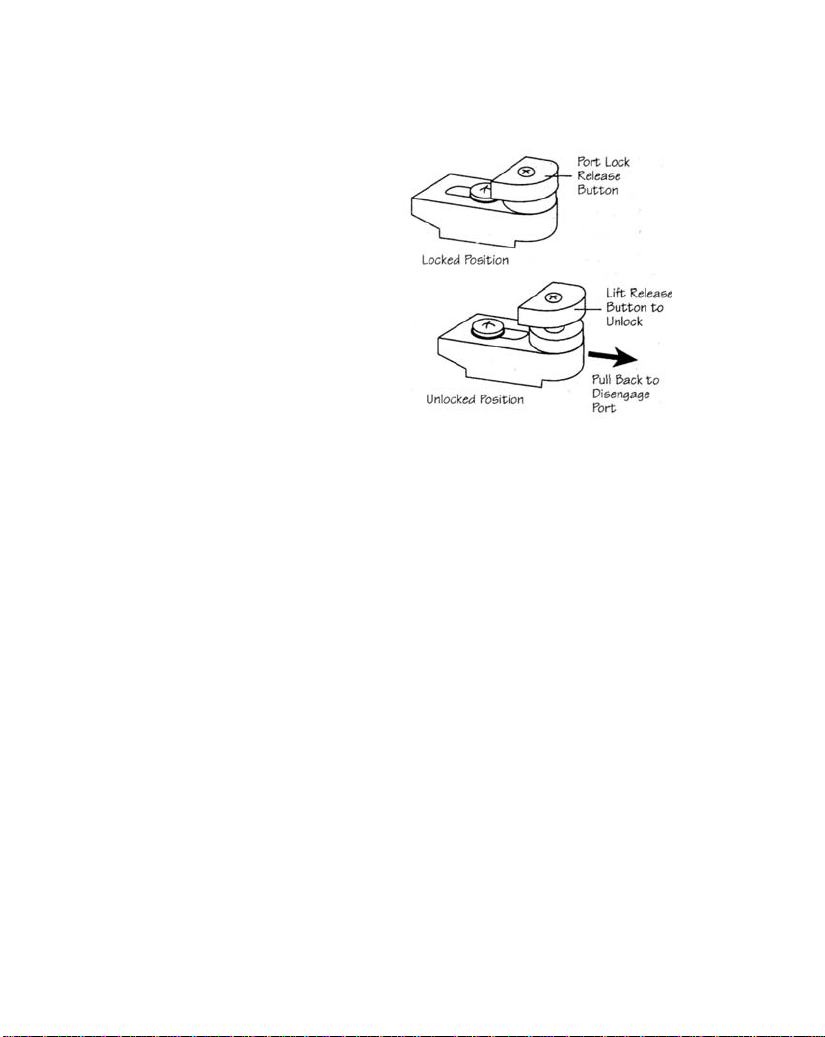

Drive Gear (Fig. G). When the port is installed it will lock the

Gear Sleeve in place. After installing the port, rotate the housings
Zoom Control Knob to see that the Gear Sleeve is properly

routing the lenses Zoom ring.
