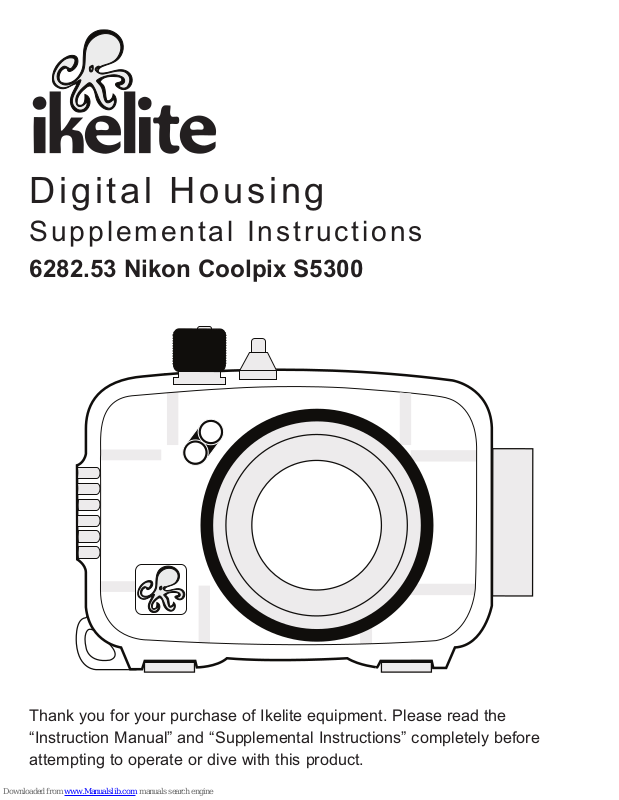

Page 1
Digital Housing
Supplemental Instructions
6282.53 Nikon Coolpix S5300
Thank you for your purchase of Ikelite equipment. Please read the
“Instruction Manual” and “Supplemental Instructions” completely before
attempting to operate or dive with this product.
Page 2
What’s in the Box
- Housing
- Port Cover
- Vinyl Break-away Safety Lanyard
- Flash Diffuser
- Flash Deflector
- Silicone Lubricant 1 cc Tube
- Extra Control Tips and Sleeves
Specifications
Controls ............................All camera functions
Width ................................5.9 in (150 mm) including controls
Height ..............................4.5 in (114 mm) including controls
Depth ................................4.2 in (106 mm) including controls
Weight ..............................1.2 lb (544 g)
Buoyancy..........................Slightly positive in freshwater
Depth Rating ....................200 ft (60 m)
Use Built-in Flash ............Yes
Strobe Connection............Slave or Fiber Optic
Tray Mounting ..................12-24 thread with 3 in spacing (76 mm)
Main O-Ring ....................0132.45
Port O-Ring ......................0134.33
Port Outer Diameter ...
.....3.0 in (76 mm)
Port Lens ..........................Glass
Use 46mm Lenses............No
Use 67mm Lenses............Yes (slight to moderate vignetting possible)
Use Bayonet Lenses ........No
2
Page 3
Parts of the Housing
Zoom Control
Fiber Optic Ports
Front View
Power Switch
Lens Port
Tray Mounts
Latch
Back View
1. Movie-record Button
2. Shooting Mode Button
Shutter-release
Button
1
3
4
6
7
8
10
ULTRA
Made in USA
2
5
9
compact
6. OK/Apply Selection Button
7. Exp. Comp./Right Arrow
3. Playback Button
4. Flash Mode, Up Arrow
5. Self-timer, Left Arrow
8. Macro Mode/Down Arrow
9. MENU Button
10. Delete Button
3
Page 4
Initial Camera Settings
(before placing camera in housing)
- Insert fully charged battery.
- In Shooting Menu:
Set Image mode to “16m.”
Set White balance to “Auto.” If more accurate colors are desired,
we recommend using “PRE” preset manual white balance underwater
using a white slate, white sandy bottom, or even the palm of your hand.
Manual white balance should be reset for each working depth due to
color absorption caused by the water. When adding a UR-Pro color filter,
reset manual white balance.
Set Continuous to “S” Single.
Set ISO sensitivity to “200.”
Set AF area mode to “Center” and Autofocus Mode to “AF-S” Single AF.
Set Quick effects to “Off.
- In Setup Menu:
Set Time Zone and Date.
In Monitor Settings set Image Review to “ON.”
Set Photo VR to “On.”
Set Motion Detection, AF-assist beam and Digital Zoom to “Off.”
Set Auto off to “5 min.”
Insert and format a SD memory card.
Set Blink warning to “OFF.”
- Set Flash Mode to “Fill flash .”
- Set Macro mode to “On” when shooting close-up. If the image is
overexposed, use “-” exposure compensation and/or back away,
zoom in, and then reshoot.
* All other camera functions not mentioned should be set to the user’s
desired settings.
4
Page 5
External Accessory Lenses
W-20 and W-30 Wide-Angle Conversion Lenses
The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and
other 67mm threaded wide angle or macro lenses without the need for
an adapter. An external wide angle conversion lens increases angle of
coverage so you can get closer to the subject while still fitting everything
Moderate vignetting will likely occur at widest angle camera lens setting
with these lenses. Zoom in to eliminate, or crop the image in post
processing.
Bayonet mount lenses cannot be used with this housing.
Please visit www.ikelite.com for additional information.
6430 W-30 Conversion Lens
5
Page 6

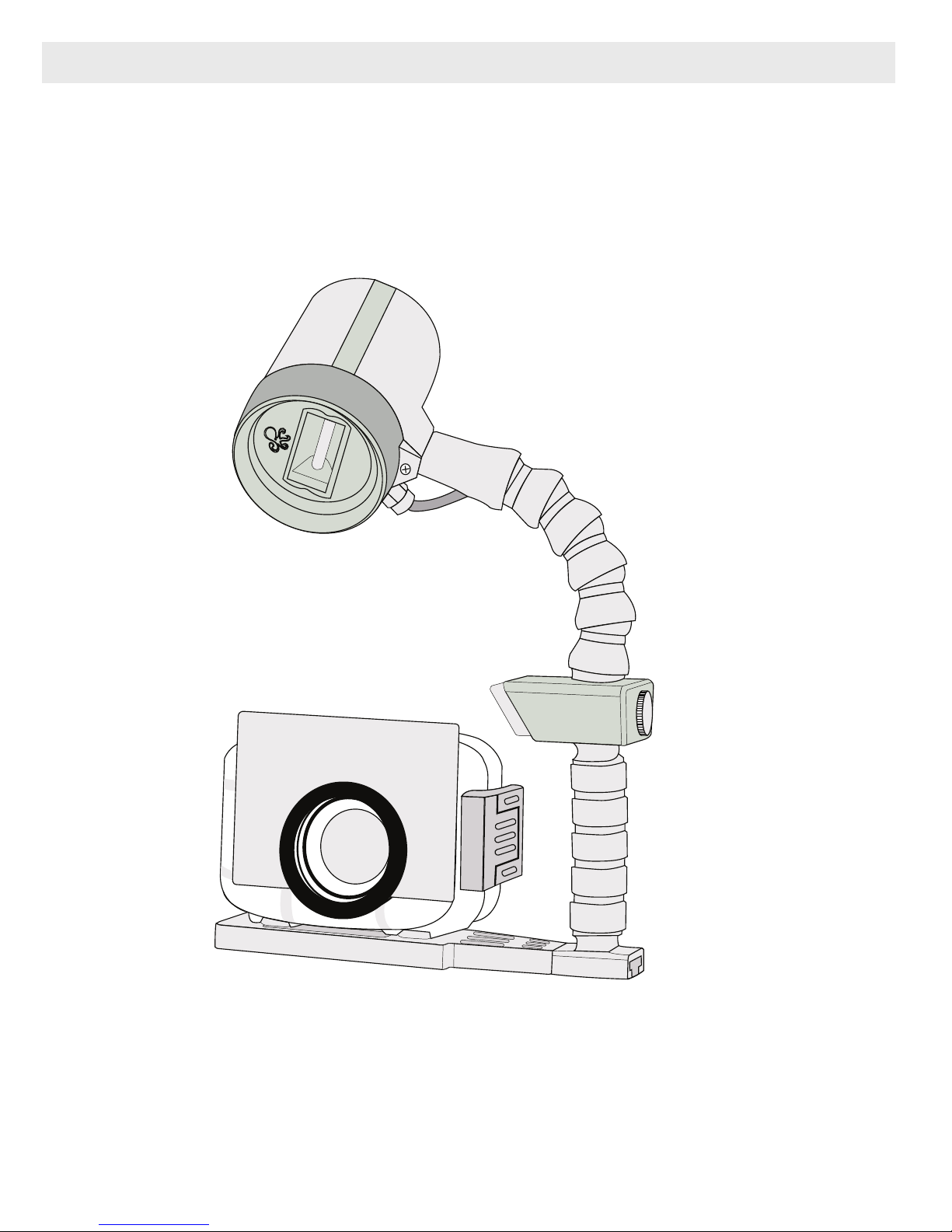

AF35 Strobe Package 4035
The AutoFlash AF35 kit is a great compliment, and an effortless,
affordable way to add a flash to your new Ikelite point and shoot camera
system. Everything you need to get started is in the box. Just attach it to
the bottom of your housing and start taking pictures!
35
AF
ikelite
AUTOFLASH
ikelite
The AF35 Strobe Package is available to support your housing along
with a full range of accessories. Please visit www.ikelite.com to see the
m
ost current information about recommended accessories for your
housing.
6
Page 7
Spare Parts (
- 0132.45 Main o-ring
- 0134.33 Port o-ring
- 0321.10 Vinyl Break-away Safety Lanyard
- Flash Diffuser
- Flash Deflector
- 0184.2 Silicone lubricant resealable 2cc tube
- Extra Control Tips and Sleeves
can be ordered through Ikelite or an authorized dealer)
Customer Support
Please read the troubleshooting section of the “Instruction Manual”
before contacting Ikelite.
Limited Warranty
This Ikelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective
products should be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return to customer
postage paid. All other claims of any nature are not covered. Except as
mentioned above, no other warranty expressed or implied applies to this
Ikelite product.
7
Page 8
Ikelite Underwater Systems
50 West 33rd Street
Indianapolis, IN 46208 USA
www.ikelite.com
© 2014 Ikelite Underwater Systems
6282.53_ Nikon_S5300_Supplemental_1-0714
