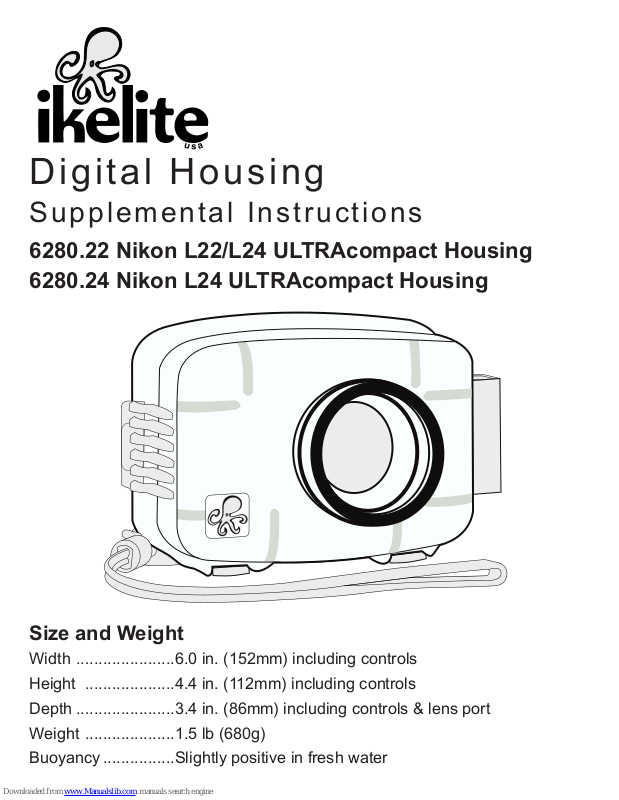

Digital Housing
Supplemental Instructions
6280.22 Nikon L22/L24 ULTRAcompact Housing
6280.24 Nikon L24 ULTRAcompact Housing
Size and Weight
Width ......................6.0 in. (152mm) including controls
Height ....................4.4 in. (112mm) including controls
Depth ......................3.4 in. (86mm) including controls & lens port
Weight ....................1.5 lb (680g)
Buoyancy ................Slightly positive in fresh water
Page 2
Parts of the Housing
ULTRA
compact
Made in USA
I K E L I T E
4
6
3
7
1
2
5
9
8
Shutter
Release
Front View
Zoom Lever
On/Off
Lens Port
Tray Mounts
Latch
Back View
1. Shooting Mode
2. Playback
3. Flash Mode,
4. Self-timer,
5. OK
6. Exposure Comp. ,
Lanyard
7. Macro ,
8. Menu
9. Delete
2
Page 3
Initial Camera Settings
- Set camera to “Auto mode”, NOT Easy Auto or Scene Modes.
- Set camera to “Macro mode.”
- Set White Balance to “Auto.”
For more accurate colors, we recommend setting manual white balance
underwater using a white slate or white sandy bottom. Manual white
balance should be reset for each working depth due to color absorption
caused by the water. When adding a UR-Pro color filter, reset manual
white balance.
- Set Flash Mode to ON “ .”
- Set Image Mode to “High” and AF-assist to “Off.”
A strobe focusing light is recommended to assist AF underwater.
Notes: Camera will focus far away even if “Macro mode” is on. It is best
to leave “Macro mode” on. You can back away from the subject and
zoom in to avoid overexposure, if necessary.
Accessory Lenses
Your new Ikelite housing features a 46mm threaded port for attachment of
external 46mm accessory wet lenses such as the Ikelite 46mm W-20
Wide-Angle Lens #6420.46. This lens is recommended and does not
vignette at camera lens’s widest angle setting.
#9306.81 67mm Threaded Adaptor
Allows attaching Ikelite W-20, Epoque, and Type II Inon screw-on lenses with
67mm threads. Includes larger size removable flash deflector. No vignetting
noted with these lenses.
#9306.79 Bayonet Mount Adaptor
Allows attaching of the Inon UWL-105AD, UFL-165AD, UWL-100AD, and
macro bayonet style lenses. Includes larger size removable flash deflector.
No vignetting noted with these lenses.
3
Page 4
NOTE: External wide angle conversion lenses increase angle of
coverage, so you can get much closer to your subject while still fitting
everything in the frame. Add the Ikelite W-20 or other wide-angle lenses with
an Ikelite accessory port adapter for increased angle of coverage, color, and
clarity.
Slight vignetting may occur at widest angle camera lens setting with some
conversion lenses. Zoom in slightly to eliminate, or crop the image in
post-processing. Also, slight edge softness around the picture edges in some
situations is normal.
A full range of accessories is available to support your housing. Visit
http://www.ikelite.com/web_two/nik_l22.html to see the most current
information about recommended accessories for your housing.
L22//L24 - Strobe Compatibility Notes:
AutoFlash AF35 Kits with a Serial Number below 1900 may
overexpose when used with the Nikon Coolpix L22, and L24 camera
system. AF35 Kits with a Serial Number of 1900 or greater do not require
modification for use with the Nikon L22 or L24 camera. If necessary,
strobes may be returned to Ikelite postage pre-paid for a complimentary
electronics update. Please include a brief letter of explanation with full
contact information, and return to:
Ikelite Underwater Systems
Attention: Service Department
50 West 33rd Street
Indianapolis, IN 46208
Ikelite Email: ikelite@ikelite.com
www.ikelite.com
L22/L24 _supplemental_instructions_4-0811
