Ikelite 6243.01 User manual

7

4

3

6

1

2

5

8

ULTRAcompact

Made in USA

IKELITE

Digital Housing

i

k

e

l

i

te

3

5

A

F

i

k

e

l

i

t

e

A

U

T

O

F

L

A

S

H

supplemental instructions

f

or

#6243.01 Canon ELPH 100 HS

ULTRAcompact Digital Housing

Initial Camera Settings

- Move Mode Switch to “camera icon” setting and use “P” Program mode.

- Set White Balance to auto “AWB.”

- Set Light Metering to “Center Weighted Avg.”

- Set ISO to 100.

- Set Flash to forced ON (flash always fires) “Lightning Bolt.”

- Set Review to “5 Seconds.”

- Set AF-assist beam to “Off.”

- In the Flash Settings menu, Set Red-Eye Correction and Red-Eye Lamp
to “Off.”

- Set AF Frame to “Center” and Servo AF to “Off.”

- Set AF-Point Zoom to “Off.”

Ikelite W-20 Wide-Angle Conversion Lens #6420.46

This housing features a 46mm threaded port for attachment of
external 46mm accessory wet lenses such as the Ikelite 46mm
W-20 lens #6420.46. Moderate vignetting noted with this lens.

#9306.81 67mm Threaded Adaptor

Allows attaching Ikelite W-20, Epoque, and Type II Inon screw-on lenses
with 67mm threads. Includes larger size removable flash deflector. Moderate
vignetting noted with these lenses.

#9306.79 Bayonet Mount Adaptor

Allows attaching of the Inon UWL-105AD, UFL-165AD, UWL-100 28AD, and
macro bayonet style lenses. Includes larger size removable flash deflector.
Slight to moderate vignetting noted with the listed W/A conversion lenses.
NOTE: External wide angle conversion lenses increase angle of coverage,
so you can get much closer to your subject while still fitting everything in the
frame. Add the Ikelite W-20 or other wide-angle lenses with an Ikelite
accessory port adapter for increased angle of coverage, color, and clarity.
Moderate vignetting may occur at widest angle camera lens setting with
some conversion lenses. Zoom in slightly to eliminate, or crop the image in
post-processing. Also, slight edge softness around the picture edges in
some situations is normal.

2

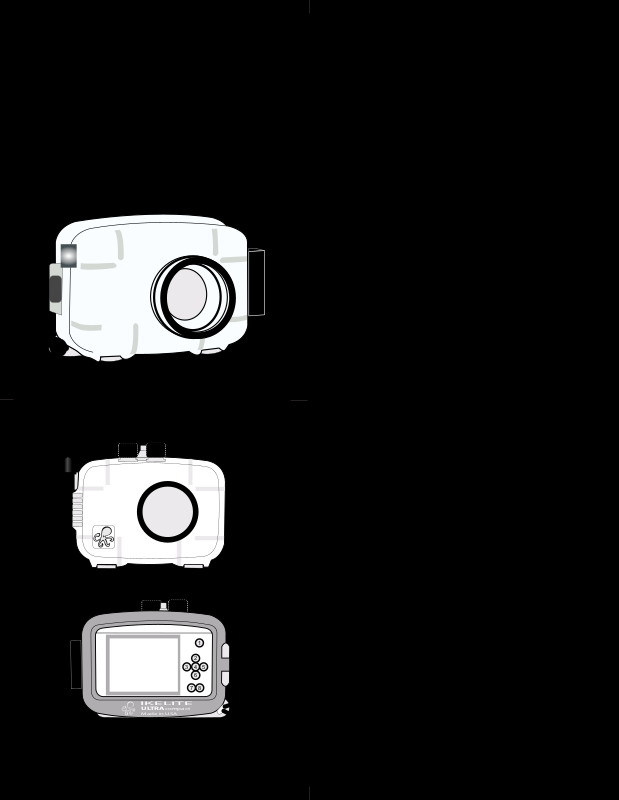

Housing Controls

Zoom
Lever

Shutter
Button

1. Movie Button

2. Exposure Compensation Button

3. Macro Button

4. FUNC./SET Button

Lens Port

Front View

Back View

3

Mode Switch

Power Button

5. Flash Button

6. Display Button

7. Playback Button

8. Menu Button

AF35 Strobe Package #4035

The AutoFlash AF35 kit is a great compliment, and
an effortless, affordable way to add a flash to your
new Ikelite point and shoot camera system.
Everything you need to get started is in the box.
Just attach it to the bottom of your housing and
start taking pictures!

AF35 AutoFlash kit includes:

AF35 strobe - Flex arm - AutoFlash sensor
Handle with rubber grip - Tray (single or dual)
Mounting hardware.

Ikelite Technical Support

E-mail: [e-mail]
Phone [phone]
Fax [phone]

Ikelite Underwater Systems

50 West 33rd Street

Indianapolis, IN 46208 USA

www.ikelite.com

6243.01_Canon_Elph_100_HS_ULTRAcompact_1-0311
