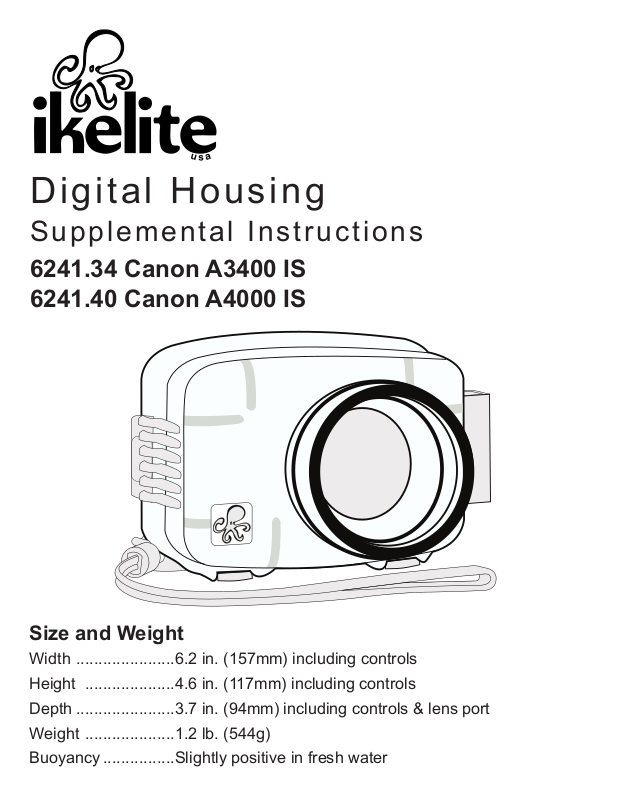

Digital Housing
Supp le me nt al I ns tr uc ti on s
6241.34 Canon A3400 IS
6241.40 Canon A4000 IS
Size and Weight
Width ......................6.2 in. (157mm) including controls
Height ....................4.6 in. (117mm) including controls
Depth ......................3.7 in. (94mm) including controls & lens port
Weight ....................1.2 lb. (544g)
Buoyancy ................Slightly positive in fresh water
Page 2
Parts of the Housing
Front View
Zoom Lever
Shutter
Button
On/Off Button
Back View
1. Movie Button
2. ? Help Button
3. Auto / Erase Button
4. Macro / Left Button
5. FUNC/SET Button
2
Lens Port
Tray Mounts
1
2
3
6
5
4
7
8
9
I K E L IT E
ULTRA
compact
Made in USA
6. Flash / Right Button
7. DISP. Display / Down Button
8. MENU Button
9. Playback Button
Latch
Lanyard
Page 3
Initial Camera Settings
- Insert fully charged battery and formatted SD card.
- Set Date and Time.
- Set Mode to “P” Program.
- Set ISO to 100 and White Balance to auto “AWB.”
- Set the Square to “Single Shot.”
- Set Resolution to “L” and “1280.”
- Set AF Frame to “Center” and Digital Zoom to “Off.”
- Set AF Point Zoom to “Off” and Servo AF to “Off.”
A strobe focusing light is recommended to assist AF underwater.
- Set Lamp Setting to “Off” and Red-Eye Correction to “Off.”
- Set Light Metering to “Center Weighted.”
- Set Review to “5 Seconds” and Review Info to “Off.”
- Set Blink Detection and Grid Lines to “Off.”
- Set IS Mode to “Continuous” and Powered IS to “On.”
- Set Flash to “On flash always fires.”
Note: Enable Macro mode when shooting close-up subjects. If
overexposure occurs, back away from the subject and zoom in.
External Accessory Lenses
Ikelite W-20 Wide-Angle Conversion Lens 6420 (A4000 IS only)
The front of the lens port accepts the 6420 W-20 and other 67mm
threaded wide angle or macro/diopter lenses without the need for an
adapter. An external wide angle conversion lens increases angle of
coverage so you can get closer to the subject while still fitting everything
in the frame.
Moderate vignetting will occur at widest angle camera lens setting with
these lenses. Zoom in to eliminate, or crop the image in post processing.
Note: Wide-Angle conversion lenses will appear off-centered and should
NOT be used with the A3400 IS. This is due to the camera’s CCD chip
placement. Macro adaptors can be zoomed to eliminate vignetting.
Bayonet mount lenses cannot be used with this housing.
3
Page 4
AF35 Strobe Package 4035
The AutoFlash AF35 kit is a great compliment, and
an effortless, affordable way to add a flash to your
new Ikelite point and shoot camera system.
Everything you need to get started is in the box.
Just attach it to the bottom of your housing and
start taking pictures!
AF35 AutoFlash kit includes:
AF35 strobe - Flex arm - AutoFlash sensor
Handle with rubber grip - Tray (single or dual)
Mounting hardware.
A full range of accessories is available to support your housing.
Please visit www.ikelite.com to see the most current information
about recommended accessories for your housing.
Ikelite Technical Support
Email: ikelite@ikelite.com
Phone 317.923.4523
Fax 317.924.7988
ikelite
AUTOFLASH
ikelite
35
AF
Ikelite Underwater Systems
50 West 33rd Street
Indianapolis, IN 46208 USA
www.ikelite.com
6241.34_Canon_A3400IS_1-0312
6241.40_Canon_A4000IS_1-0312
