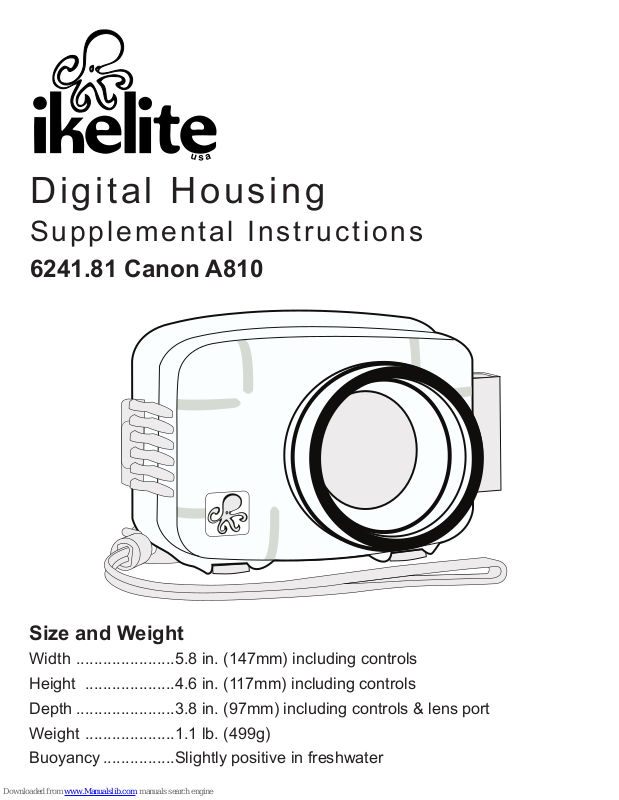

Digital Housing
Supplemental Instructions
6241.81 Canon A810
Size and Weight
Width ......................5.8 in. (147mm) including controls
Height ....................4.6 in. (117mm) including controls
Depth ......................3.8 in. (97mm) including controls & lens port
Weight ....................1.1 lb. (499g)
Buoyancy ................Slightly positive in freshwater
Page 2
Parts of the Housing
Front View
Zoom Lever
On/Off Button
Lens Port
Tray Mounts
Latch
Back View
1. Movie Button
2. ? (Help) Button
3. (Auto) / Erase Up Button
Shutter Button
2
1
3
6
5
4
7
8
9
I K E L I T E
ULTRA
Made in USA
compact
Lanyard
6. (Flash) / Right Button
7. DISP. (Display) / Down Button
8. (Playback) Button
4. (Macro) / Left Button
5. FUNC./ SET Button
2
9. MENU Button
Page 3
Initial Camera Settings
- Insert fully charged battery and formatted SD card.
- Set Date and Time.
- Set Shooting Mode to “P” Program.
- Set ISO to 100 and White Balance to auto “AWB.”
- Set the Square to “Single Shot.”
- Set Resolution to “L” and “1280.”
- Set AF Frame to “Center” and Digital Zoom to “Off.”
- Set AF Point Zoom to “Off” and Servo AF to “Off.”
A strobe focusing light is recommended to assist AF underwater.
- Set Lamp Setting to “Off” and Red-Eye Correction to “Off.”
- Set Light Metering to “Center Weighted.”
- Set Review to “5 Seconds” and Review Info to “Off.”
- Set Blink Detection and Grid Lines to “Off.”
- Set Flash to “On flash always fires.”
- In Power Saving, set Auto Power Down to “Off.”
- In Power Saving, set Display Off to “3 min.”
Note: Enable Macro mode when shooting close-up subjects. If
overexposure occurs, back away from the subject and zoom in and/or
use “-” Exposure Compensation.
External Accessory Lenses
Ikelite W-20 Wide-Angle Conversion Lens 6420
The front of the lens port accepts the 6420 W-20 and other 67mm
threaded wide angle or macro lenses without the need for an adapter. An
external wide angle conversion lens increases angle of coverage so you
can get closer to the subject while still fitting everything in the frame.
Slight vignetting will occur at widest angle camera lens setting with these
lenses. Zoom in to eliminate, or crop the image in post processing.
Bayonet mount lenses cannot be used with this housing.
3
Page 4
AF35 Strobe Package 4035
The AutoFlash AF35 kit is a great compliment, and
an effortless, affordable way to add a flash to your
new Ikelite point and shoot camera system.
Everything you need to get started is in the box.
Just attach it to the bottom of your housing and
start taking pictures!
AF35 AutoFlash kit includes:
AF35 strobe - Flex arm - AutoFlash sensor
Handle with rubber grip - Tray (single or dual)
Mounting hardware.
AF
ikelite
AUTOFLASH
ikelite
35
A full range of accessories is available to support your housing.
Please visit www.ikelite.com to see the most current information
about recommended accessories for your housing.
Ikelite Technical Support
Email: ikelite@ikelite.com
Phone 317.923.4523
Fax 317.924.7988
Ikelite Underwater Systems
Indianapolis, IN 46208 USA
50 West 33rd Street
www.ikelite.com
6241.81_Canon A810_05-12
