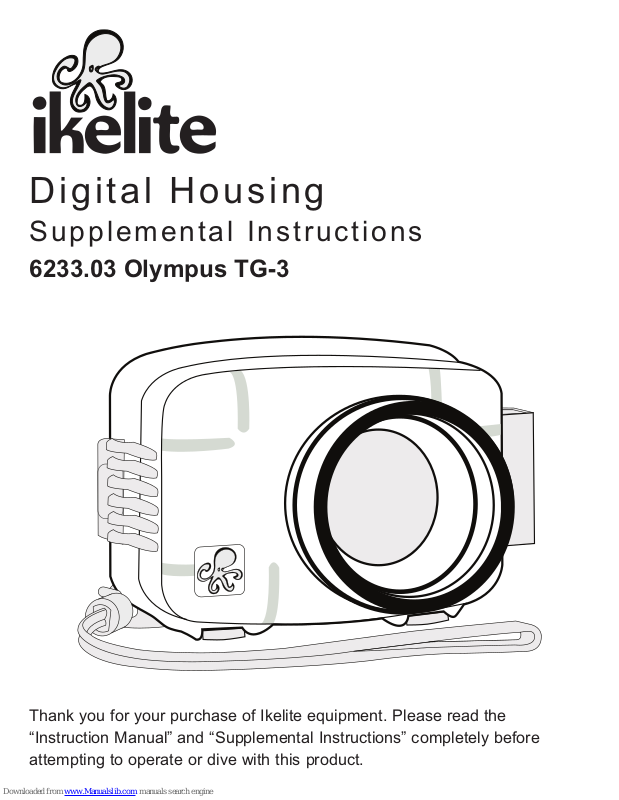

Ikelite Digital Housing, 6233.03 Supplemental Instructions

Digital Housing

Supplemental Instructions

6233.03 Olympus TG-3

Thank you for your purchase of Ikelite equipment. Please read the
“Instruction Manual” and “Supplemental Instructions” completely before
attempting to operate or dive with this product.

Supplied Accessories

- 0200 Vinyl Port Cover

- 0321.10 Safety Lanyard

- Flash Diffuser

- Flash Deflector

- 0184.1 Silicone Lubricant

- Extra Control Tips and Sleeves

Housing Specifications

Controls ............................All camera functions

Width ................................5.9 in (150 mm) including controls

Height ..............................4.5 in (114 mm) including controls

Depth ................................3.6 in (91 mm) including controls

Weight ..............................1.1 lb (499 g)

Buoyancy..........................Slightly positive in freshwater

Depth Rating ....................200 ft (60 m)

Built-in Flash ....................Yes

Strobe Connection............Slave or Fiber Optic

Main O-Ring ....................0132.45

Port O-Ring ......................0119.2

Port Outer Diameter ........3.0 in (76 mm)

Use 46mm Lenses............No

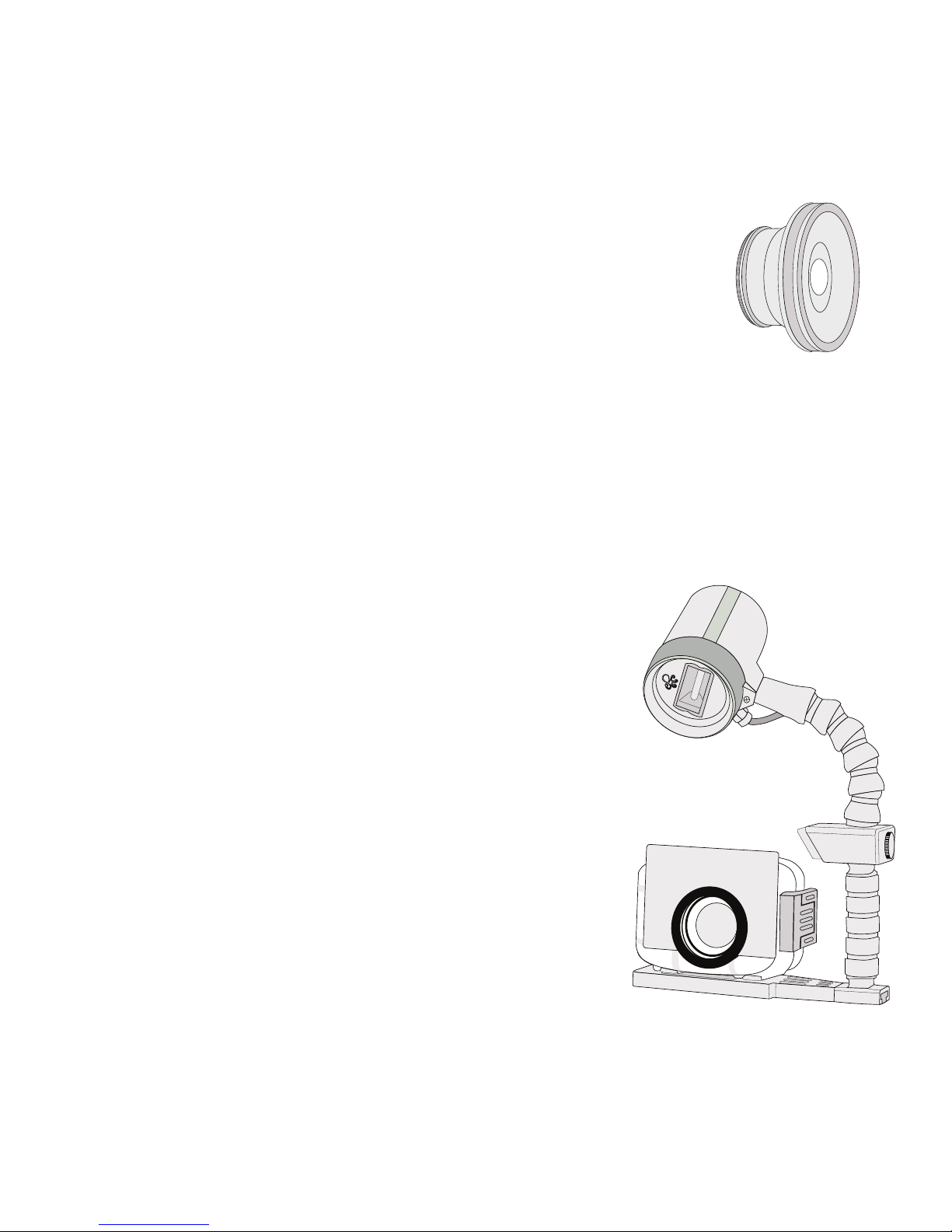

Use 67mm Lenses............Yes (moderate vignetting present with W/A lenses)

Use Bayonet Lenses ........No

2

Parts of the Housing

Shutter Button

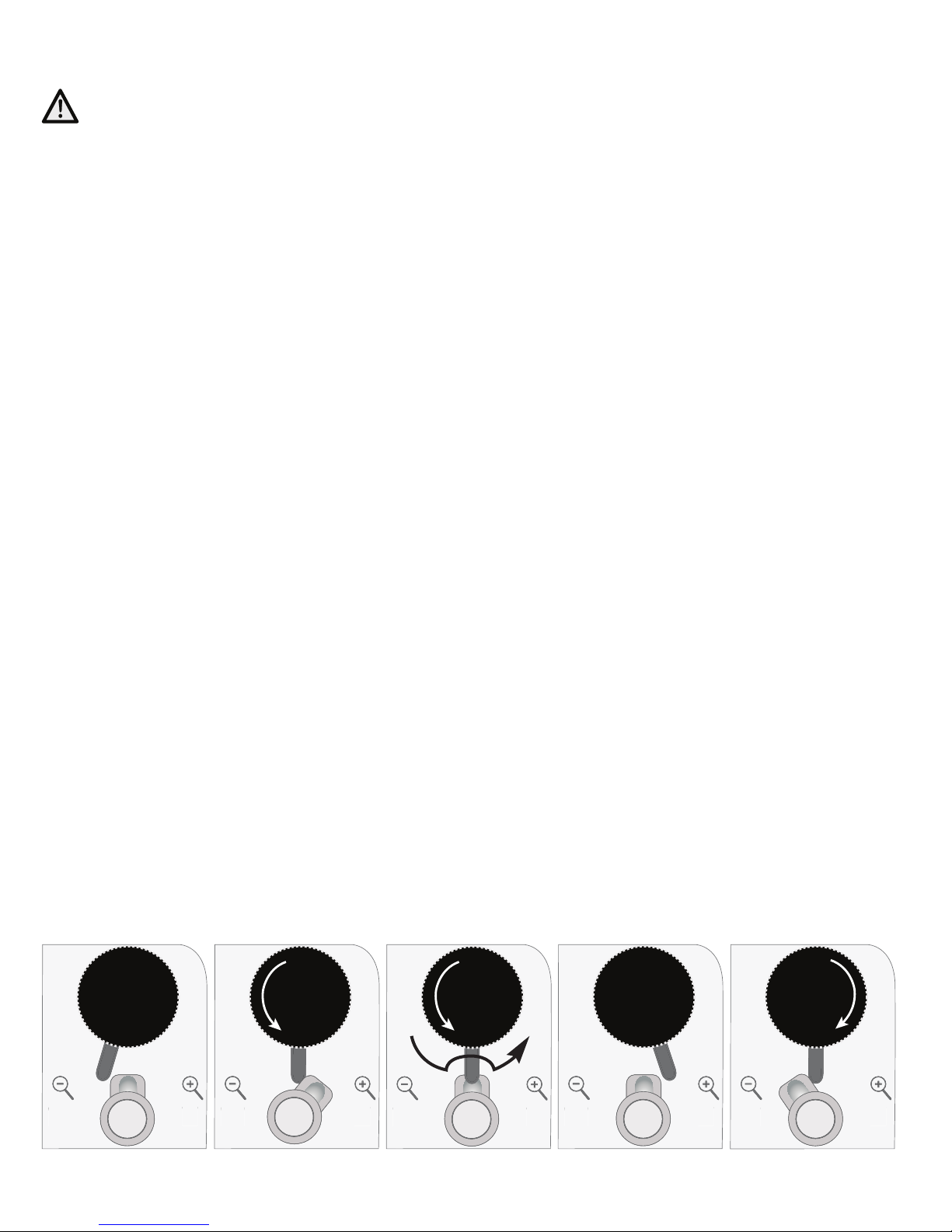

Zoom Lever

Front View

Power Button

Fiber Optic Ports

Lens Port

Tray Mounts

Latch

Back View

1. Movie Button

2. Mode Dial

3. INFO Button

1

2

3

4

ULTRA

Made in USA

5

9

compact

76

8

6. OK Button

7. Right / Flash Button

8. Down / Erase Button

4. Exp. Comp. / UP Button

5. LEFT Button

9. MENU / Wi-Fi Button

3
