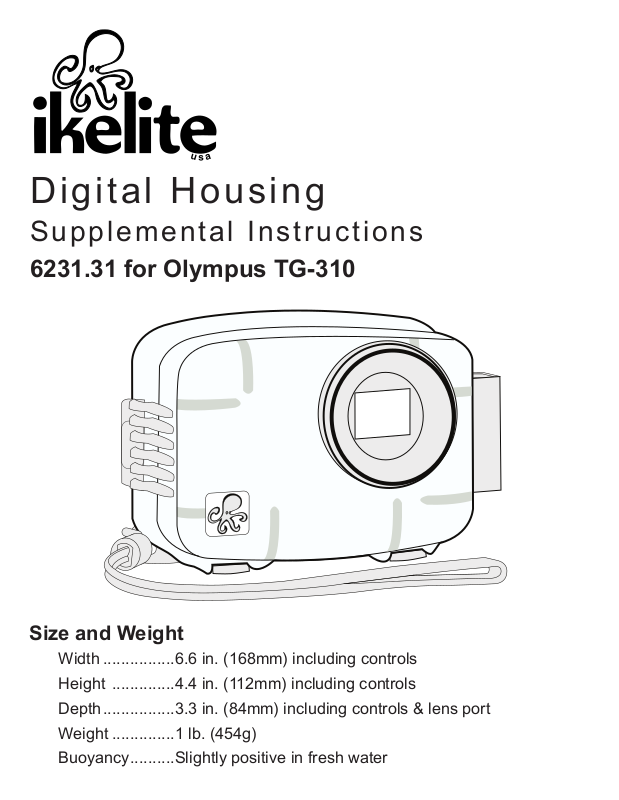

Ikelite 6231.31 User manual

Digital Housing

Supp le me nt al I ns tr uc ti on s

6231.31 for Olympus TG-310

Size and Weight

Width ................6.6 in. (168mm) including controls

Height ..............4.4 in. (112mm) including controls

Depth................3.3 in. (84mm) including controls & lens port

Weight ..............1 lb. (454g)

Buoyancy..........Slightly positive in fresh water

4

5

6

7

9

3

2

1

8

10

ULTRA

compact

Made in USA

I K E L IT E

Housing Controls

Front View

Shutter

Back View

1. Zoom Button (Wide)

2. Zoom Button (Telephoto)

3. Movie Record Button

4. UP Button (Info)

5. Playback Button

2

On/Off

Tray Mounts

Lens Port

Latch

Lanyard

6. Left Button

7. OK Button

8. Right Button

9. Down Button (Erase)

10. Menu Button
