Ikelite 6184.7 User Manual

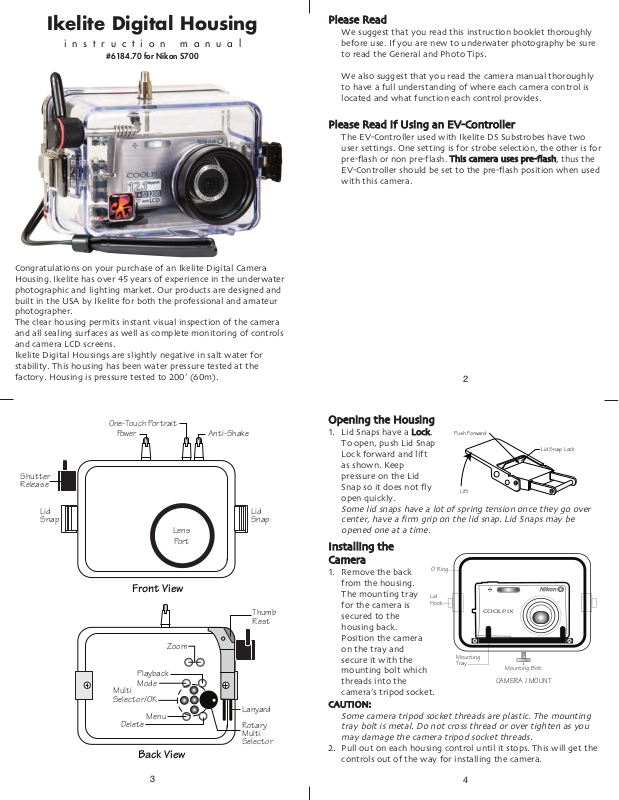

Ikelite Digital Housing

Front View

Shutter
Release

Lid
Snap

Mode

Playback

Delete

Menu

Multi
Selector/OK

Lid
Snap

Lens

Port

Back View

Zoom

Lanyard

Rotary
Multi
Selector

Thumb
Rest

Power

One-Touch Portrait

Anti-Shake

CAMERA / MOUNT

Lid
Hook

O' Ring

Mounting Bolt

Mounting
Tray

Nikon

COOLPIX

Lift

Push For ward

Lid Snap Lock

i n s t r u c t i o n m a n u a l

#6184.70 for Nikon S700

Congratulations on your purchase of an Ikelite Digital Camera
Housing. Ikelite has over 45 years of experience in the underwater
photographic and lighting market. Our products are designed and
built in the USA by Ikelite for both the professional and amateur
photographer.
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens.
Ikelite Digital Housings are slightly negative in salt water for
stability. This housing has been water pressure tested at the
factory. Housing is pressure tested to 200’ (60m).

PPlleeaassee RReeaadd

We suggest that you read this instruction booklet thoroughly
before use. If you are new to underwater photography be sure
to read the General and Photo Tips.

We also suggest that you read the camera manual thoroughly
to have a full understanding of where each camera control is
located and what function each control provides.

PPlleeaassee RReeaadd IIff UUssiinngg aann EEVV--CCoonnttrroolllleerr

The EV-Controller used with Ikelite DS Substrobes have two
user settings. One setting is for strobe selection, the other is for
pre-flash or non pre-flash.
EV-Controller should be set to the pre-flash position when used
with this camera.

TThhiiss ccaammeerraa uusseess pprree--ffllaasshh

2

, thus the

3

OOppeenniinngg tthhee HHoouussiinngg

1. Lid Snaps have a
To open, push Lid Snap
Lock forward and lift
as shown. Keep
pressure on the Lid
Snap so it does not fly
open quickly.

Some lid snaps have a lot of spring tension once they go over
center, have a firm grip on the lid snap. Lid Snaps may be
opened one at a time.

LLoocckk

.

IInnssttaalllliinngg tthhee
CCaammeerraa

1. Remove the back
from the housing.
The mounting tray
for the camera is
secured to the
housing back.
Position the camera
on the tray and
secure it with the
mounting bolt which
threads into the
camera’s tripod socket.

CCAAUUTTIIOONN::

Some camera tripod socket threads are plastic. The mounting
tray bolt is metal. Do not cross thread or over tighten as you
may damage the camera tripod socket threads.

2. Pull out on each housing control until it stops. This will get the
controls out of the way for installing the camera.

4

CClloossiinngg tthhee HHoouussiinngg

1. Place housing face down in your
lap or on flat surface.

2. Check to see that there is an
o-ring on the housing back and
that it is clean and in its proper
location.

3. Guide the back onto the housing.
The o-ring should touch the
housing all the way around. There
should be an even gap all the way
around between the housing and
the housing back.

4. Lift the lid snaps so they are
extended and place the lid
snap into the hook on the
housing back.

5. To close the housing push
down on the lid snaps until
they snap into place . Lid
snaps on opposite sides of the
housing should be closed at the
same time. Be sure they are down
far enough to engage the lock.

DDoouubbllee cchheecckk

Check the gap between the housing back and the housing, it
should be even all the way around.
Look through the clear plastic back at the o-ring. You should see
a darkened area where the o-ring is compressed against the
housing back. If you do not see an even black compression seal
all the way around the back, open the lid snaps, reseat the
housing back and close the lid snaps. Visually check the seal again.

- O

nce the housing is closed, check the o-ring seal.

even gap
all 4 sides

housing back

housing back

o-ring

o-ring

CChheecckkiinngg CCoonnttrroollss

Once the housing has been closed, make sure the housing controls
line up with the camera’s controls. If the housing controls are
misaligned slightly make sure the camera hold down bolt has been
tightened down firmly so the camera is flat against the tray.

RRoottaarryy MMuullttii SSeelleeccttoorr CCoonnttrrooll

The camera’s rotary multi selector is made up of the rotating ring
and the OK button. When selecting menus or pictures, you can
either press the rotating ring up, down, left, or right or rotate it.
When choosing from numerous menu items or pictures, rotating
the ring is recommended for easy scrolling, and faster operation.

The housing’s rotary multi selector control uses a paw to turn the
rotating ring. Note that the white dot on the face of the housing’s
control knob indicates the paw location. When underwater the
water pressure will push the housing’s rotary multi selector in and
make contact with the camera’s rotating ring if the paw is over the
ring. It is recommended that the paw be turned to the 3 o’clock
position when not being used so the paw is Not in contact with
the rotating ring. To use the housings rotary multi selector control
underwater you will need to pull out on the control, locate the
paw over the camera’s rotating ring, push in and rotate the ring.
You may have to do this several times depending on the length of
the camera menu. It is recommended you practice using this
control above water.

TTuurrnn CCaammeerraa OOnn

Turn the camera on and operate each of the housing controls to
get a feel for using the camera in the housing. Take a few pictures
above water with the camera in the housing.

5

LLuubbrriiccaannttss

1. Ikelite provides silicone lubricant with the housing. We recommend
you use only Ikelite lubricant on Ikelite products as some other
brands may cause the o-ring to swell and not seal properly.

2. Use only enough lubricant to lightly cover control shafts and
o-rings. Wipe off any excess lubricant with a clean cloth.
Lubricant is not a sealant, it is used to reduce friction. Excessive
lubricant can collect sand and dirt which may interfere with
proper sealing.

CCAAUUTTIIOONN

NNeevveerr uussee sspprraayy lluubbrriiccaannttss aass tthhee pprrooppeellllaanntt iinnggrreeddiieenntt ccaann
ccaauussee tthhee ppllaassttiicc hhoouussiinngg ttoo ccrraacckk..

6

UUssiinngg FFllaasshh

UUssiinngg tthhee CCaammeerraa’’ss BBuuiilltt--iinn FFllaasshh..

If you do not have an external flash, the camera’s built-in flash
can be used. See Diffuser instructions.

NOTE: The camera’s built-in flash cannot be used with optional

Wide-angle lenses.

Deflector

DDiiffffuusseerr aanndd DDeefflleeccttoorr IInnssttaallllaattiioonn

Housing shown with
Deflector installed.

7
