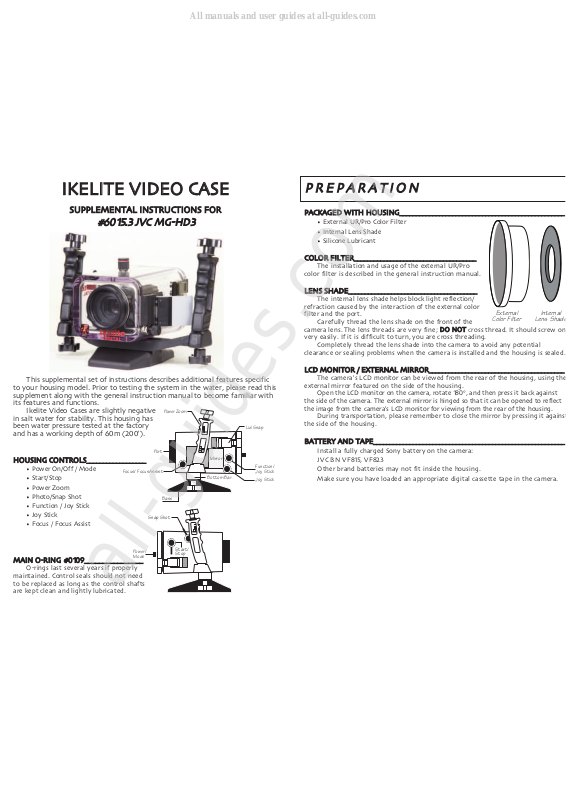

Ikelite 6015.3 Supplemental Instructions

IIKKEELLIITTEE VVIIDDEEOO CCAASSEE
SSUUPPPPLLEEMMEENNTTAALL IINNSSTTRRUUCCTTIIOONNSS FFOORR
##66001155..33 JJVVCC MMGG--HHDD3
3
This supplemental set of instructions describes additional features specific to your housing model. Prior to testing the system in the water, please read this supplement along with the general instruction manual to become familiar with its features and functions.
Ikelite Video Cases are slightly negative in salt water for stability. This housing has been water pressure tested at the factory and has a working depth of 60m (200').
HHOOUUSSIINNGG CCOONNTTRROOLLSS
____________________________________
Power On/Off / Mode
Start/Stop
Power Zoom
Photo/Snap Shot
Function / Joy Stick
Joy Stick
Focus / Focus Assist
MMAAIINN OO--RRIINNGG ##00110099________________________________
O-rings last several years if properly maintained. Control seals should not need to be replaced as long as the control shafts are kept clean and lightly lubricated.
Base
Bottom Bar
Start/ Stop
Snap Shot
Focus/ FocusAssist
Power Zoom
Port
Mirror
Power/ Mode
Function/ Joy Stick
Joy Stick
Lid Snap
PPRREEPPAARRAATTIIOON
N
PPAACCKKAAGGEEDD WWIITTHH HHOOUUSSIINNGG
____________________________________________________________________________________________________
External UR/Pro Color Filter
Internal Lens Shade
Silicone Lubricant
CCOOLLOORR FFIILLTTEERR
__________________________________________________________________________
The installation and usage of the external UR/Pro
color filter is described in the general instruction manual.
LLEENNSS SSHHAADDEE
______________________________________________________________________________
The internal lens shade helps block light reflection/ refraction caused by the interaction of the external color filter and the port.
Carefully thread the lens shade on the front of the camera lens. The lens threads are very fine;
DDOO NNOOTT
cross thread. It should screw on
very easily. If it is difficult to turn, you are cross threading.
Completely thread the lens shade into the camera to avoid any potential clearance or sealing problems when the camera is installed and the housing is sealed.
LLCCDD MMOONNIITTOORR // EEXXTTEERRNNAALL MMIIRRRROORR
__________________________________________________________________________________
The camera's LCD monitor can be viewed from the rear of the housing, using the external mirror featured on the side of the housing.
Open the LCD monitor on the camera, rotate 180°, and then press it back against the side of the camera. The external mirror is hinged so that it can be opened to reflect the image from the camera's LCD monitor for viewing from the rear of the housing.
During transportation, please remember to close the mirror by pressing it against the side of the housing.
BBAATTTTEERRYY AANNDD TTAAPPEE
____________________________________________________________________________________________________________________ Install a fully charged Sony battery on the camera: JVC BN VF815, VF823 Other brand batteries may not fit inside the housing. Make sure you have loaded an appropriate digital cassette tape in the camera.
External
Color Filter
Internal
Lens Shade
All manuals and user guides at all-guides.com
all-guides.com
IINNSSTTAALLLLAATTIIOON
N
LLEENNSS HHOOOODD ##66001155..33 MMGG HHDD33 OONNLLYY
____________________________________________________________________________
Rotate and remove the Lens Hood, and install lens the shade before installing
camera in the housing.
FFIINNAALL PPRREEPPAARRAATTIIOONN
__________________________________________________________________________________________________________________
Remove the lens cap and cord from the camera.
Otherwise, they may interfere
with the housing seal.
The camera's auto focus feature is utilized underwater. For best results, move in close to your subject and use the wide angle range to shoot thru as little water as possible. The full zoom range is accessible underwater.
Turn the cameras built-in flash OFF.
Chart shows recommended initial settings
underwater.
WWHHIITTEE BBAALLAANNCCEE
__________________________________________________________________________________________________________________________
Initially set the white balance to Auto. Use the joy stick controls on the housing to change white balance.
CCoolloorr FFiilltteerr ::
When using the color filter (during the day), set camera white balance
to Indoor for 0-15 foot depth. For 15-80 foot depth, set white balance to Outdoor.
VViiddeeoo--LLii ttee::
When using optional Video Lite at NIGHT, set the camera white balance to the Indoor position. During the DAY, use the Outdoor setting for subjects beyond 4-5 feet and the Indoor setting for closer subjects.
CCAAMMEERRAA SSEETTTTIINNGG
Power On/Off Camera (On)
Zoom Lever Wide Angle Setting
Focus Auto Mode
Exposure Auto Mode
Auto Lock Center Position
Program AE Auto Mode
Shutter Speed 1/60 Normal
White Balance Auto Mode (see section)
Steady Shot Off
Built-in Flash Off
Camera
Front Loop
Remove Protective Lens Hood From Front of Camera #6015.3 MG HD3
IINNSSTTAALLLLAATTIIOON
N
CCAAMMEERRAA TTRRAAYY__________________________________________________________________________________________________________________
Note the placement of the camera tray underneath the guides, and note the white-color locks on the inside wall of the housing that secures the tray in place. Gently push up on the white tray locks to release the camera tray, and slide the tray out of the housing.
Place the camera against the stabilizing pins on the tray and secure with the tripod mounting bolt. The camera should fit easily on the tray and should be parallel with the sides of the tray.
Make certain that the lens shade has been threaded completely into the camera to avoid any potential clearance or sealing problems when the camera is installed and the housing is sealed.
IINNSSEERRTTIINNGG TTHHEE CCAAMMEERRAA______________________________________________________________________________________________
Check that the oring is clean and properly positioned on the lip of the clear housing back plate. Check that the lens shade is completely threaded into the camera.
Once the camera is mounted to the tray as shown above, pull the housing controls out to provide clearance for installing the camera. Partially slide the camera into the housing so you can connect the reversing circuit cable to the blue LANC port on the camera. Make sure the lens shade on the front of the camera fits into the port recess in the front of the housing.
DDOO NNOOTT
force this installation; the camera and tray should slide easily into place so the housings back plate oring is resting against the main housing body. In this position the lid snaps can be positioned over the lid hooks on the housing back plate and snapped into position to seal the housing.
HHOOUUSSIINNGG CCOONNTTRROOLLSS
________________________________________________________________________________________________________________
Slide the housing controls back in place making sure they properly align with
the camera functions.
Operate each control to see how it works with the camera. Some controls such as start/stop will be used frequently. Other controls may seldom be utilized. Refer to your camera owner's manual for the proper function of each camera control. Look thru the back to be sure that you can see into the viewfinder.
When using the housing controls, especially the start/stop, do NOT use excessive force because you could damage the camera.
CCAAUUTTIIOONN
Remove the lens cap and cord from the camera. Otherwise, the cord may interfere with the housing seal.
If the housing controls are not properly positioned, they could interfere with the housing seal.
MMAANNUUAALL FFOOCCUUSS OOPPEERRAATTIIOONN
______________________________________________________________________________________________
Manual focus may be preferred in low light levels or when the subject possesses little contrast. Set the focus switch to Manual to cancel the auto focus. If you want to manually adjust the focus, rotate the manual focus control as desired. To reacti- vate the auto focus, set the focus switch to Auto.
IIKKEELLIITTEE UUNNDDEERRWWAATTEERR SSYYSSTTEEMMSS
50 West 33rd Street PO Box 88100 Indianapolis, IN 46208 USA 317.923.4523
Email: ikelite@ikelite.com
www.ikelite.com
6015.3-01-1107
Camera Mounting Bolt
Camera Tray
Oring
Back Plate
I
nternal Lens Shade
Stabilizing
Pins
