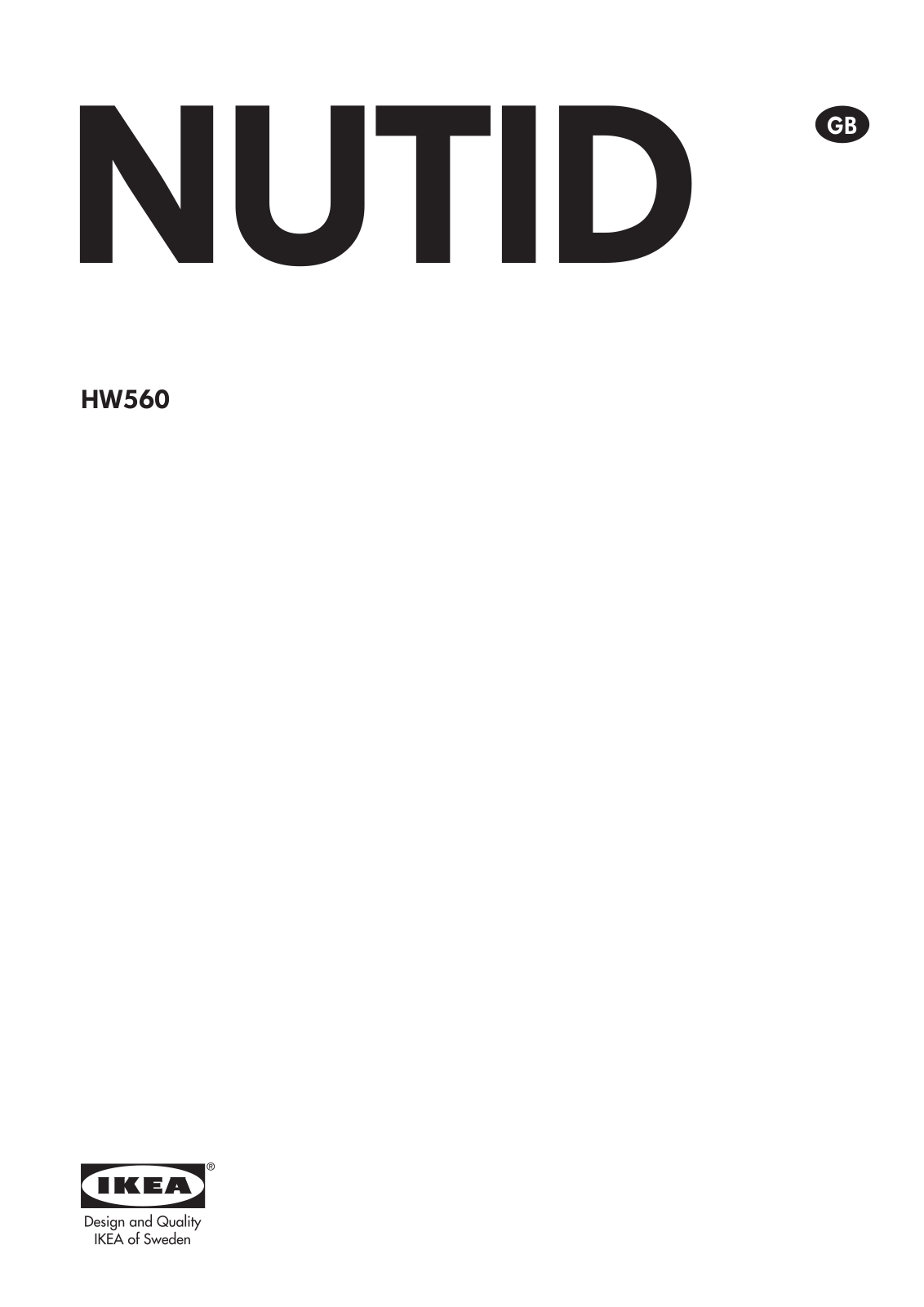

NUTID GB
HW560
ENGLISH 4
ENGLISH |
4 |

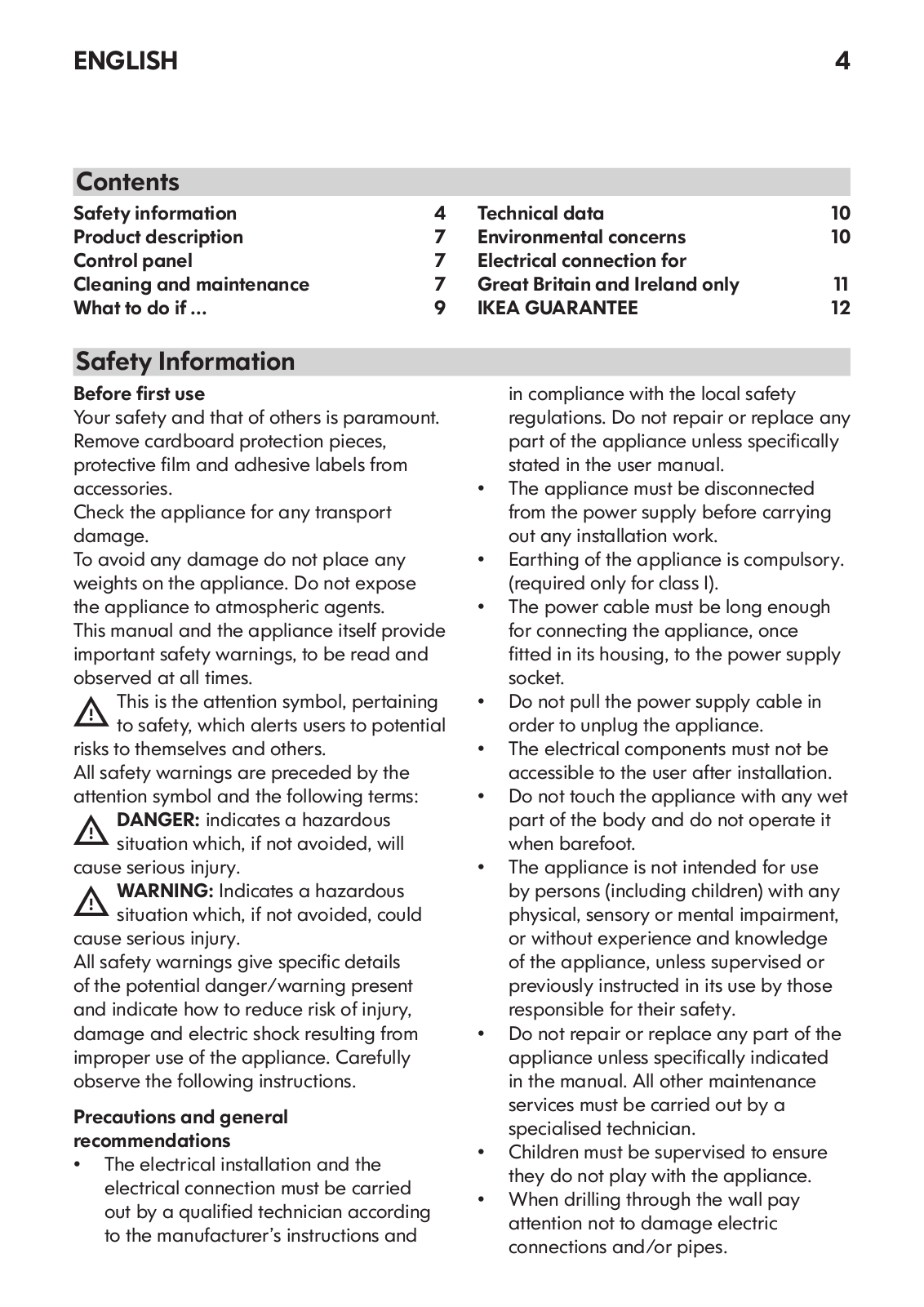

Contents
Safety information |
4 |
Technical data |
10 |

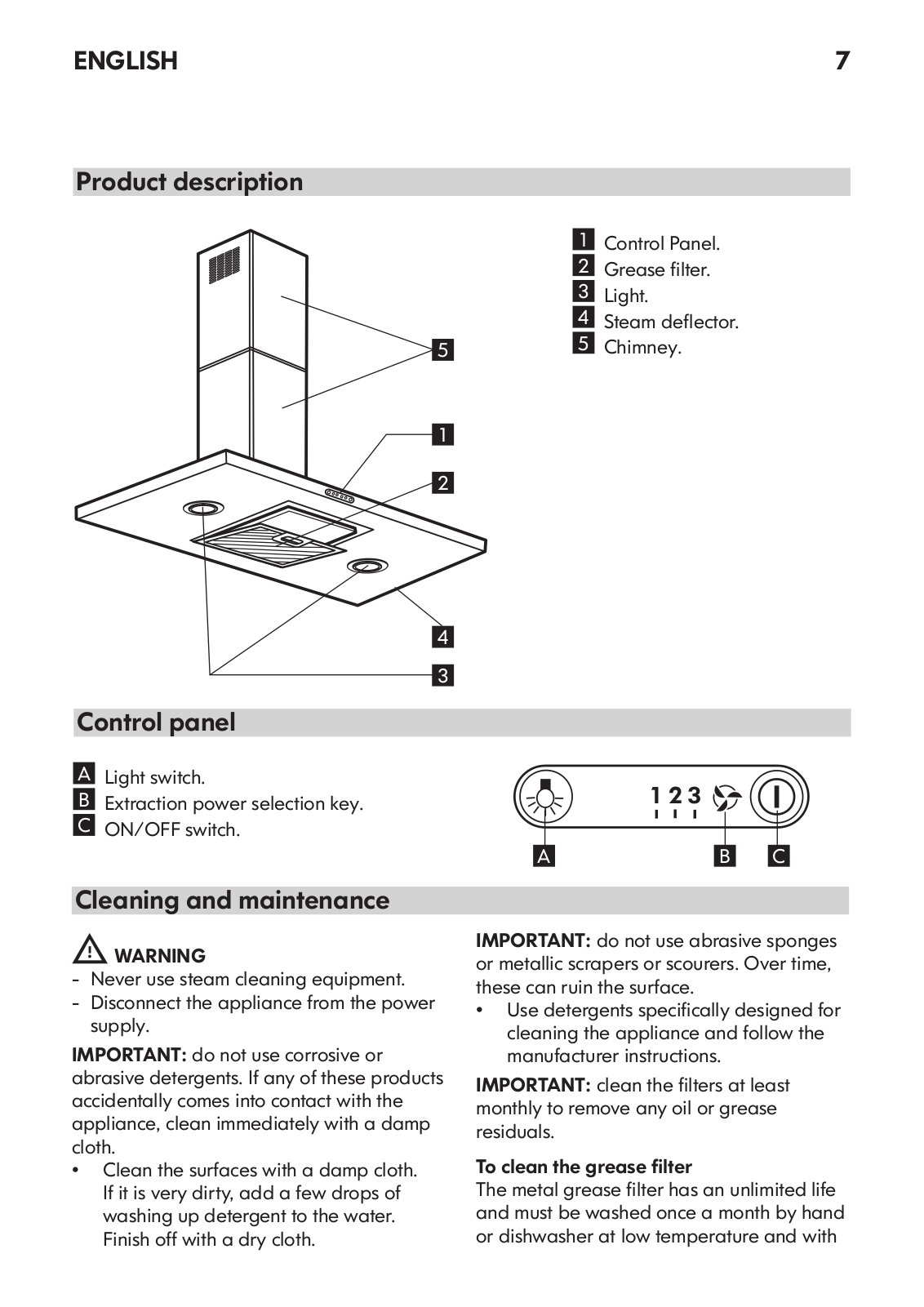

Product description |
7 |
Environmental concerns |
10 |
Control panel |
7 |

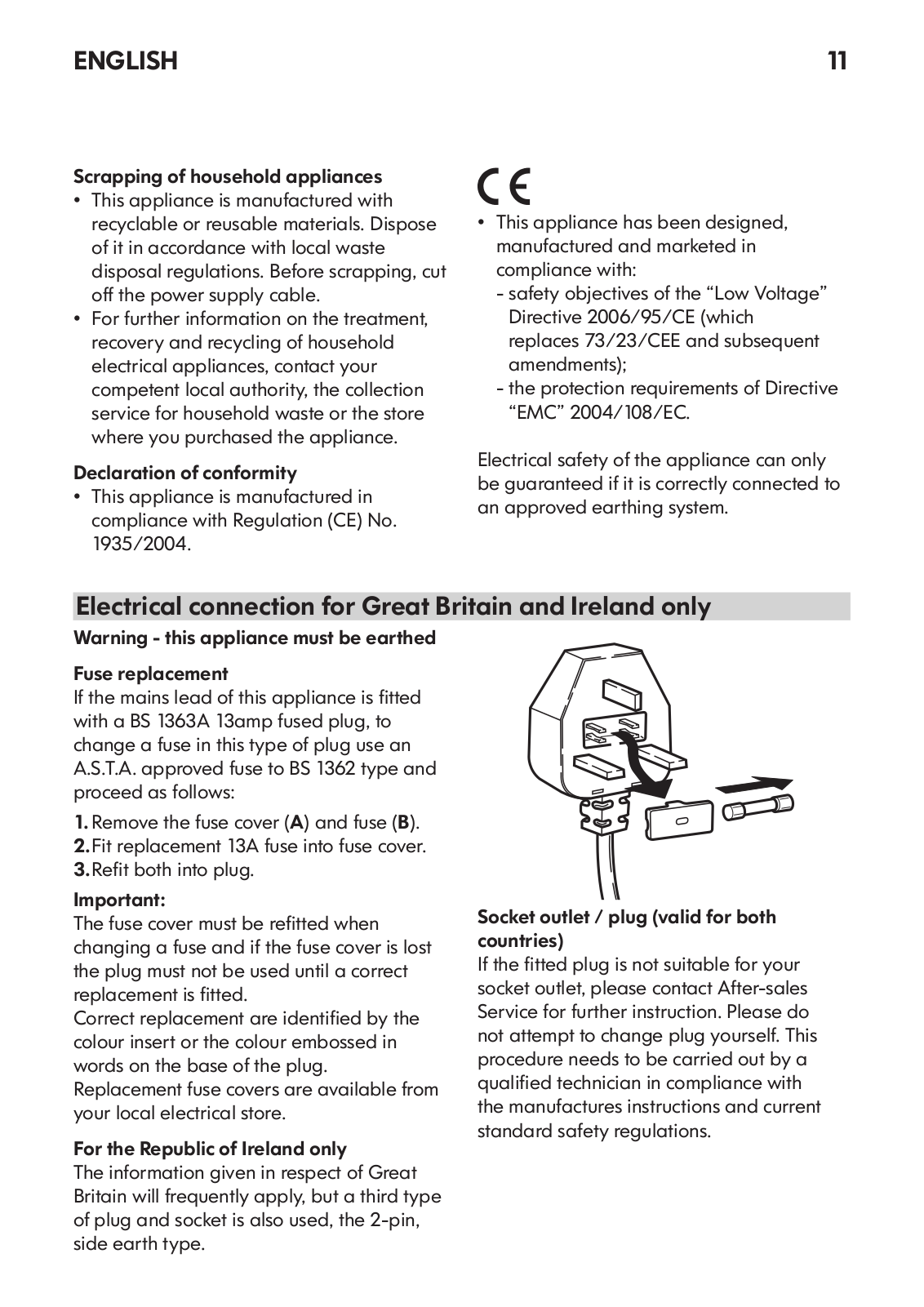

Electrical connection for |
|

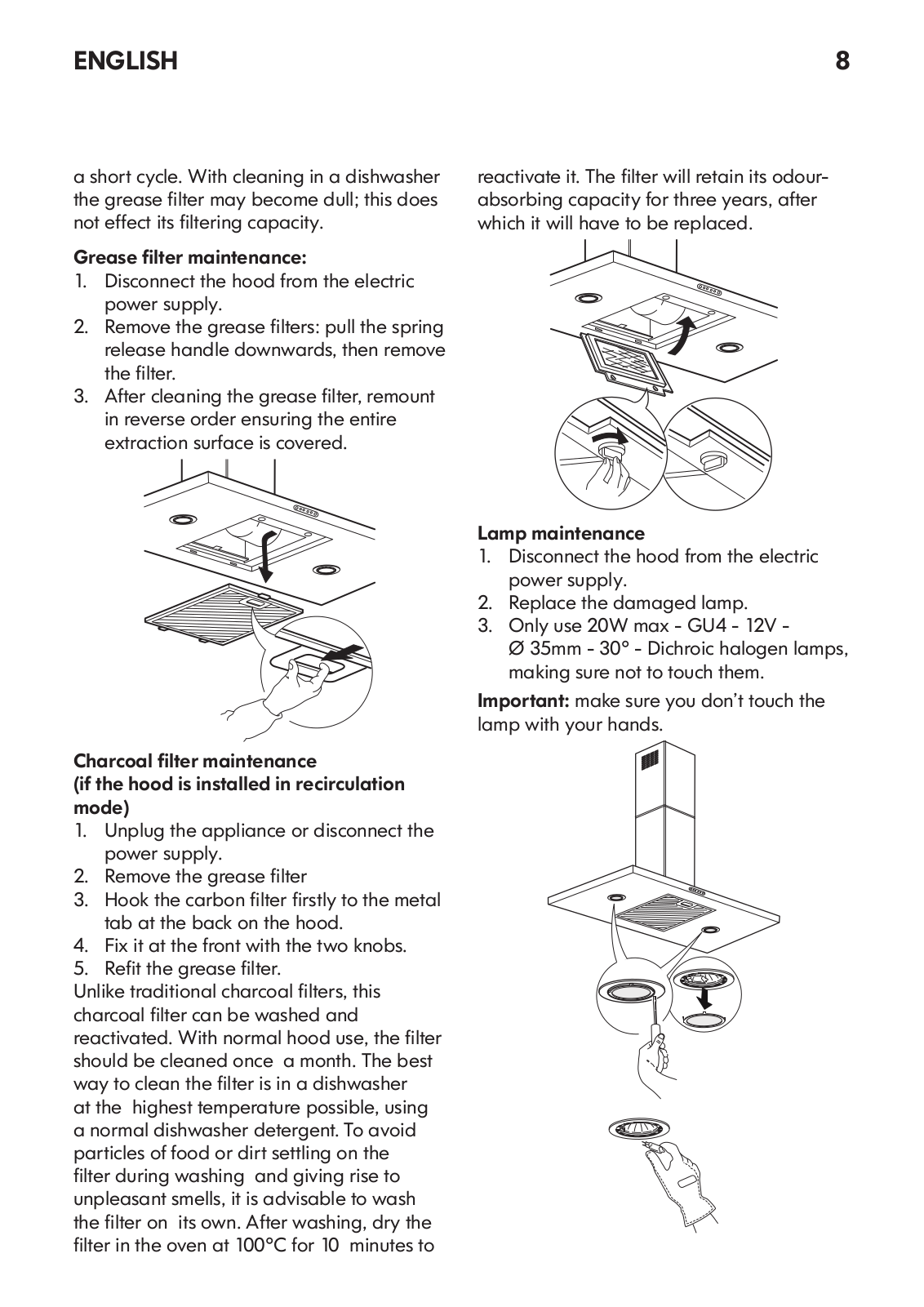

Cleaning and maintenance |
7 |
Great Britain and Ireland only |
11 |

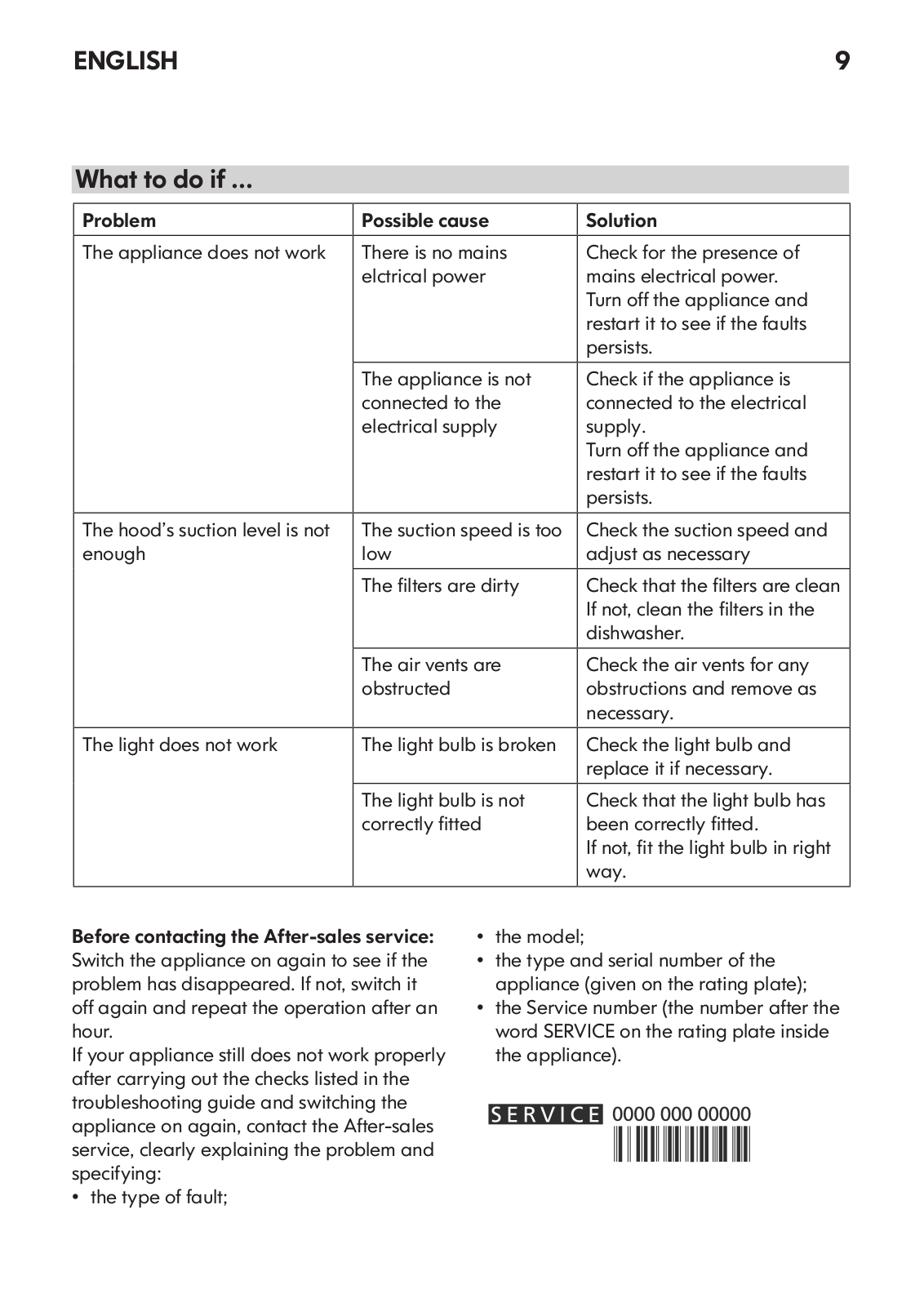

What to do if ... |
9 |

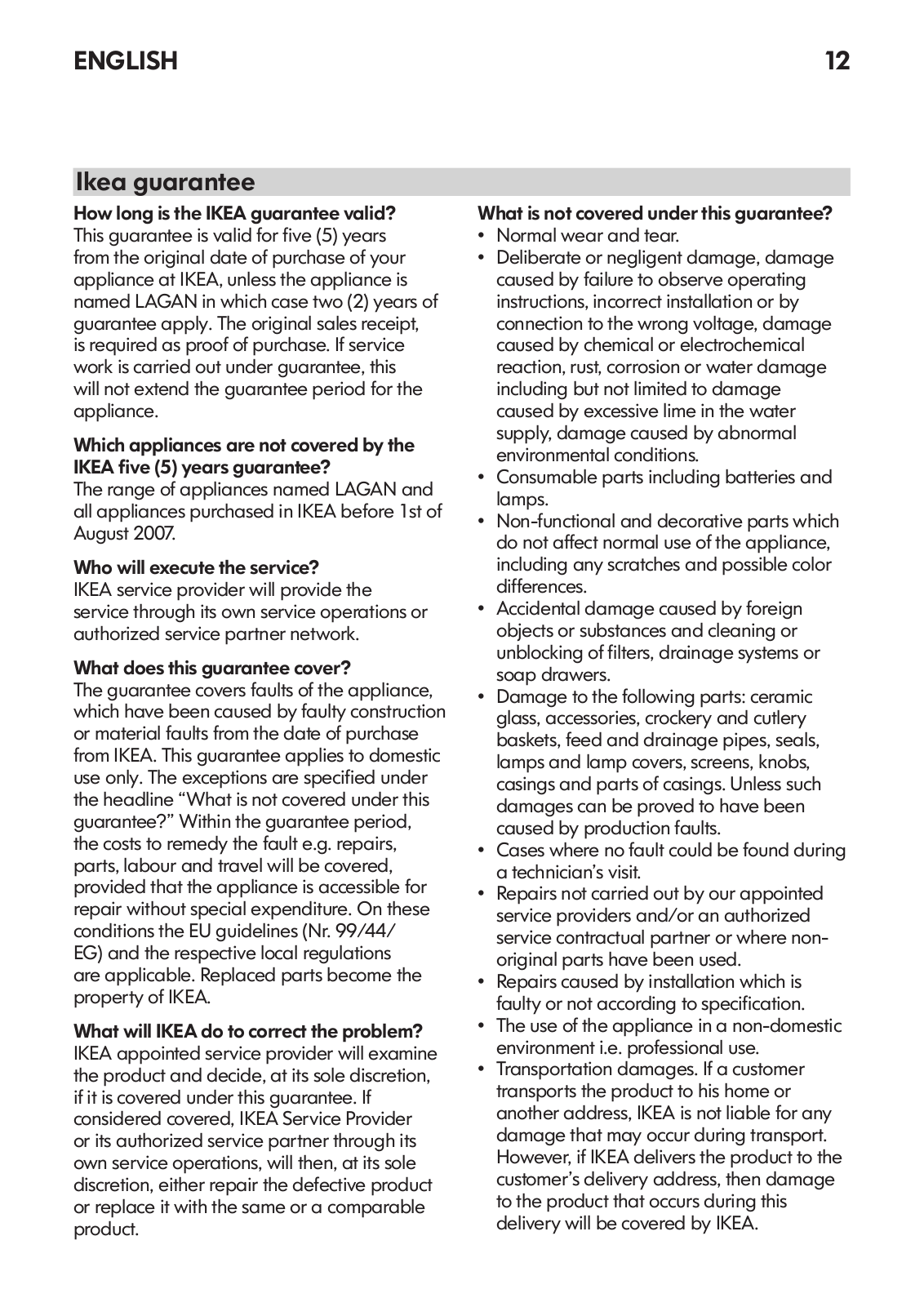

IKEA GUARANTEE |
12 |
Safety Information
Before first use
Your safety and that of others is paramount. Remove cardboard protection pieces, protective film and adhesive labels from accessories.
Check the appliance for any transport damage.
To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents.
This manual and the appliance itself provide important safety warnings, to be read and observed at all times.
This is the attention symbol, pertaining to safety, which alerts users to potential
risks to themselves and others.
All safety warnings are preceded by the attention symbol and the following terms:
DANGER: indicates a hazardous situation which, if not avoided, will
cause serious injury.
WARNING: Indicates a hazardous situation which, if not avoided, could
cause serious injury.
All safety warnings give specific details of the potential danger/warning present and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions.
Precautions and general recommendations
•The electrical installation and the electrical connection must be carried out by a qualified technician according to the manufacturer’s instructions and
in compliance with the local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual.
•The appliance must be disconnected from the power supply before carrying out any installation work.
•Earthing of the appliance is compulsory. (required only for class I).
•The power cable must be long enough for connecting the appliance, once fitted in its housing, to the power supply socket.
•Do not pull the power supply cable in order to unplug the appliance.
•The electrical components must not be accessible to the user after installation.
•Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
•The appliance is not intended for use by persons (including children) with any physical, sensory or mental impairment, or without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety.
•Do not repair or replace any part of the appliance unless specifically indicated in the manual. All other maintenance services must be carried out by a specialised technician.
•Children must be supervised to ensure they do not play with the appliance.
•When drilling through the wall pay attention not to damage electric connections and/or pipes.
ENGLISH |
5 |

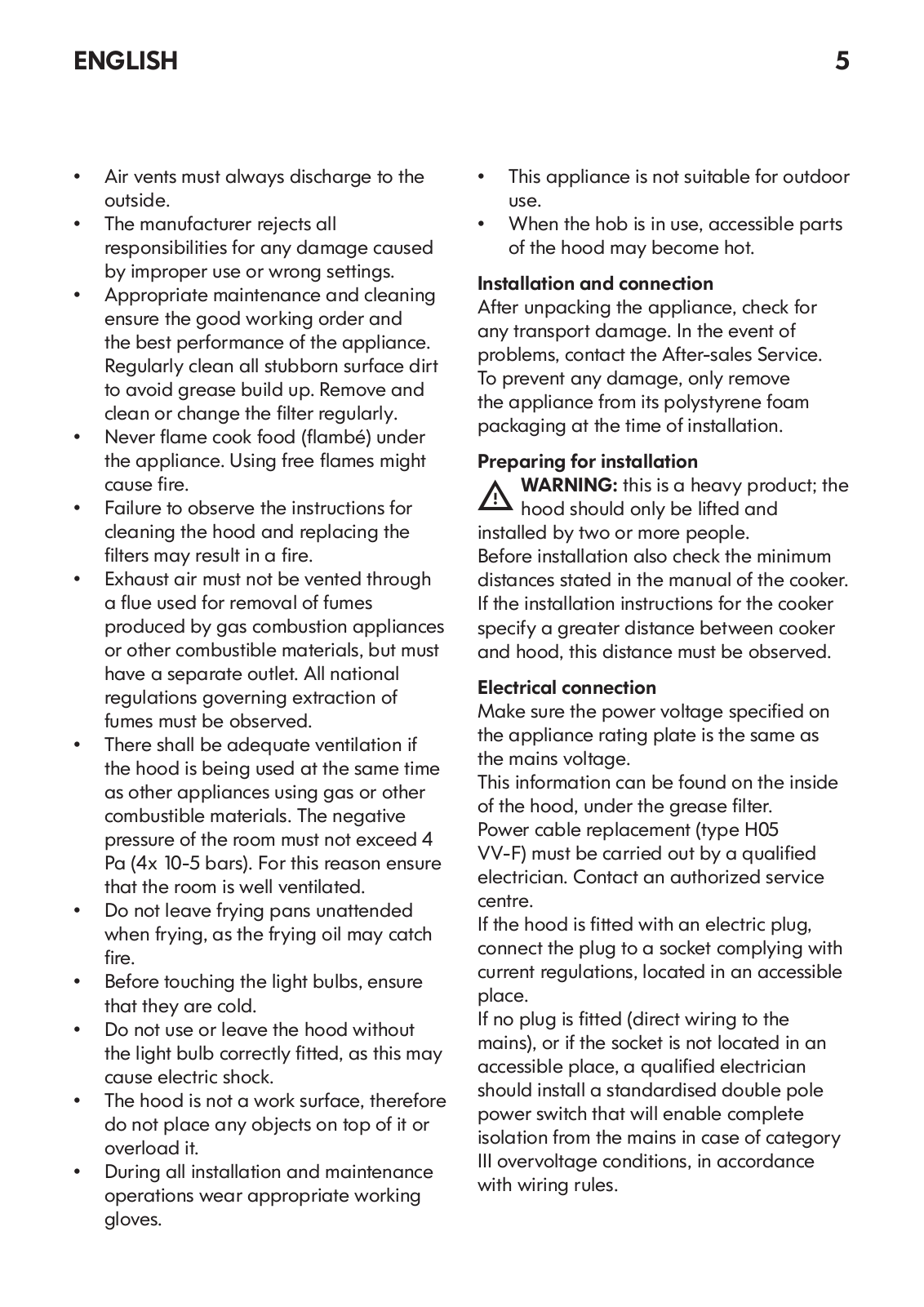

•Air vents must always discharge to the outside.
•The manufacturer rejects all responsibilities for any damage caused by improper use or wrong settings.
•Appropriate maintenance and cleaning ensure the good working order and the best performance of the appliance. Regularly clean all stubborn surface dirt to avoid grease build up. Remove and clean or change the filter regularly.
•Never flame cook food (flambé) under the appliance. Using free flames might cause fire.
•Failure to observe the instructions for cleaning the hood and replacing the filters may result in a fire.
•Exhaust air must not be vented through a flue used for removal of fumes produced by gas combustion appliances or other combustible materials, but must have a separate outlet. All national regulations governing extraction of fumes must be observed.
•There shall be adequate ventilation if the hood is being used at the same time as other appliances using gas or other combustible materials. The negative pressure of the room must not exceed 4 Pa (4x 10-5 bars). For this reason ensure that the room is well ventilated.
•Do not leave frying pans unattended when frying, as the frying oil may catch fire.
•Before touching the light bulbs, ensure that they are cold.
•Do not use or leave the hood without the light bulb correctly fitted, as this may cause electric shock.
•The hood is not a work surface, therefore do not place any objects on top of it or overload it.
•During all installation and maintenance operations wear appropriate working gloves.
•This appliance is not suitable for outdoor use.
•When the hob is in use, accessible parts of the hood may become hot.
Installation and connection
After unpacking the appliance, check for any transport damage. In the event of problems, contact the After-sales Service. To prevent any damage, only remove the appliance from its polystyrene foam packaging at the time of installation.
Preparing for installation
WARNING: this is a heavy product; the hood should only be lifted and
installed by two or more people.
Before installation also check the minimum distances stated in the manual of the cooker. If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed.
Electrical connection
Make sure the power voltage specified on the appliance rating plate is the same as the mains voltage.
This information can be found on the inside of the hood, under the grease filter. Power cable replacement (type H05 VV-F) must be carried out by a qualified electrician. Contact an authorized service centre.
If the hood is fitted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place.
If no plug is fitted (direct wiring to the mains), or if the socket is not located in an accessible place, a qualified electrician should install a standardised double pole power switch that will enable complete isolation from the mains in case of category III overvoltage conditions, in accordance with wiring rules.
