IKEA RUTINERAD, RAFFINERAD User Manual [de]

RAFFINERAD RUTINERAD

ENGLISH 4 DEUTSCH 22

ENGLISH 4

Contents

Safety information 4 Safety instructions 5 Installation 7 Product description 7 Before first use 8 Daily use 8 Clock functions 10 Using the accessories 11

Subject to change without notice.

Additional functions 12 Helpful hints and tips 13 Care and cleaning 14 What to do if… 16 Technical data 18 Environment concerns 18 IKEA GUARANTEE 19

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.

• If the appliance has a child safety device, we recommend that you activate it.

• Cleaning and user maintenance shall not be made by children without supervision.

ENGLISH 5

General Safety

• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.

• Do not use a steam cleaner to clean the appliance.

• Before maintenance cut the power supply.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

Safety instructions

Installation

Warning! Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appli-

ance.

• Obey the installation instruction supplied

with the appliance.

•Always be careful when you move the

appliance because it is heavy. Always wear safety gloves.

• Do not pull the appliance by the handle.

• Make sure that the appliance is installed

below and adjacent safe structures.

• The sides of the appliance must stay ad-

jacent to appliances or to units with the same height.

Electrical connection

Warning! Risk of fire and electrical

shock.

• All electrical connections should be made

by a qualified electrician.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• Do not let mains cables to come in touch with the appliance door, specially when the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

ENGLISH 6

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• This appliance complies with the E.E.C. Directives

Use

Warning! Risk of injury, burns or

electric shock or explosion.

• Use this appliance in a household environment.

• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.

• Do not let the appliance stay unattended during operation.

• Deactivate the appliance after each use.

• Be careful, when you open the appliance door while the appliance is in operation. Hot air can release.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not apply pressure on the open door.

• Do not use the appliance as a work surface or as a storage surface.

• Always keep the appliance door closed when the appliance is in operation.

• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

• Do not let sparks or open flames to come in contact with the appliance when you open the door.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:

– do not put ovenware or other objects in the appliance directly on the bottom. – do not put aluminium foil directly on the bottom of the appliance. – do not put water directly into the hot appliance. – do not keep moist dishes and food in the appliance after you finish the cooking. – be careful when you remove or install the accessories.

• Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of the warranty law.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

Care and Cleaning

Warning! Risk of injury, fire or damage

to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Make sure the appliance is cold. There is the risk that the glass panels can break.

• Replace immediately the door glass panels when they are damaged. Contact the Service.

• Be careful when you remove the door from the appliance. The door is heavy!

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Remaining fat or food in the appliance can cause fire.

• If you use an oven spray, obey the safety instructions on the packaging.

Internal light

• The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting.

Warning! Risk of electrical shock.

• Before replacing the lamp, disconnect the appliance from the power supply.

• Only use lamps with the same specifications.

ENGLISH 7

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

Installation

Warning! Refer to the Safety chapters.

Refer to the Assembly Instructions for the installation.

Electrical installation

Warning! Only a qualified person must

do the electrical installation. The manufacturer is not responsible if

you do not follow the safety precau-

tions from the chapter "Safety Information".

This appliance is only supplied with a main cable.

Cable

Cable types applicable for installation or replacement: H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BBF.

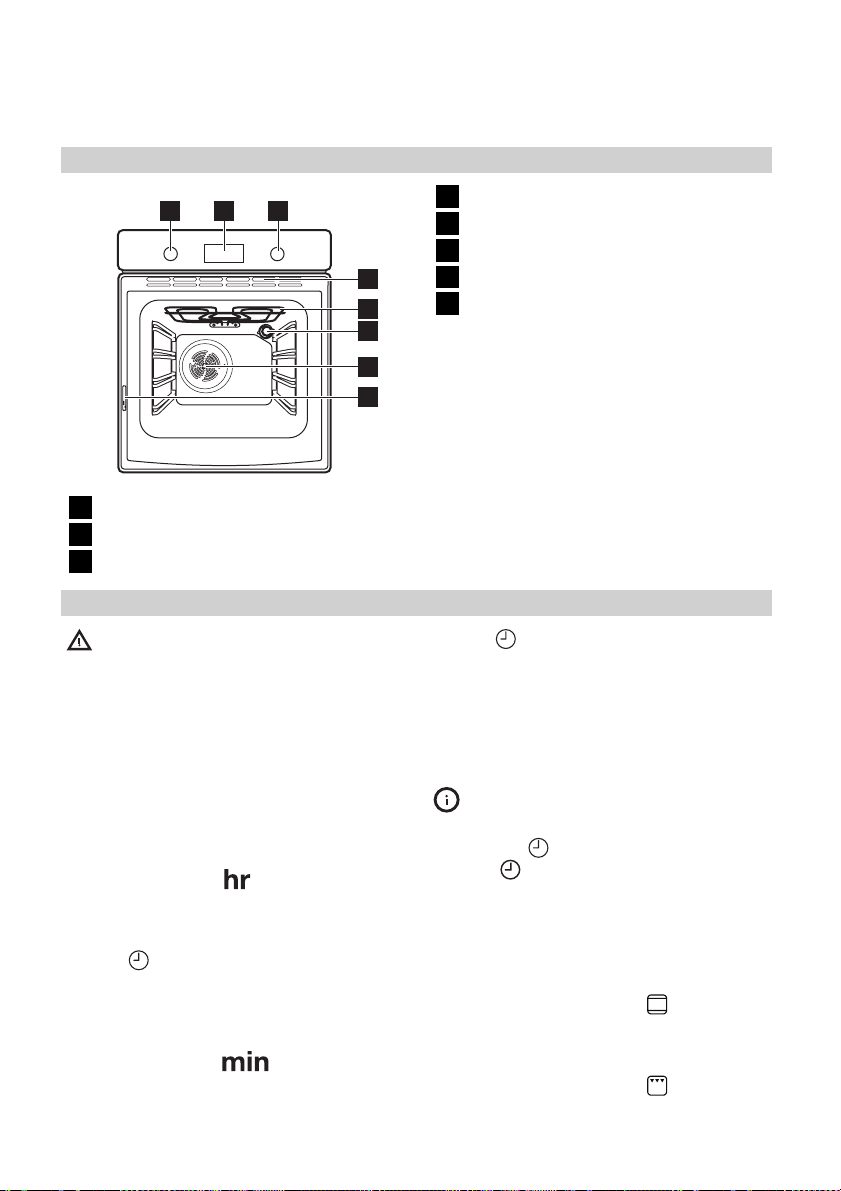

Product description

Knob for the oven functions

Electronic programmer

4 5

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to get closed in the appliance.

For the section of the cable refer to the total power (on the rating plate) and to the table:

Total power Section of the cable

maximum 1380W3 x 0.75 mm²

maximum 2300W3 x 1 mm²

maximum 3680W3 x 1.5 mm²

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

Knob for the temperature

Ventilation openings

Grill

Oven lamp

Fan

Rating plate

Oven accessories

• Wire shelf x 1 For cookware, cake tins, roasts.

• Baking tray x 1 For cakes and biscuits.

• Grill- / Roasting pan x 1 To bake and roast or as pan to collect fat.

• Telescopic runners x 2 sets For shelves and trays.

ENGLISH 8

Before first use

Warning! Refer to the Safety chapters.

Initial cleaning

• Remove all accessories and removable shelf supports (if applicable).

• Clean the appliance before first use.

Important! Refer to the chapter "Care and cleaning".

Setting the time of day

The display shows es.

1. Press + or - to set the correct hour.

Press only when you first set the time. Afterwards, the new time value is saved automatically after five seconds. The display shows hour. 00 flashes.

3. Press + or - to set the correct minutes.

Press only when you first set the time. Afterwards, the new time value is saved automatically after five seconds. The display shows the new time.

Changing the time of day

Press for the time of day

To set the new time, follow the procedure given in "Setting the time of day".

Preheating

Preheat the empty appliance to burn off the remaining grease.

Set the function temperature.

to confirm. This is necessary

You can change the time of day only if the appliance is off.

again and again until the indicator

and 12:00. 12 flash-

and the set

flashes in the display.

and the maximum

2. Let the appliance operate for one hour.

Set the function temperature.

4. Let the appliance operate for ten minutes.

Set the function temperature.

6. Let the appliance operate for ten minutes.

Accessories can become hotter than usual. The appliance can emit an odour and smoke. This is normal. Make sure that the airflow is sufficient.

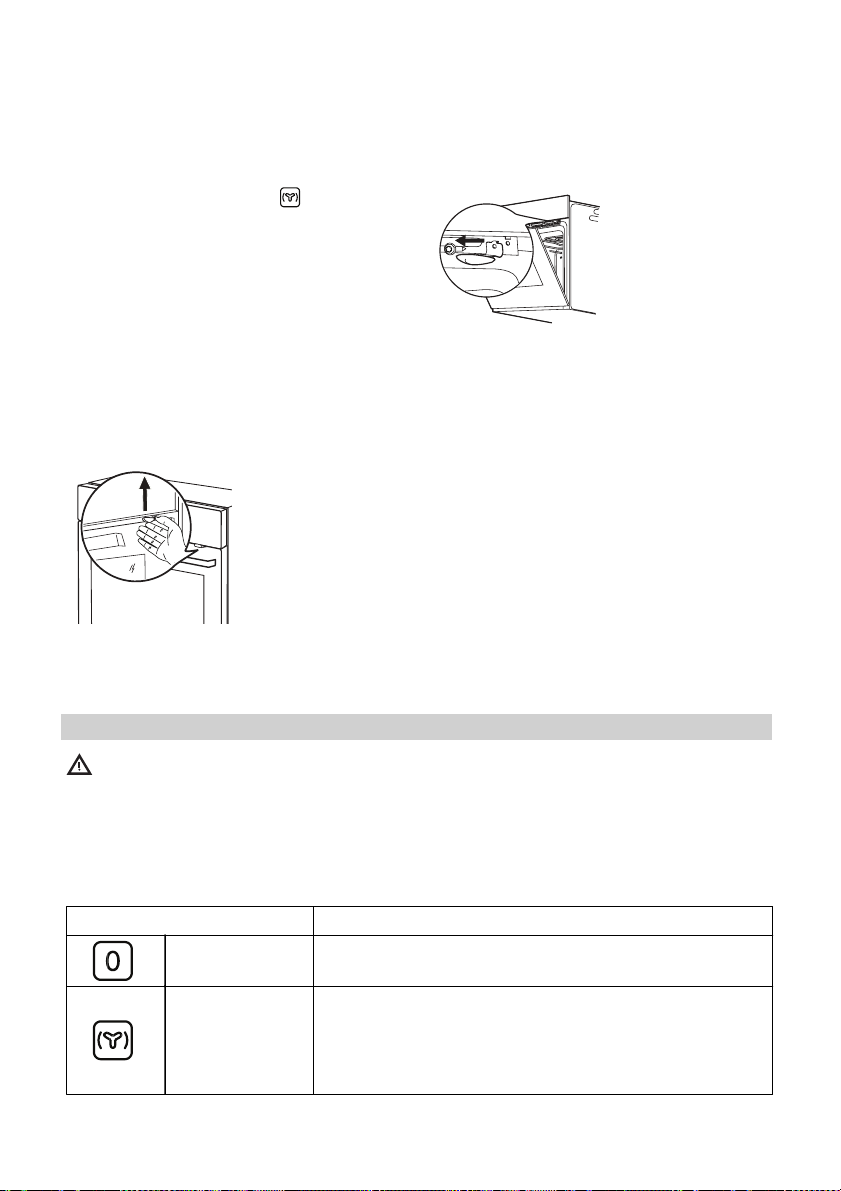

Mechanical child lock

The appliance has the child lock installed and activated. It is below the control panel on the right side.

and the maximum

To open the oven door with the child lock installed, pull the child lock handle up as shown in the picture. Close the oven door without pulling the child lock.

To remove the child lock, open the oven door and remove the child lock with the torx key. The torx key is in the oven fitting bag.

Daily use

Warning! Refer to the Safety chapters.

Activating and deactivating the appliance

1. Turn the knob for the oven functions clockwise to an oven function.

2. Turn the knob for the temperature to set the temperature. The display shows the set temperature.

ENGLISH 9

3. To deactivate the appliance, turn the knob for the oven functions to the off position.

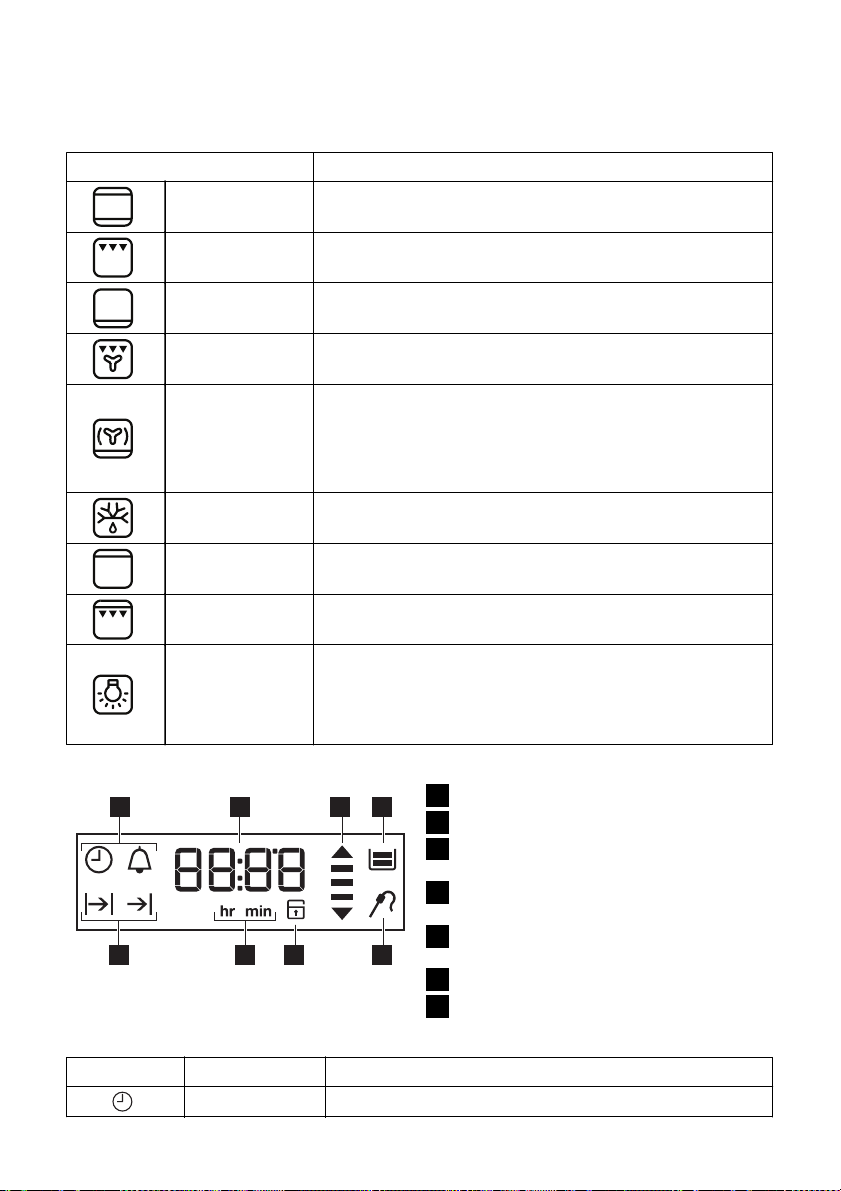

Oven functions

Oven function Application

Off position The appliance is off.

To bake on the maximum temperature on three oven lev-

Forced Air Cook-

ing

Conventional

(Top and Bottom

Heat)

Grilling To grill flat food in the middle of the grill, and to toast.

els at the same time. When you use this function, decrease the oven temperature by 20 - 40 °C from the standard temperatures you use for Conventional Cooking. Also to dry food.

To bake and roast on one oven level.

Bottom Heat

Grilling with Fan

Bread and Pizza

Baking

Defrost

Top Heat To finish cooked dishes.

Fast Grilling To grill flat food in large quantities, and to toast.

Light

To bake cakes with crispy or crusty bottoms, and to preserve food.

To roast larger joints of meat or poultry on one level. Also to gratinate, and to brown.

To bake food on one oven level for a more intensive browning and a crispy bottom. When you use this function, decrease the oven temperature by 20 - 40 °C from the standard temperatures you use for Conventional Cooking.

To defrost frozen food. The knob for the temperature must be in the off position.

To activate the oven lamp without a cooking function.

It can be used with residual heat in final cooking phase to save energy.

ENGLISH 10

Display

Time and temperature

17 2 3

Buttons

Button Function Description

Clock To set a clock function.

Heat-up and residual heat indicator

When you activate an oven function, the bars in the display

The bars show that the oven temperature increases or decreases.

Minus, plus To set the time.

come on one by one.

Heat-up and residual heat indicator

Water tank (selected models only)

Core temperature sensor (selected

models only) Door lock (selected models only)

Hours / minutes

4567

Clock functions

When you deactivate the appliance, the display shows the residual heat indicator if the temperature in the oven is more than 40 °C. Turn the temperature knob left or right to show the oven temperature on the display.

Clock functions

Sym-

bol

Press again and again to change the clock function.

Press clock functions, or wait 5 seconds for

the setting to be confirmed automatically.

Function Description

Minute Minder To set a countdown time.

Time of day To set, change or check the time of day. Refer to "Setting the

time of day".

Duration To set how long the appliance must operate. First set an oven

function before you set this function.

End To set when the appliance must be deactivated. First set an

oven function before you set this function. You can use Duration and End at the same time (Time Delay) to set the time when the appliance must be activated and then deactivated.

to confirm the settings of the

Setting the Duration or End function

Press bol

2. Press + or - to set the minutes.

Press

4. Press + or - to set the hour.

Press

again and again until the sym-

or flashes in the display.

to confirm.

ENGLISH 11

When the set time ends, the symbol or and the set time flash. The acous-

tic signal sounds for two minutes. The appliance deactivates. Press a button or open the appliance door to stop the signal.

If you press for Duration

switches to setting the End

Setting the Minute Minder

Used to set a countdown time. The maximum time you can set is 2 hours 30 minutes. This function has no effect on the operation of the oven. You can set the Minute Minder at any time, also if the appliance is off.

Press 00 flash in the display.

2. Press + or - to set the Minute Minder. At first the time is calculated in minutes and seconds. When the time you set is longer than 60 minutes, the symbol comes on in the display. The appliance then calculates the time in hours and minutes.

while setting the time

, the appliance

function.

again and again until and

Using the accessories

Warning! Refer to the Safety chapters.

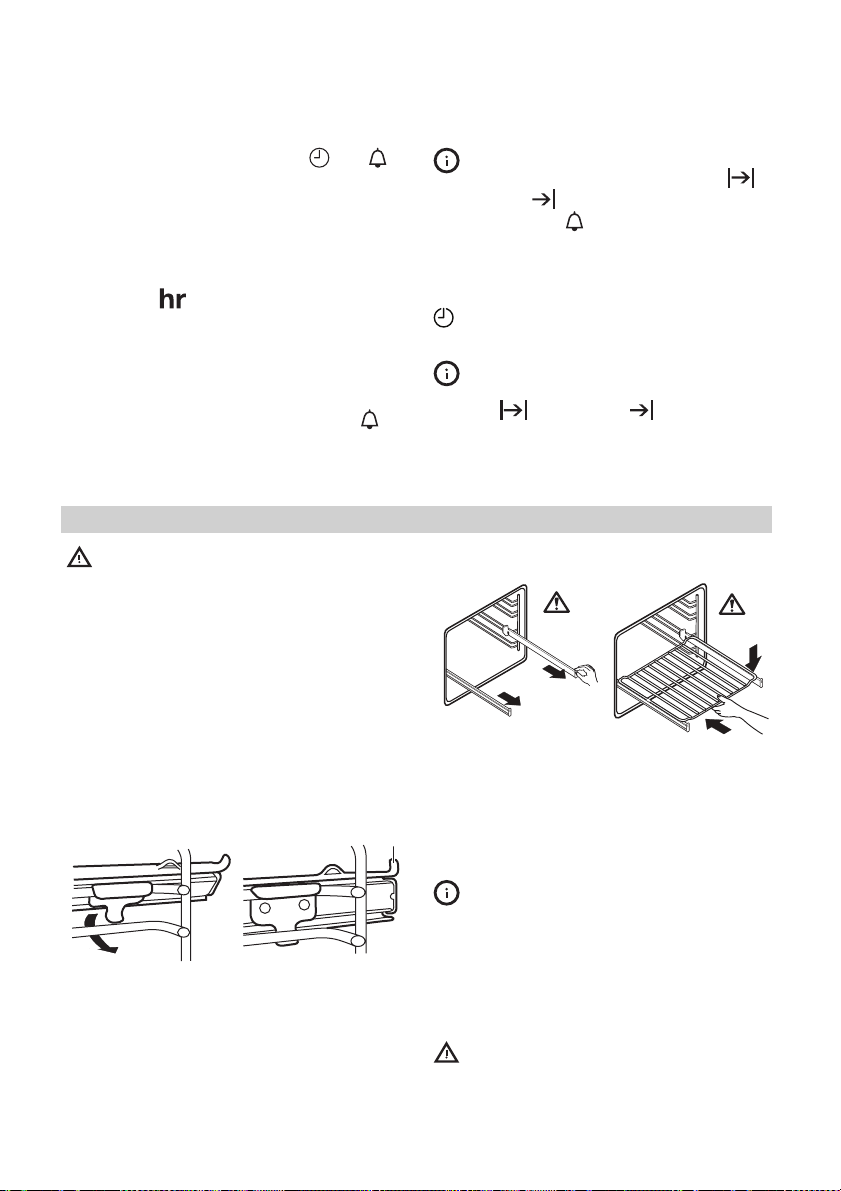

Telescopic runners Installing the telescopic runners

You can put the telescopic runners on each level. Make sure that the two telescopic runners are on the same level. The stop element (A) that is at one end of the telescopic runner must point up.

3. The Minute Minder starts automatically after five seconds.

4. When the set time ends, the acoustic signal sounds for two minutes. 00:00

flash in the display. Press a but-

and ton to stop the signal.

If you set the Minute Minder when the Duration

ates, the symbol

Count Up Timer

Use the Count Up Timer to monitor how long the oven operates. Press shows time without clock symbols.

tion operates.

1 2

Using telescopic runners

With telescopic runners you can put in and remove the shelves more easily.

again and again until the display

You cannot use the Count Up Timer when the Duration

or End function oper-

comes on in the display.

or End func-

ENGLISH 12

Pull out the right and left hand telescopic runners.

°C

Put the wire shelf on the telescopic runners and carefully push them into the appliance.

Additional functions

Child Lock

When the Child Lock is on, you cannot operate the oven. This is to make sure that children do not accidentally activate the appliance.

Activating and deactivating the Child Lock function:

1. Do not set an oven function.

Press and hold time for two seconds.

An acoustic signal sounds. SAFE and come on or go out in the display (when you activate or deactivate the Child Lock).

Automatic switch-off

For safety reasons the appliance deactivates after some time:

• If an oven function operates.

• If you do not change the oven temperature.

Oven temperature Switch-off time

30 - 115 °C 12,5 h

120 - 195 °C 8.5 h

and + at the same

You can also use the telescopic runners with the trays or pans supplied with the

appliance (refer to “Product description”).

°C

Make sure you push back the telescopic runners fully in the appliance before you close the oven door.

Caution! Do not clean the telescopic runners in the dishwasher. Do not

lubricate the telescopic runners.

Oven temperature Switch-off time

200 - 245 °C 5.5 h

250 °C 3.0 h

After an automatic switch-off, press a button to activate the appliance again.

Important! The automatic switch-off works with all oven functions, except Light, Duration and End.

Cooling fan

When the appliance operates, the cooling fan activates automatically to keep the surfaces of the appliance cool. If you deactivate the appliance, the cooling fan continues to operate until the temperature in the appliance cools down.

Safety thermostat

Incorrect operation of the appliance or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven activates again automatically when the temperature drops.

ENGLISH 13

Helpful hints and tips

• The appliance has four shelf levels. Count the shelf levels from the bottom of the appliance floor.

• The appliance has a special system which circulates the air and constantly recycles the steam. With this system you can cook in a steamy environment and keep the food soft inside and crusty outside. It decreases the cooking time and energy consumption to a minimum.

• Moisture can condense in the appliance or on the door glass panels. This is normal. Always stand back from the appliance when you open the appliance door while cooking. To decrease the condensation, operate the appliance for 10 minutes before cooking.

• Clean the moisture after each use of the appliance.

• Do not put the objects directly on the appliance floor and do not put aluminium foil on the components when you cook. This can change the baking results and cause damage to the enamel.

Baking cakes

• Do not open the oven door before 3/4 of the set cooking time is up.

Weight (kg)

1Pork / lamb

Food Oven Function Level Oven

• If you use two baking trays at the same time, keep one empty level between them.

Cooking meat and fish

• Use a deep pan for very fatty food to prevent the oven from stains that can be permanent.

• Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.

• To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time after it dries up.

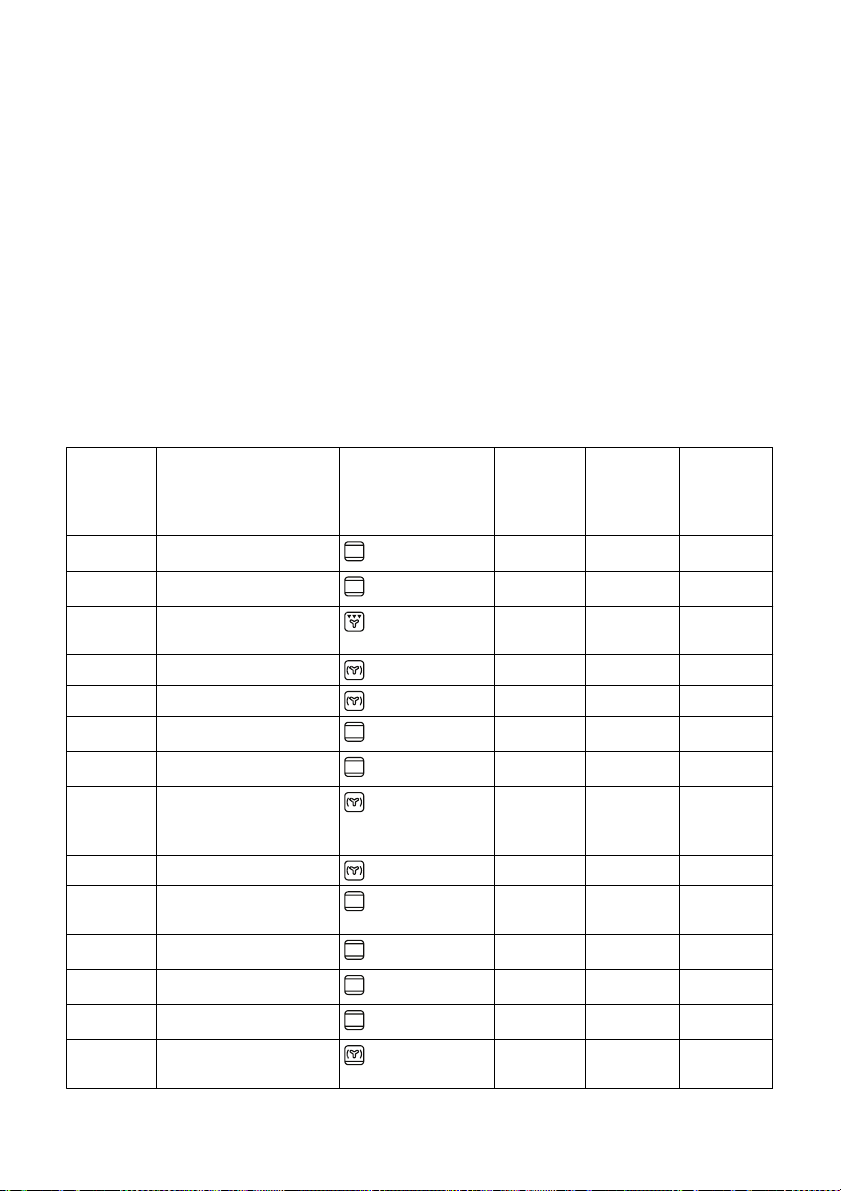

Cooking times

Cooking times depend on the type of food, its consistency, and volume. Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

temperature (°C)

2 180 100 - 110

Cooking Time (min)

1 Veal / Beef

1,2 Chicken/Rabbit 1,5 Duck 3Goose 4Turkey

1Fish

1 Stuffed Pepperoni

Tomatos / Roasted Potatos

2 190 70 - 100

2 200 70 - 80 1 160 120 - 150 1 160 150 - 200 1 180 210 - 240

2 190 30 - 40

2 190 50 - 70

ENGLISH 14

Weight (kg)

Instant cakes 1Pies

Biscuits

2 Lasagne

1White Bread

1Pizza

Food Oven Function Level Oven

Care and cleaning

Warning! Refer to the Safety chapters.

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.

• To clean metal surfaces use a usual cleaning agent.

• Clean the oven interior after each use. Then you can remove dirt more easily and it does not burn on.

• Clean stubborn dirt with a special oven cleaner.

• Clean all oven accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent.

• If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dishwasher. It can destroy nonstick coating.

Stainless steel or aluminium appliances:

Clean the oven door with a wet sponge only. Dry it with a soft cloth. Do not use steel wool, acids or abrasive materials, as they can cause damage to the oven surface. Clean the oven control panel with the same precautions.

temperature (°C)

2 160 45 - 55 2 160 80 - 100

3 140 25 - 35

2 180 45 - 60

2 190 50 - 60

1 190 —

Cleaning the door gasket

• Regularly do a check of the door gasket. The door gasket is around the frame of the oven cavity. Do not use the appliance if the door gasket is damaged. Contact the Service Centre.

• To clean the door gasket, refer to the general information about cleaning.

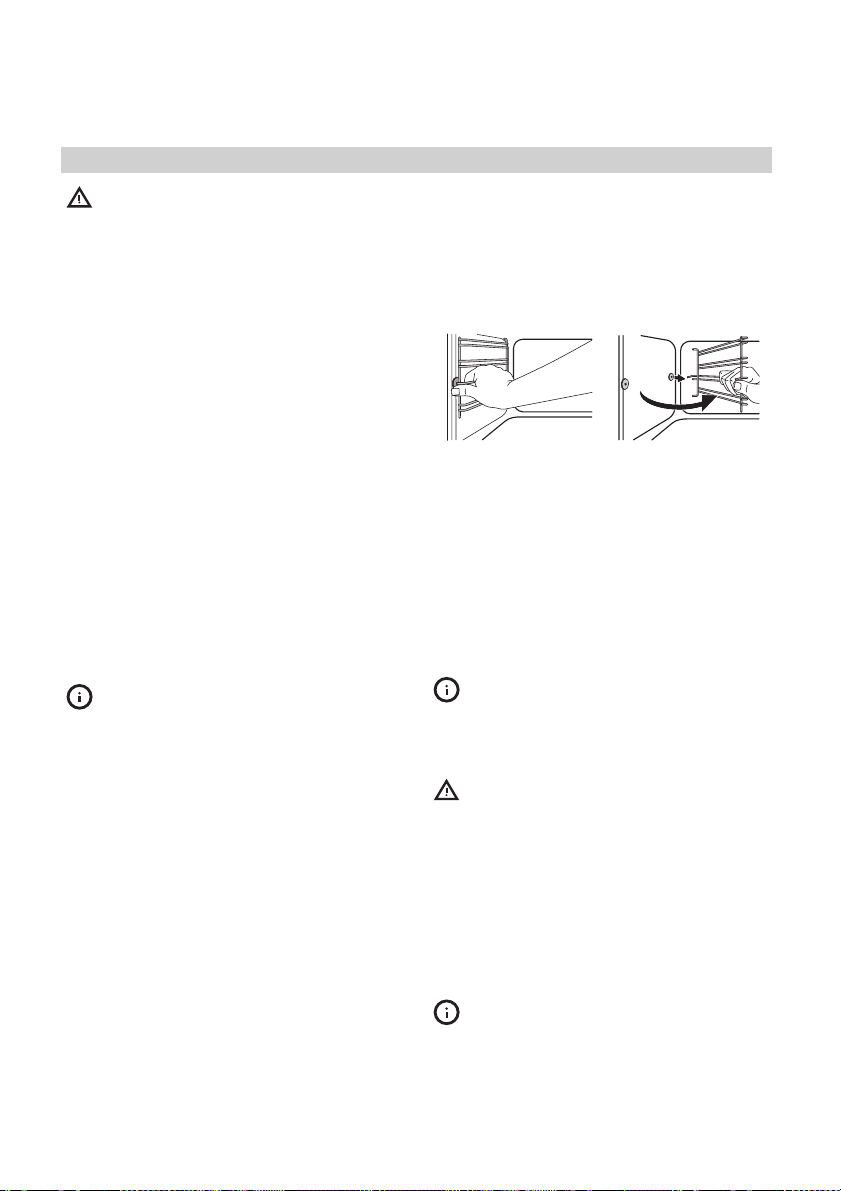

Shelf supports

You can remove the shelf supports to clean the side walls.

Removing the shelf supports

Pull the front of the shelf support away from the side wall.

Installing the shelf supports

Install the shelf supports in the opposite sequence.

200

Pull the rear end of the shelf support away from the side wall and remove it.

Cooking Time (min)

20 - 30

+ 30 hidden pages
