Page 1

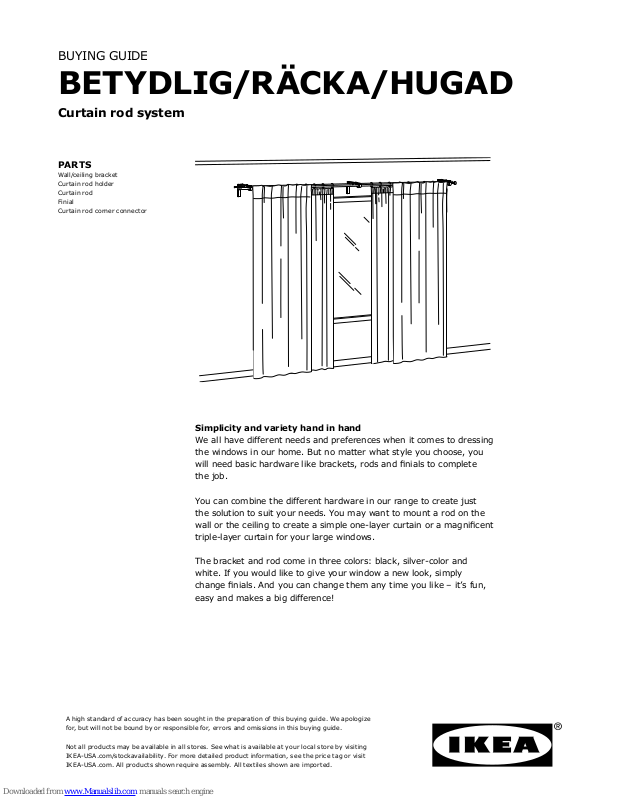

BUYING GUIDE
BETYDLIG/RÄCKA/HUGAD
Curtain rod system
PARTS
Wall/ceiling bracket
Curt ain rod holder
Curtain rod
Finial
Curt ain rod corne r conne ctor
Simplicity and variety hand in hand
We all have different needs and preferences when it comes to dressing
the windows in our home. But no matter what style you choose, you
will need basic hardware like brackets, rods and nials to complete
the job.
You can combine the different hardware in our range to create just
the solution to suit your needs. You may want to mount a rod on the
wall or the ceiling to create a simple one-layer curtain or a magnicent
triple-layer curtain for your large windows.
The bracket and rod come in three colors: black, silver-color and
white. If you would like to give your window a new look, simply
change nials. And you can change them any time you like – it’s fun,
easy and makes a big difference!
A high st andard o f accur acy ha s been sought in the prep aratio n of this buying gui de. We apologize
for, but will not be bound by or resp onsib le for, erro rs and omissions in this buying guide.
Not all pr oduc ts may be available in all stor es. Se e what is available at yo ur local stor e by visit ing
IKEA-USA.co m/stoc kavailab ility. For more det ailed p roduct info rmation, see th e price tag or visit
IKEA-USA.co m. All product s shown r equir e assembly. All tex tiles shown ar e impor ted.
Page 2
+=
HOW TO BUILD
1
Two wall/ceiling brackets are needed for curtain rods up to 55⅛".
2
+ =
++
Three wall/ceiling brackets are needed for curtain rods up to 110¼".
1. The brackets can be mounted on the wall or the ceiling.
And the position of the curtain rod holder can be adjusted,
allowing cur tains to be hung either close to the window or
farther out.
The curtain rods come in two diameters, three lengths and
three colors. All are extendable in length. You can complete
the expression easily with nials from the IKEA range.
COMBINATIONS
=
2. To create a layered solution, you just need to buy extra
curtain rod holders and mount them on the brackets. Then
add extra curtain rods.
A single window, for example 36", with a single-layer
solution.
Window hardware
RÄCKA Cur tain rod 28-47" 002.171.65 $ 1. 99/pc 1 pc
BETYDLIG Wall/ceiling bracket 602.172.28 $1. 50/pc 2 pc s
RAFFIG Finial, 2pcs/pack 202.199.36 $2/2p k 1 pc
This combination $7
(Curtains, rings and hooks are sold separately.)
2
Page 3
COMBINATIONS
To cover an open storage solution or create a simple room
divider. The brackets can be mounted on the ceiling.
Window hardware
RÄCKA Cur tain rod 47-83" 302.171.59 $3.99/pc 1 p c
BETYDLIG Wall/ceiling bracket 602.172.28 $1. 50/pc 2 pc s
RAFFIG Finial, 2pcs/pack 202.199.36 $2/2p k 1 pc
This combination $9
(Curtains are sold separately.)
Max. 55⅛"
Max. 55⅛"
A wide window, for example 96", with a double-layer
solution – sheer curtain inside and thick curtain outside.
Remember that for curtain rods between 55-110", you
will need three BETYDLIG wall/ceiling brackets to ensure
stability.
Window hardware
RÄCKA Cur tain rod 83-152" 702.171.57 $5.99/pc 1 p c
HUGAD Curtain rod 83-152" 502.171.39 $6 .99/p c 1 p c
BETYDLIG Wall/ceiling bracket 602.172.28 $1. 50/pc 3 pcs
BET YDL IG Curtain ro d holde r 502.19 8.93 50¢/pc 3 pcs
RAFFIG Finial, 2pcs/pack 202.199.36 $2/2p k 1 pc
This combination $21
(Curtains, rings and hooks are sold separately.)
3
Page 4
COMBINATIONS
A large window, for example 120", with a triple-layer
solution. This conguration allows room for panels, sheer
curtains and heavy curtains at the same time. For curtain
rods longer than 110", you will need four BETYDLIG wall/
ceiling brackets to ensure stability.
Window hardware
RÄCKA Cur tain rod 83-152" 702.171.57 $5.99/pc 2 p cs
HUGAD Curtain rod 83-152" 502.171.39 $6 .99/p c 1 p c
BETYDLIG Wall/ceiling bracket 602.172.28 $1. 50/pc 4 pcs
BET YDL IG Curtain ro d holde r 502.19 8.93 50¢/pc 8 pcs
RAFFIG Finial, 2pcs/pack 202.199.36 $2/2p k 1 pc
This combination $31
(Curtains and hanging accessories are sold separately.)
4
Page 5
ALL PARTS AND PRICES
BETYDLIG Wall/ceiling bracket Max load 22 l bs.
Black 602.172.28 $1.50
Silver-color 102.198.90 $1.50
White 302.198.89 $1. 50
BETYDLIG Curtain rod holder L 2⅜".
Neede d for a double or tr iple curtain rod so lution.
Black 502.19 8.93 50¢
Silver-color 002.198.95 50¢
White 602.19 8.97 50¢
RÄCKA Cur tain rod L28-47". Max load 11 lbs.
Black 002.171.65 $1.99
Silver-color 002.213.9 4 $1.99
White 702.213.95 $1.99
RÄCKA Curtain rod L47-83". To be completed with
BETYDLIG wall/ceiling brackets. Two brackets needed for
lengths up to 55" and three brackets for lengths 55–83".
Max load 11 lbs.
Black 302.171.59 $3.99
Silver-color 102.171.6 0 $3.99
White 902.171.61 $3.99
RÄCKA Cur tain rod L83-152". To be completed with
BETYDLIG wall/ceiling brackets. Three brackets needed for
lengths up to 110" and four brackets for lengths 110–152".
Max load 11 lbs.
Black 702.171.57 $5.99
Silver-color 702.171.62 $5.99
White 402.171.49 $5.99
FÖRRÄTT Finials L1¾".
White 003.005.98 $8/2pk
MORGONMÅL Finials L3¼".
Black 403.005.96 $5/2 pk
White 903.005.94 $5/2 pk
BLÅST Finials
Black 402.172.48 $10/2 pk
White/glass 303.331.87 $10/2pk
RAFFIG Finials L1".
Black 202.199.36 $2/2p k
Silver-color 002.199. 37 $2/2 pk
White 502.171.82 $2/2pk
VÄSENTLIG Finials L2⅛".
White 002.171.94 $5/2pk
SYRL IG Curtain rings with clip and hook
Max load 7 lbs. Ø1".
Black 102.172.40 $3.99/10pk
Silver-color 202.172.25 $3.99/10pk
White 402.240.98 $3.99/10pk
Nickel plated 10 3 . 057.9 8 $3.99/10pk
HUGAD Curtain rod L47-83". To be completed with
BETYDLIG wall/ceiling brackets. Two brackets needed for
lengths up to 55" and three brackets for lengths 55–83".
Max load 22 lbs.
Black 302.171.35 $4.99
Silver-color 902.171.37 $4.99
White 102.171.41 $4.99
HUGAD Curtain rod L83-152". To be completed with
BETYDLIG wall/ceiling brackets. Three brackets needed for
lengths up to 110" and four brackets for lengths 110–152".
Max load 22 lbs.
Black 502.171.39 $6.99
Silver-color 702.171.38 $6.99
White 302.171.40 $6.99
SYRL IG Curtain rings with clip and hook
Max load 7lbs. Ø1½".
Black 802.240.96 $4.99/10pk
Silver-color 502.199.54 $4.99/10pk
White 502.172.38 $4.99/10pk
5
Page 6
MEASURE YOUR WINDOW
Start by taking the measurements of your window.
6" 6"
a
6"
b
1. The width. This determines the width of your
curtain rod or track rail.
Measure the width of the window. Add at least
6" on each side to the measurement for where
the brackets will mount to ensure the window
will be fully covered and to allow the curtain to
fully open.
© Inter IKEA Systems B.V. 2011
Prices valid as of August 1, 2018 posting. Prices are subject to change.
Please see IKEA-USA.com or your local IKEA store for the most up to date pricing.
a
2. The height. This determines the length of
your curtains or panel curtains.
a
Measure from the top of the window frame and
stop where you want your curtains or panel
curtains to end.
b
As a rule of thumb, add 6" to the
measurement to give space to your curtain
rod or track rail. Create a visual appearance that
the ceilings are higher by mounting the curtain
rod closer to the ceiling. Wash curtains before
use to account for shrinkage or add an inch or
so to allow for the shrinkage of the curtains.
b
